NSR NVR-3000 VHF RADIO
NSR NVR-3000 VHF RADIO
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
【FEATURES】
- Meet the latest ITU standards
- Large 7-inch color display
- Knob & touch screen operation
- 4-digital channels available
- Audio interface to VDR
- Data interface to BAM System/INS
- DNV type approval
- RS type approval

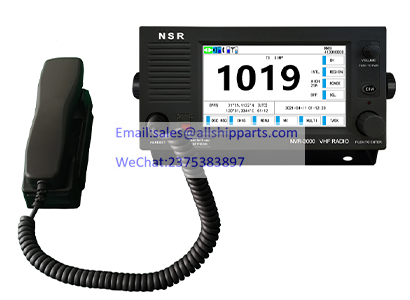

NVR-3000 VHF RADIO(GMDSS) is a high performance VHF device,
capable of voice communication and DSC(digital selective calling) facilities as
well.Conforming to Class A standard set for VHF DSC by ITU and IMO
regulation,NVR-3000 can be part of onboard GMDSS package for vessels of A1,A2
or A3.Interfaces to VDR and BAM system are available on NVR-3000. NVR-3000
comnforms to the regulations of ITU-R M.493-15, IMO M302 (87):2010,
IEC61097-3:2017,IEC61097-7:2018,IEC62923-1:2018,IEC62923-2:2018.

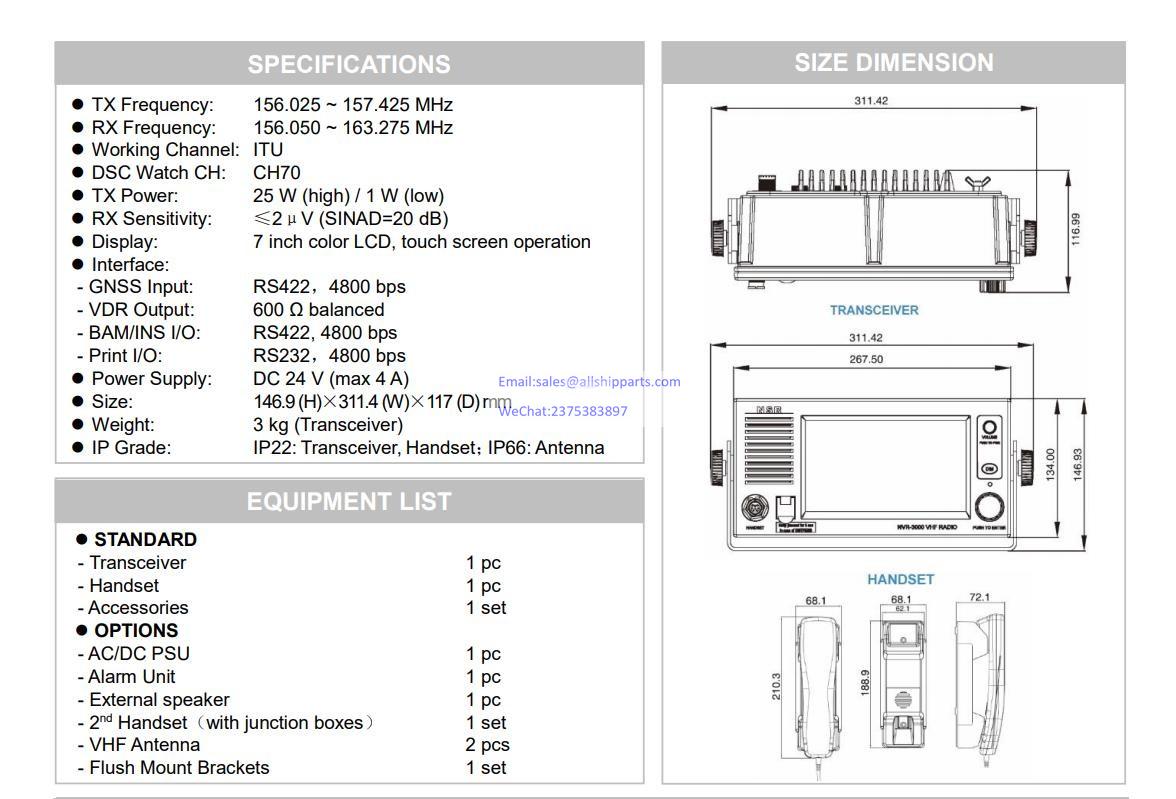

【SPECIFICATIONS】
|
TX Frequency: |
156.000～157.425MHz |
|
RX Frequency: |
156.000～163.425MHz |
|
Working Channel: |
ITU |
|
DSC Watch CH: |
CH70 |
|
TX Power: |
25W(high)/1W(low) |
|
RX Sensitivity: |
≤2μV(SINAD=20dB) |
|
Display: |
7 inch，color LCD，touch screen |
|
Interface: |
|
|
GNNS Input: |
RS422，4800bps |
|
VDR Output: |
600 Ω balanced |
|
BAM/INS I/O: |
RS422,4800bps |
|
Printer I/O: |
RS232,4800bps |
|
Power Supply: |
24 VDC (max 4A) |
|
Weight |
3kg |
|
IP Grade |
IP22 |
