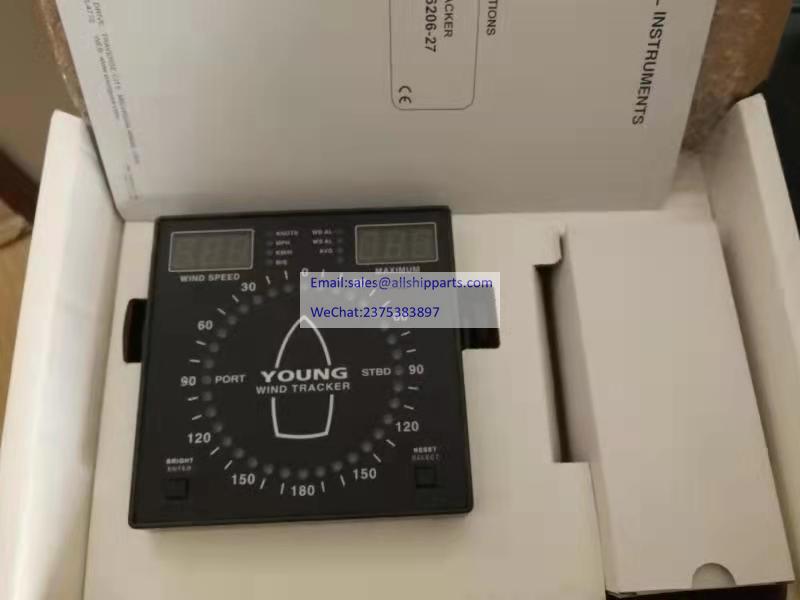

R.M.YOUNG 06206 WIND MONITOR Marine Wind Tracker

R.M.YOUNG 06206 WIND MONITOR Marine Wind Tracker

Product Description:

R.M.YOUNG 06206 Marine Wind Tracker/WIND MONITOR


Contact : Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

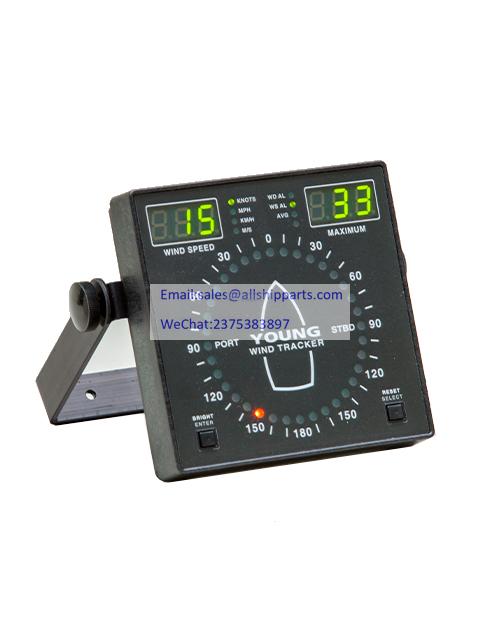

The YOUNG Model 06206 Wind Tracker is a compact wind speed and direction display with advanced features such as relative wind angle and NMEA serial I/O making it suitable for shipboard use.  Compatible with most YOUNG wind sensors (excluding voltage output models) it will display instantaneous wind speed and maximum wind gust values in your choice of mph, m/s, km/hr, or knots.  Wind direction is clearly displayed on a circular pattern of LEDs. Bold front panel graphics give a quick indication of wind angle relative to vessel heading.  Brightness control allows adjustment for best viewing in any light.  Luminous front panel markings allow viewing even in a darkened pilothouse.  Voltage outputs (0-5 VDC) are a standard feature.  The display will operate directly with a 12 or 24 VDC supply (12-30 VDC, 3.5W); a dual power supply (110 VAC / 230 VAC) is included.  The Wind Tracker can be enabled to display average values.  Alarm relay connections are available for wind speed and direction.  The upper right display can also be set to numerically display the relative wind direction with reference to the bow as opposed to maximum wind gust.  Multiple displays can be used with a single sensor.   The Marine Wind Tracker is very compact for easy mounting on vertical bulkheads or consoles.

An optional Model 06280 Rack Mounting Panel is available for installation into a standard 19” rack mount instrumentation panel (Model 06282 Rack Mount Panel holds two displays).

Model 06260 Weather Resistant Protective Enclosure offers extra protection for wet or dusty locations.


Wind Speed Range:

0-224 mph
0-100 m/s
0-360 km/hr
0-194 knots

Wind Direction Range:

0-360°

Voltage Outputs:

0-5 VDC = 0-100 m/s
0-5 VDC = 0-360° or 0-540°

Serial Input/Output:

NMEA

Alarm Relays:

Normally open contacts for wind speed and wind direction
Contact rating: 24 VAC or 30 VDC maximum 5A resistive, 2A inductive maximum

Remote Displays:

16 max

Power Requirement:

12-30 VDC, 3.5 W

Dimensions:

144 mm (5.65 in) x 144 mm (5.65 in) x 36 mm (1.4 in)

Panel Cutout:

138 mm (5.43 in) x 138 mm (5.43 in)

Weight:

0.4 kg (1 lb)

Shipping Weight:

1.4 kg (3 lb)
