NSR NHR-1500 MF/HF RADIO

NSR NHR-1500 MF/HF RADIO

Product Description:

NHR-1500 MF/HF RADIO

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

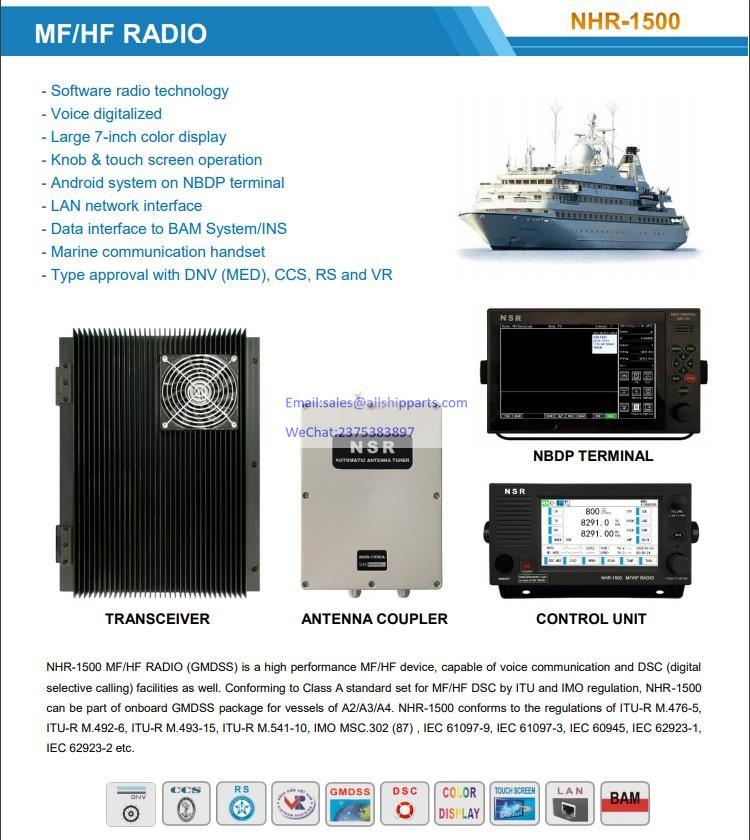

FEATURES

- Capable of voice communication and DSC (digital selective calling) facilities as well.

- Conforming to Class A standard set for MF/HF DSC by ITU and IMO regulation.

- Can be part of onboard GMDSS package for vessels of A2, A3 and A4.

- Large 7-inch color display.

- Knob & touch screen operation.

- Data interface to BAM System/INS.

- LAN network interface.

- Software radio technology.

- Voice digitalized.

- Conforms to the regulations of ITU-R M.476-5, ITU-R M.492-6, ITU-R M.493-15, ITU-R M.541-10, IMO M302 (87), IEC 61097-9, IEC 61097-3, IEC 60945, IEC 62923-1, IEC 62923-2.

- CCS type approval.

- DNV type approval.

- RS type approval.

- VR type approval.

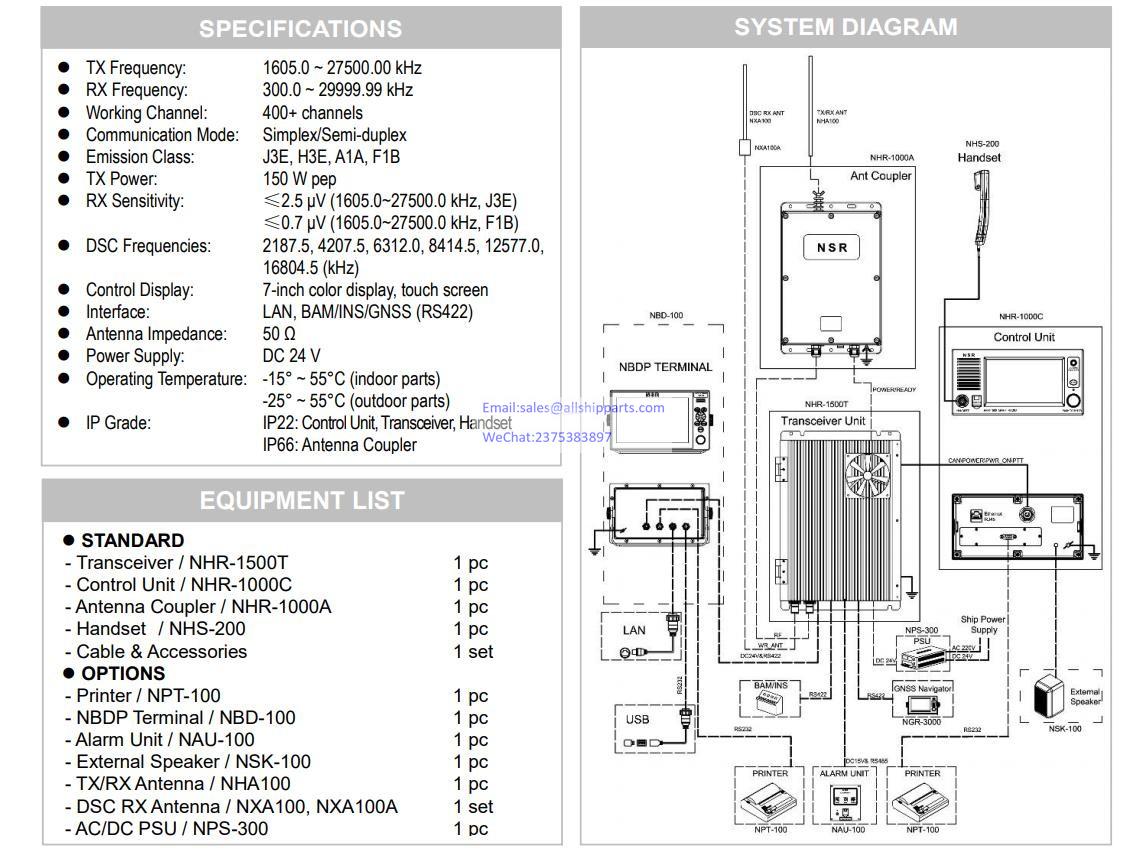

SPECIFICATIONS

TX Frequency:

1605.0-27500.0 kHz

RX Frequency:

300.0-29999.99 kHz

Working Channel:

400+ channels

Communication Mode:

Simplex/Semi-duplex

Emission Class:

J3E, H3E, A1A, F1B

TX Power:

150W pep

RX Sensitivity:

J3E≤2.5 µV1605.0 - 27500.0 kHz

F1B≤0.7 µV1605.0 - 27500.0 kHz

A1A≤1.4 µV 1605.0 - 27500.0 kHz

DSC frequencies (kHz):

2187.5, 4207.5, 6312.0, 8414.5, 12577.0, 16804.5

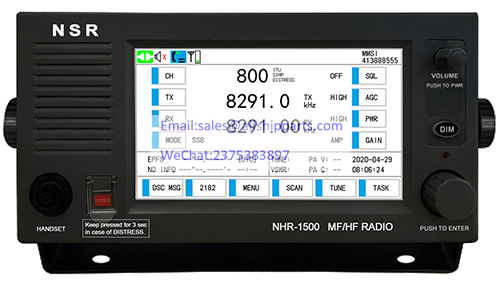

Control Display:

7-inch color display, touch screen

Interface:

LAN, BAM/INS (RS422), GNSS (RS422)

Antenna Impedance:

50 Ω

IP Grade:

IP22: Control unit, Transceiver, Handset
IP66: Antenna coupler

Operating Temperature:

-15° to 55°C (indoor parts)
-25° to 55°C (outdoor part)

Power Supply:

DC24V
