NSR NSI-1000 UAIS

NSR NSI-1000 UAIS

Product Description:

NSR NSI-1000 UAIS

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

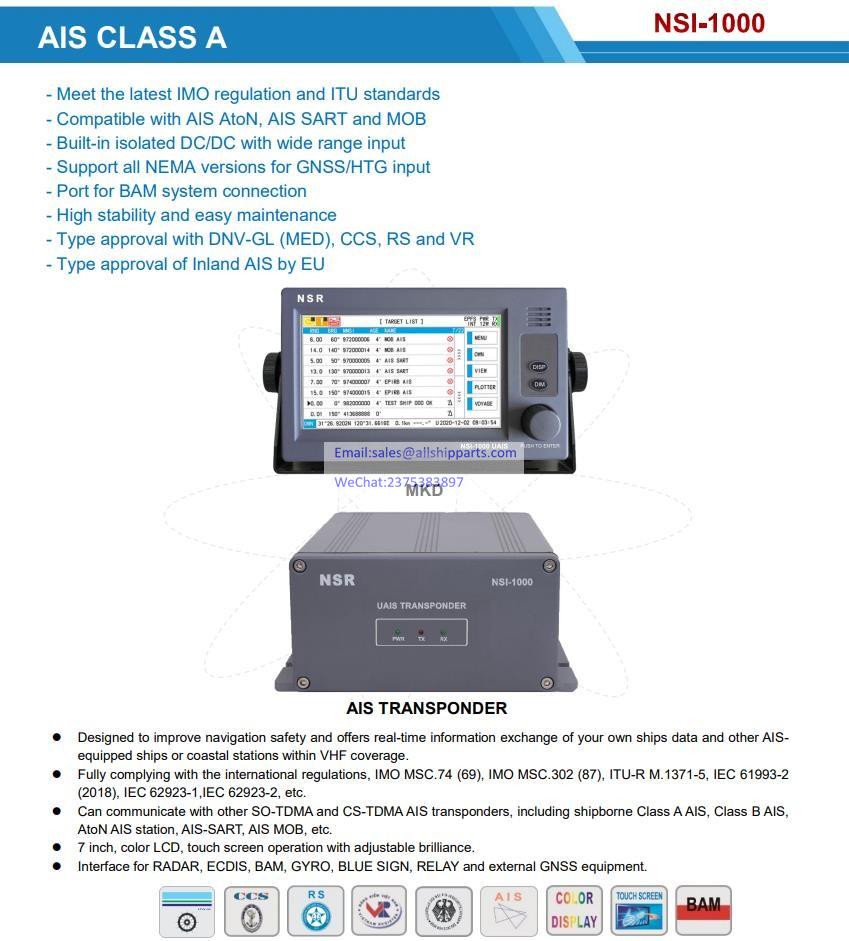

FEATURES

- Fully complying with the latest international regulation, IMO MSC 74 (69), ITU M.1371-5,IEC 61993-2, etc.

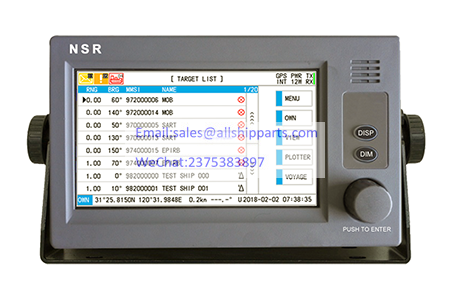

- 7 inch, color LCD, touch screen operation with adjustable contrast and brilliance.

- Interface for RADAR, ECDIS, INS, GYRO and external GPS equipment.

- Compatible with AIS AtoN, AIS SART and MOB

- Built-in isolated DC/DC with wide range input.

- Support all NEMA versions for GNSS/HTG input.

- High stability and easy maintenance.

- CCS type approval.

- DNV type approval.

- RS type approval.

- VR type approval.

- Type approval of Inland AIS by EU.

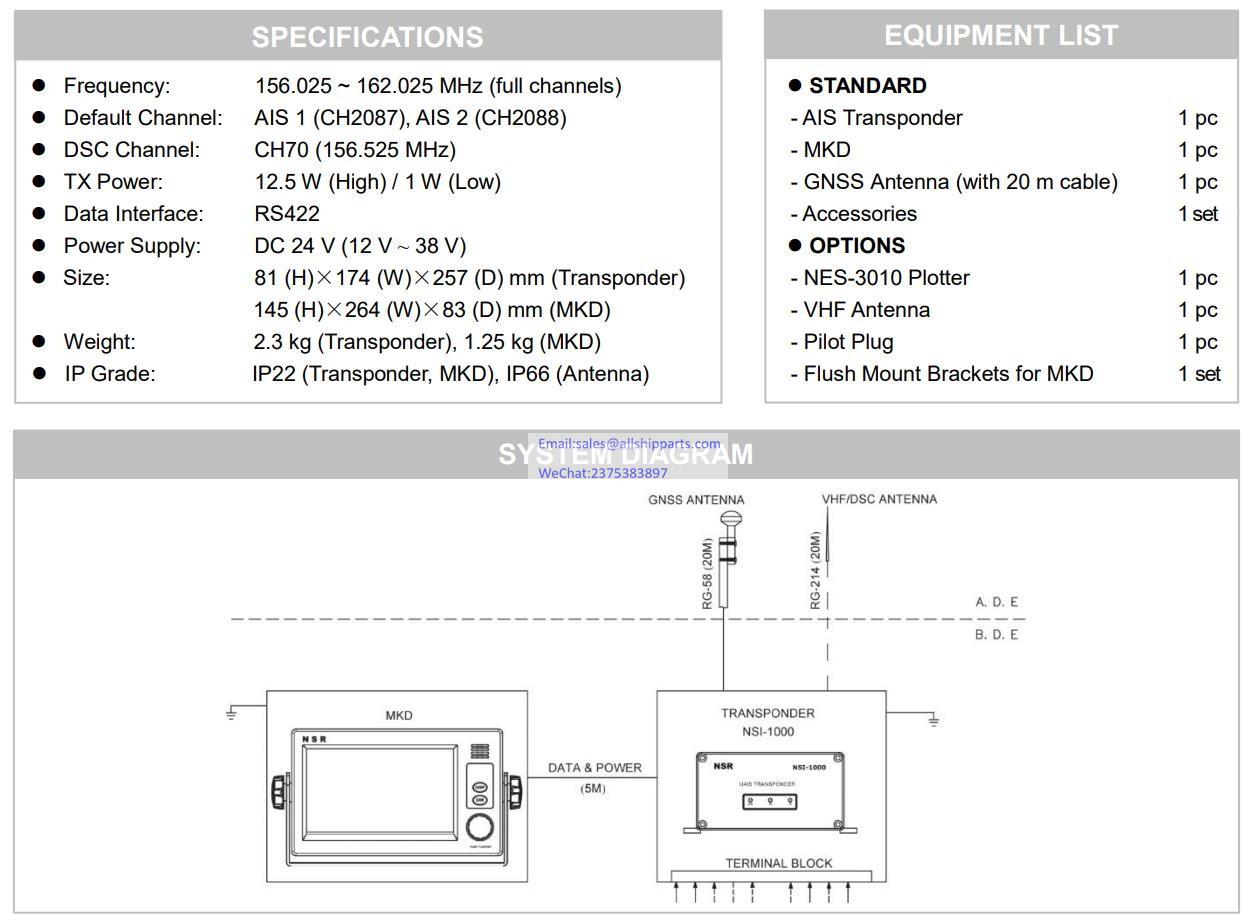

SPECIFICATIONS

Frequency:

156.025 162.025MHz

Default  Channel:

СН2087 (161.975MHz), СН2088 (162.025MHz)

DSC Channel:

CH70 (156.525MHz)

TX Power:

12.5W (High) / 1W (Low)

I/O Interface:

Input RS422×3, Output RS422×4

Power Supply:

DC24V12~38V

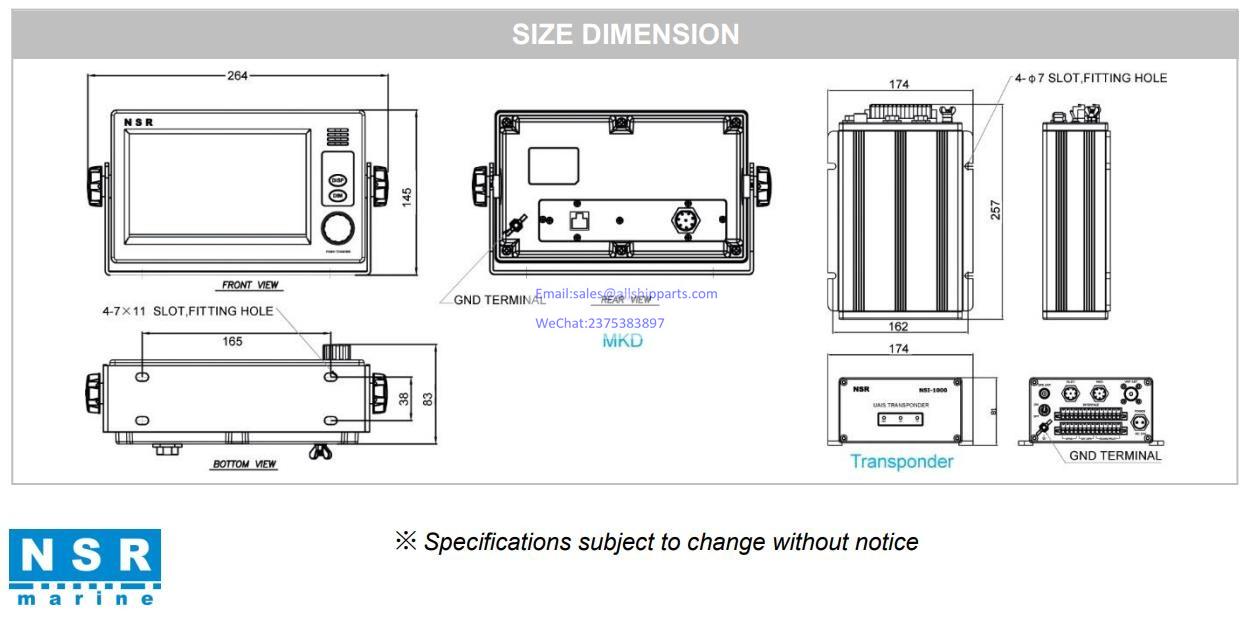

Size:

81(H) x 174 (W) x 257(D) mm (Transponder)
145(H) x 264 (W) x 83(D) mm (MKD)

Weight:

2.3kg (Transponder)
1.25kg (MKD)

IP Grade:

IP22 (Trsnsponder, MKD), IP66 (Antenna)
