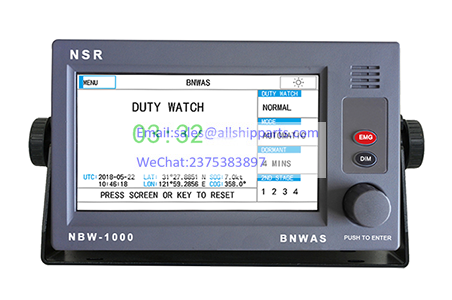

NSR NBW-1000 BNWAS
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

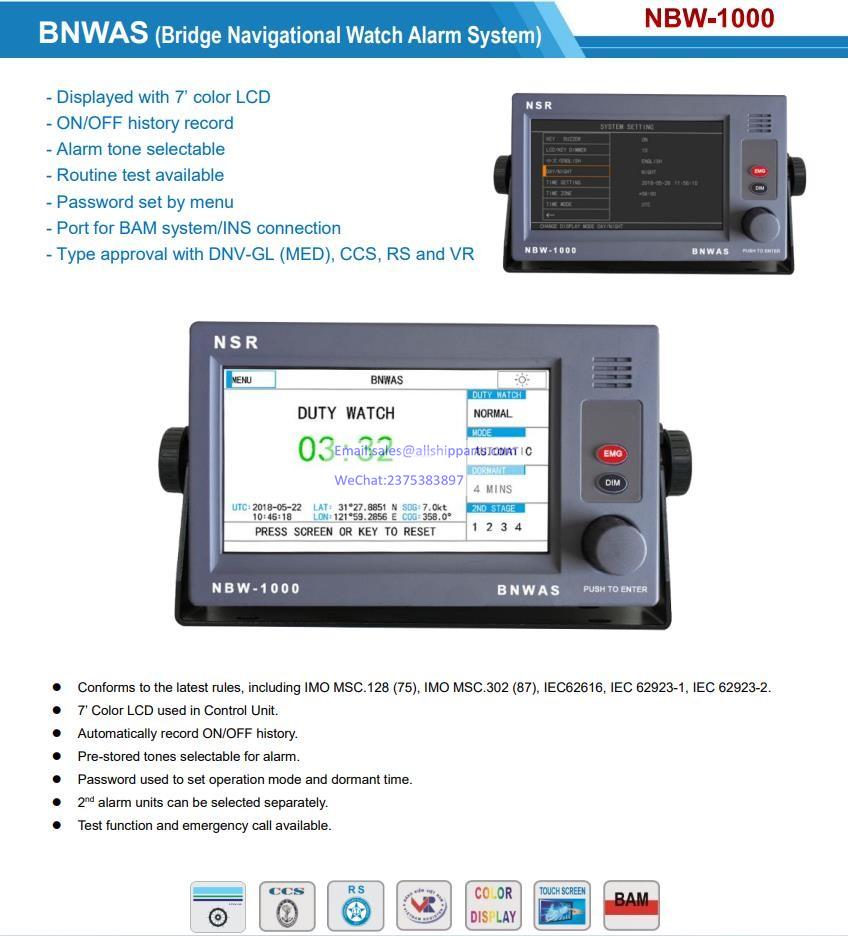

【FEATURES】
- Conforms to the latest rules, including IMO MSC 128 (75), IMO MSC302 (87), IEC62616, IEC 62923-1, IEC 62923-2.
- 7' color LCD used in control unit.
- Automatically record ON/OFF and mode change history.
- Pre-stored tones selectable for alarm.
- Password used to set operation mode and dormant time.
- 2nd alarm units can be selected seperately.
- Test function and emergency call available.
- Port for BAM/INS connection.
- CCS type approval.
- DNV type approval.
- RS type approval.
- VR type approval.

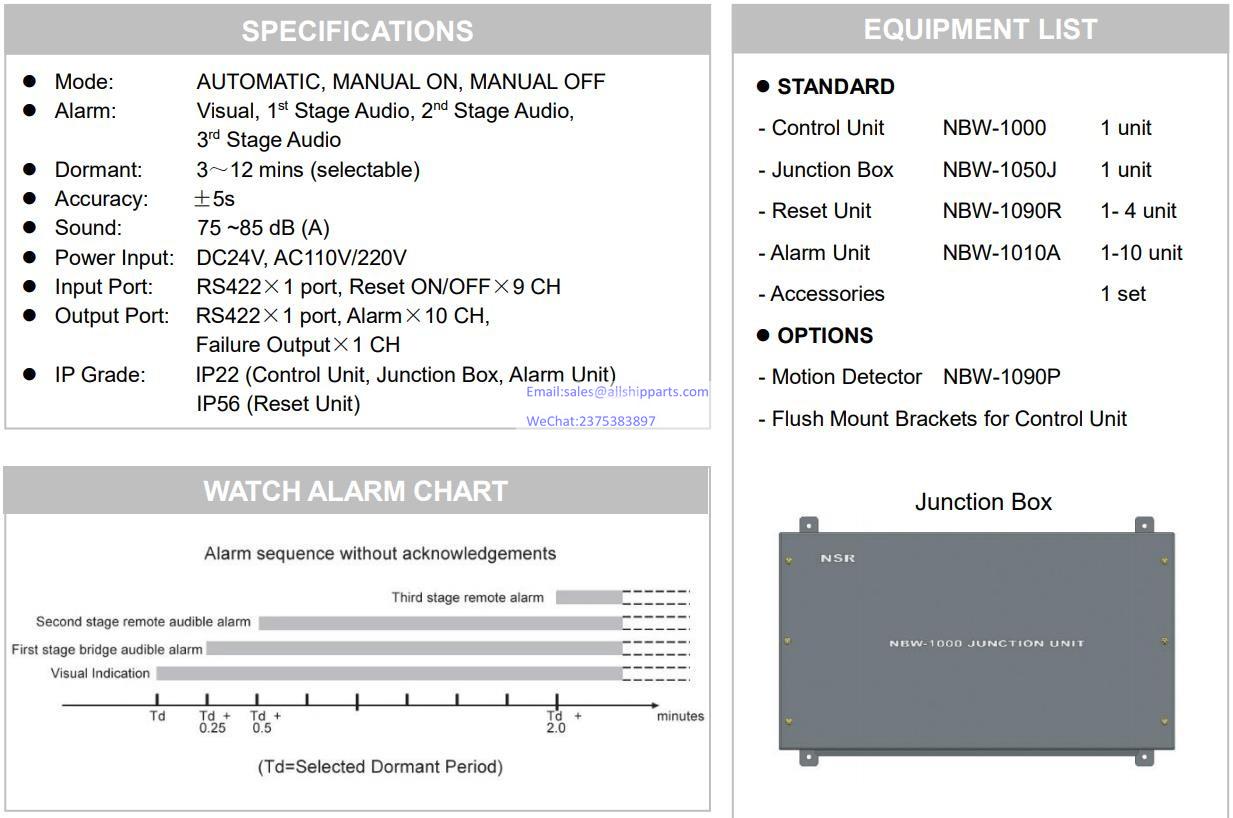

【SPECIFICATIONS】
|
Mode: |
Automatic, Manual, Off |
|
Alarm: |
Visual, 1ST stage audio, 2ND stage audio , 3RD stage audio |
|
Dormant: |
3～12 minutes (selectable) |
|
Accuracy: |
±5s |
|
Sound: |
75~85dB (A) |
|
Power Input: |
DC24V, AC110V/220V |
|
Input Port: |
RS422X1 port , RESET ON/OFF X9CH |
|
Output Port: |
RS422X1 port , ALARM X10CH, FAILURE ALARM OUTPUTX1CH |
|
IP Grade: |
IP22 (Control Unit, Junction Box, Alarm Unit), IP56 (Reset Unit) |
