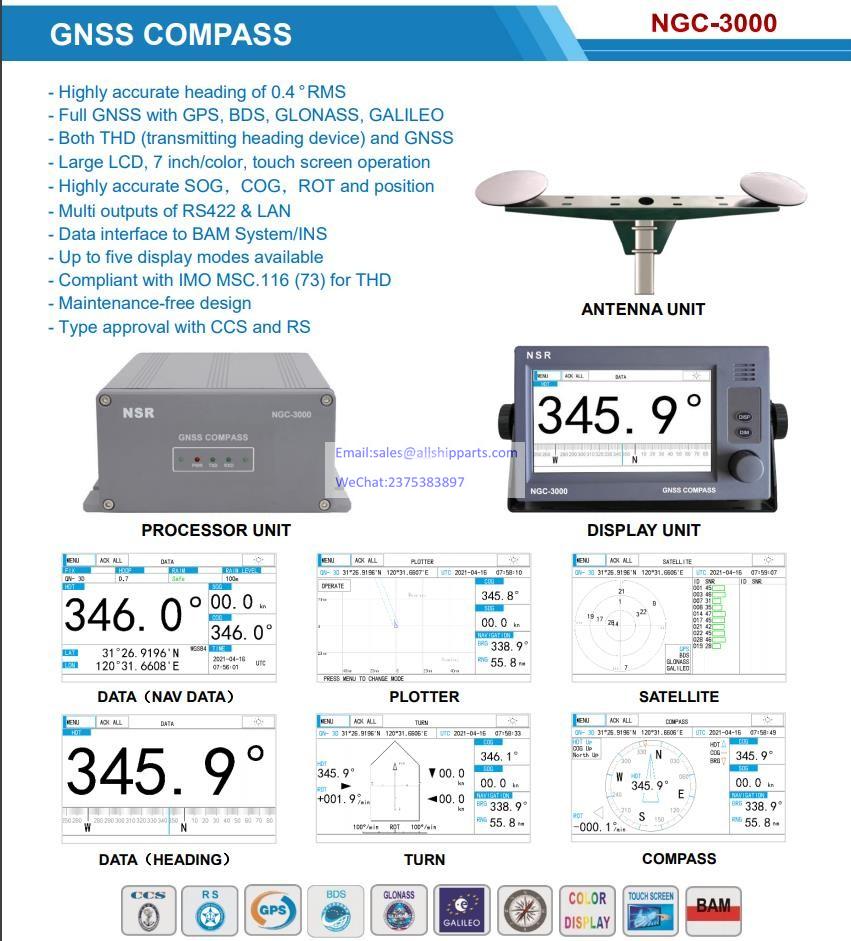

NSR NGC-3000 GNSS COMPASS

Model

NGC-3000

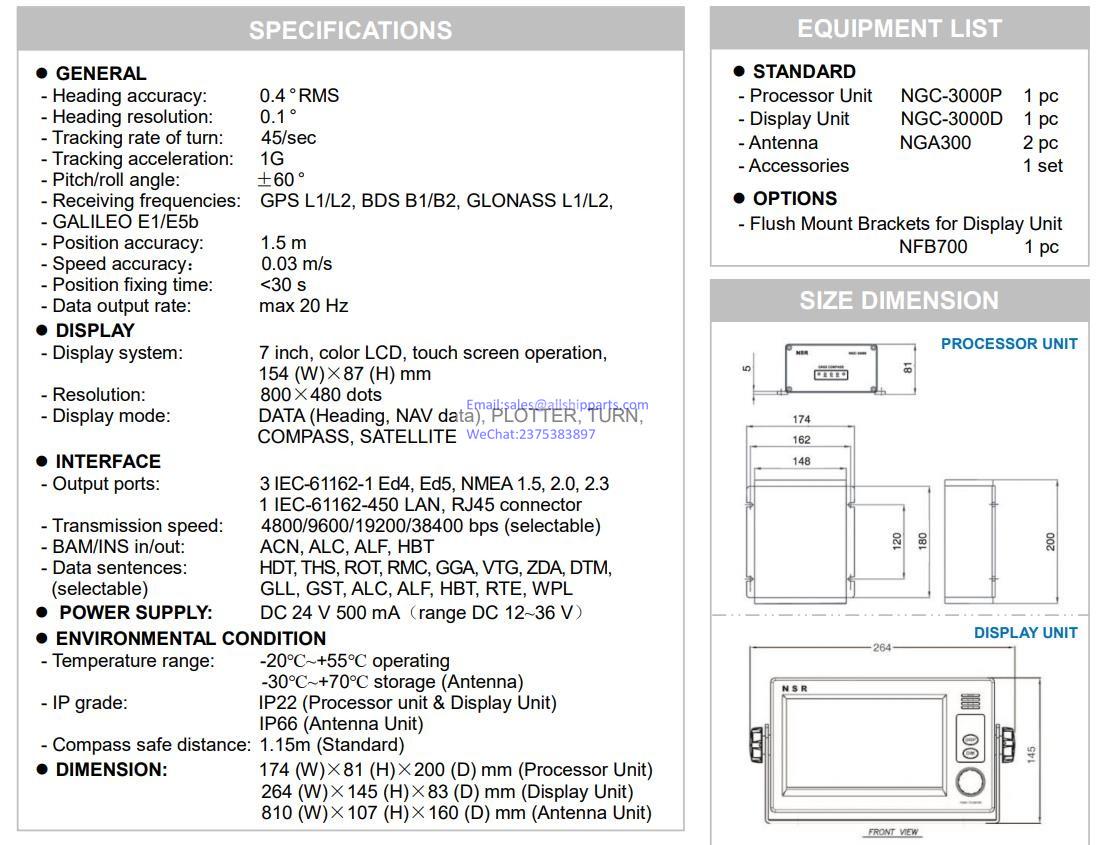

GENERAL

Heading Accuracy:

0.4° RMS

Heading Resolution:

0.1°

Tracking rate of turn:

45°/sec

Tracking acceleration:

1G

Pitch/roll angle:

60°

Receiving frequencies:

GPS L1/L2, BDS B1/B2, GLONASS L1/L2, Galileo E1/E5b

Position Accuracy:

1.5m

Speed Accuracy:

0.03m/s

Position Fixing Time:

<30s

Data Output Rate:

max 20Hz

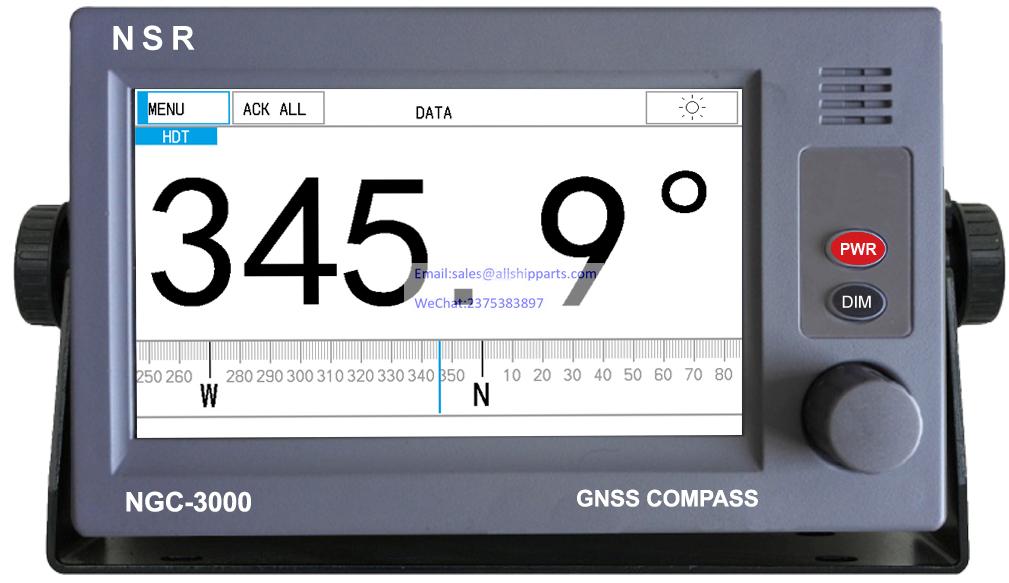

DISPLAY SECTION

Display System:

7 inch, color LCD, touch screen operation,
154(W)×87(H) mm

Resolution:

800 x 480 dots

Display Mode:

DATA (Heading, NAV data), PLOTTER, TURN,
COMPASS, SATELLITE

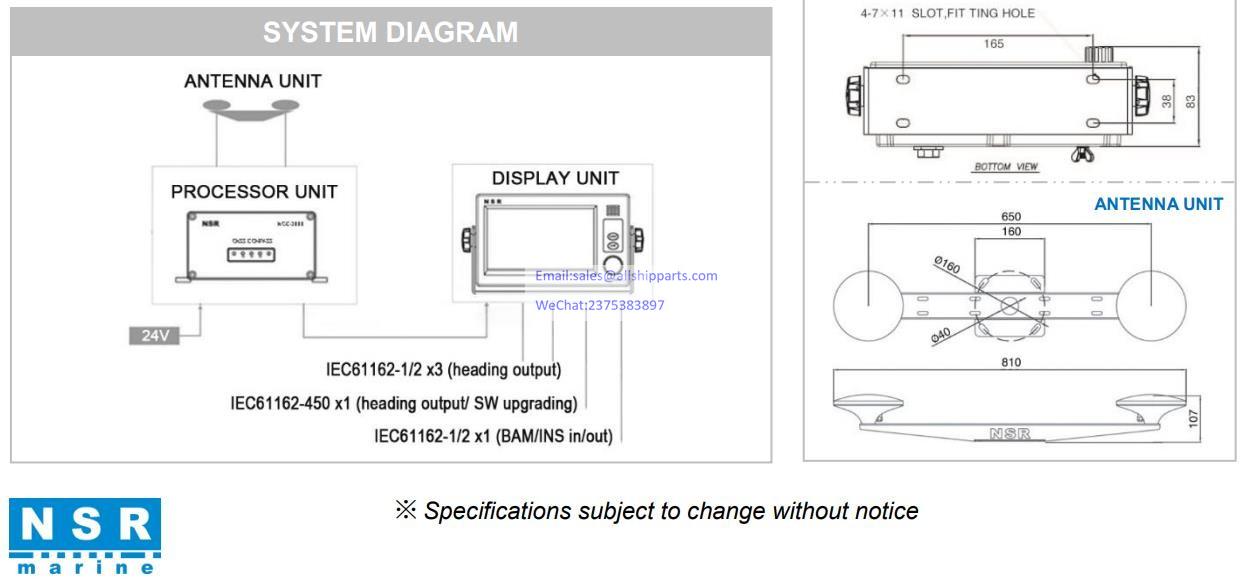

INTERFACE

Output Data:

2 IEC-61162-1 Ed4, Ed5, NMEA 1.5, 2.0, 2.3
1 IEC-61162-450 LAN, RJ45 connector

Transmission Speed:

4800/9600/19200/38400 bps (selectable)

Sentences:

ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, etc.

INS In/Out:

ACN, ALC, ALF, HBT

Data Sentences:

HDT, THS, ROT, RMC, GGA, VTG, ZDA, DTM, GLL, GST,
ALC, ALF, HBT, RTE, WPL (selectable)

ENVIRONMENT  CONDITION

Temperature range:

-20∩~+55∩ operational
-30∩~+70∩ storage (Antenna)

IP Grade:

Antenna Unit: IP66
Processor Unit & Display Unit: IP22

Compass safe distance:

1.15m (standard)

Power Supply

DC24V 500mA  (range DC12-36V)

Size

174 (W) × 81 (H) × 160 (D) mm (Processor unit)
264 (W) × 145 (H) × 83 (D) mm (Display unit)
810 (W) × 107 (H) × 160 (D) mm (Antenna unit)
