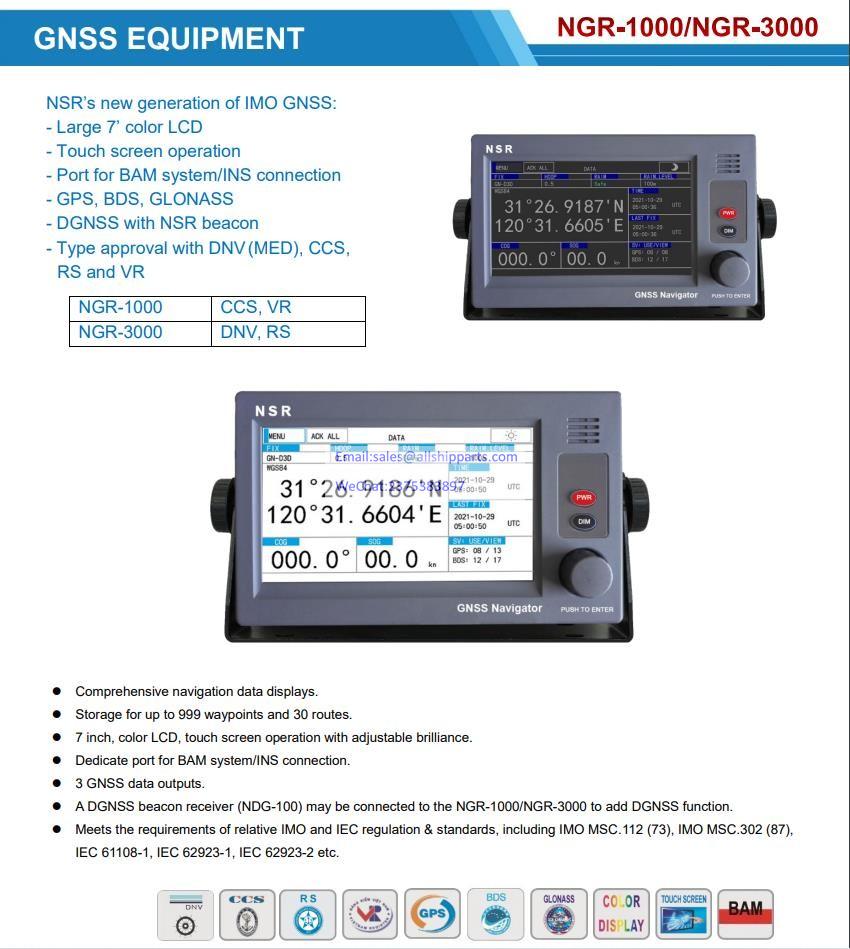

NSR NGR-1000/NGR-3000 GNSS

Model

NGR-3000 / NGR-1000

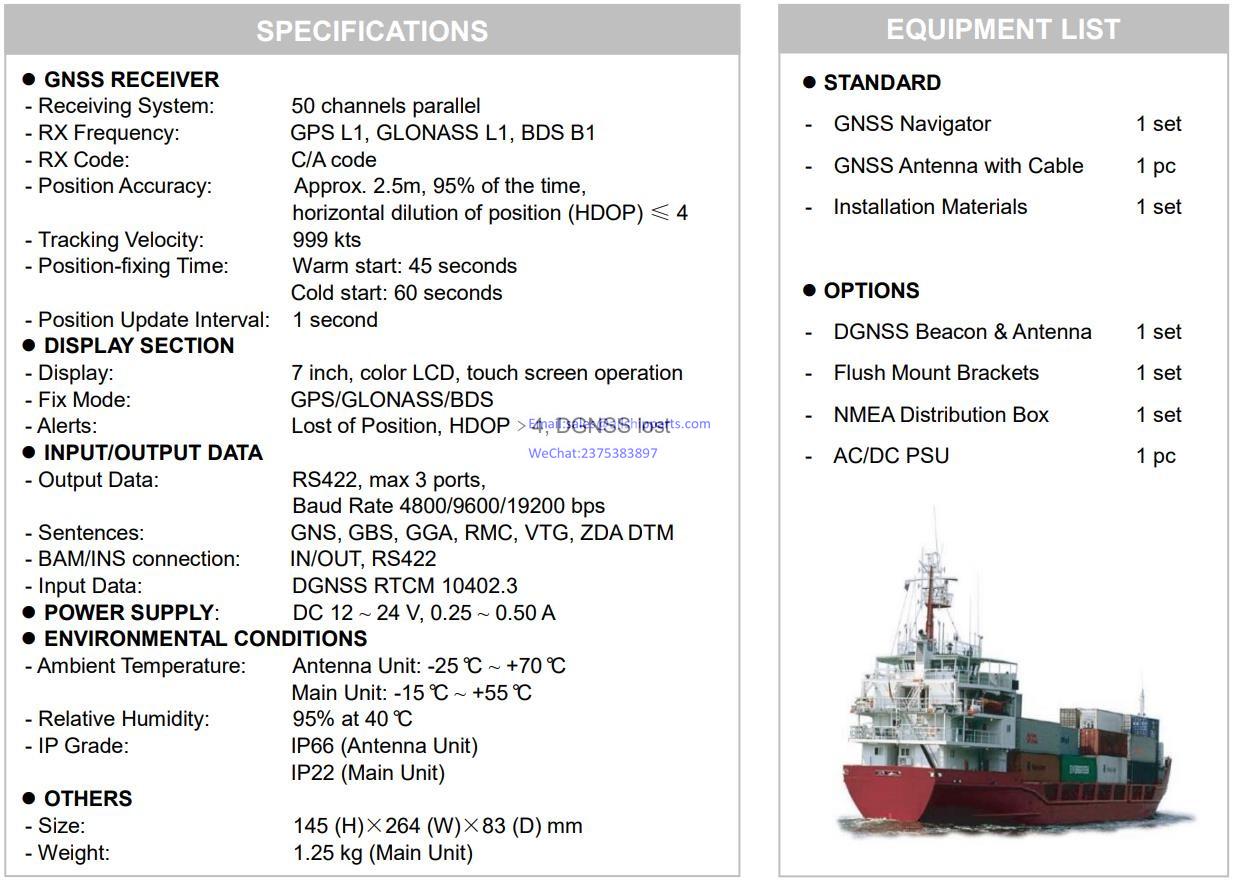

GPS RECEIVER

Receiving System:

GPS, BDS, GLONASS

Rx Code:

C/A code

Position Accuracy:

Approx. 2.5m, 95% of the time,
horizontal dilution of position (HDOP) ≤ 4

Tracking Velocity:

999 kts

Position-fixing Time:

Warm start: 45 seconds. Cold start: 60 seconds

Position Update Interval:

1 second

DISPLAY SECTION

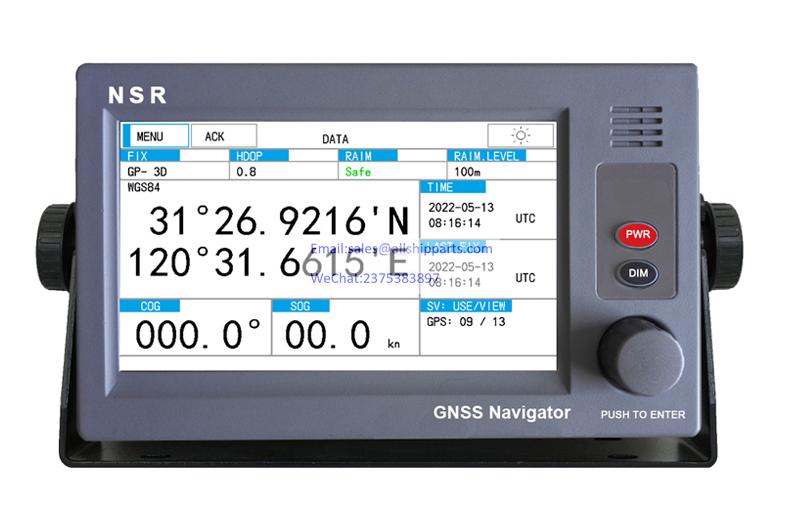

Display:

7 inch, color LCD, touch screen operation

Fix Mode:

GPS / GLONASS / BDS

Alerts:

Lost of Position, HDOP﹥4, DGPS lost

INPUT/OUTPUT DATA

Output Data:

RS422, totally 3 ports,
Baud Rate 4800/9600/19200/38400 bps

Sentences:

ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, etc.

BAM/INS connection:

IN / OUT, RS422

Input Data:

DGPS RTCM SC-1042.3

Power Supply

12~24 VDC, 0.25-0.50 A

ENVIRONMENT CONDITION

Ambient Temperature:

Relative Humidity:

95% at 40°C

IP Grade:

Antenna Unit: IP66
Main Unit: IP22

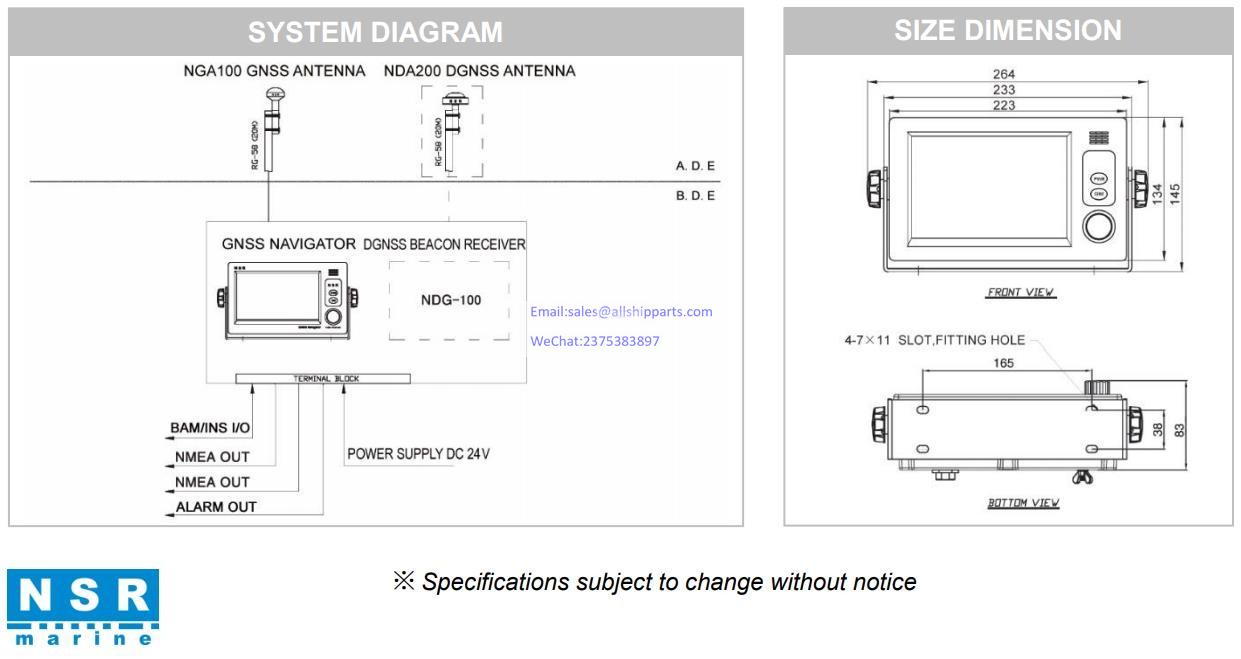

Size

145(H) x 264(W) x 83(D) mm

Weight

1.25kg (main unit)
