NSR NRT-1000 SART
NSR NRT-1000 SART
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

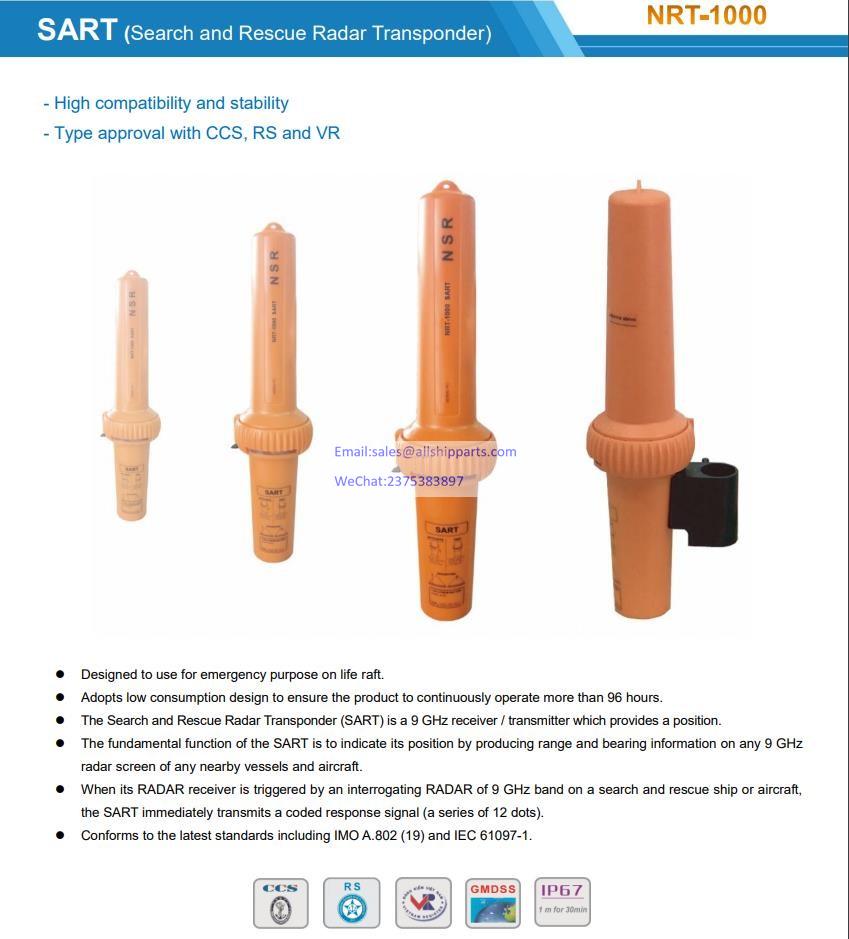

【FEATURES】
- Designed to use for emergency purpose on lifecraft.
- NRT-1000 adopts low consumption devices to ensure the product to continuously operate more than 96 hours.
- The Search and Rescue Radar Transponder (SART) is a 9 GHz receiver / transmitter which provides a position.
- The fundamental function of the SART is to indicate its position by producing range and bearing information on any 9 GHz radar screen of any nearby ship, vessels and aircraft (with no modification).
- NRT-1000 conforms to the latest standards including IMO A.802 (19), IEC 61097-1.
- CCS type approval.
- RS type approval.
- VR type approval.

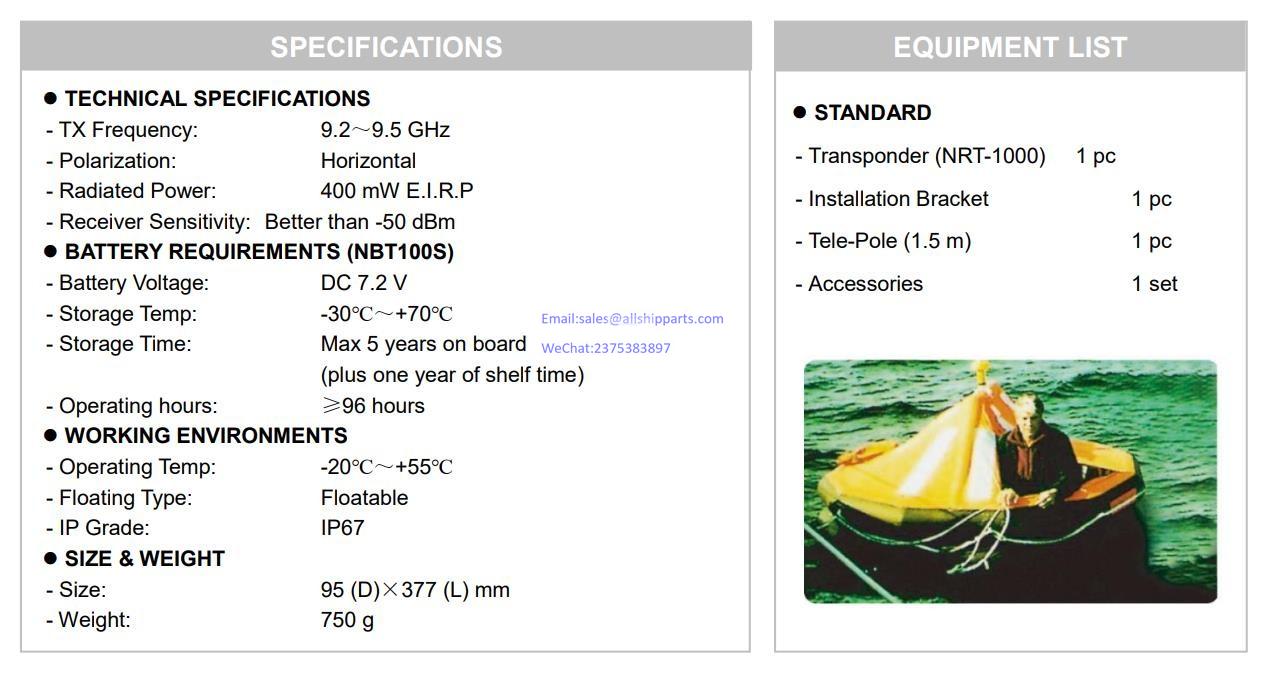

【SPECIFICATIONS】
|
Technical Specifications |
|
|
TX Frequency: |
9.2~9.5GHz |
|
Polarization: |
Horizontal |
|
Radiated Power: |
400mW E.I.R.P |
|
Receiver Sensitivity: |
Better than -50dBm |
|
Battery Requirements (NBT100S) |
|
|
Battery Voltage: |
7.2VDC |
|
Storage Temp.: |
-30℃ ~ +70℃ |
|
Storage Time: |
max 5 years on board (see Note 1) |
|
Working Hours: |
At least 96 hours |
|
Working Environments |
|
|
Operation Temp.: |
-20℃ ~ +55℃ |
|
Floating Type: |
Floatable |
|
IP Grade: |
IP67 |
|

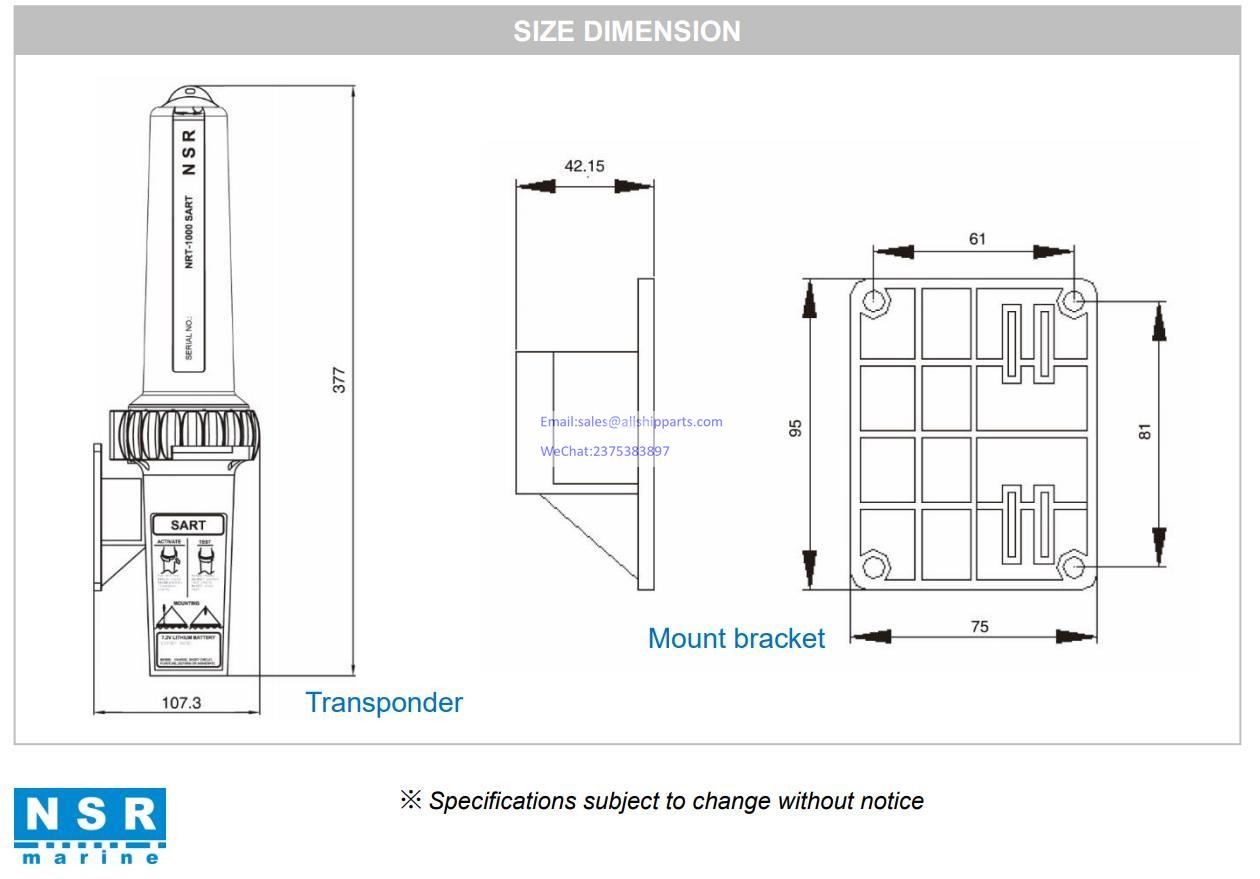

Dimension & Weight |
|
|
Dimension: |
95(D) × 377(L) mm |
|
Weight: |
750g |
