NSR NAS-1000 AIS-SART
NSR NAS-1000 AIS-SART
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

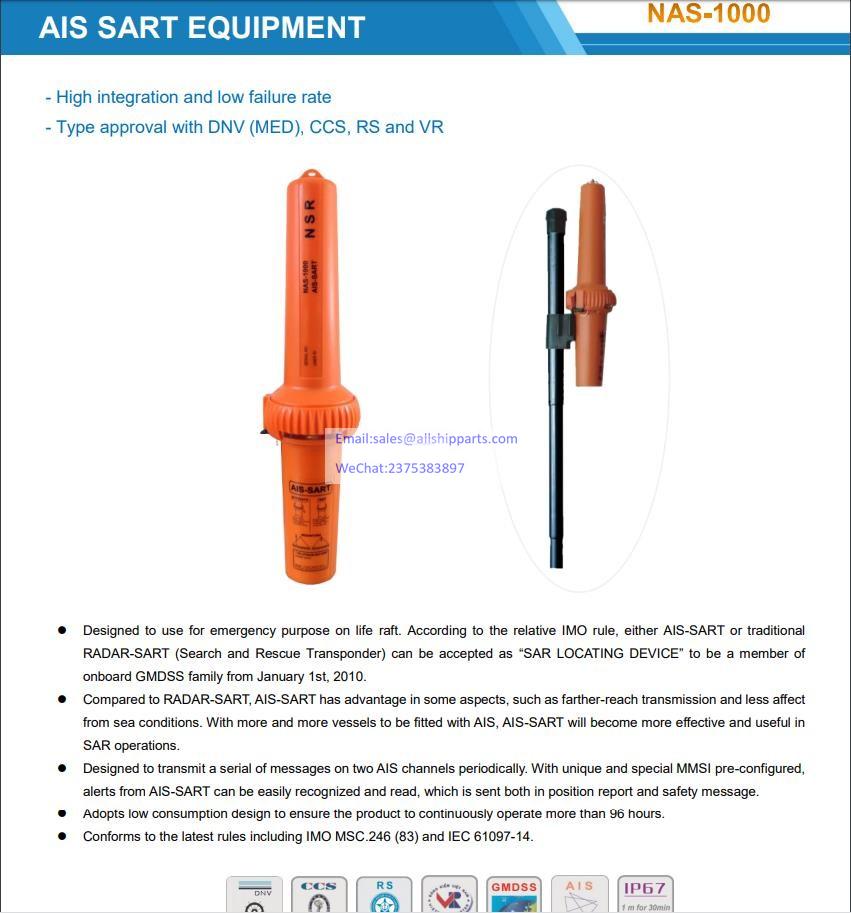

【FEATURES】
- Designed to use for emergency purpose on lifecraft.
- AIS-SART has advantage in some aspects, such as farther-reach transmission and less affect from sea conditions.
- Designed to transmit a serial of messages on two AIS channels alternately.
- NAS-1000 adopts low consumption devices to ensure the product to continuously operate more than 96 hours.
- NAS-1000 conforms to the latest rules including IMO MSC 246（83）and IEC 61097-14.
- CCS type approval.
- DNV type approval.
- RS type approval.
- VR type approval.

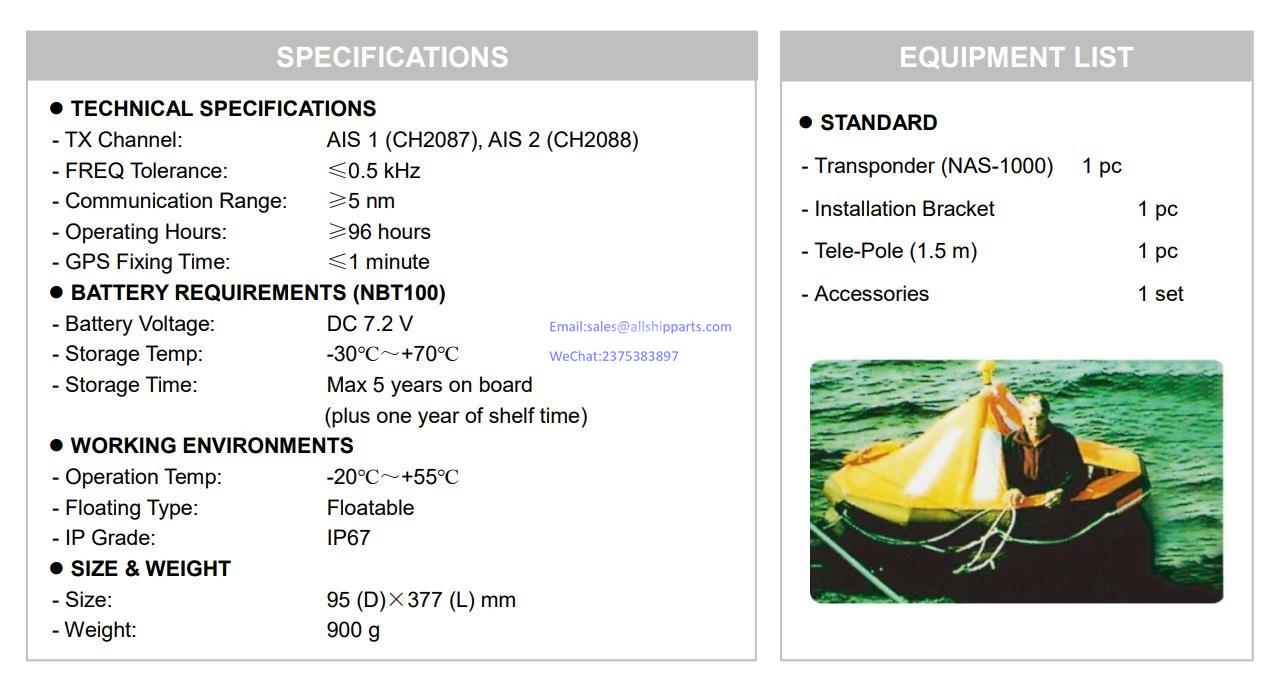

【SPECIFICATIONS】
|
Technical Specifications |
|
|
TX Channel: |
AIS 1 (CH2087), AIS 2 (CH2088) |
|
FREQ Tolerance: |
≤0.5kHz |
|
Communication Range: |
≥5 nm |
|
Operating Hours: |
≥96 hours |
|
GPS Fixing Time: |
≤1 minute |
|
Battery Requirements (NBT100) |
|
|
Battery Voltage: |
7.2VDC |
|
Storage Temp.: |
℃ |
|
Storage Time: |
max 5 years on board (see Note 1) |
|
Working Environments |
|
|
Operation Temp.: |
-20℃ ~ +55℃ |
|
Floating Type: |
Floatable |
|
IP Grade: |
IP67 |
|
Dimension & Weight |
|
|

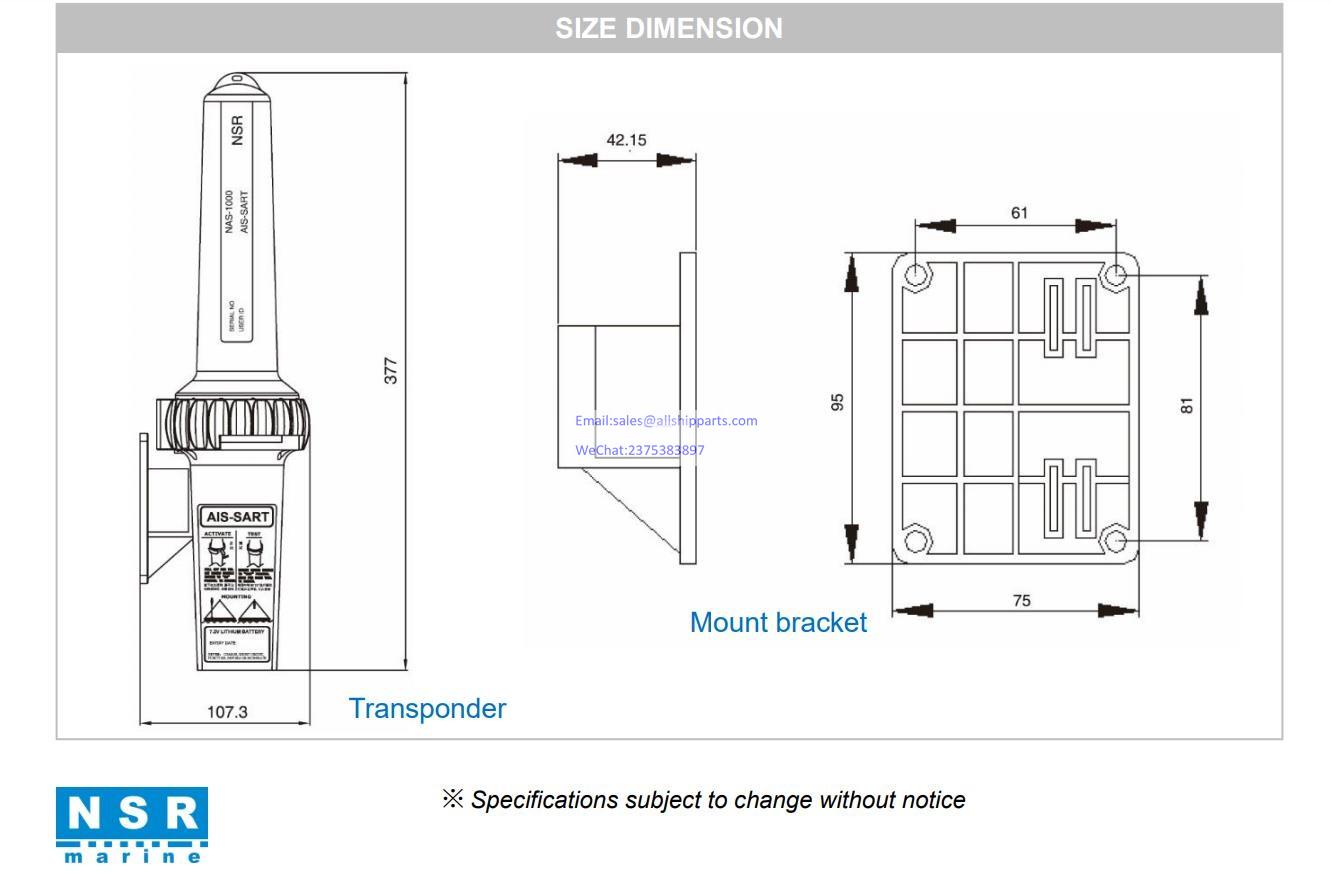

Dimension: |
95(D) × 377(L) mm |
|
Weight: |
900g |
