NSR NEB-1000/NEB-2000C EPIRB
NSR NEB-1000/NEB-2000C EPIRB
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

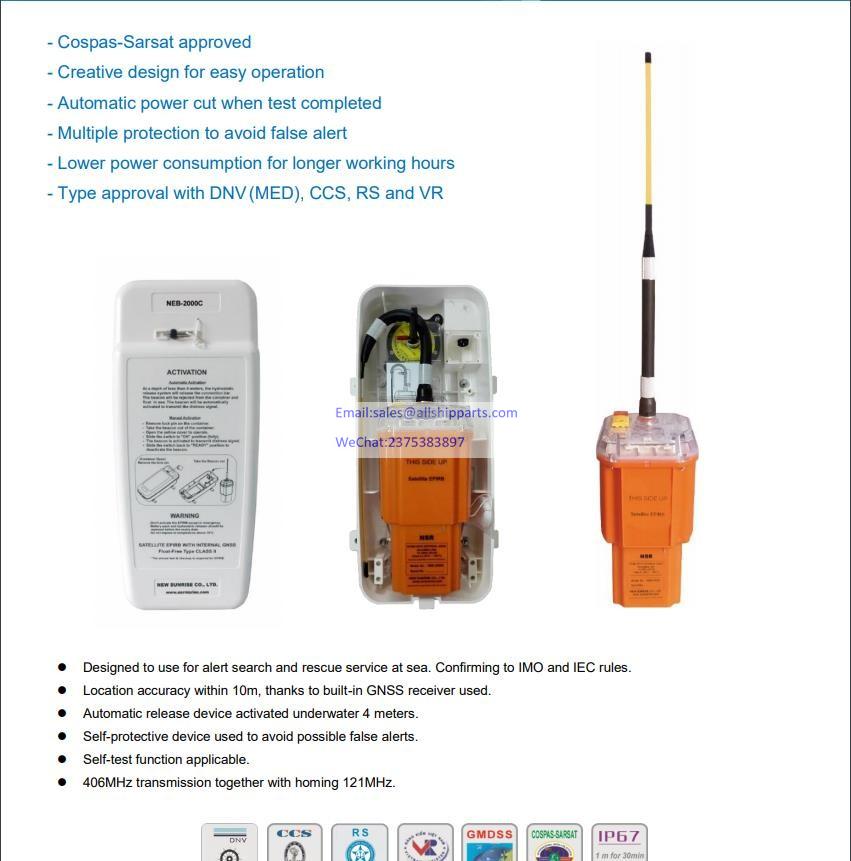

【FEATURES】
- Designed to use for alert search and rescue service at sea. Confirming to IMO and IEC rules.
- Location accuracy within 10m, thanks to built-in GNSS receiver used.
- Automatic release device activated underwater 4 meters.
- Self-protective device used to avoid possible false alarms.
- Self-test function applicable.
- 406MHz transmission together with homing 121MHz.
- Cospas-Sarsat approved.
- Creative design for easy operation.
- Automatic power cut when test completed.
- Multiple protection to avoid false alert.
- Lower power consumption for longer working hours.
- CCS/DNV/RS/VR type approval.

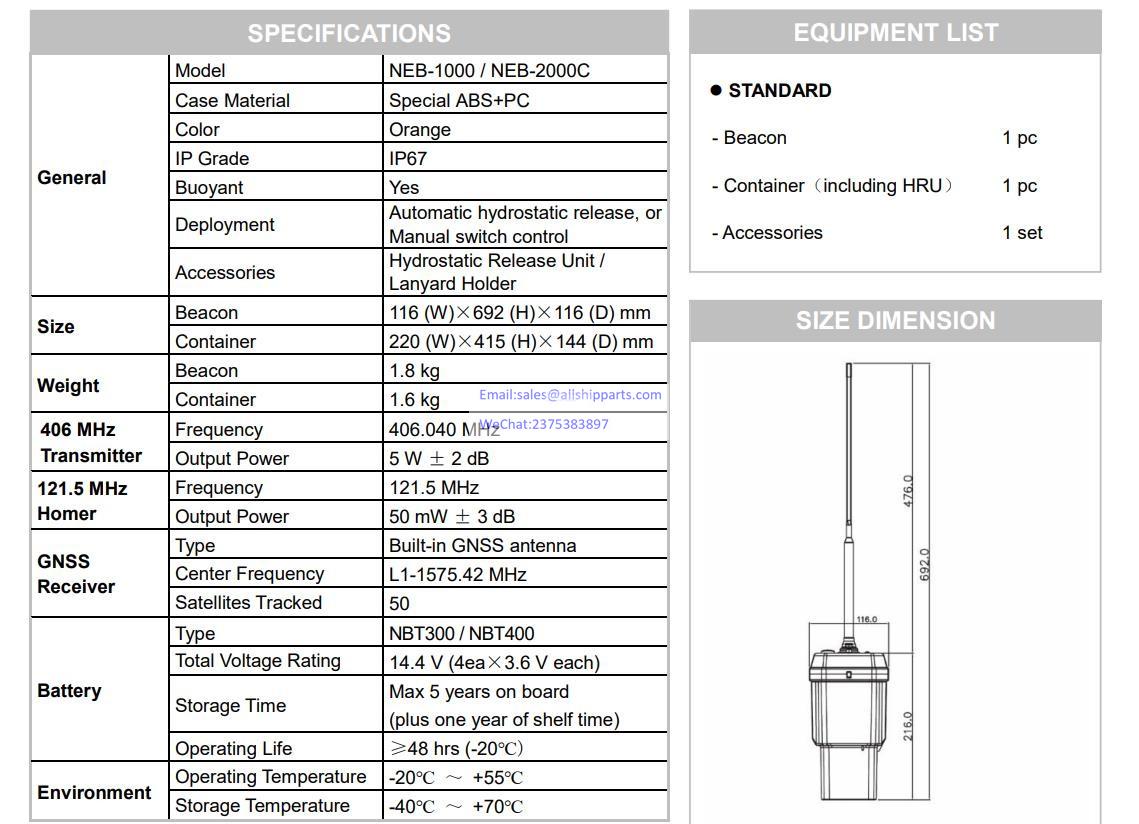

【SPECIFICATIONS】
|
General |
|
|
Model: |
NEB-1000 / NEB-2000C |
|
Case Material: |
Special ABS+PC |
|
Color: |
Orange |
|
IP Grade: |
IP67 |
|
Buoyant: |
Yes |
|
Deployment: |
Automatic hydrostatic release or Manual switch control |
|
Accessories: |
Hydrostatic Release Unit |
|
Physical |
|
|
Weight: |
1.8 kg (Beacon), 1.6 kg (Container) |
|

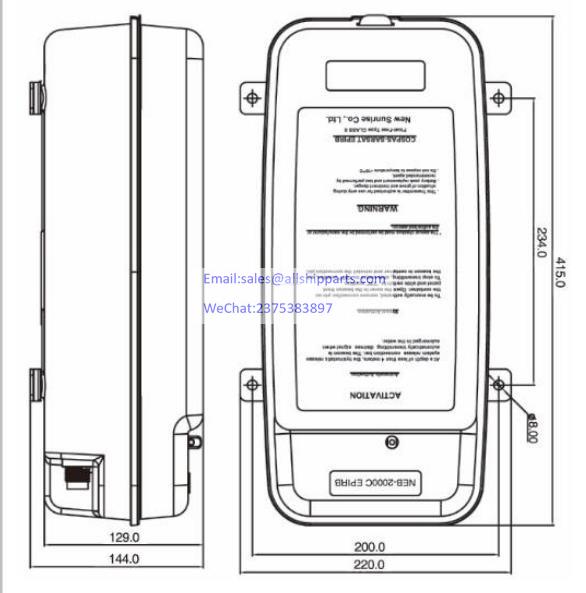

Size: |
116 x 116x 692 mm (Beacon), 220 x 415 x 144 mm (Container) |
|
406 MHz Transmitter |
|
|
Frequency: |
406.040MHz |
|
Output Power: |
5W ± 2dB |
|
121.5 MHz Homer |
|
|
Frequency: |
121.5MHz |
|
Output Power: |
50mW ± 3dB |
|
GPS Receiver |
|
|
Type: |
Built-in GNSS antenna |
|
Center Frequency: |
L1-1575.42MHz |
|
Satellites Tracked: |
50 |
|
Battery |
|
|
Type: |
NBT300 / NBT400 |
|
Total Voltage Rating: |
14.4 V (4ea x 3.6V each) |
|
Storage: |
max 5 years on board (see Note 1) |
|
Operating: |
≥48hrs. (-20℃) |
|
Environment |
|
|
Operating Temperature: |
-20℃ ～ +55℃ |
|
Storage Temperature: |
-30℃ ～ +70℃ |
*Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 5 years after supplied to a vessel.
