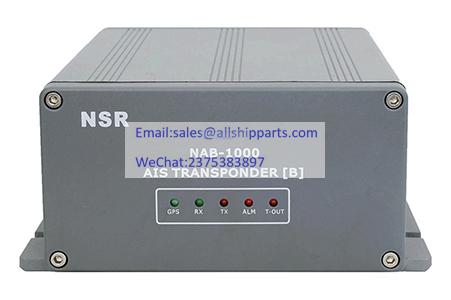

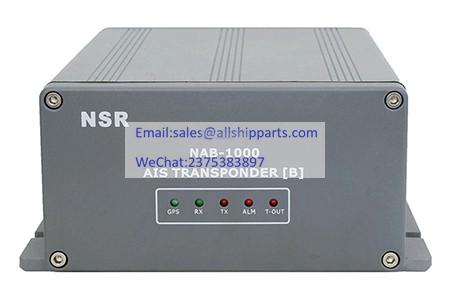

NSR NAB-1000 AIS
NSR NAB-1000 AIS
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

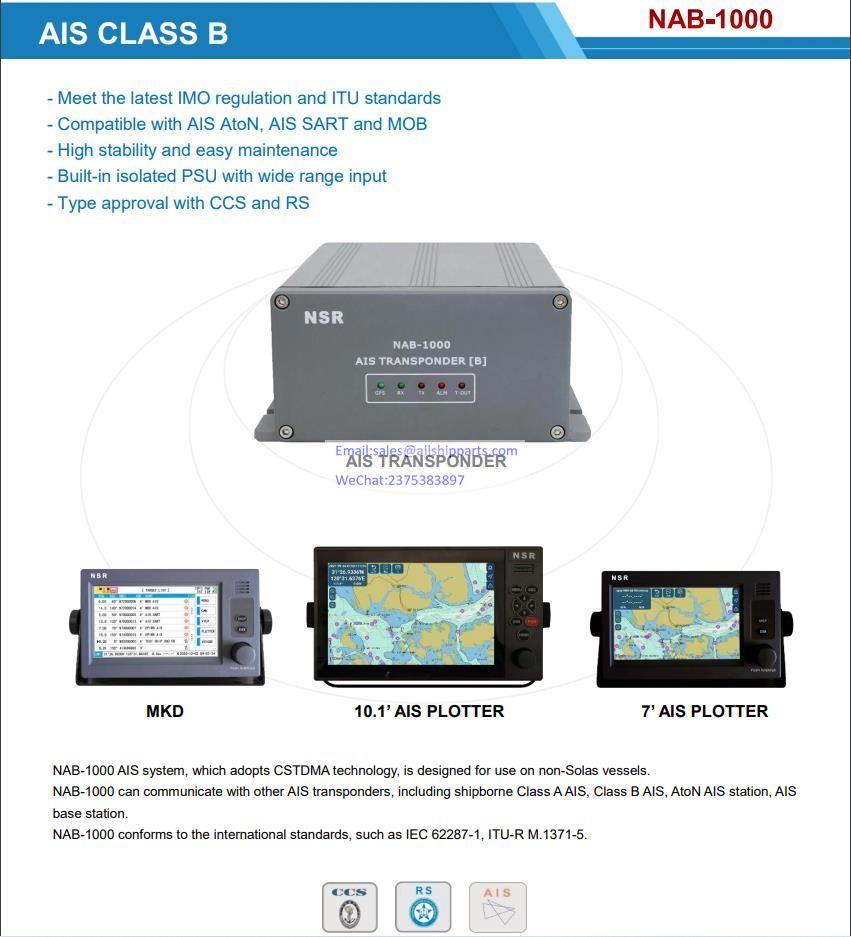

【FEATURES】
- Meet the latest
IMO regulation and ITU standards, such as IEC 62287-1, ITU-R.M 1371-5.
- Compatible with AIS AtoN, AIS SART and MOB.
- High stability and easy maintenance.
- Built-in isolated DC/DC with wide range input.
- Design for non-Solas vessels with CSTDMA technology.
- Can communicate
with other AIS transponders, including shipborne Class A AIS,
Class B AIS, AtoN AIS station, AIS base stations.
- CCS type approval.
- RS type approval.

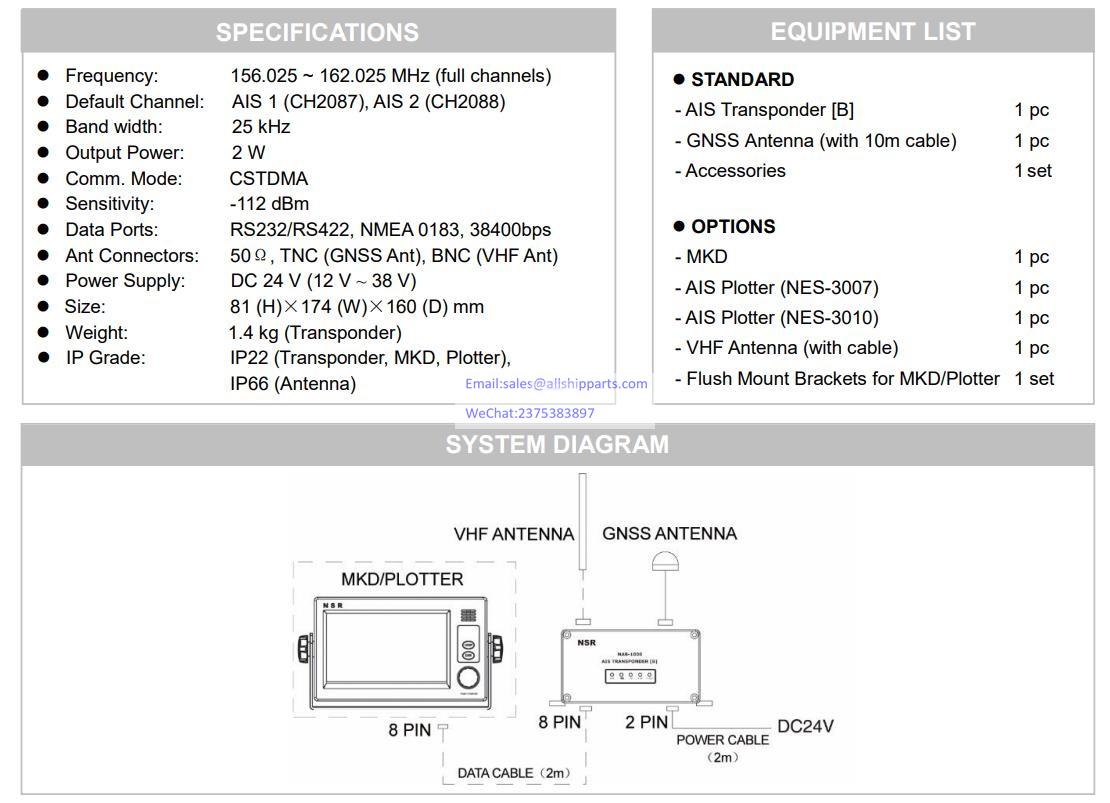

【SPECIFICATIONS】
|
Frequency Range: |
156.025～162.025MHz (full channels) |
|
Default Channels: |
CH2087, CH2088 |
|
Band Width: |
25kHz |
|
Output Power: |
2W |
|
Communication Mode: |
CSTDMA |
|
Sensitivity: |
Better than -109 dBm |
|
Data Ports: |
one RS-232, one RS-422 |
|
Data Format/Baud Rate: |
NMEA-0183, 38400bps |
|
Ant Connectors: |
50Ω, TNC (GPS Ant), BNC(VHF Ant) |
|
Power Source: |
24V DC(12～38V) |
|
Size: |
81(H) x 174(W) x 160(D) mm |
|
Weight: |
1.4 kg (transponder) |
|
IP Grade: |
IP22 (Transponder), IP66 (Antenna) |
