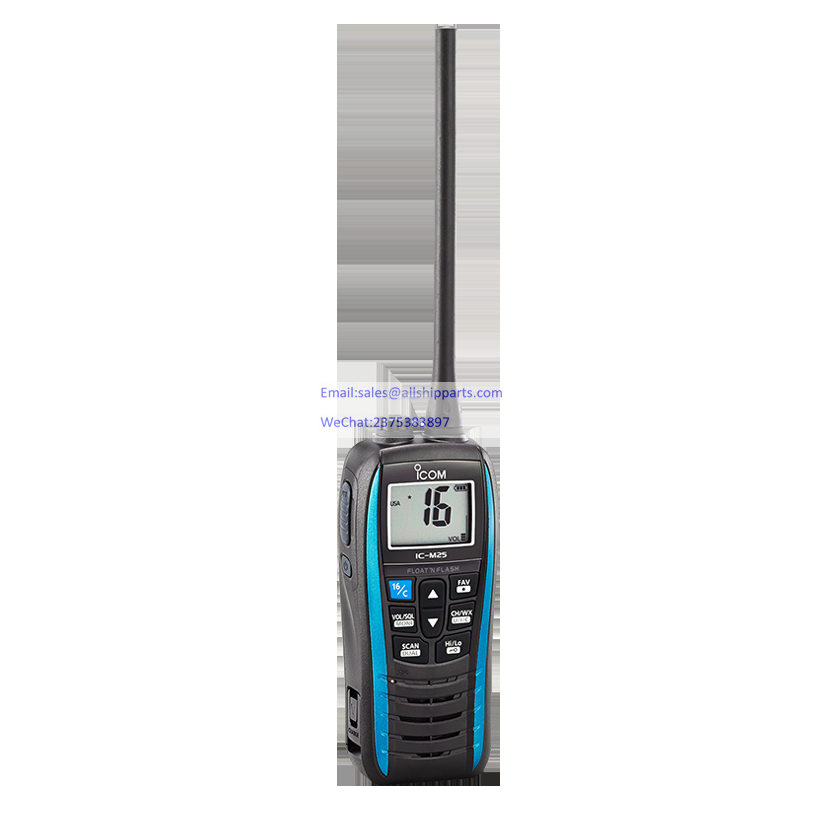

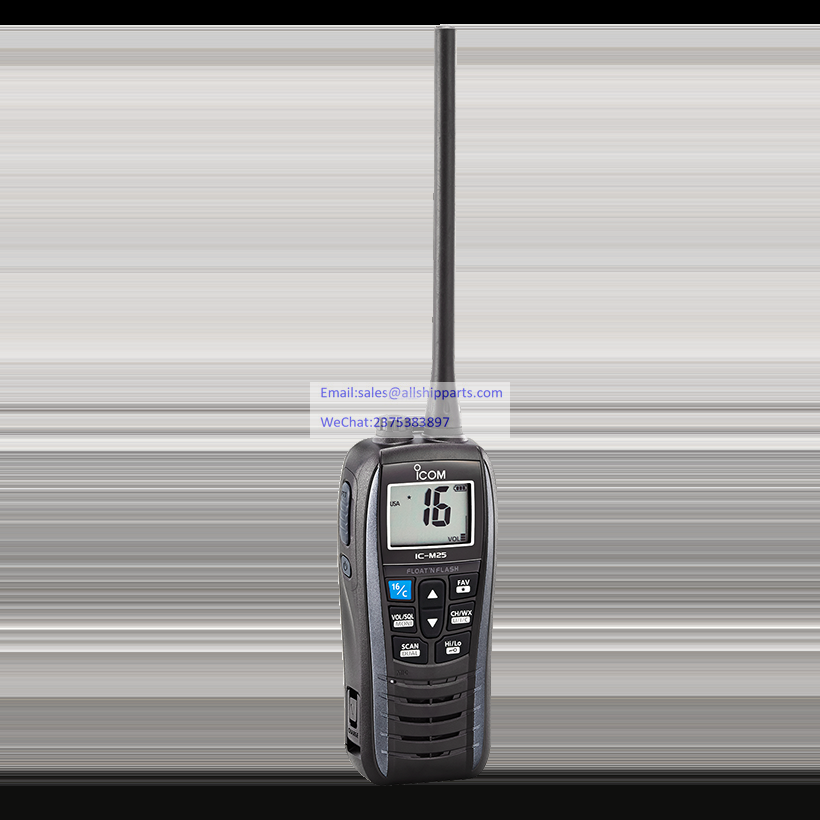

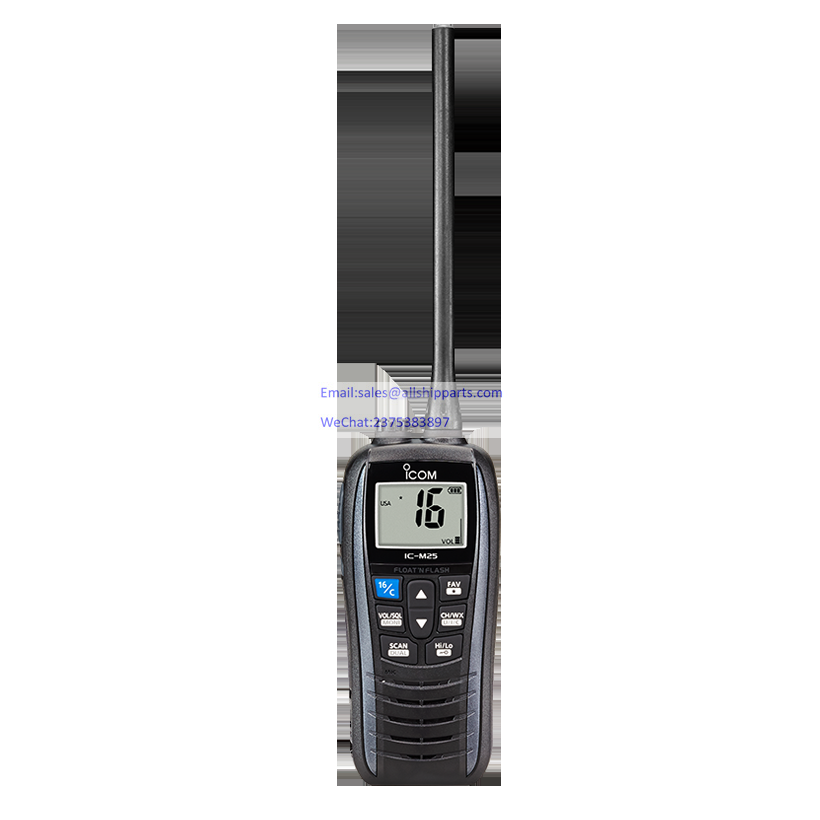

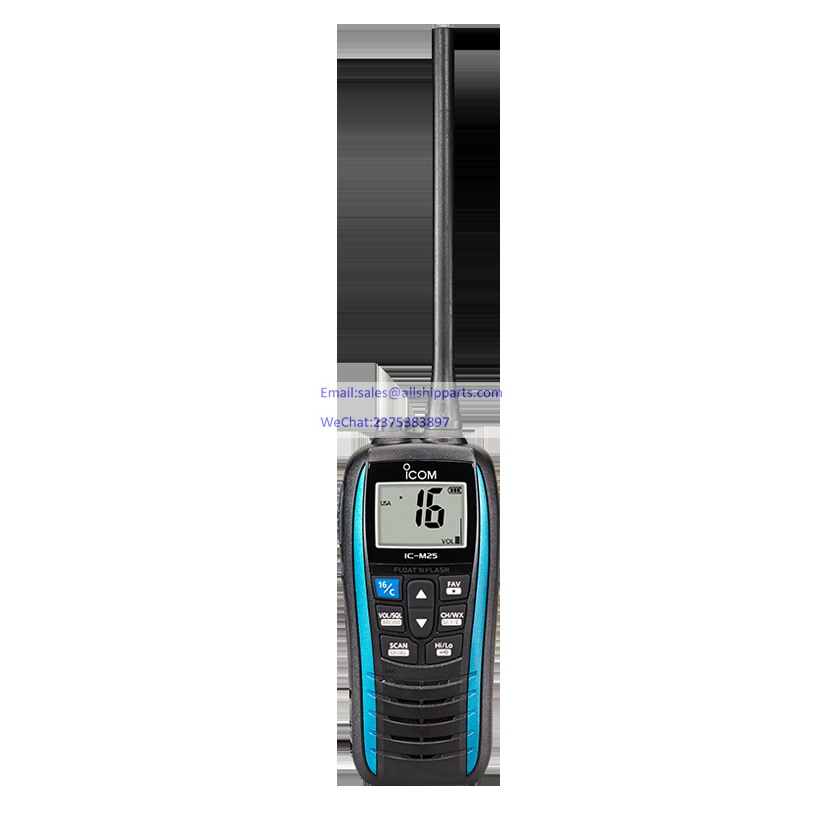

ICOM VHF MARINE TRANSCEIVER IC-M25
ICOM VHF MARINE TRANSCEIVER IC-M25
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
The IC-M25 has the slim (depth:30.5 mm; 1.2 in) and light (218 g; 7.7 oz) body. It also delivers uncompromised performance that will exceed expectations.
The IC-M25’s LCD is 30% larger than its predecessor, the IC-M24 and shows clearly large channel number and status icons. The buttons on the front panel are well laid out and provide simple and straightforward operation.
A standard USB connector (Micro-B type) is used for charging the IC-M25. Cigarette lighter cables or mobile batteries for charging smartphones or other devices can be used with the IC-M25*.
* The IC-M25 accepts 5 V/1 A (Max.) input. Use of third-party products is not guaranteed.
SHAPE \* MERGEFORMAT

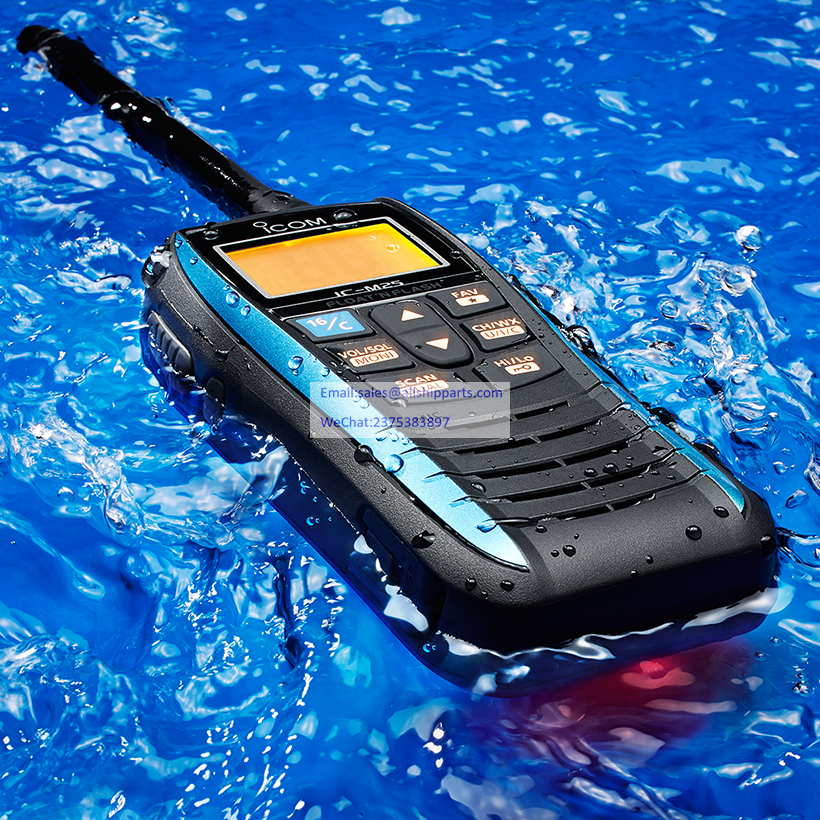

The IC-M25 floats and lets you know where it is with the flashing red LED light and LCD/key backlight.
The built-in 1500 mAh lithium-ion battery allows 11 hours (approx.) of long operation*.
* Typical operation with Tx (Hi): Rx: standby=5:5:90
The optional waterproof speaker-microphone, HM-213, provides commercial grade convenience while mounting the radio around the waist. The radio floats even when the HM-213 is attached.
The IC-M25 provides a powerful 550 mW (typical) audio output and received voice can be heard loud and clear.
・ IPX7 waterproof construction
(1 m depth of water for 30 minutes)
・ 4-step battery life indicator
・ Weather channel with weather alert
・ Dual/Tri-watch functions
・ Instant access to Ch 16 or programmable call
channel
・ Favorite channel function
・ Monitor function opens noise squelch
・ Auto scan function
・ LCD auto backlighting
・ AquaQuake™ prevents audio degradation from a
water-logged speaker
・ Supports 4-digit channels
|
Frequency range |
Tx |
156.025–157.425 MHz |
|
Rx |
156.050–163.275 MHz |
|
|
Usable channel groups |
INT, USA, CAN, WX channels |
|
|
Type of emission |
16K0G3E (FM) |
|
|
Power supply voltage |
3.7 V DC nominal |
|
|
Current drain |
Tx |
2.3 A |
|
Rx (Internal SP/External SP) |
300 mA/200 mA (Max. audio) |
|
|
Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
|
|
Antenna impedance |
50 Ω |
|
|
Dimensions (W×H×D) |
56.6×134.2×30.5
mm; |
|
|
Weight (approximately) |
220 g;
7.7 oz |
|
|
Output power |
5 W (approximately)/1 W |
|
Max. frequency deviation |
±5.0 kHz |
|
Frequency stability |
±10 ppm |
|
Spurious emissions |
–68 dBc typical |
|
Adjacent channel power |
70 dB |
|
Residual modulation |
40 dB |
|
Sensitivity |
0.25 μV typical (at 12 dB SINAD) |
|
|
Squelch sensitivity |
0.25 μV typical (at threshold) |
|
|
Adjacent channel selectivity |
70 dB typical |
|
|
Spurious response |
70 dB typical |
|
|
Intermodulation |
70 dB typical |
|
|
Audio output power |
Internal SP |
550 mW typical (12 Ω load) |
|
External SP |
300 mW typical (4 Ω load) |
|
|
Ingress Protection Standard |
|
|
Water |
IPX7 (Waterproof protection) |
Measurements
made in accordance with TIA/EIA-603.
All stated specifications
are subject to change without notice or obligation.
