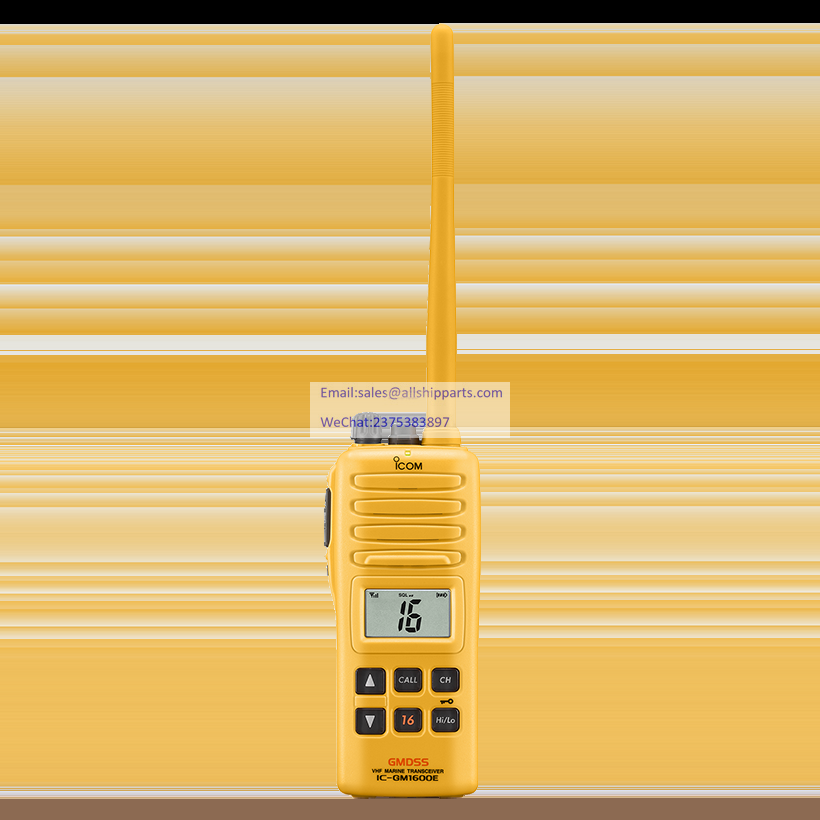

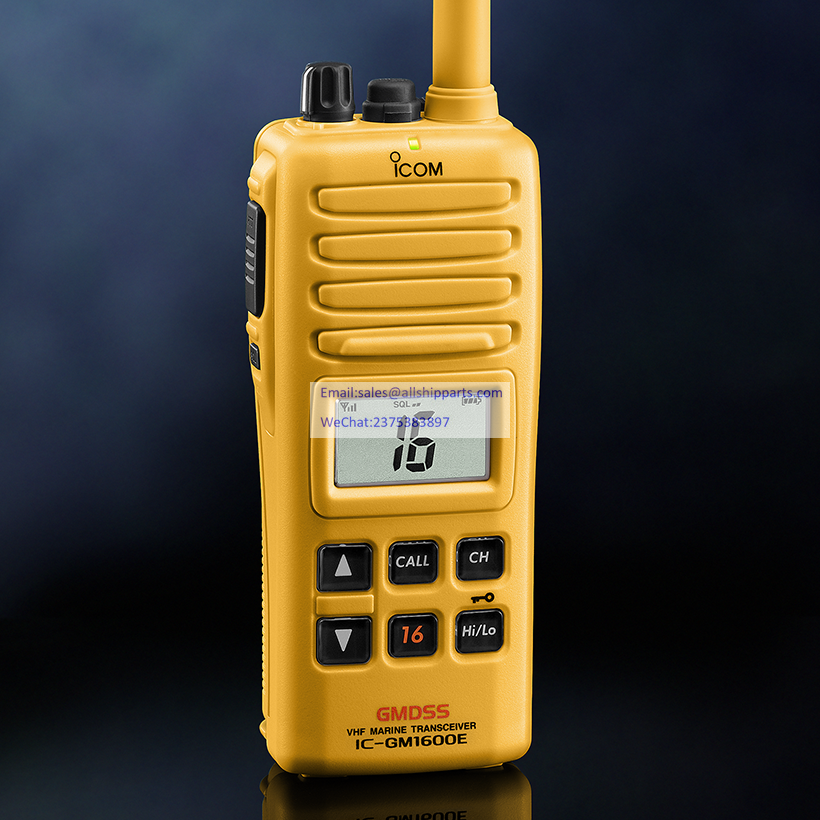

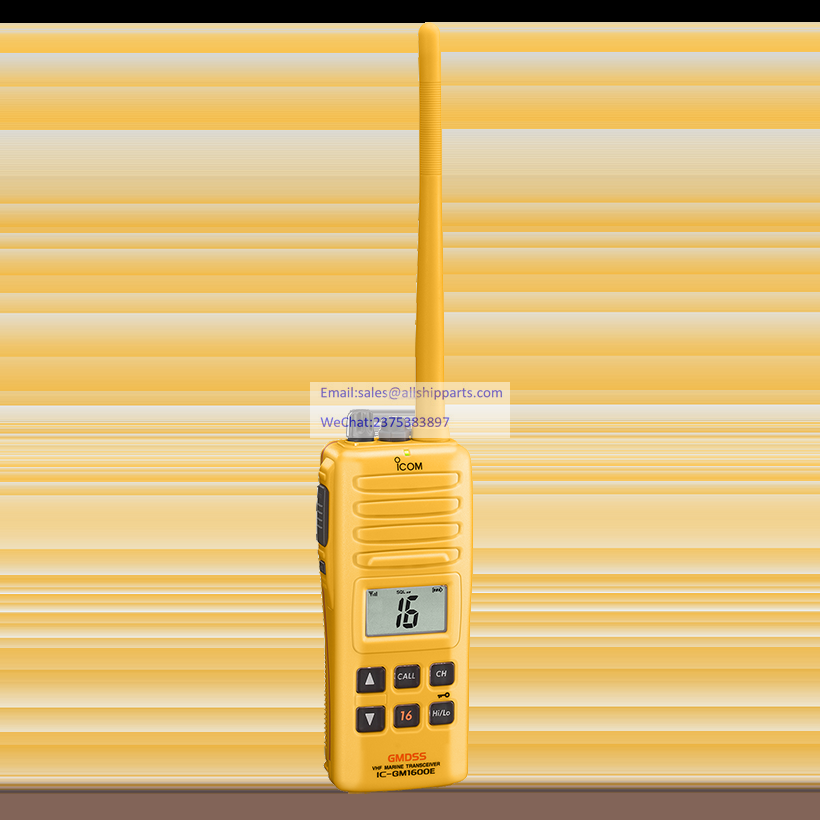

ICOM IC-GM1600E
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
The IC-GM1600E meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600E retains 1m depth waterproof construction as specified by IMO resolution MSC.149(77) and other related regulations.
For survival craft use, the optional BP-234 (non-rechargeable) 3300mAh lithium battery pack provides more than 8 hours* of operating time even at –20°C.
* Tx:Rx:Stand-by=6:6:48.
Large buttons and knobs provide tactile feedback for positive operation.
A wide viewing angle, high intensity LCD offers extra clear, easy to read characters. The bright LED indicator on the top of panel shows the operating condition clearly.
Operation instructions are printed on the rear panel. All operations can be made with one hand.
· One touch access to Channel 16 and call channel
· Highly visible yellow colored body
· Optional VOX headset for on-board use
|
Frequency range |
Tx/Rx |
156.300–156.875 MHz |
|
Dimensions (W×H×D) |
65×145×44 mm |
|
|
Weight (approx.) |
385 g (With BP-234) |
|
|
Current drain |
Transmit (High) |
1.0 A (2 W output) |
|
Max. audio |
200 mA |
|
|
Sensitivity (at 12 dB SINAD) |
–2 dBμ typ. |
|
|
Intermodulation rejection |
68 dB |
|
|
Audio output power (10% dist./ 8 Ω load) |
200 mW |
|
|
RF output power |
2/1 W |
|
|
Waterproof protection |
Specified as IMO Res. MSC.149(77) |
|
|
Waterproof speaker-microphone |
– |
|
|
VOX headset |
– |
|
|
Operating time (approx.) |
Specified as IMO Res. MSC.149(77) |
|
|
Tag scan |
– |
|
|
Favorite channel |
– |
|
|
AquaQuake draining function |
– |
|
|
CTCSS/DTCS with PMR channel |
– |
|
|
Voice scrambler |
– |
|
|
Intrinsically safe |
– |
|
All stated specifications are subject to change without notice or obligation.
· Battery pack, BP-252
· Battery charger, BC-173
· AC adapter, BC-147SA/SE*
· Belt clip, MB-103Y
· Antenna, FA-S61V
· Neck strap
