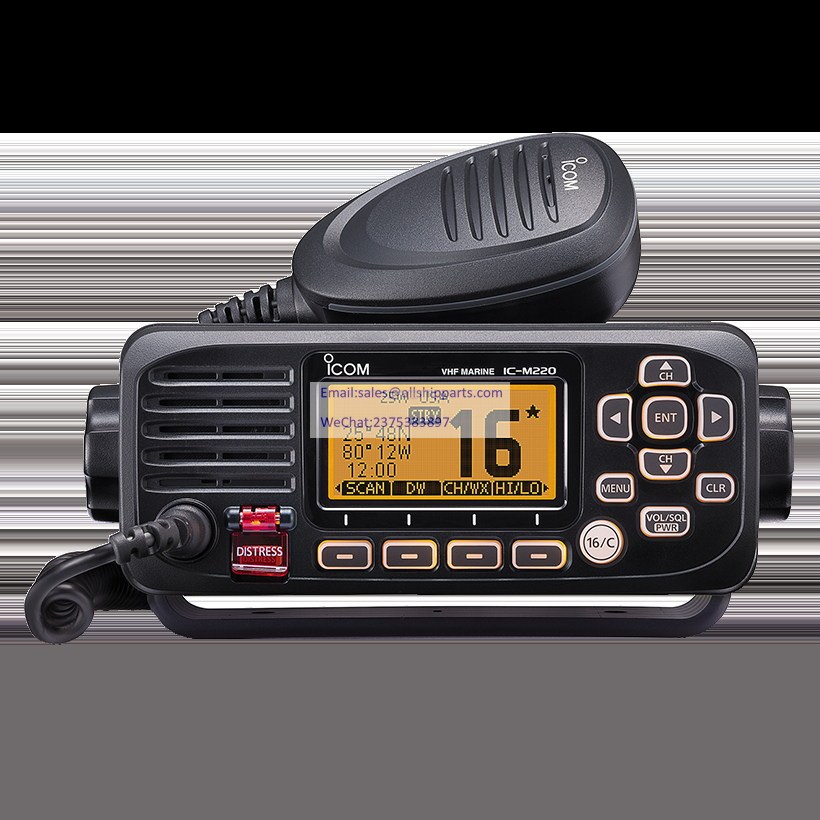

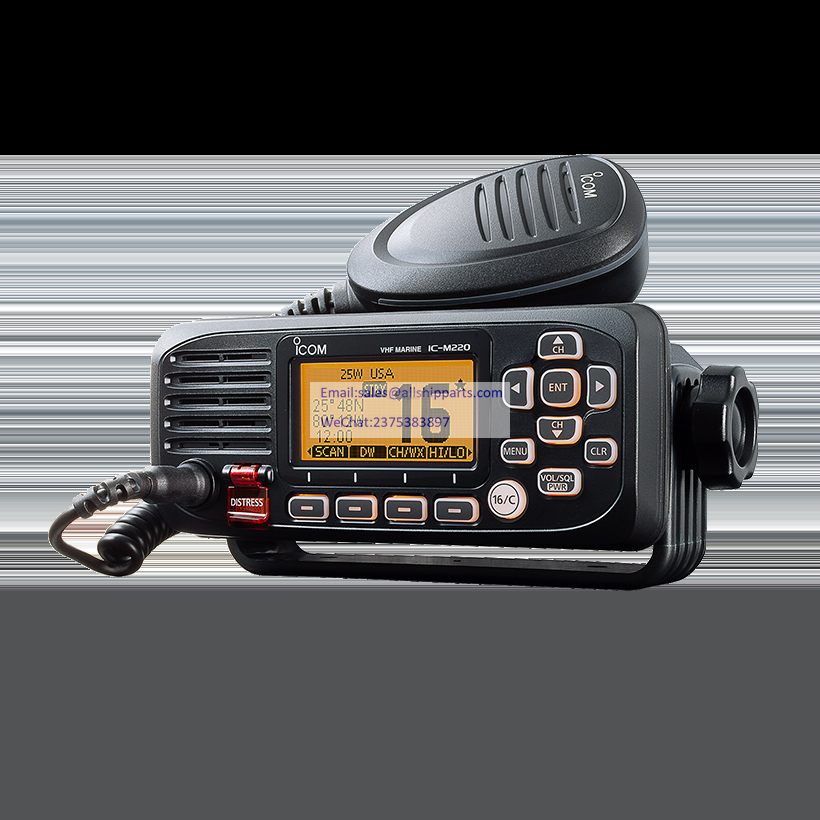

ICOM VHF MARINE TRANSCEIVER IC-M220
ICOM VHF MARINE TRANSCEIVER
IC-M220
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
· Common NMEA interface for external GPS/NAV connection
· MA-500TR Class B AIS transponder compatible
· Tag scan and favorite channel functions
· Dual/tri-watch function for monitoring CH16 and/or call channel
· Priority scan function
· Display and keypad backlighting
· External speaker connection
· Weather channel with weather alert
Frequency range |
TX |
156.025–157.425 MHz |
RX |
156.050–163.275 MHz |
|
CH70 |
156.525 MHz |
|
Usable channels |
USA, CAN, INT, WX channels |
|
Type of emission |
16K0G3E (FM), 16K0G2B (DSC) |
|
Power supply requirement |
13.8 V
DC nominal |
|
Current drain |
TX 25W output |
5 A |
RX AF max. |
1.2 A |
|
Operating temperature range |
–20°C to +60°C; –4°F to +140°F |
|
Antenna impedance |
50 Ω(SO-239) |
|
Dimensions (W×H×D) |
156.5×66.5×110.1
mm; |
|
Weight (approx.) |
700 g; 1.5 lb (with HM-237B) |
|
NMEA formats |
Input |
RMC, GGA, GNS, GLL, VTG |
Output |
DSC, DSE, RMC, GSA, GSV |
Output power (at 13.8 V DC) |
25 W, 1 W |
Max. frequency deviation |
±5 kHz |
Frequency tolerance |
±5 ppm |
Spurious emissions |
Less than –60 dBc |
Sensitivity |
Main |
–13 dBµ typ. (12 dB SINAD) |
DSC |
–5 dBµ emf typ. (1% BER) |
|
Squelch sensitivity |
Less than –10 dBμ |
|
Adjacent channel |
Main |
More than 68 dB |
DSC |
More than 68 dBμ emf (1% BER) |
|
Intermodulation |
Main |
More than 63 dB |
DSC |
More than 55 dBμ emf (1% BER) |
|
Sensitivity |
–14 dBμ typ. (at 12 dB SINAD) |
|
Hum and noise |
More than 40 dB |
|
Audio output power |
4.5 W typical |
Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.
Ingress Protection Standard |
|
Water |
IPX7 (Waterproof protection) |
· HM-237B hand microphone
· DC power cable
· Mounting bracket kit
