ICOM MARINE RADARS MR-1210RII/MR-1210TII/MR-1210TIII

ICOM MARINE RADARS MR-1210RII/MR-1210TII/MR-1210TIII

ICOM MARINE RADARS MR-1210RII/MR-1210TII/MR-1210TIII

Color Marine Radar with AIS Overlay Functions

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

MR-1210RII : 4 kW Radome Scanner, 36 NM range observation
MR-1210TII (4 ft/6.5 ft models) : 4 kW Open Array Scanner, 48 NM range observation
MR-1210TIII (4 ft/6.5 ft models) : 6 kW Open Array Scanner, 72 NM range observation

SHAPE \* MERGEFORMAT

2-feet (60 cm) radome scanner
for MR-1210RII

SHAPE \* MERGEFORMAT

4-feet (120 cm) open array
scanner for MR-1210TII/TIII

SHAPE \* MERGEFORMAT

6.5-feet (200 cm) open array
scanner for MR-1210TII/TIII

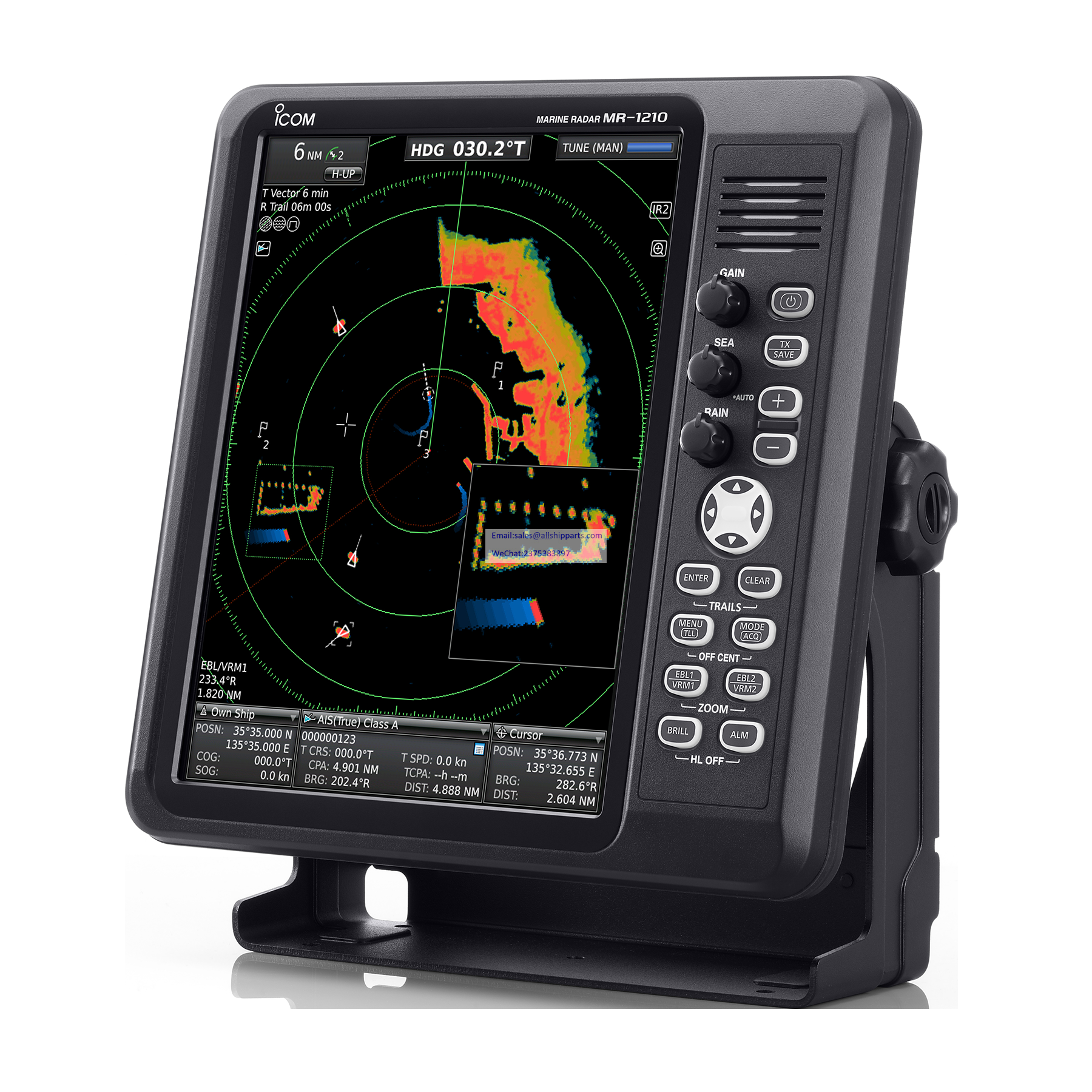

The 600 cd/m² color TFT offers bright, vivid echoes with 32 steps gradient intensity. The display and display color (day, night and user settings) can be instantly adjusted with the “BRILL” button. The full screen mode enlarges radar echoes to full size with transparent menus and operating information.

SHAPE \* MERGEFORMAT

Day setting

SHAPE \* MERGEFORMAT

Night setting

SHAPE \* MERGEFORMAT

Full screen mode

he MR-1210 provides consistent menu structure and the operator can configure various settings via visually intuitive operation. The language setting is selectable from English, Spanish, Vietnamese, Indonesian, Thai and Korean.

SHAPE \* MERGEFORMAT

Color setting menu

SHAPE \* MERGEFORMAT

Scanner monitor menu

When turning your own boat, the radar echo smoothly follows the boat movement without delay.
* External heading sensor (NMEA 0183, N+1 or other formats) required.

The MR-1210 can mark points with icons and transfer the position data with NMEA TLL sentences to other NMEA 0183 devices such as an external plotter.
* External NMEA 0183 data and heading sensor required.

The true trail function cancels own ship movement and shows true moving objects with trails, while static objects are not trailed. The fine trail function allows you to select trail lines from normal, fine or extra fine trail.
* External NMEA 0183 data and heading sensor required.

The simplified ATA function allows you to track up to 10 vessels with symbol icons. The CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach) limits can be calculated and give an audible warning when any of the target vessels comes within the set range or time.

SHAPE \* MERGEFORMAT

Simplified ATA

SHAPE \* MERGEFORMAT

Guard zone alert example

When connected to an external AIS receiver or AIS transponder, the MR-1210 overlays the received AIS information on the radar echo. You can see up to 100 AIS targets and check detailed information of the individual vessel such as speed, course, heading, vessel type and size.

SHAPE \* MERGEFORMAT

Other vessel AIS information

SHAPE \* MERGEFORMAT

Own vessel information

SHAPE \* MERGEFORMAT

AIS list

The favorite AIS function notifies you when a "friend boat" comes into a preset range. You can easily follow the movement of the boat position on the radar display. Up to three "friends boats" are programmable.

SHAPE \* MERGEFORMAT

* External AIS data required.

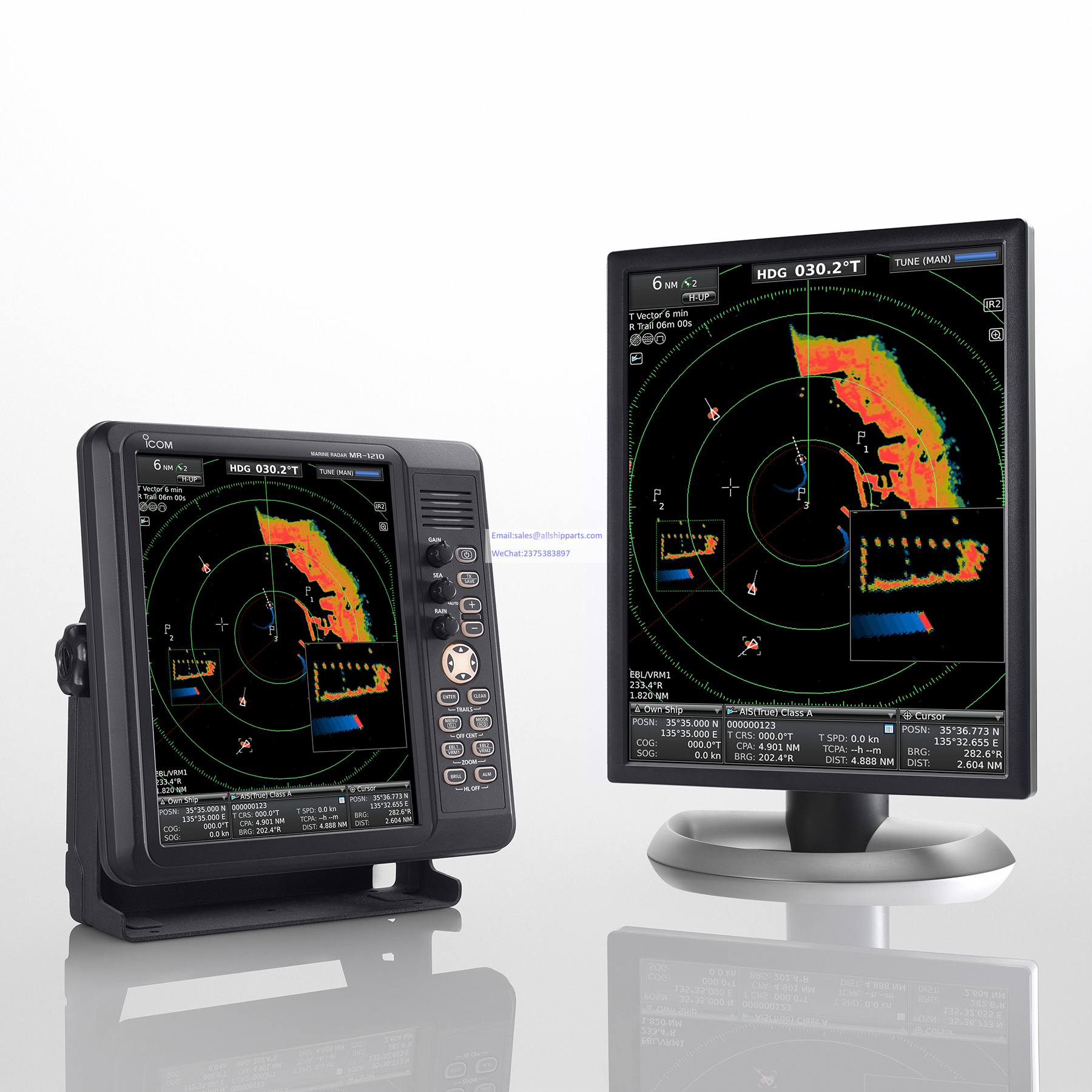

With an optional video output unit, UX-234, the MR-1210 can be connected to an external display. Same radar echoes can be observed on the main and secondary displays at the same time.

	MR-1210RII	MR-1210TII		MR-1210TIII
		(4 ft model)	6.5 ft model)	(4 ft model)	(6.5 ft model)
Display type	12.1-inch TFT color LCD
Resolution	600×800 dots
Minimum range	25 m (at 1/8 NM range)
Maximum range	36 NM	48 NM		72 NM
Range scales (NM)	1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, 48*1, 64*2, 72*2 *1 MR-1210TII/TIII only *2 MR-1210TIII only
Preheat time	90 seconds
Power supply	10.2–42 V DC
Power consumption (at zero wind velocity)	60 W (approx.)	70 W (approx.)	80 W (approx.)	80 W (approx.)	90 W (approx.)
Usable Temp. range	−15°C to +55°C
Input data format	NMEA 0183, N+1, AUX, IEC61162-2
Output data format	NMEA 0183

	MR-1210RII	MR-1210TII		MR-1210TIII
		(4 ft model)	6.5 ft model)	(4 ft model)	(6.5 ft model)
Scanner type	2 ft (60 cm) radome scanner	4 ft (120 cm) open array scanner	6.5 ft (200 cm) open array scanner	4 ft (120 cm) open array scanner	6.5 ft (200 cm) open array scanner
Rotation speed	24, 36 rpm typ.	24, 36 rpm typ.		22, 24, 36 rpm typ.
Horizontal beamwidth	4° typ.	2° typ.	1.2° typ.	2° typ.	1.2° typ.
Vertical beamwidth	22° typ.	23° typ.	23° typ.	23° typ.	23° typ.
Side lobe	−22 dB typ.	−24 dB typ.	−27 dB typ.	−24 dB typ.	−27 dB typ.
Usable Temp. range	−25°C to +70°C
Usable humidity range	Less than 95% (at 40°C)
Frequency	9410 MHz ±30 MHz
Modulation	P0N
Peak output power	4 kW	4 kW		6 kW
Pulse-width/ repetition rate	80 nS/2160 Hz, 80 nS/1440 Hz, 250 nS/1440 Hz, 350 nS/1440 Hz, 900 nS/720 Hz, 900 nS/660 Hz* * MR-1210TIII only
Modulator	FET switching
Intermediate frequency	60 MHz
IF bandwidth	10 MHz, 3 MHz
Tuning	Auto/manual selectable
Supplied system cable	15 m; 49.2ft; OPC-2341	20 m; 65.6ft; OPC-2342

All stated specifications are subject to change without notice or obligation.

·  Scanner unit

·  System cable
