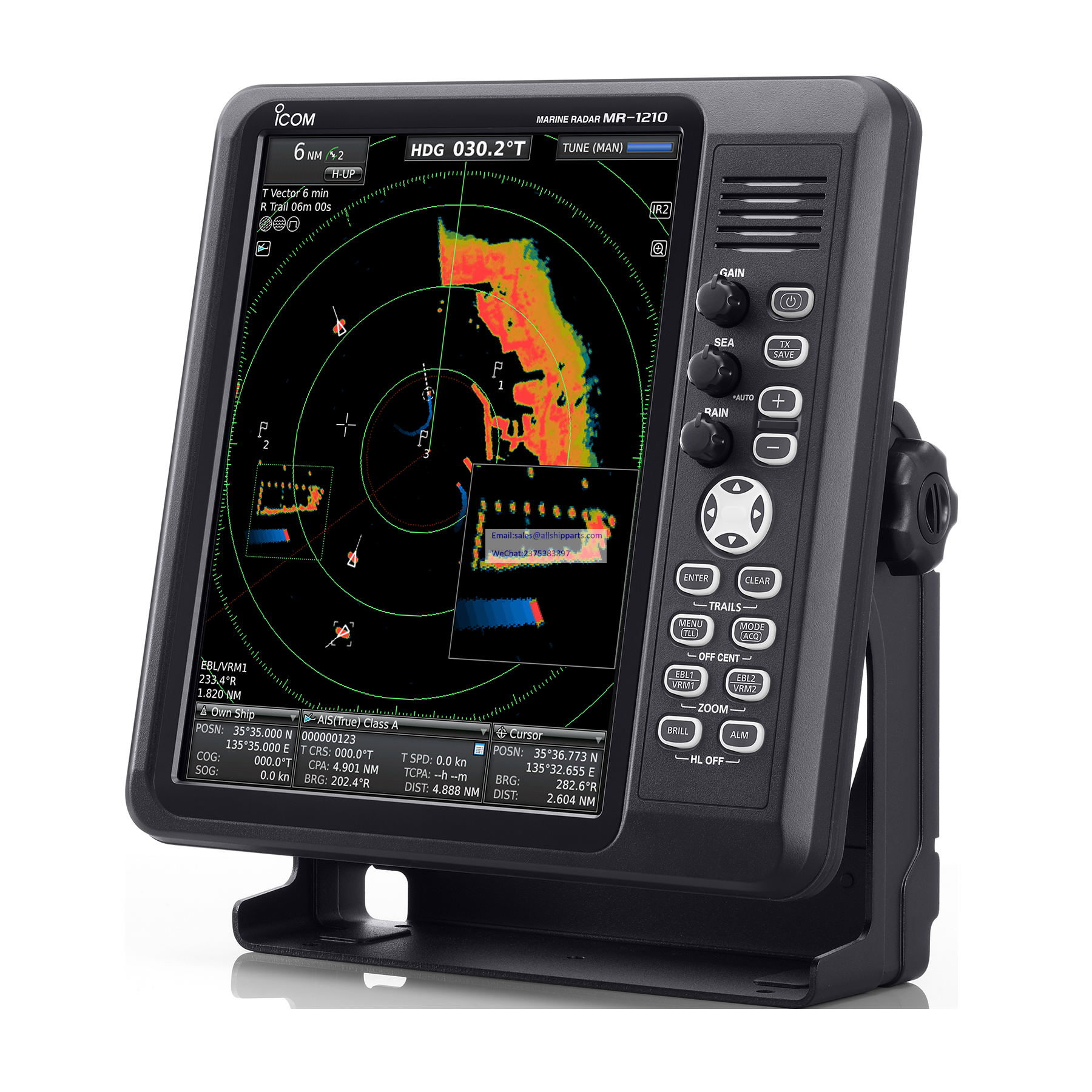

MR-1210RII : 4 kW Radome
Scanner, 36 NM range observation
MR-1210TII (4
ft/6.5 ft models) : 4 kW Open Array Scanner, 48 NM range
observation
MR-1210TIII (4
ft/6.5 ft models) : 6 kW Open Array Scanner, 72 NM range
observation
SHAPE \* MERGEFORMAT
2-feet (60 cm) radome scanner
for MR-1210RII
SHAPE \* MERGEFORMAT
4-feet (120 cm) open array
scanner for MR-1210TII/TIII
SHAPE \* MERGEFORMAT
6.5-feet (200 cm) open array
scanner for MR-1210TII/TIII
The
600 cd/m2 color TFT offers bright, vivid echoes with 32 steps
gradient intensity. The display and display color (day, night and user
settings) can be instantly adjusted with the “BRILL” button. The full screen
mode enlarges radar echoes to full size with transparent menus and operating
information.
SHAPE \* MERGEFORMAT
Day setting
SHAPE \* MERGEFORMAT

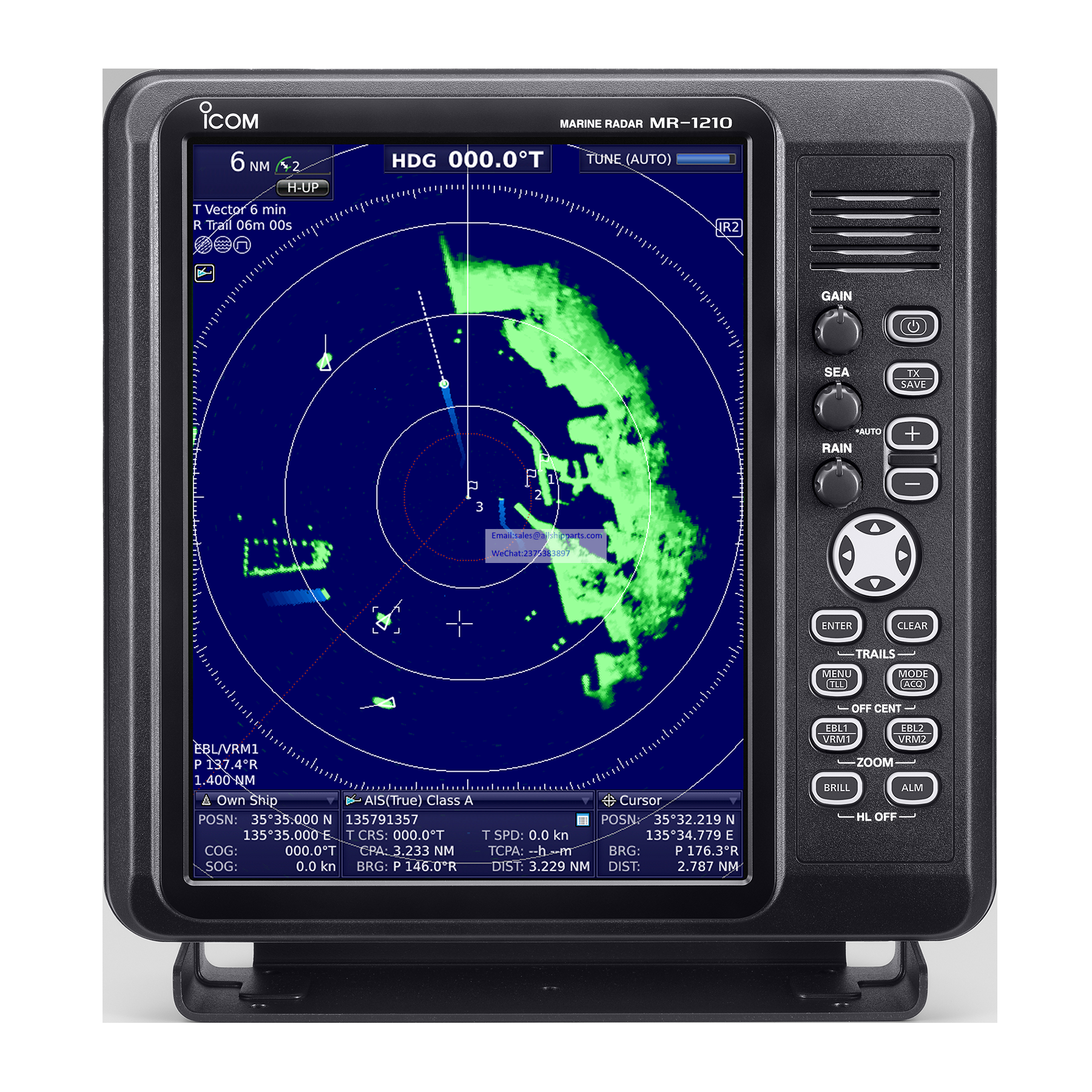

Night setting
SHAPE \* MERGEFORMAT
Full screen mode
he MR-1210 provides consistent menu structure and the operator can configure various settings via visually intuitive operation. The language setting is selectable from English, Spanish, Vietnamese, Indonesian, Thai and Korean.
SHAPE \* MERGEFORMAT
Color setting menu
SHAPE \* MERGEFORMAT
Scanner monitor menu
When
turning your own boat, the radar echo smoothly follows the boat movement
without delay.
*
External heading sensor (NMEA 0183, N+1 or other formats) required.
The
MR-1210 can mark points with icons and transfer the position data with NMEA TLL
sentences to other NMEA 0183 devices such as an external plotter.
*
External NMEA 0183 data and heading sensor required.
The
true trail function cancels own ship movement and shows true moving objects
with trails, while static objects are not trailed. The fine trail function
allows you to select trail lines from normal, fine or extra fine trail.
*
External NMEA 0183 data and heading sensor required.
The simplified ATA function allows you to track up to 10 vessels with symbol icons. The CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach) limits can be calculated and give an audible warning when any of the target vessels comes within the set range or time.
SHAPE \* MERGEFORMAT
Simplified ATA
SHAPE \* MERGEFORMAT
Guard zone alert example
When connected to an external AIS receiver or AIS transponder, the MR-1210 overlays the received AIS information on the radar echo. You can see up to 100 AIS targets and check detailed information of the individual vessel such as speed, course, heading, vessel type and size.
SHAPE \* MERGEFORMAT
Other vessel AIS information
SHAPE \* MERGEFORMAT
Own vessel information
SHAPE \* MERGEFORMAT
AIS list
The favorite AIS function notifies you when a "friend boat" comes into a preset range. You can easily follow the movement of the boat position on the radar display. Up to three "friends boats" are programmable.
SHAPE \* MERGEFORMAT
* External AIS data required.

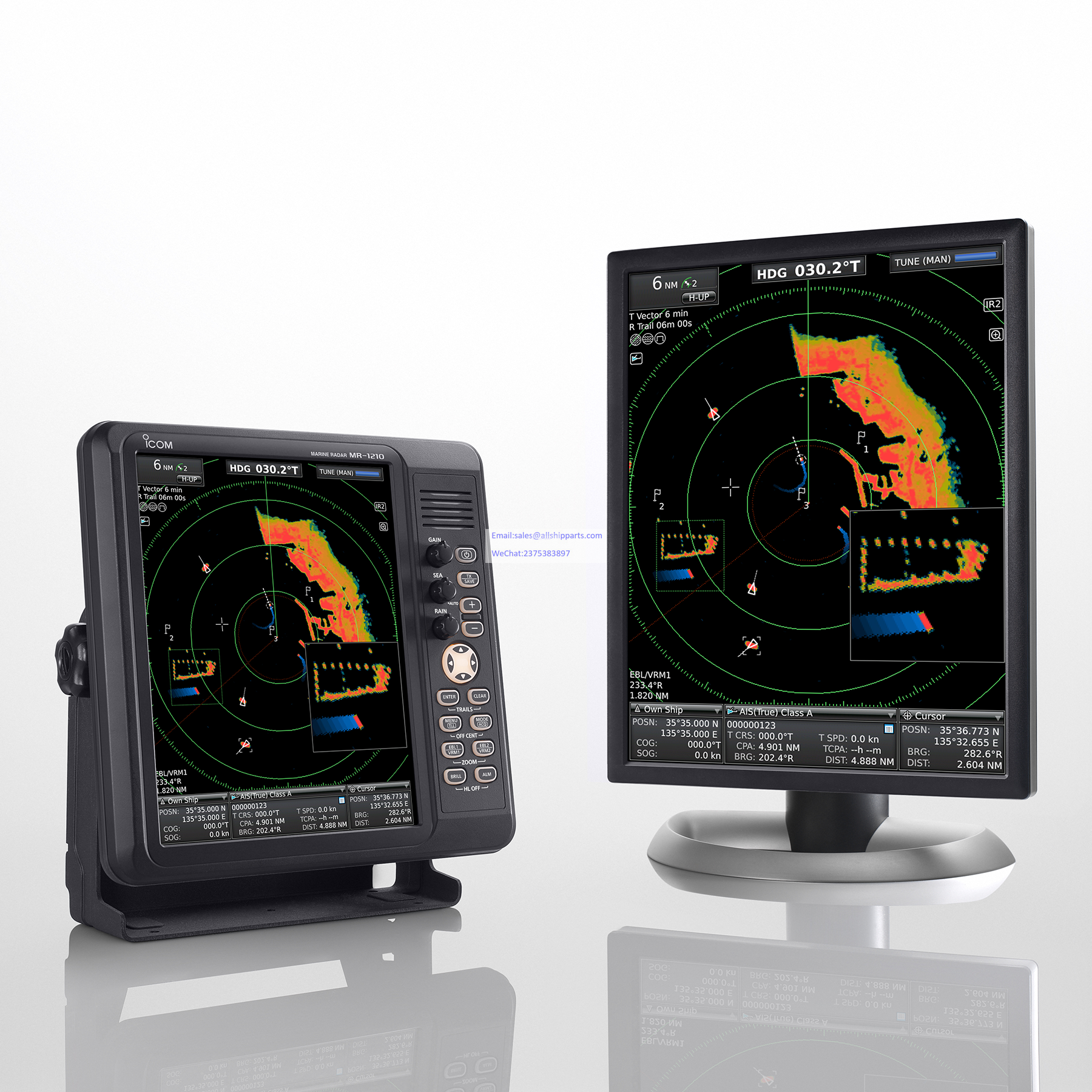

With an optional video output unit, UX-234, the MR-1210 can be connected to an external display. Same radar echoes can be observed on the main and secondary displays at the same time.
MR-1210RII |
MR-1210TII |
MR-1210TIII |
|||
(4 ft model) |
6.5 ft model) |
(4 ft model) |
(6.5 ft model) |
||
Display type |
12.1-inch TFT color LCD |
||||
Resolution |
600×800 dots |
||||
Minimum range |
25 m (at 1/8 NM range) |
||||
Maximum range |
36 NM |
48 NM |
72 NM |
||
Range scales (NM) |
1/8,
1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36, |
||||
Preheat time |
90 seconds |
||||
Power supply |
10.2–42 V DC |
||||
Power consumption |
60 W (approx.) |
70 W (approx.) |
80 W (approx.) |
80 W (approx.) |
90 W (approx.) |
Usable Temp. range |
−15°C to +55°C |
||||
Input data format |
NMEA 0183, N+1, AUX, IEC61162-2 |
||||
Output data format |
NMEA 0183 |
MR-1210RII |
MR-1210TII |
MR-1210TIII |
|||
(4 ft model) |
6.5 ft model) |
(4 ft model) |
(6.5 ft model) |
||
Scanner type |
2 ft (60 cm) radome scanner |
4 ft (120 cm) open array scanner |
6.5 ft (200 cm) open array scanner |
4 ft (120 cm) open array scanner |
6.5 ft (200 cm) open array scanner |
Rotation speed |
24, 36 rpm typ. |
24, 36 rpm typ. |
22, 24, 36 rpm typ. |
||
Horizontal beamwidth |
4° typ. |
2° typ. |
1.2° typ. |
2° typ. |
1.2° typ. |
Vertical beamwidth |
22° typ. |
23° typ. |
23° typ. |
23° typ. |
23° typ. |
Side lobe |
−22 dB typ. |
−24 dB typ. |
−27 dB typ. |
−24 dB typ. |
−27 dB typ. |
Usable Temp. range |
−25°C to +70°C |
||||
Usable humidity range |
Less than 95% (at 40°C) |
||||
Frequency |
9410 MHz ±30 MHz |
||||
Modulation |
P0N |
||||
Peak output power |
4 kW |
4 kW |
6 kW |
||
Pulse-width/ |
80
nS/2160 Hz, 80 nS/1440 Hz, 250 nS/1440 Hz, |
||||
Modulator |
FET switching |
||||
Intermediate frequency |
60 MHz |
||||
IF bandwidth |
10 MHz, 3 MHz |
||||
Tuning |
Auto/manual selectable |
||||
Supplied system cable |
15 m; 49.2ft; OPC-2341 |
20 m; 65.6ft; OPC-2342 |
All stated
specifications are subject to change without notice or obligation.
