NSR NVR-9000 VDR
NSR NVR-9000 VDR
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

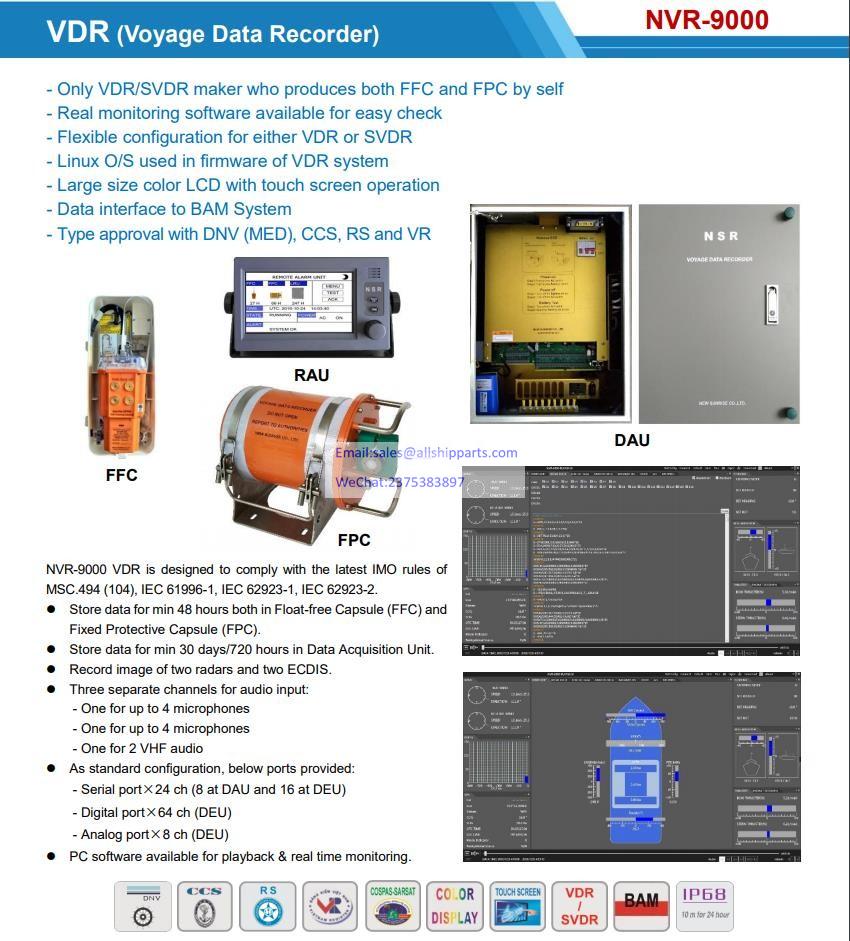

【FEATURES】
- NVR-9000 VDR is
designed to comply with the latest IMO rules of MSC.494 (104), IEC
61996-1, IEC 62923-1, IEC
62923-2.
- Store data for min 48 hours both in Float-free Capsule (FFC) and
Fixed Protective Capsule
(FPC).
- Store data for min 30days/720 hours in Data Acquisition Unit.
- Record image of two radars and two ECDIS.
- Three separate channels for audio input:
One for up to 4 microphones
One for up to 4 microphones
One for 2 VHF audio
- As standard configuration, below ports provided:
Serial port x 24 ch (8ch at DAU and 16 ch at DEU)
Digital port x 64 ch (DEU)
Analog port x 8 ch (DEU)
- PC software and Phone APP are available for playback and realtime monitoring.
- CCS type approval.
- DNV type approval.
- RS type approval.
- VR type approval.

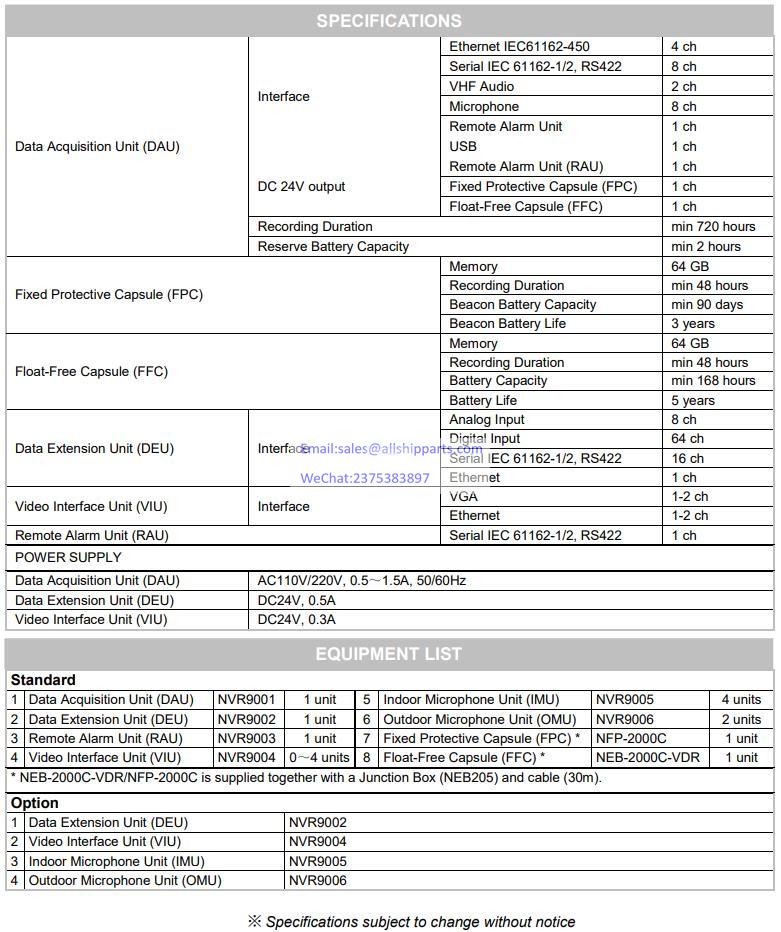

【SPECIFICATIONS】
|

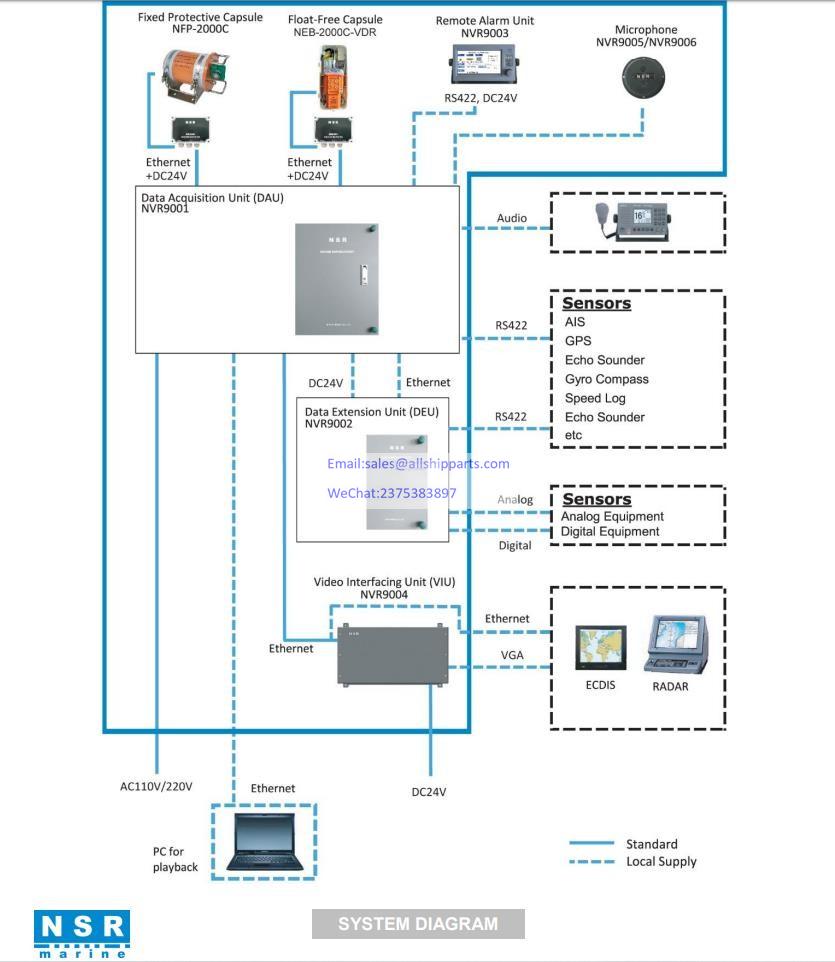

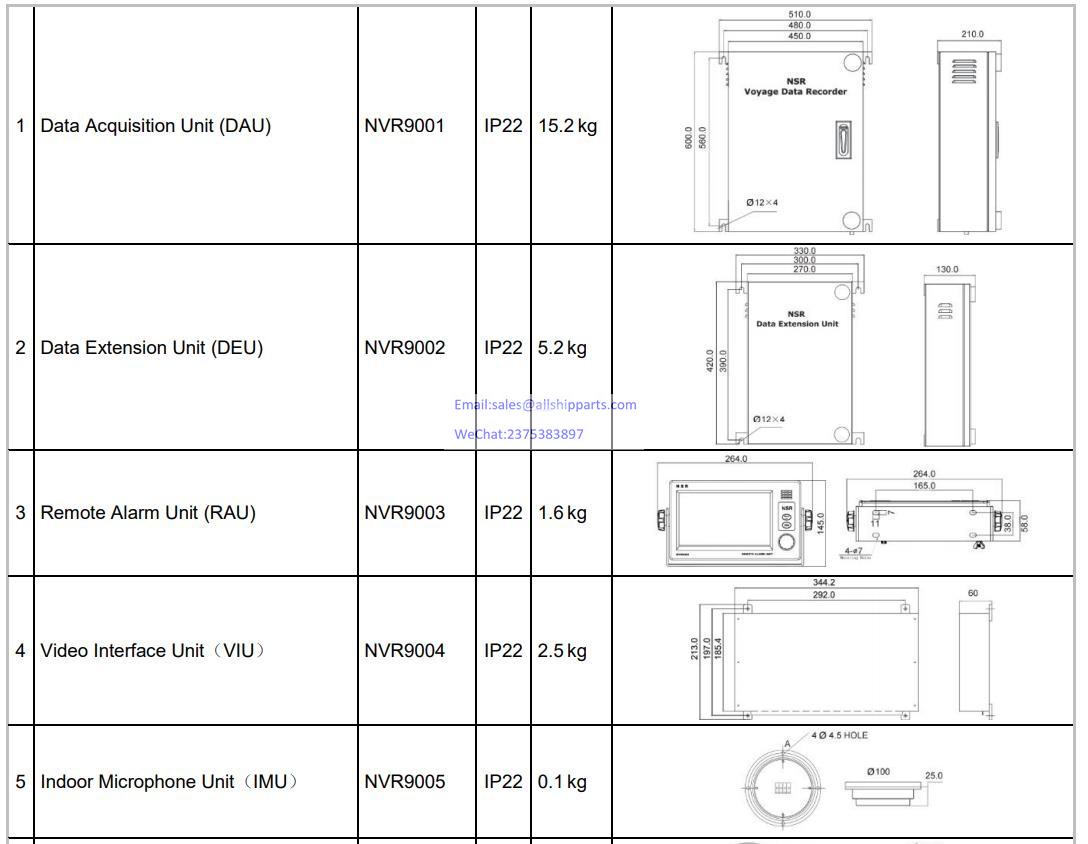

Data Acquisition Unit (DAU) |
||
|
Interface: |
Ethernet IEC61162-450 |
4 ch |
|
Serial IEC61162-1/2, RS422 |
8 ch |
|
|
VHF Audio |
2 ch |
|
|
Microphone |
8 ch |
|
|
Remote Alarm Unit |
1 ch |
|
|
USB |
1 ch |
|
|
DC 24V output: |
Remote Alarm Unit (RAU) |
1 ch |
|
Fixed Protective Capsul (FPC) |
1 ch |
|
|
Float-Free Capsule (FFC) |
1 ch |
|
|
Recording Duration : |
min 720 hours |
|
|
Reserve Battery Capacity: |
min 2 hours |
|
|

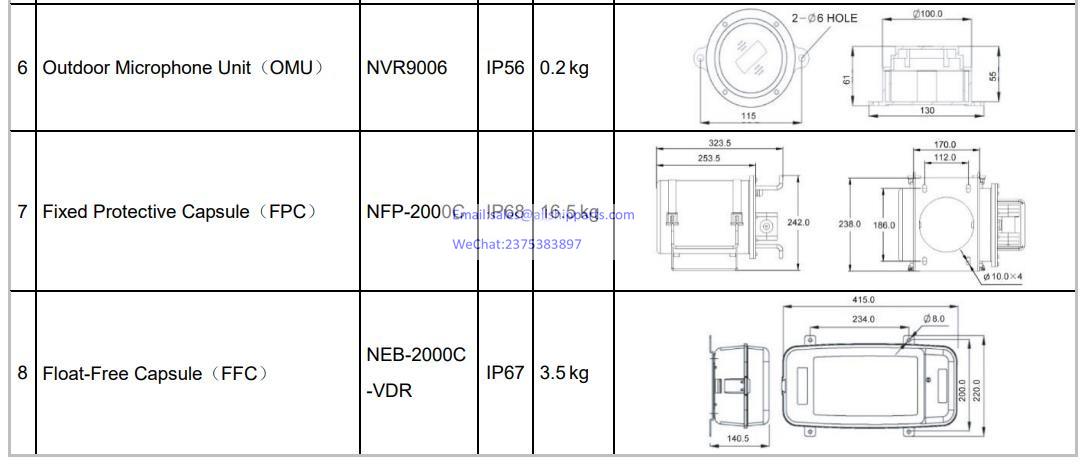

Fixed Protective Capsule (FPC) |
Memory |
64 GB |
|
Recording Duration |
min 48 hours |
|
|
Float-Free Capsule (FFC) |
Memory |
64 GB |
|
Recording Duration |
min 48 hours |
|
|
Battery Capacity |
min 168 hours |
|
|
Battery Life |
5 years |
|
|
Data Extension Unit (DEU) |
||
|
Interface: |
Analog Input |
8 ch |
|
Digital Input |
64 ch |
|
|
Serial IEC61162-1/2, RS422 |
16 ch |
|
|
Ethernet |
1 ch |
|
|
Video Interface Unit (VIU) |
||
|
Interface: |
VGA |
1-2 ch |
|
Ethernet |
1-2 ch |
|
|
Remote Alarm Unit (RAU) |
Serial IEC61162-1/2, RS422 |
1 ch |
|
POWER SUPPLY |
Data Acquisition Unit (DAU) |
AC100V/220V, 0.5～1.5A, 50/60Hz |
|
Data Extension Unit (DEU) |
DC24V, 0.5A |
|
|
Video Interface Unit (VIU) |
DC24V, 0.3A |
