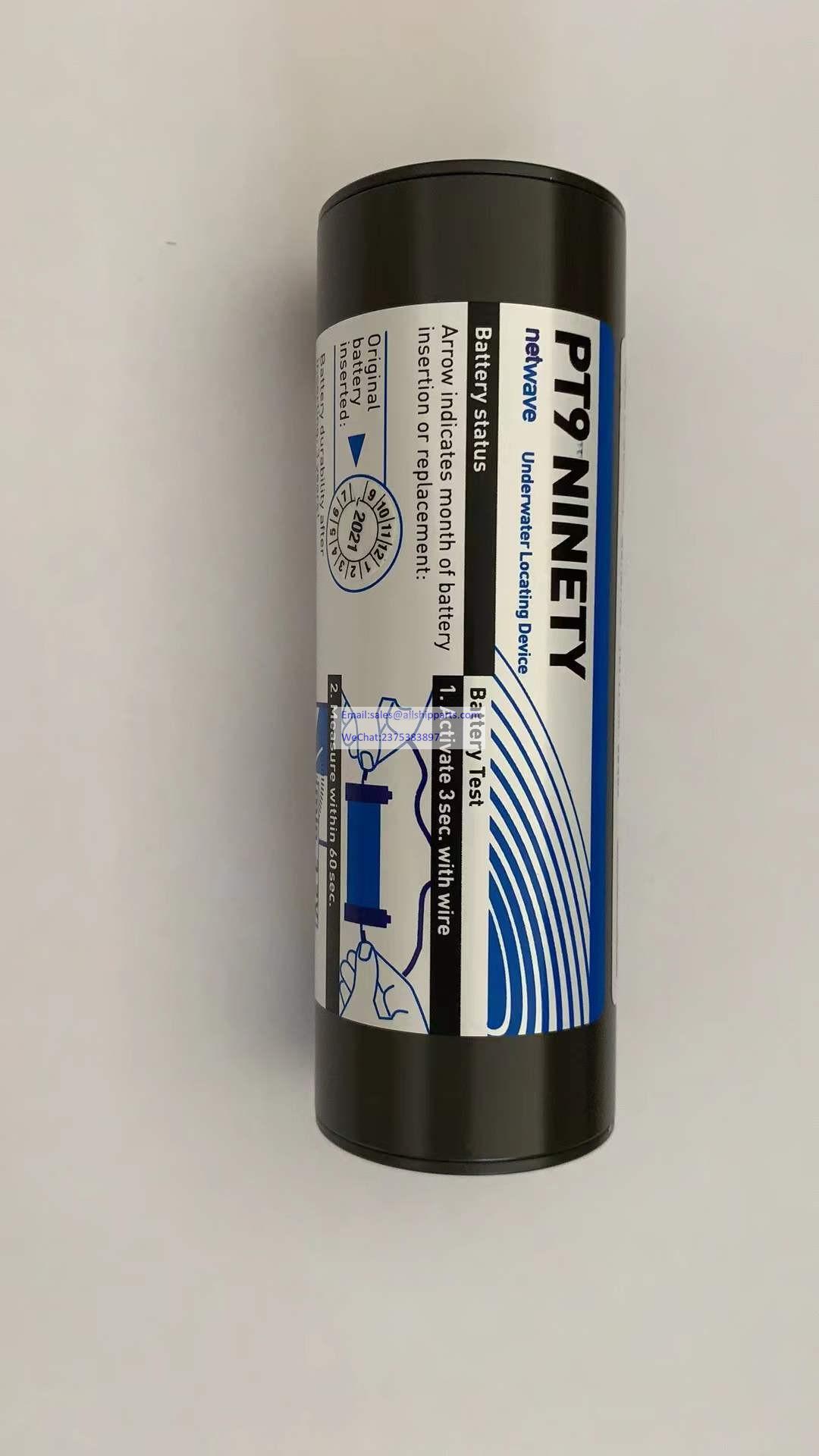

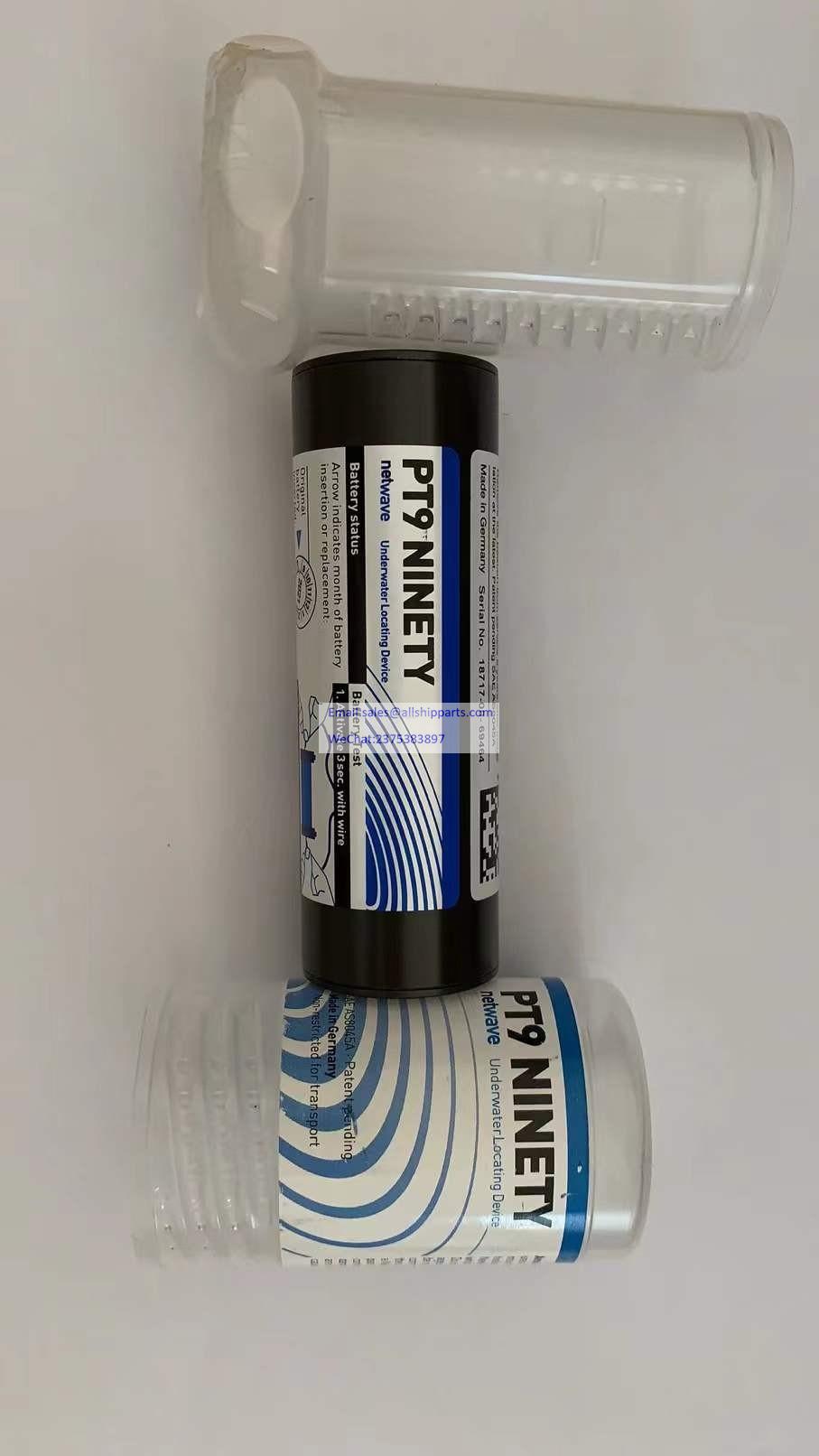

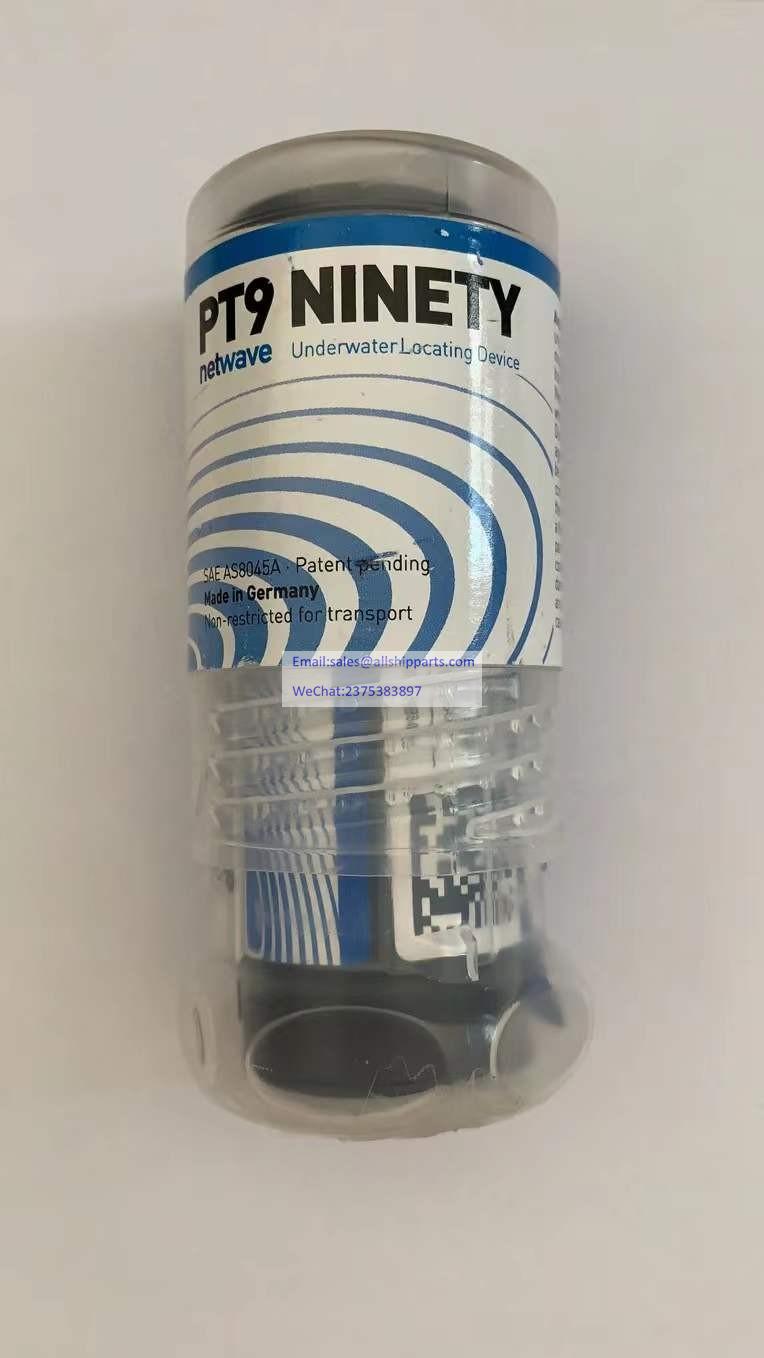

Netwave PT9 NINETY BEACON Underwater Locating Device It was the first – and is now the first choice 90-day ULD (Underwater Locating Device). PT9 NINETY meets the requirements of IMO* and is a direct replacement for existing ULDs, as certified by BSH.
Netwave PT9 NINETY BEACON Underwater Locating Device
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
Features
Dimensions Weight
| Length | 100 mm (3.92 inches) |
| Diameter | 33 mm (1.3 inches) same as PT9 C-Proof |
| Weight | 187 g (6.6 ounces) |
Operating Details
| Actuation | Automatically by both, fresh and salt water, at all depths from 0.15 m (0.5 ft) to 6096 m (20000 ft) within 4 hours after immersion |
| Operating Depth | Surface to 6096 m (20000 ft) |
| Operating Temperature |
–2°C (28°F) to +38°C (100°F) |
| Radiation Pattern | 80% of a spherical pattern |
| Operating Frequency | 37.5 ± 1 kHz |
| Pulse Length | 9.0 ms minimum |
| Repetition Rate | 0.9 pulse/s minimum |
| Operating Life | 90 days |
Acoustic Outputs on Activation
| Initial Operation |
106 N/m2 (1060 dyne/cm2) r.m.s. (during the pulse) pressure normalized to 1 metre range, that is, at a level of 160.5 dB vs 1 μPa at 1 metre |
| Immediately after 90 days continuous operation | 70 N/m2 (700 dyne/cm2) r.m.s. (during the pulse) pressure normalized at 1 metre range, that is, at a level of 157 dB vs 1 μPa at 1 metre |
