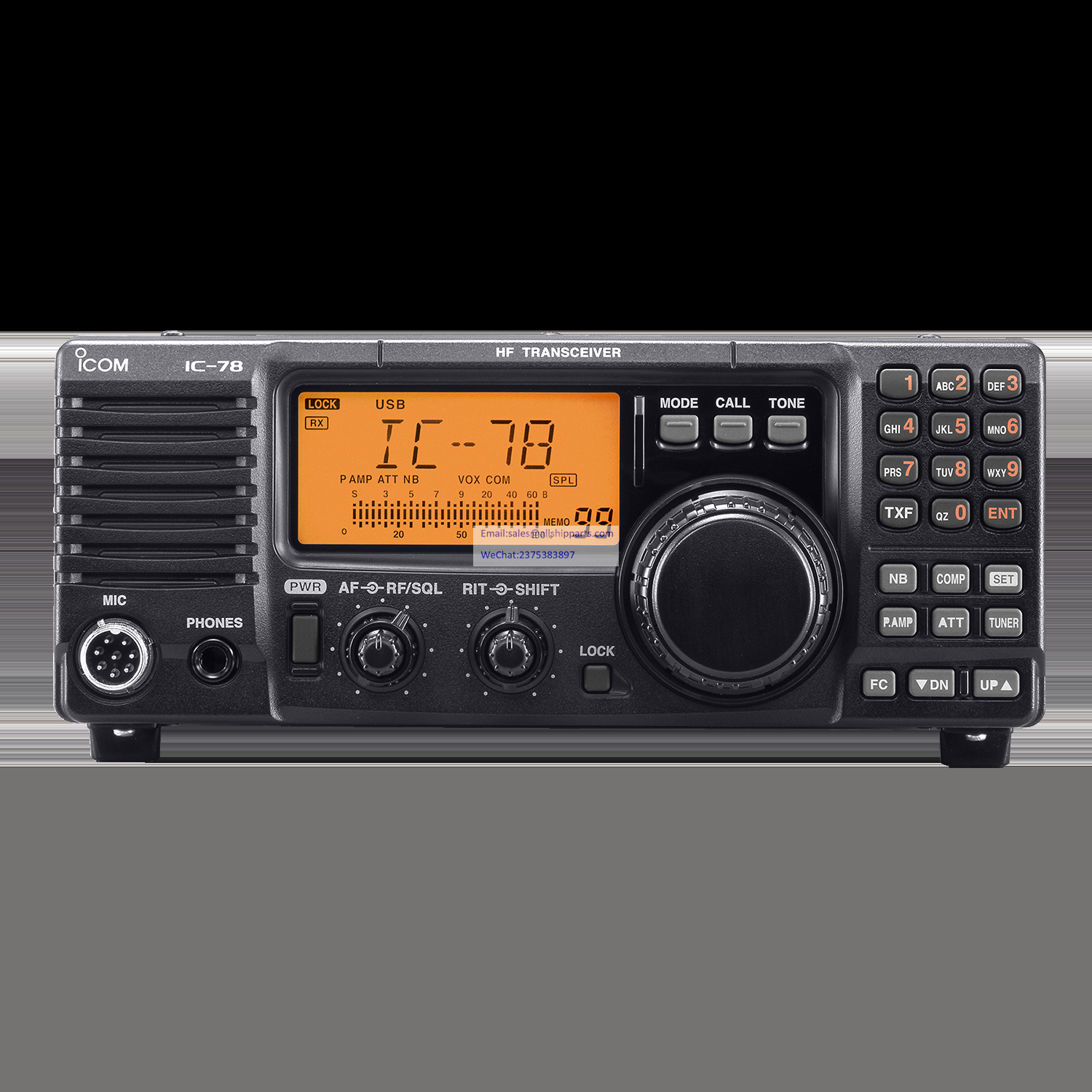

ICOM HF TRANSCEIVER IC-718
ICOM HF TRANSCEIVER IC-718
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
Simple Operation
The IC-718 is equipped with a minimum number of buttons and controls for simple feature selection. The 10-key pad on the front panel allows direct entry of an operating frequency or a memory channel number. The auto tuning step function is activated when turning the dial quickly and helps speed up tuning. The band stacking register is convenient when changing operating bands.
Front Mounted Loud Speaker
The IC-718 has the speaker mounted on the front panel. With the speaker facing the operator, audio will be heard clearly and directly while operating.
Optional* DSP Capability, UT-106
SHAPE \* MERGEFORMAT
The optional DSP unit gives you noise reduction and auto notch filter functions for extra receiver performance.
*Already installed for USA version.
General Coverage Receiver
The IC-718 has 0.03–29.999999MHz* general coverage receive capability.
*Guaranteed range: 0.5–29.999999 MHz
Other Features
· Built-in electronic keyer
· Built-in microphone compressor
· Combined squelch and RF gain control
· Preamplifier and attenuator
· 101 memory channels
· CW full break-in
· IF shift interference rejection
· 1Hz tuning
· VOX function for hands-free operation
· Optional automatic antenna tuner
· Digital S/RF meter
|
Frequency coverage |
Tx |
1.8, 3.5, 7, 10, 14, 18, 21, 24, 28MHz bands |
|
Rx |
30kHz–29.999MHz*1 |
|
|
Modes |
USB, LSB, CW, RTTY, AM |
|
|
Frequency stability |
Less
than ±200Hz |
|
|
Maximum current drain |
20A at 13.8V DC |
|
|
Power supply requirement |
13.8V DC ±15% |
|
|
Antenna connector |
SO-239 (50Ω) |
|
|
Number of memory |
101 |
|
|
Dimensions |
240×95×239
mm; |
|
|
Weight (approx.) |
3.8kg; 8.4lb |
|
*1 Guaranteed range 0.5–29.999MHz.
|
Output power |
SSB, CW, RTTY |
2–100W |
|
AM |
2–35W |
|
|
Spurious emissions |
Less than –50dB |
|
|
Carrier suppression |
More than 40dB |
|
|
Unwanted sideband |
More than 50dB |
|
|
Microphone connector |
8-pin connector (600Ω) |
|
|
Sensitivity (typical) |
SSB, CW, RTTY |
1.8–29.999MHz 0.16μV |
|
AM |
0.5–1.799MHz
13μV |
|
|
Sensitivity for RED (Less than) |
SSB (2.4 kHz) |
1.8–2.999
MHz 10 dBμV emf |
|
AM (6 kHz, 60% modulation) |
1.8–2.999
MHz 16 dBμV emf |
|
|
Selectivity |
SSB, CW, RTTY |
2.1kHz/–6dB |
|
AM |
6.0kHz/–6dB |
|
|
Spurious and image |
More
than 70dB |
|
|
AF power |
More than 2.0W |
|
|
External speaker |
2-conductor 3.5 (d) mm (1⁄8″)/8Ω |
|
The LCD display may have cosmetic imperfections that appear as small or dark spots. This is not a malfunction or defect, but a normal characteristic of LCD displays.
All stated specifications are subject to change without notice or obligation.
