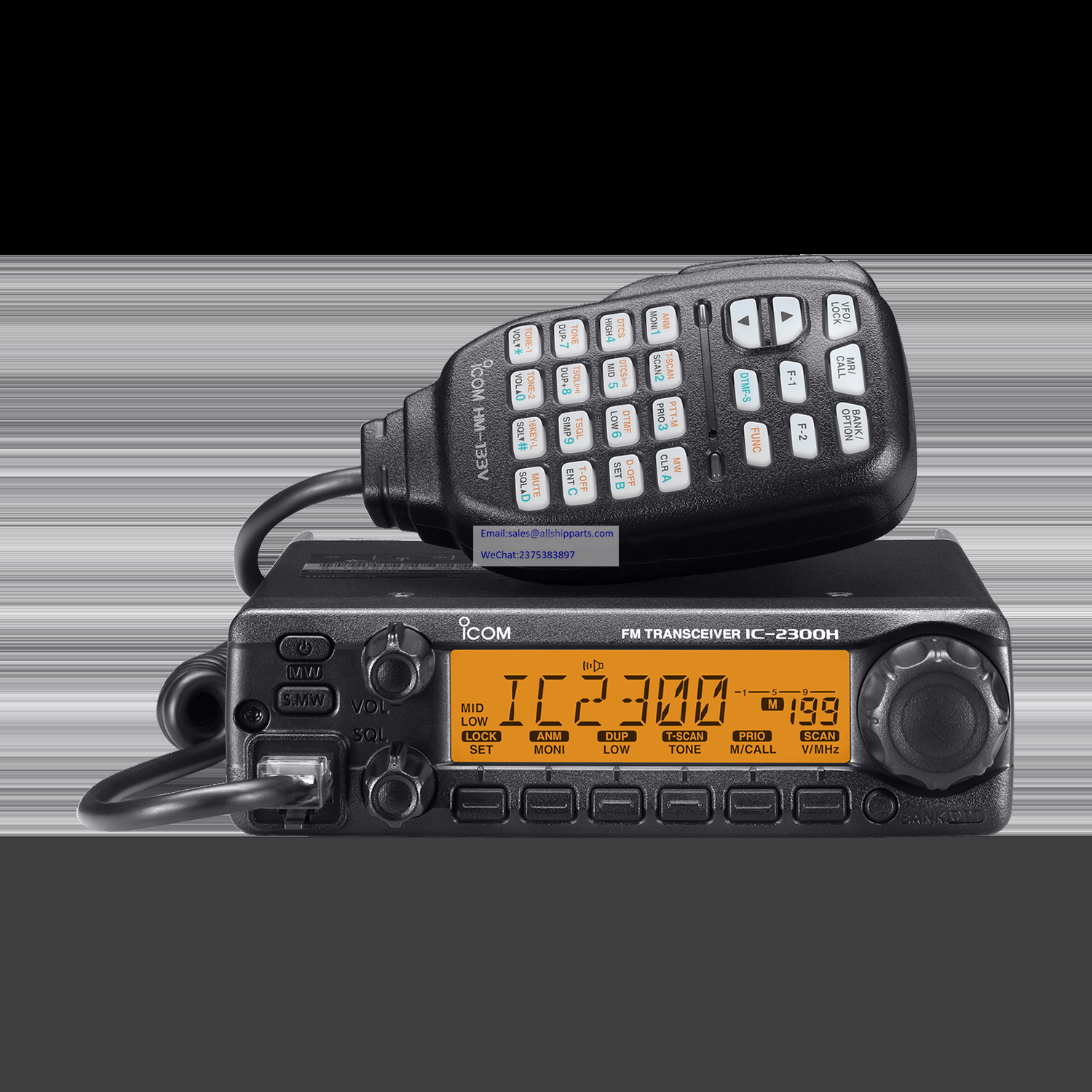

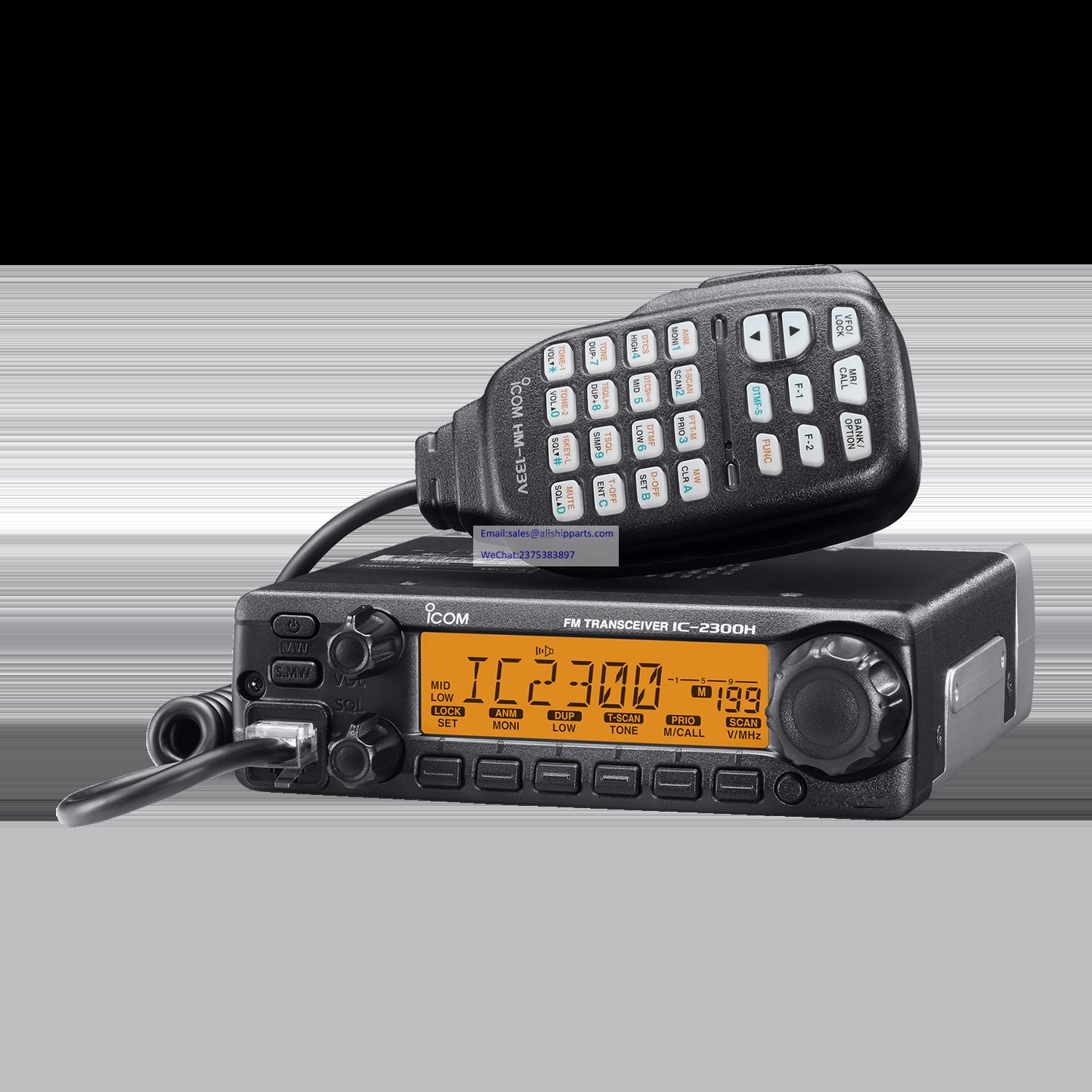

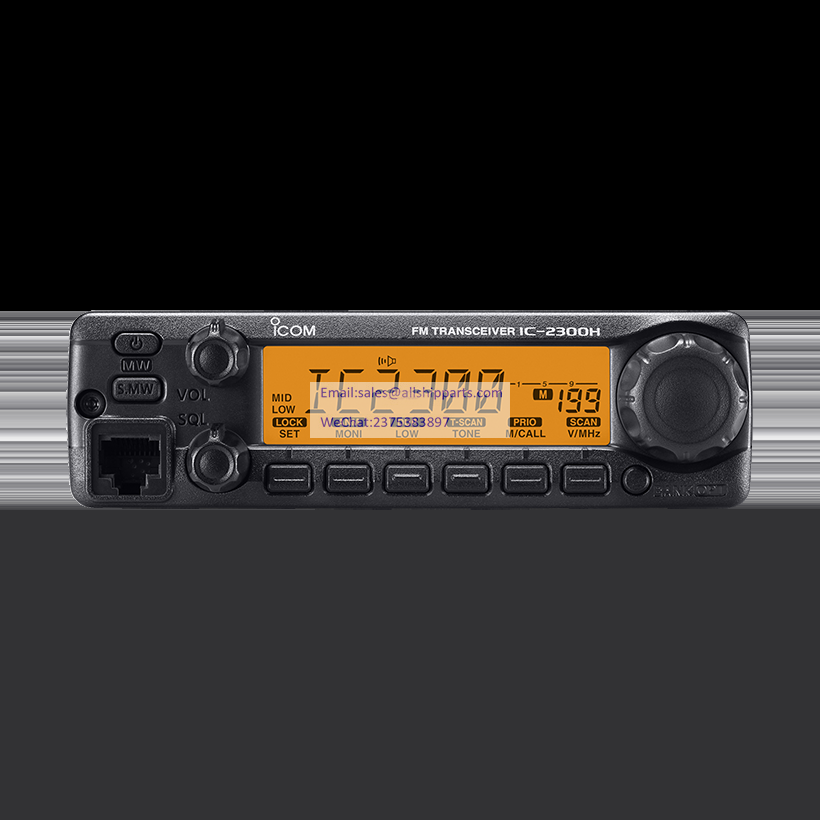

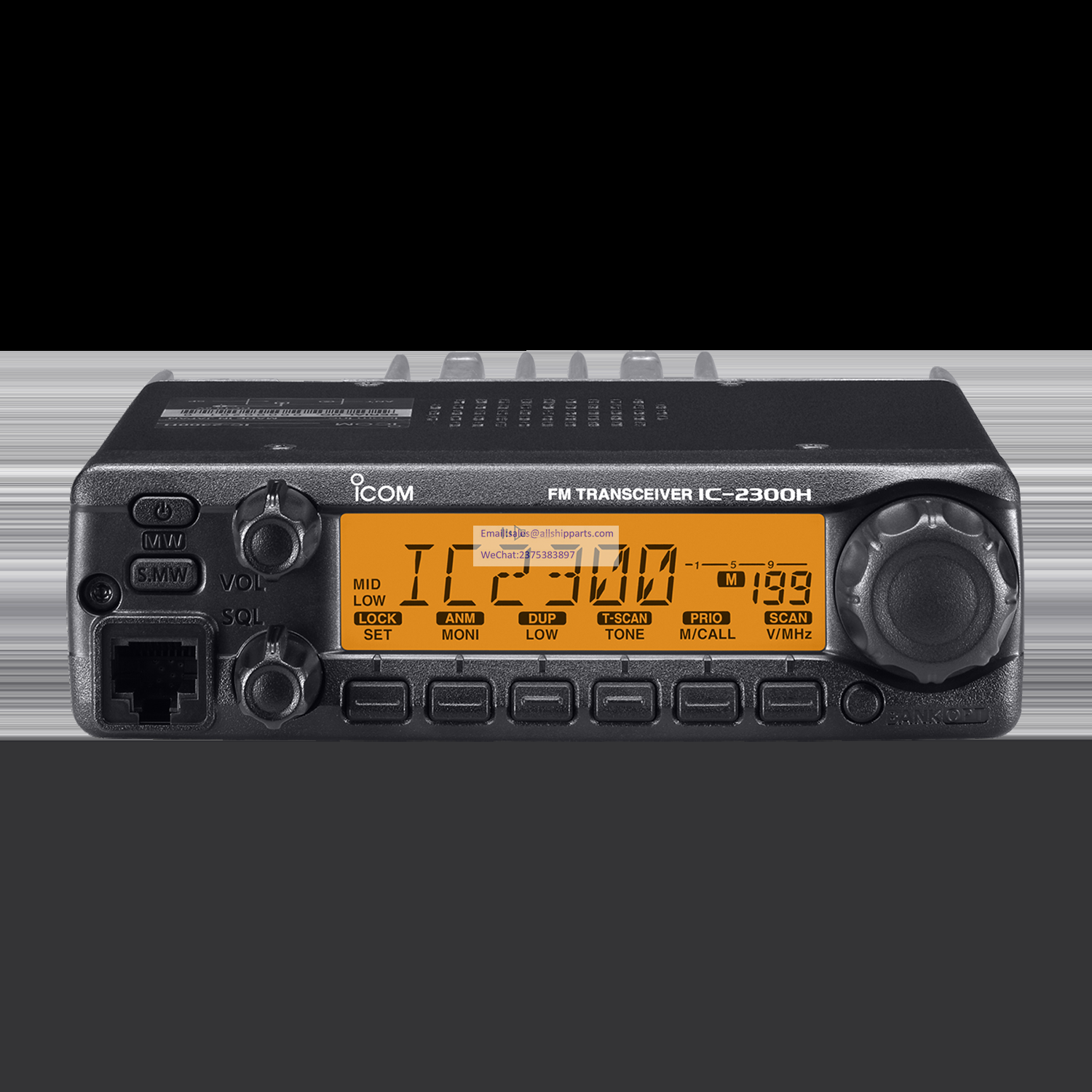

ICOM 144MHz FM TRANSCEIVER IC-2300H
ICOM 144MHz FM TRANSCEIVER IC-2300H
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
Frequency coverage |
EXP
version: Tx/Rx 136–174 MHz, |
||
Number of channels |
207 channels |
||
Type of emission |
F2D, F3E (FM) |
||
Power supply requirement |
13.8 V DC ±15% |
||
Current drain |
Tx (65 W) |
11 A |
|
Rx |
Stand-by |
0.4 A |
|
Max. audio |
1.5 A |
||
Antenna impedance |
50 Ω (SO-239) |
||
Operating temperature range |
–10°C to +60°C |
||
Dimensions |
140×40×162 mm |
||
Weight (approx.) |
1.1 kg |
* Guaranteed range TX/RX: 144–148 MHz
Output power* (at 13.8 V DC) |
EXP version: 65 W, 25 W, 10 W, 5 W KOR version: 50W, 25W, 10W. 5W TPE version: 24W, 10W, 5W |
|
Max. frequency deviation |
Wide |
±5.0 kHz |
Narrow |
±2.5 kHz |
|
Spurious emissions |
Less than –60 dBc |
|
Frequency stability |
±3 ppm |
|
Microphone impedance |
600 Ω (8-pin modular) |
* Output power differs depending on version and specific regulatory requirements.
Intermediate frequencies |
46.35 MHz/450 kHz |
|
Sensitivity at 12dB SINAD |
Less than 0.18 μV |
|
Adjacent channel |
Wide |
More
than 6 kHz (at 6 dB) |
Narrow |
More
than 3 kHz (at 6 dB) |
|
Spurious response rejection |
More than 60 dB |
|
Audio output power |
4.5 W typ. (10% dist. 4 Ω load) |
|
External speaker connector |
2-conductor 3.5 (d) mm (1⁄8ʺ)/4 Ω |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard |
MIL 810G |
|
Method |
Procedure |
|
Low Pressure |
500.5 |
I, II |
High Temperature |
501.5 |
I, II |
Low Temperature |
502.5 |
I, II |
Temperature Shock |
503.5 |
I-C |
Solar Radiation |
505.5 |
I |
Vibration |
514.6 |
I |
Shock |
516.6 |
I, IV |
Also
meets equivalent MIL-STD-810-C, -D -E and -F.
All stated specifications are subject to change without notice or obligation.
