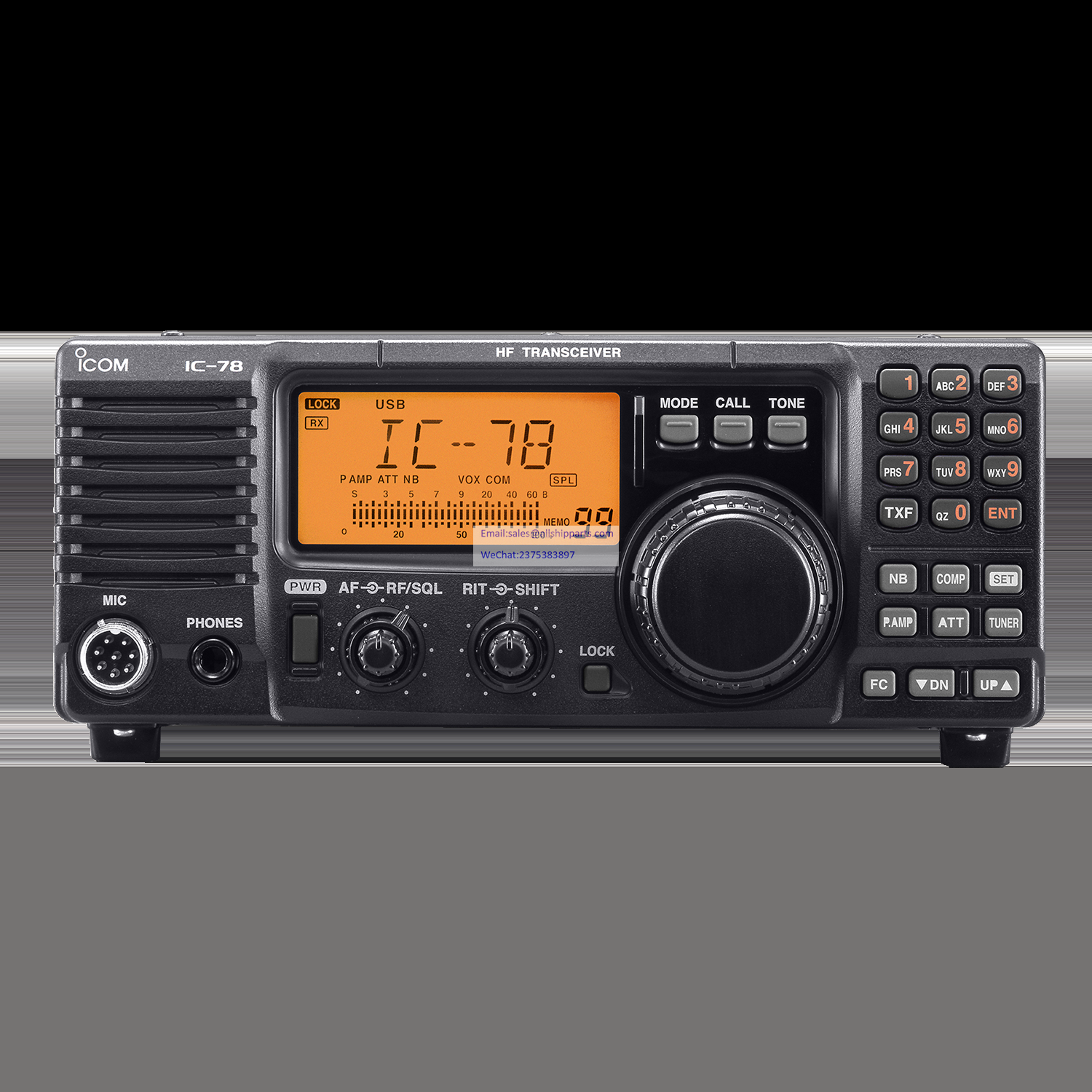

ICOM HF TRANSCEIVER IC-78
ICOM HF TRANSCEIVER IC-78 LAND version
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
A minimum of buttons and knobs provide uperior feature selectability. The 10 keypad allows you to enter an operating frequency or a memory channel number directly. VFO mode is available for continuous frequency operation.
The IC-78 covers 0.03-29.999999 MHz* in SSB, CW, RTTY and AM modes. The 1st receiver mixer provides superior receiver sensitivity, rejecting nearby interfering signals.
* Guaranteed range: 0.5–29.999999 MHz
With the speaker facing the operator, audio sounds can be clearly heard without impediment during operation.
· 101 memory channels
· VOX (Voice Operated Transmission)
· Digital S/RF meter
· Band stacking register
· IF shift interference rejection
· Squelch/RF gain control
· Optional automatic antenna tuner, AT-140 available
|
· Frequency range |
TX |
1.6-29.9999
MHz |
|
RX |
0.03-29.9999 MHz |
|
|
Power supply requirement |
13.8 V DC ±15% (negative ground) |
|
|
Dimensions
(W×H×D) |
240×95×239 mm |
|
|
Weight (approx.) |
3.8 kg; 8.4 lb |
|
|
Current drain (approx.) |
Transmit (High) |
20 A typ. at max. power |
|
Max. audio output |
2.0 A |
|
|
Sensitivity |
SSB, CW, RTTY |
0.16 μV |
|
AM |
2.0 μV typ |
|
|
Selectivity |
SSB, CW, RTTY |
2.1 kHz/-6 dB |
|
AM |
6.0 kHz/-6 dB |
|
|
Audio output powe (10% dist/ 4Ω load) |
2.0 W (10% dist / 8 Ω load) |
|
|
RF output
power (PEP) |
SSB, CW, RTTY |
2-100 W |
|
AM |
2-35 W |
|
All stated specifications are subject to change without notice or obligation.
