Dukane DKM502/90 beacon Underwater Locator Beacons 90days

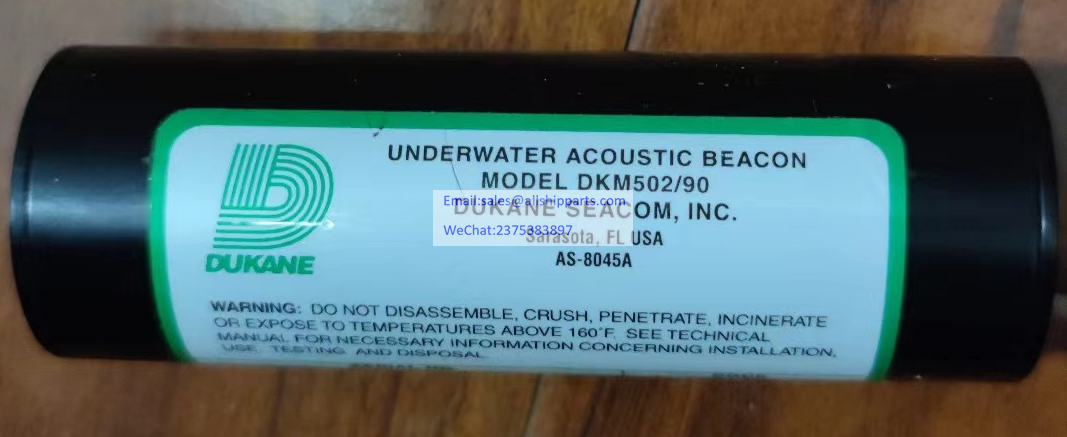

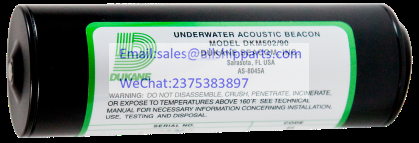

New 90days beacon DKM502/90

Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

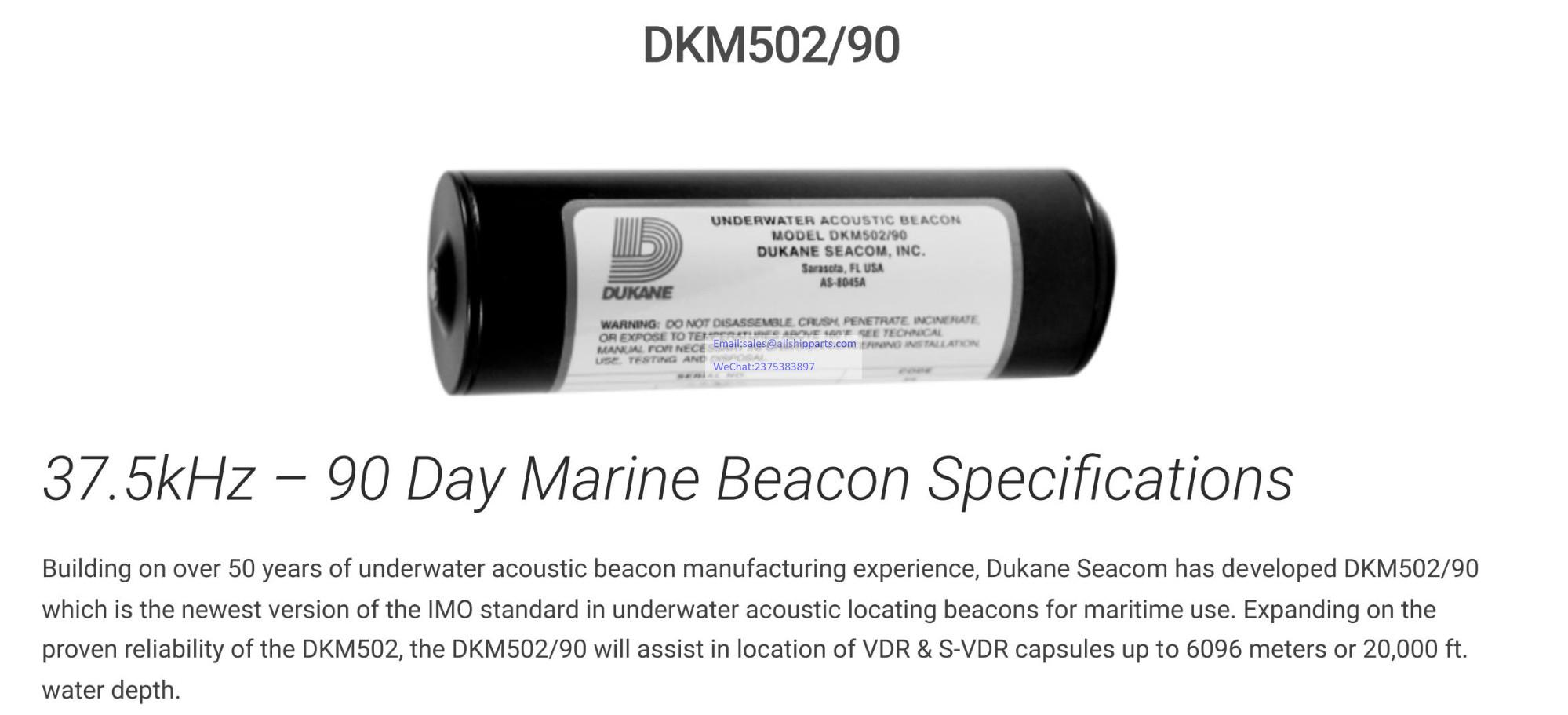

37.5kHz – 90 Day Marine Beacon Specifications

Building on over 50 years of underwater acoustic beacon manufacturing experience, Dukane Seacom has developed DKM502/90 which is the newest version of the IMO standard in underwater acoustic locating beacons for maritime use. Expanding on the proven reliability of the DKM502, the DKM502/90 will assist in location of VDR & S-VDR capsules up to 6096 meters or 20,000 ft. water depth.

The DKM502/90 will provide a minimum of 90 days of uninterrupted operation once activated, complying with minimum standard specification SAE8045A, IEC61996-1 & IEC-61996-2.& BSH approved

Physical Characteristics

• Watertight aluminum case (1.3”dia, 3.99” length (less mount)).
• Capable of operation at depths of up to 20,000 feet(6096 m)
• Detectable at a range of 2000 to 4000yards (1800 to 3600 meters) based on environmental factors.
• Sustained pressure up to 8700 psi.
• Dual water switch actuation initiates beacon operation upon immersion in either fresh or salt water.
• The battery used to power theDKM502/90 will sustain beacon operation for a minimum of 90 days at an acoustic output of 160 dB.  Operating frequency is 37.5 kHz.

Beacon Specifications

Standard Features

• Military grade corrosion protection.
• Chemical coating systems MIL-A-8625
• Innovative engineering technology that protects against inadvertent actuations.
• ATS-270M Portable Test Set shall be used to perform operational tests on the beacon.
• It can be detected at a range of 2000 to 4000 yards with DSL-375 locator.
