NSR MOB-3000 AIS MOB
NSR MOB-3000 AIS MOB
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

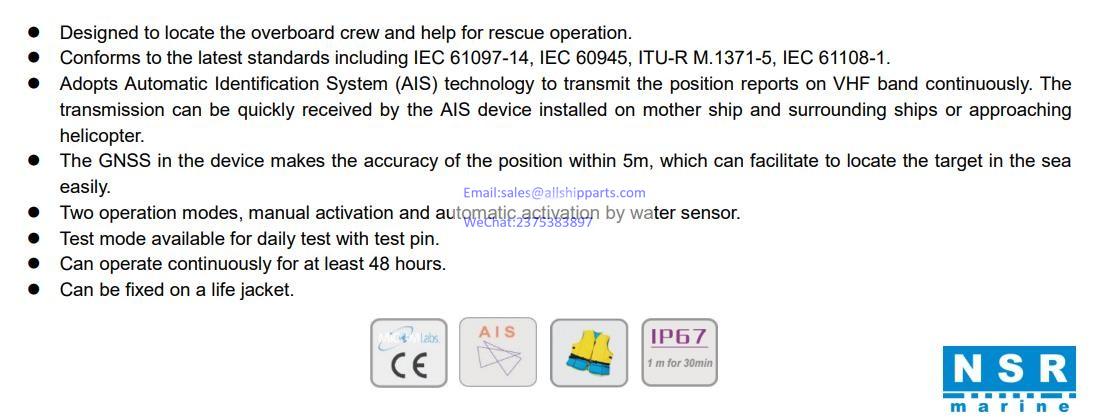

【FEATURES】
- Designed to
locate the overboard crew and help for rescue operation.
- Adopts Automatic Identification System（AIS）technology to transmit the position reports on VHF band continuously.
The transmission can be quickly received by the AIS device installed on mother
ship and surrounding ships or approaching helicopter.
- The GNSS in the device makes the accuracy of the position within 5m, which
can facilitate to locate the target in the sea easily.
- Two operation modes, manual activation and automatic activation by water
sensor.
- Test mode available for daily test.
- Can operate continuously for at least 48 hours.
- Can be fixed on a life jacket.
- Conforms to the latest standards including IEC 61097-14, IEC 60945, ITU-R M.1371-5, IEC
61108-1.

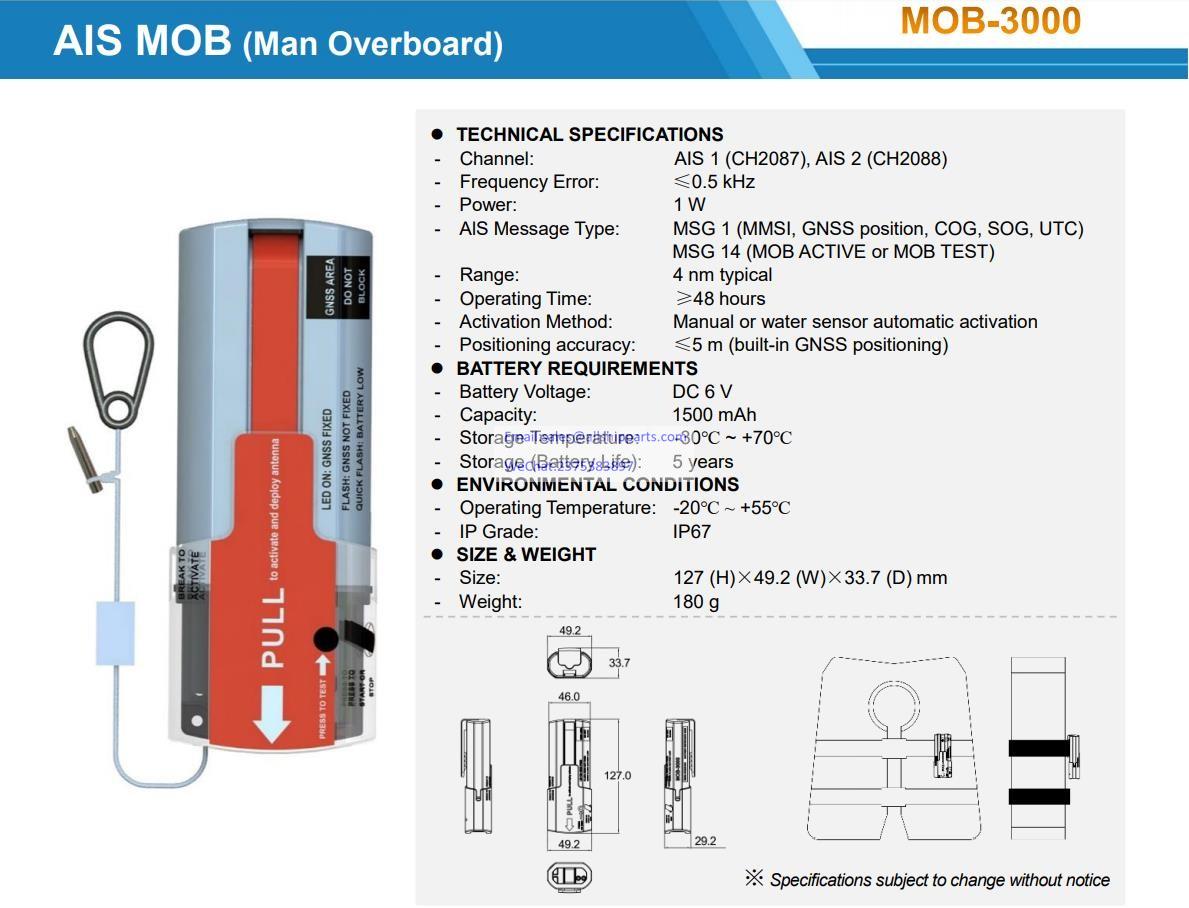

【SPECIFICATIONS】
|
TECHNICAL SPECIFICATION |
|
|
Frequency: |
AIS 1（CH2087）, AIS 2（CH2088） |
|
Frequency error: |
≤0.5kHz |
|
Power: |
1W |
|
AlS Message Type: |
MSG 1（MMSI, GNSS position, COG, SOG, UTC） |
|
Range: |
4nm typical |
|
Operating Time: |
≥48 hours |
|
Activation method: |
Manual or water sensor automatic activation |
|
Positioning accuracy: |
≤5m（built-in GNSS positioning） |
|
BATTERY REQUIREMENTS |
|
|
Battery Voltage: |
DC 6V |
|
Capacity: |
1500mAh |
|
Storage Temperature: |
-30℃ ~ +70℃ |
|
Storage（Battery Life）: |
5 - 8 years |
|
ENVIRONMENT CONDITIONS |
|
|
Operating Temperature: |
-20℃ ~ +55℃ |
|
IP Grade: |
IP67 |
|
OTHERS |
|
|
Size: |
130 × 50 × 35 mm |
|
Weight: |
abt 180g |
