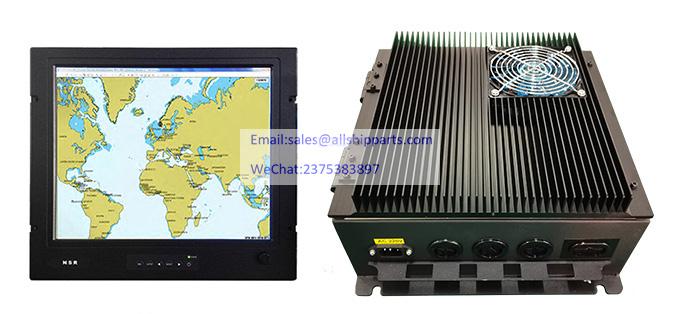

NSR NES-3000 ECDIS
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

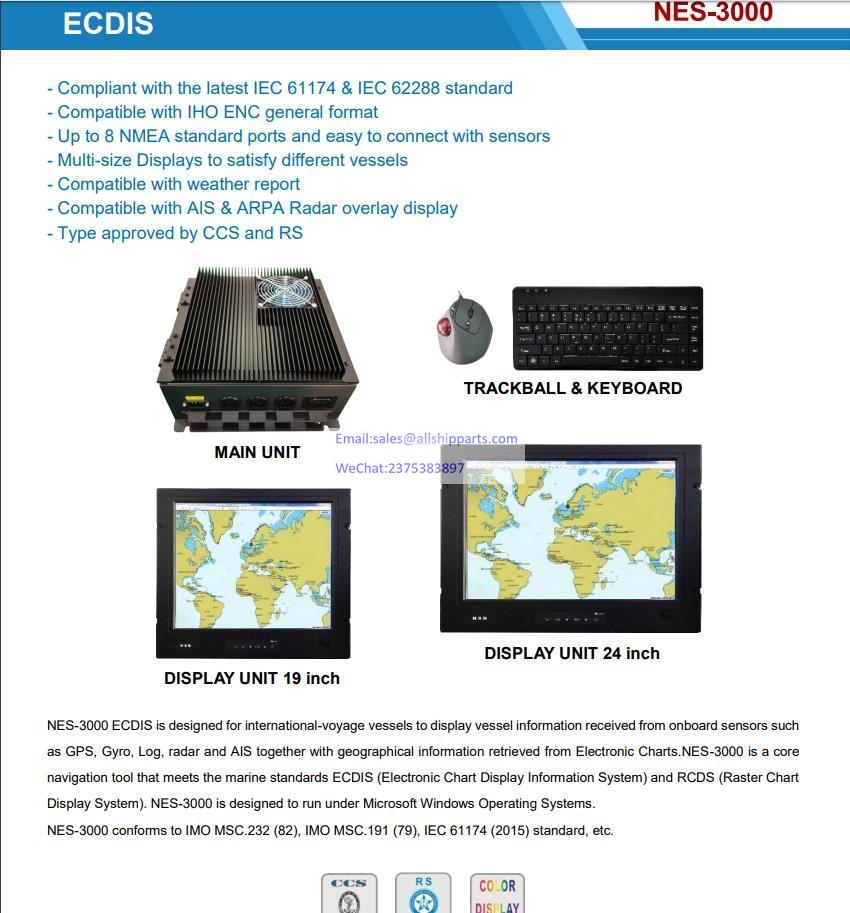

【FEATURES】
- Compliant with IEC 61174, IEC 62288, IHO S52 standard, etc.
- ENC display, illimitable zoom.
- MS Window OS, operate convenient.
- NMEA port×8, RS23 port×2.
- Aluminum case used.
- Real time update ENC by E-Mail.
- Navlog inside for nonpape log record.
- Table or flush mounting for display unit.
- CPA/TCPA calculate.
- Multi-route design.
- Compatible with weather report.
- CCS type approval.
- RS type approval.

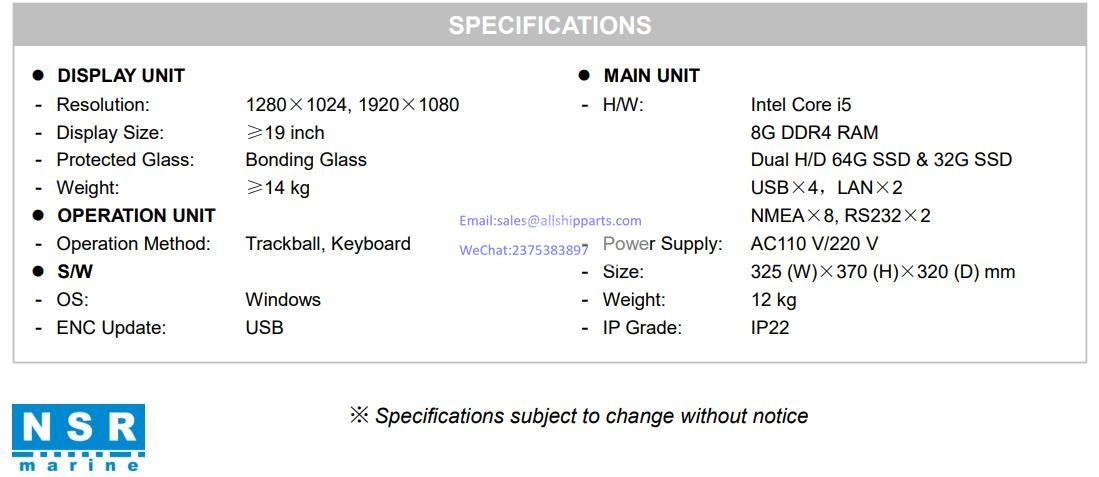

【SPECIFICATIONS】
|
DISPLAY UNT |
|
|
Resolution: |
1280×1024, 1920×1080 |
|
Display Size: |
≥19' |
|
Protected: |
Bonding glass |
|
Weight: |
≥14kg |
|
MAIN UNIT |
|
|
H/W: |
Intel Core i5 8G DDR4 RAM Dual H/D 64G SSD & 32G SSD USB×4，LAN×2 NMEA×8, RS232×2 |
|
Power: |
AC110V/220V |
|
Size: |
325（W）×370（H）×320（D）mm |
|
Weight: |
12kg |
|
IP Grade: |
IP22 |
|
S/W |
|
|
OS: |
Windows |
|
ENC Update: |
USB |
|
OPERATION UNIT |
|
|
OperationMethod: |
Trackball, Keypad |
