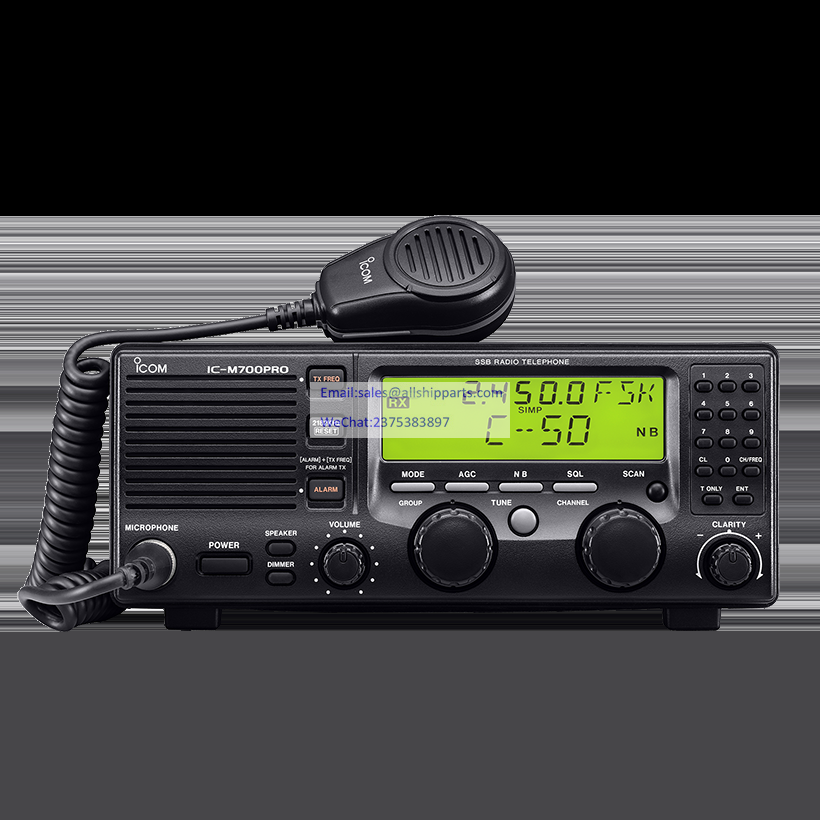

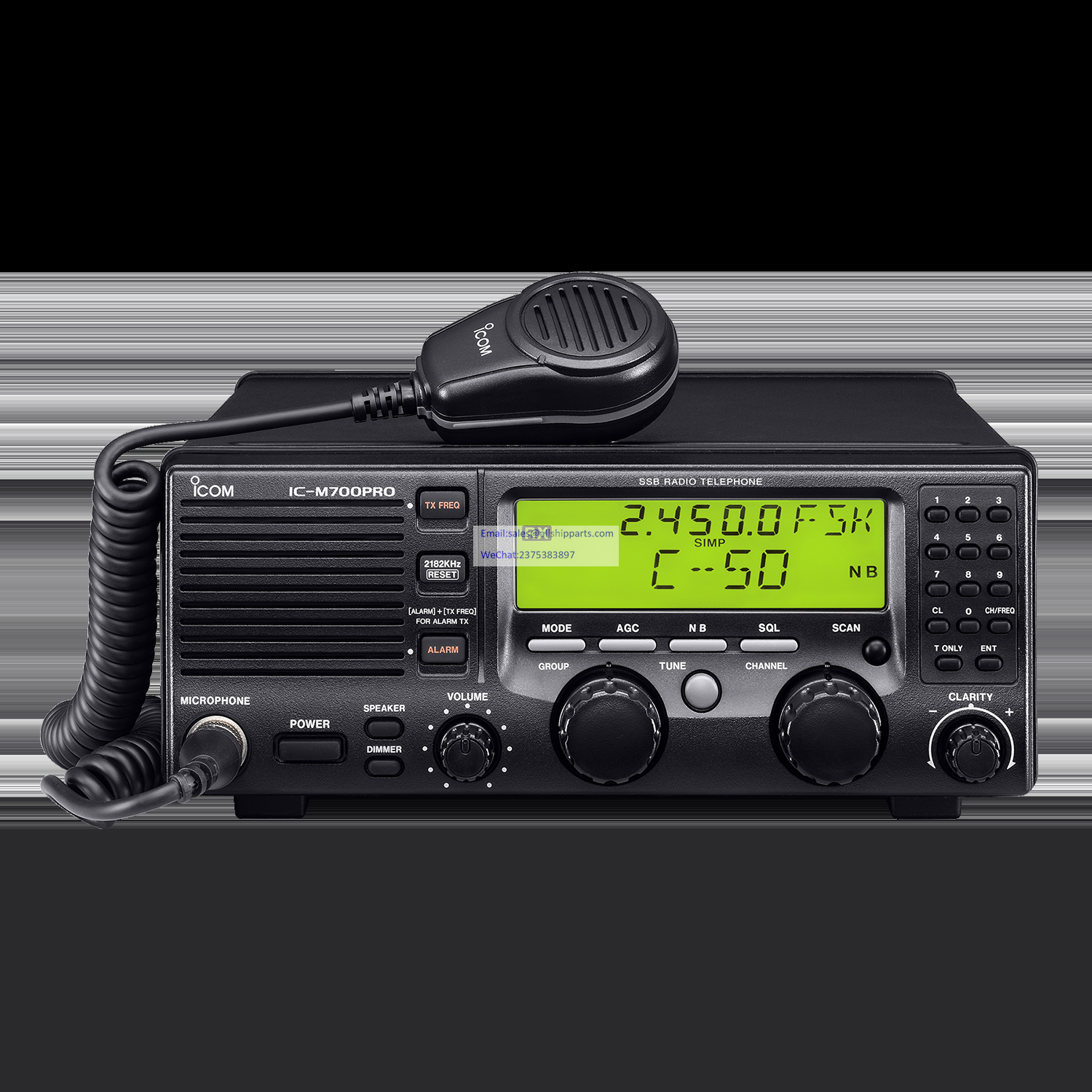

SSB RADIO TELEPHONE IC-M700PRO

SSB RADIO TELEPHONE IC-M700PRO

Product Description:

SSB RADIO TELEPHONE IC-M700PRO

A Favorite Among SSB Marine Radio Operators


Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts



Simplified Operation

Channel selection is quick and easy to access with large, independent Group and Channel knobs. Each panel button has only 1 function. The large easy to read display shows channel (or frequency) and operating status at a glance.

Data Operation Capability

The powerful 150 W* (PEP) transmitter provides long distance communication, and ensures that power is always available to you-even during demanding RTTY (radio teletype) or e-mail operation.

*60 W (PEP) above 24 MHz bands.

Other Features

・    Optional automatic antenna tuner, AT-140/AT-130, matches the radio to your antenna
・    0.5 to 29.9999 MHz wide band general coverage receive
・    Channel knob allows the user to tune specific frequencies around a memory channel
・    2 DIN connectors for external equipment connection-linear amplifier, FSK terminal, e-mail modem, etc.
・    2-tone alarm built-in (Optional depending on version)
・    NMEA 0183 interface included

Frequency range

TX

1.6–2.9999 MHz
4.0–4.9999 MHz
6.0–6.9999 MHz
8.0–8.9000 MHz
12.0–13.9999 MHz
16.0–17.9999 MHz
18.0–19.9999 MHz
22.0–22.9999 MHz
25.0–27.5000 MHz

RX

0.5–29.9999 MHz

Power supply requirement

13.6 V DC ±15% (negative ground)

Dimensions (W×H×D)
(Projections not included)

291.4×116.4×315 mm
11.47×4.58×12.4 in

Weight (approx.)

7.8 kg; 17.2 lb

Current drain (approx.)

Transmit (High)

30 A at max. power

Max. audio output

2.5 A

Sensitivity
(at 10dB S/N; 1.8–29.999MHz)

J3E, J2B, R3E, A1A (12 dB SINAD)

0.35 μV typ.

H3E

2.2 μV typ.

Selectivity

J3E, R3E, J2B, A1A

2.3 kHz/–6 dB
4.2 kHz/–60 dB

Audio output power (10% dist/ 4 Ω load)

4 W

RF output power (PEP)
(output power differs depending on version)

150/60/20 W (below 24 MHz)
60/20 W (above 24 MHz)


All stated specifications are subject to change without notice or obligation.

Supplied Accessories

·  Hand microphone

·  DC power cable

·  ACC plugs

·  Mounting bracket kit

·  Microphone hanger

·  Speaker plug

·  Spare fuses
