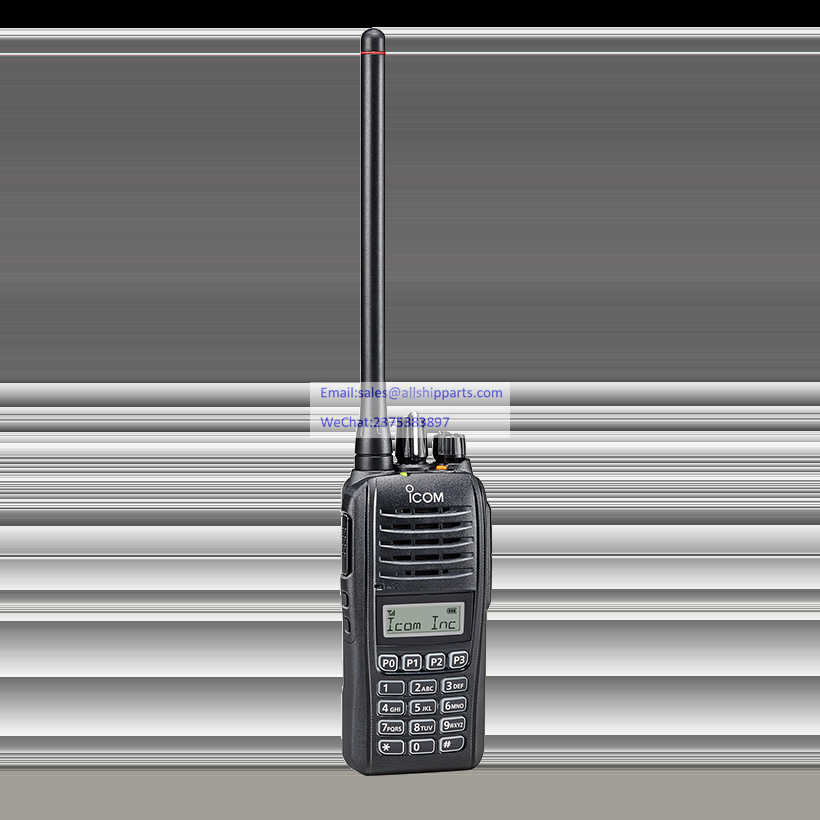

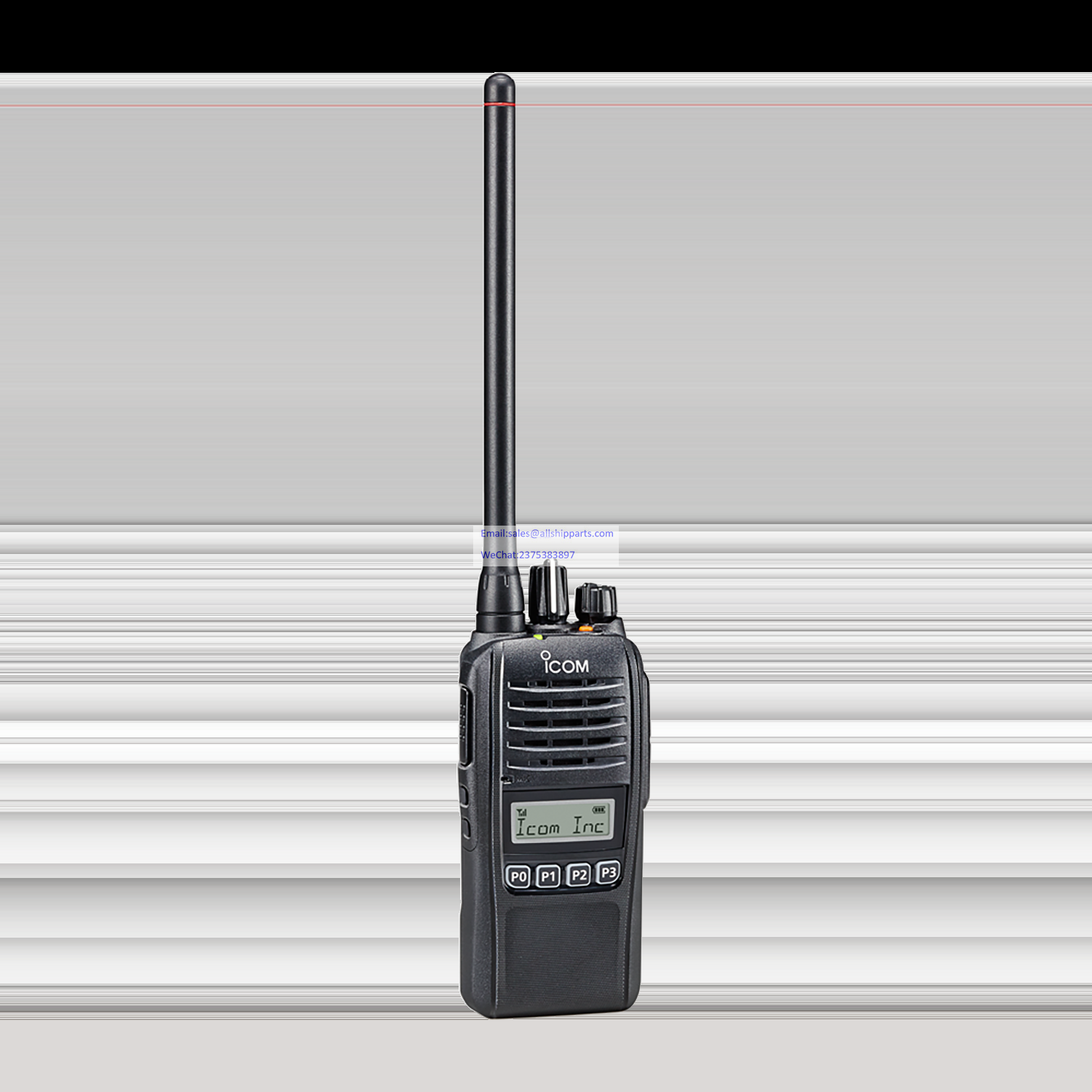

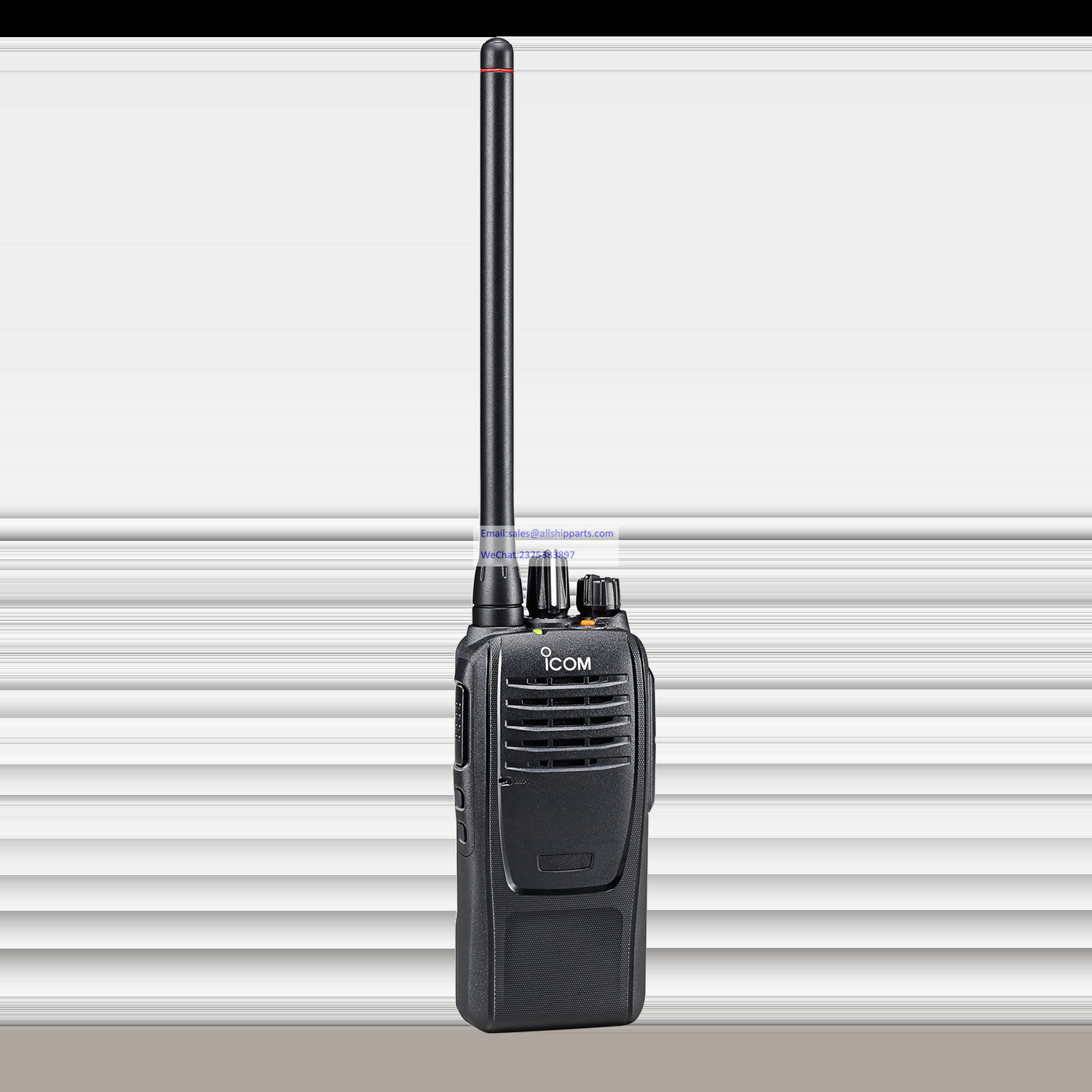

ICOM VHF/UHF HANDHELD TRANSCEIVERS IC-F1000 IC-F2000
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
SHAPE \* MERGEFORMAT
SHAPE \* MERGEFORMAT
* For the transceiver with a "U" mark on the serial number label. Not available for USA version.
SHAPE \* MERGEFORMAT
· 136–174, 335–380, 400–470, 450–512, 450–520 MHz versions
· 1500 mW large volume audio from Icom custom speaker
· Improved sound clarity
· Compact (52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in) and lightweight (240 g; 8.5 oz with BP-279)
· IP67 waterproof and dust-tight protection
· Tested to 12 categories of MIL-STD-810-G environmental tests
· DTMF autodial memories
· 16-position rotary selector and ON/OFF volume knob
· “Shift key” function increases number of programmable key assignments
· Up to 14 hours of operating time with supplied BP-279 battery pack
· Eight character alphanumeric display (Ten-keypad/simplekeypad versions)
· Three color LED
· 16-code inversion voice scrambler
· Radio Stun/Revive/Kill commands (2-Tone and 5-Tone, RX only)
· Radio Stun/Revive commands (MDC, RX only)
· Auto TX function (2-Tone and 5-Tone)
· MDC emergency call with open microphone function (MDC, RX only)
· Man down function
· Lone worker function
· Motion and stationary detection function
· Surveillance function temporarily turns OFF the beep and LED indicator
· Power ON password (for the simple type and 10-key type)
· Emergency key for emergency call
· CTCSS and DTCS tone
· 2-Tone and 5-Tone
· MDC PTT ID, Emergency (TX/RX), Radio Check (RX), Stun (RX), Revive (RX)
· Up to 100 ID numbers and names can be saved to show the alias name, instead of the ID number
· BIIS PTT ID transmission
· Priority scan monitors one or two priority channels while scanning non-priority channels
· Mode dependent scan automatically changes the scan list according to the operating channel
· Power ON scan function
· Talk back timer
· Channel announcement function
· VOX function for hands-free operation
· Audio compander
· Siren sound for security alarm
|
IC-F1000T/S |
IC-F1000 |
IC-F2000T/S |
IC-F2000 |
||
|
Frequency
coverage* |
136–174 MHz |
400–470 MHz
(ALL) |
335–380 MHz
(EXP) |
||
|
Number of channels |
128 channels/ 8 zones |
16 channels |
128 channels/ 8 zones |
16 channels |
|
|
Type of emission |
16K0F3E*/11K0F3E (USA/EXP) |
||||
|
16K0F3E/14K0F3E/8K50F3E (EUR) |
|||||
|
Power supply requirement |
7.5V DC nominal |
||||
|
Current drain |
Tx |
1.3A |
|||
|
Rx |
500 mA /77 mA |
500 mA /80 mA |
|||
|
Antenna impedance |
50Ω |
||||
|
Operating temperature range |
–30°C to
+60°C; –22°F to +140°F (Radio specification) |
||||
|
–25°C to
+55°C (Radio specifi cation) |
|||||
|
Dimensions |
52.2 × 111.8 × 24.5 mm; 2.1 × 4.4 × 1.0 in (With BP-279) |
||||
|
Weight (approx.) |
240 g; 8.5 oz (With BP-279) |
||||
*16k0F3E (30 kHz bandwidth) is no longer available for FCC Part 90 licensees for USA versions.
|
IC-F1000T/S |
IC-F1000 |
IC-F2000T/S |
IC-F2000 |
|
|
Output
power |
5 W, 2 W, 1 W |
4 W, 2 W, 1 W |
||
|
Maximum frequency deviation |
± 5.0 kHz (25 kHz)*, ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
|||
|
Spurious emissions |
70 dB minimum (USA/EXP) |
|||
|
0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR) |
||||
|
Frequency stability |
±2.5ppm |
|||
|
Audio harmonic distortion |
1.0% typical
(25/20 kHz), 1.5% typical (12.5 kHz) |
|||
|
FM Hum and Noise |
46 dB typical
(25 kHz), 40 dB typical (12.5 kHz) |
|||
|
Residual modulations |
50 dB typical
(25 kHz), |
53 dB typical
(25 kHz), |
||
|
External microphone connector |
3-conductor 2.5 (d) mm (1/10)/2.2 kΩ |
|||
* 25 kHz
bandwidth is no longer available for FCC Part 90 licensees for USA versions.
|
IC-F1000T/S |
IC-F1000 |
IC-F2000T/S |
IC-F2000 |
||
|
Sensitivity |
(at 12dB SINAD) |
0.25μV typical |
|||
|
(at 20dB SINAD) |
–4 dBμV typical emf |
||||
|
Adjacent channel selectivity |
76 dB typical
(25 kHz),
78 dB typical (25 kHz), |
73 dB typical
(25 kHz),
74 dB typical (25 kHz), |
|||
|
76 dB typ.
(25 kHz), |
73 dB typ.
(25 kHz), |
||||
|
Spurious response rejection |
70dB minimum |
||||
|
Intermodulation rejection |
74 dB typical (USA/EXP) |
73 dB typical (USA/EXP) |
|||
|
68 dB typical (EUR) |
67 dB typical (EUR) |
||||
|
Hum and noise |
(With CCITT filter) |
51 dB typical
(25 kHz), |
49 dB typical
(25 kHz), |
||
|
(Without CCITT filter) |
52 dB typical
(25 kHz), |
52 dB typical
(25 kHz), |
|||
|
AF output power |
Internal SP |
1500 mW typical |
|||
|
External SP |
400 mW
typical (Single end) |
||||
|
External speaker connector |
2-conductor 3.5 (d) mm (1⁄8)/8 Ω |
||||
All stated
specifications are subject to change without notice or obligation.
Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086 (EUR).
* For the transceiver with "U" make on the serial number label.
|
IC-F1000/S/T IC-F2000/S/T |
||
|
Number of option slots |
- |
|
|
CTCSS/ DTCS |
encoder |
Available |
|
decoder |
Available |
|
|
2-Tone |
encoder |
Available |
|
decoder |
Available |
|
|
5-Tone |
encoder |
Available |
|
decoder |
Available |
|
|
DTMF autodial |
Available |
|
|
DTMF decoder |
- |
|
|
Voice Scrambler |
Inversion |
Available |
|
Non-rolling |
- |
|
|
Rolling |
- |
|
|
APCO P25 digital |
- |
|
|
6.25kHz digital |
- |
|
|
MDC 1200 |
Available (Limited functions) |
|
|
Motion function |
Available |
|
|
Lone worker function |
Available |
|
|
Man down function |
Available |
|
|
Intrinsically safe |
- |
|
|
Voice announcement |
Available |
|
|
Audio compander |
Available |
|
|
GPS receiver |
- |
|
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard |
MIL-810 G |
|
|
Method |
Procedure |
|
|
Low Pressure Storage |
500.5 I |
I |
|
Low Pressure Operation |
500.5 |
II |
|
High Temperature Storage |
501.5 |
I |
|
High Temperature Operation |
501.5 |
II |
|
Low Temperature Storage |
502.5 |
I |
|
Low Temperature Operation |
502.5 |
II |
|
Temperature Shock |
503.5 |
I-C |
|
Solar Radiation |
505.5 |
I |
|
Rain Blowing |
506.5 |
I |
|
Rain Drip |
506.5 |
III |
|
Humidity Induced |
507.5 |
II |
|
Salt Fog |
509.5 |
- |
|
Dust Blowing |
510.5 |
I |
