Next Generation Icom Air Band Radio with Built-in GPS and Bluetooth®
For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP)/ 1.8 W typical (carrier) compared to the IC-A24E (5/1.5 W PEP/carrier).
SHAPE \* MERGEFORMAT

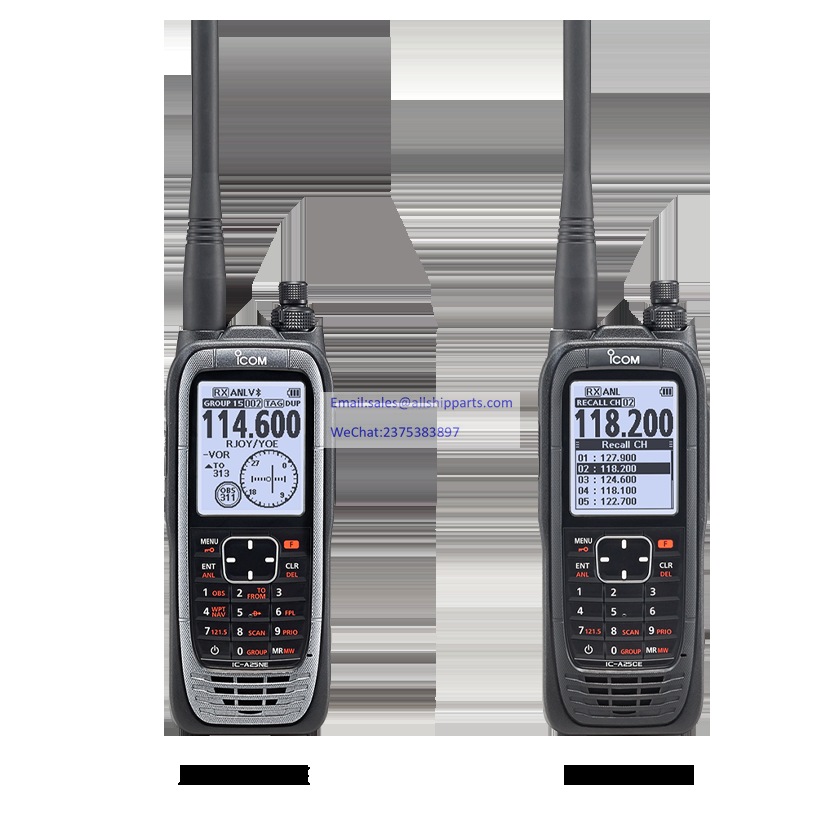

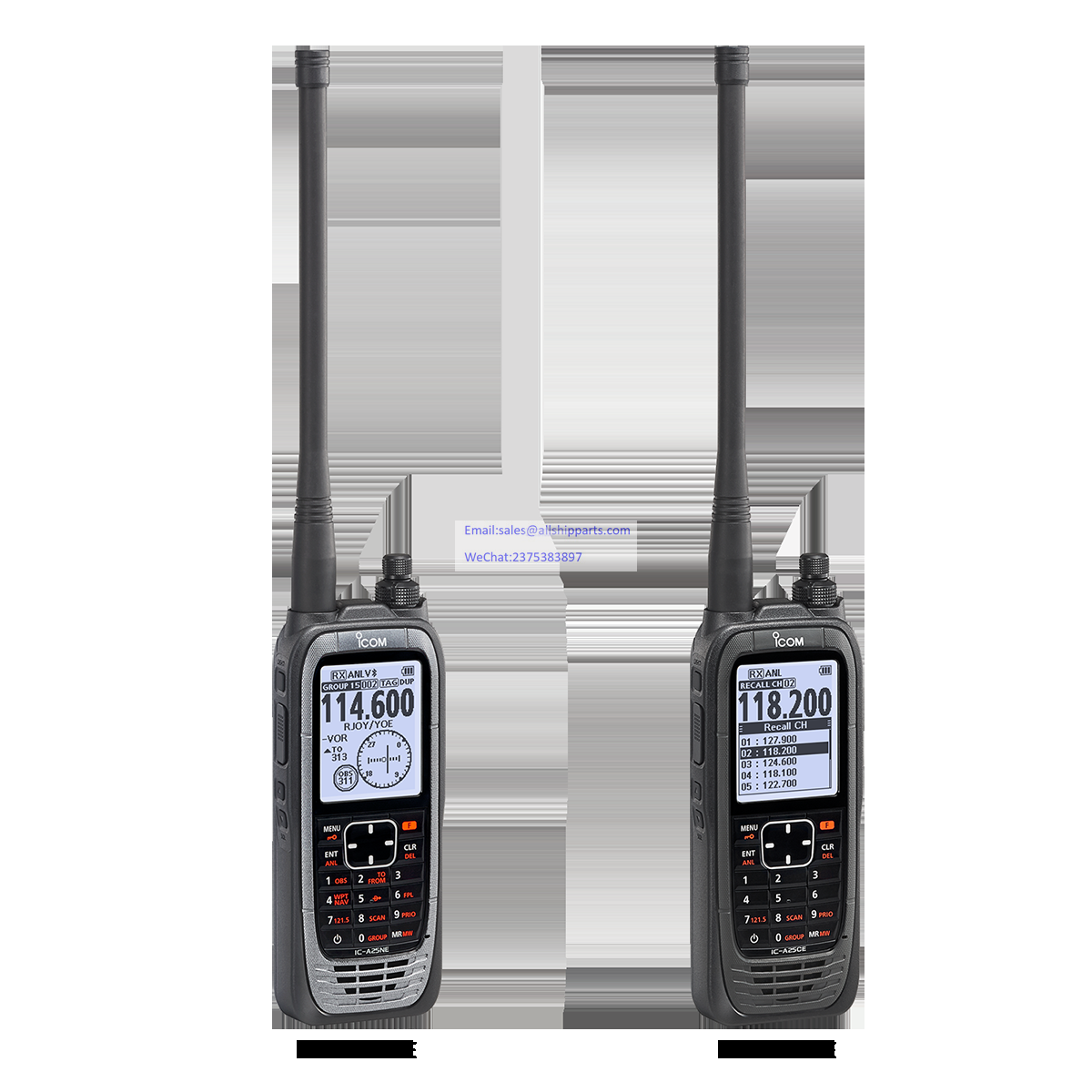

* Photo is of the IC-A25NE.
Often used functions are assigned to the keypad and you can directly access a desired function. The enlarged flat sheet keypad offers smooth and swift operation.
The 2.3 inch large, high contrast and high visible LCD displays user-friendly, graphic screens and ensures good readability under direct sunlight. The operating frequency in large characters can be recognized at a glance. In addition, the night mode option enables easy viewing in low light conditions.
SHAPE \* MERGEFORMAT
Menu screen
SHAPE \* MERGEFORMAT
Night mode screen
SHAPE \* MERGEFORMAT
Recall channel screen
The IC-A25NE/CE stores the last 10 channels used. You can easily recall those channels by using the directional keys, the channel knoband the 10 keypad. This is convenient for switching between several channels, such as NAV and COM channels. In addition, you can freely edit (replace, delete, change order) the stored recall channels.
A third-party wireless Bluetooth® headset, like
a 3M™ Peltor™ WS™ 5*, provides convenient hands-free operation. Also, by using
the optional VS-3 Bluetooth® headset, the side tone function
can be used.
* Compatibility not guaranteed.
SHAPE \* MERGEFORMAT
Detailed battery
information screen
The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. It is very useful for optimum charging and battery health maintenance.
* Typical operation with Tx: Rx (Max.audio): standby=5:5:90. (Bluetooth OFF, GPS ON)
SHAPE \* MERGEFORMAT
VOR screen
The CDI (Course Deviation Indicator) is
detailed like a real VOR instrument, and displays any deviation from your
course.
The OBS (Omni
Bearing Selector) enables you to change course from the original flight plan.
The TO-FROM indicator shows
the position relationship between your aircraft and the course selected by the
OBS.
The ABSS (Automatic
Bearing Set System) function enables you to set the current course as a new
course in two simple steps.
SHAPE \* MERGEFORMAT
Near station search
function screen
The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories that have GPS position information. To use the near station search function, position data and frequencies of the ground stations must be programmed.
SHAPE \* MERGEFORMAT
Waypoint NAV screen
The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. Up to 10 flight plans and 300 waypoints can be memorized in the IC-A25NE.
SHAPE \* MERGEFORMAT
RS-AERO1I map screen
example
©2017 Google-Map data
©2017 Google
Using the RS-AERO1A (Android) or RS-AERO1I (iOS) application, you can make flight plans on an Android/iOS device and import the plan into the IC-A25NE via Bluetooth. The following four functions are available: Create a flight plan, set Direct-To NAV, display flight plan information and display waypoint information.
* Additional certification may be required for some countries. Enquire with your local authority for details.
· IP57 dust-protection and waterproof construction
· Operate with six AA size alkaline batteries with the BP-289 battery case
· BNC antenna
· 121.5 MHz emergency key
· Weather channels
· Priority watch
· VFO scan, memory channel scan, priority scan
· ANL (Auto Noise Limiter) for noise reduction
· Side tone function
· Internal VOX capability
· 300 memory channels (in 15 memory groups) with 12 character names
· 8.33 kHz channel spacing
· General
IC-A25NE |
IC-A25CE |
||
NAV and COM |
NAV and COM channels |
COM channels |
|
Frequency range |
TX |
118.000–136.992 MHz |
|
RX |
108.000–136.992 MHz |
118.000–136.992 MHz |
|
Number of memory channels |
300 channels/15 groups |
||
Channel spacing |
25/8.33 kHz |
||
Type of emission |
6K80A3E, 5K00A3E |
||
Power supply requirement |
7.2 V DC (BP-288), 11.0 V DC (External DC Jack) |
||
Current drain (approximately) |
Tx High |
Less than 1.8 A |
|
RX Max. audio/Stand-by |
Less than 500 mA |
||
Antenna impedance |
50 Ω |
||
Operating temperature range |
−20 °C to +55 °C |
||
Dimensions (W ×
H × D;) |
58.9 × 148.4 × 31.8 mm |
||
Weight (approximately) |
340 g (with BP-288) |
· Transmitter
IC-A25NE |
IC-A25CE |
|
Output power (at 7.2 V DC) |
6.0/1.8 W (PEP/carrier) |
|
Audio harmonic distortion |
Less than 10% (at 85% modulation) |
|
Harmonics Spurious emissions |
Less than −36 dBm |
|
Frequency stability |
±1 ppm |
· Receiver
IC-A25NE |
IC-A25CE |
||
Intermediate frequencies |
46.35 MHz/450 kHz (1st/2nd) |
||
Sensitivity |
NAV (6 dB S/N) |
Less than 0 dBμ |
|
COM (12 dB SINAD) |
Less than 0 dBμ (with CCITT filter) |
||
Squelch sensitivity (at threshold) |
Less than 0 dBμ |
||
Adjacent channel rejection |
More than 60 dB |
||
Spurious response |
More than 70 dB |
||
Hum and noise |
More than 40 dB (at 90% modulation) |
||
Audio output power |
External speaker |
530 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
|
Internal speaker |
1200 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
||
Ext. speaker connector |
3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
· Measurements made
in accordance with EN300 676-2.
All stated specifications are subject to change without notice or obligation.
· Applicable U.S. Military Specifications
Standard |
MIL-810 G |
|
Method |
Procedure |
|
Low Pressure |
500.5 |
I, II |
High Temperature |
501.5 |
I, II |
Low Temperature |
502.5 |
I, II |
Temperature Shock |
503.5 |
I-C |
Solar Radiation |
505.5 |
I |
Rain Blowing/Drip |
506.5 |
I, III |
Humidity |
507.5 |
II |
Salt Fog |
509.5 |
– |
Dust Blowing |
510.5 |
I |
Immersion |
512.5 |
I |
Vibration |
514.6 |
I |
Shock |
516.6 |
I, IV |
· Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
· Applicable IP Rating
Ingress Protection Standard |
|
Water |
IP57
(Dust-protection and Waterproof* protection) |
