ICOM VHF MARINE TRANSCEIVER IC-M87
ICOM VHF MARINE TRANSCEIVER IC-M87
Compact Marine, Tough PMR
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

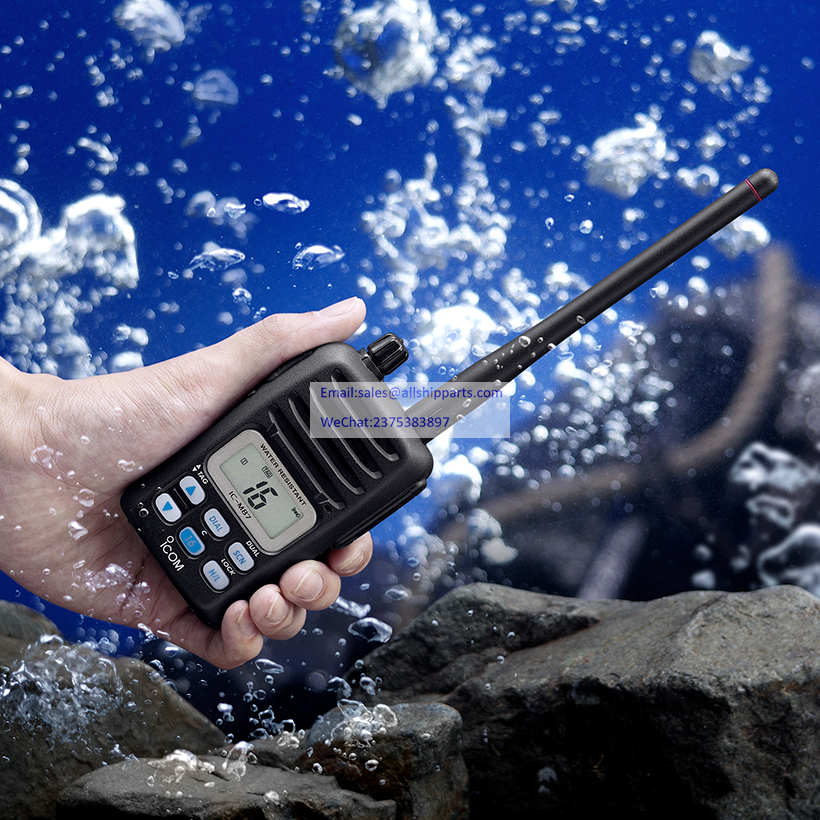

The IC-M87 is built tough to withstand hazardous environments. Even if it is dropped into water, the waterproof construction* will protect it from harm. (1m depth for 30 minutes)
* Equivalent to IPX7.
6 clearly labelled buttons on the front panel and the volume/power knob maximize simplicity of operation. A large, clear LCD with backlighting and backlit buttons make night time operation easy.
With the standard battery pack, you can get up to 15 hours of operating time* without worrying about 'memory effect' of the battery.
*Tx:Rx:Stand-by= 5:5:90 with BP-274
The IC-M87 has 22 programmable channels reserved for PMR use (146–174MHz). Wide/narrow channel spacing is programmable for each channel, and CTCSS and DTCS signaling is built-in.
*Appropriate license will be required.
· Instant access to Ch. 16 and call channel
· Simple add/delete TAG scanning
· Monitor button opens squelch
· 2 step power saver
· Key lock function
· Low battery indicator
· Optional waterproof microphone, HM-168
|
Frequency range |
Tx |
156.000–161.450 MHz |
|
Rx |
156.000–163.425 MHz |
|
|
PMR; Tx/Rx |
146–174 MHz |
|
|
Dimensions
(W×H×D) |
62×97×37.8 mm |
|
|
Weight (approx.) |
274 g (With BP-274) |
|
|
Current drain (approx.) |
Transmit (High) |
1.6 A typ. |
|
Max. audio |
200 mA typ. |
|
|
Sensitivity (at 20 dB SINAD; emf) |
–2 dBμ typ. (Marine) |
|
|
Intermodulation rejection |
68 dB (Marine) |
|
|
Audio output power (With an 8 Ω load) |
200 mW (Marine) |
|
|
RF output power |
5/3/1 W (Marine/PMR) |
|
|
Waterproof protection |
IPX7 (1 m depth/30 min) |
|
|
Waterproof speaker-microphone |
HM-138 or HM-168 |
|
|
VOX headset |
- |
|
|
Operating time (approx.)* |
15 hrs with BP-274 |
|
|
Tag scan |
Available |
|
|
Favorite channel |
- |
|
|
AquaQuake draining function |
- |
|
|
CTCSS/DTCS with PMR channel |
Available |
|
|
Voice scrambler |
- |
|
|
Intrinsically safe |
- |
|
* Typical operation, Tx:Rx:Stand-by=5:5:90
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard |
MIL-810 F |
|
Low Pressure Storage |
500.4 I |
|
Low Pressure Operation |
500.4 II |
|
High Temperature Storage |
501.4 I |
|
High Temperature Operation |
501.4 II |
|
Low Temperature Storage |
502.4 I |
|
Low Temperature Operation |
502.4 II |
|
Temperature Shock |
503.4 I |
|
Solar Radiation |
505.4 I |
|
Rain Blowing |
506.4 I |
|
Rain Drip |
506.4 III |
|
Humidity |
507.4 |
|
Salt Fog |
509.4 |
|
Dust Blowing |
510.4 I |
|
Vibration |
514.5 I |
|
Shock Functional |
516.5 I |
|
Shock Transit Drop |
516.5 IV |
Also meets equicalent MIL-STD-810-C, -D
and -E.
All stated specifications are subject to change without notice or
obligation.
Supplied Accessories
· Battery pack
· Battery charger
· AC adapter*
· Swivel belt clip
· Antenna, FA-S59V
· Hand strap
* Varies according to version.
