ICOM VHF MARINE TRANSCEIVER IC-M85UL
A Marine and Land Mobile Radio Combined in One
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

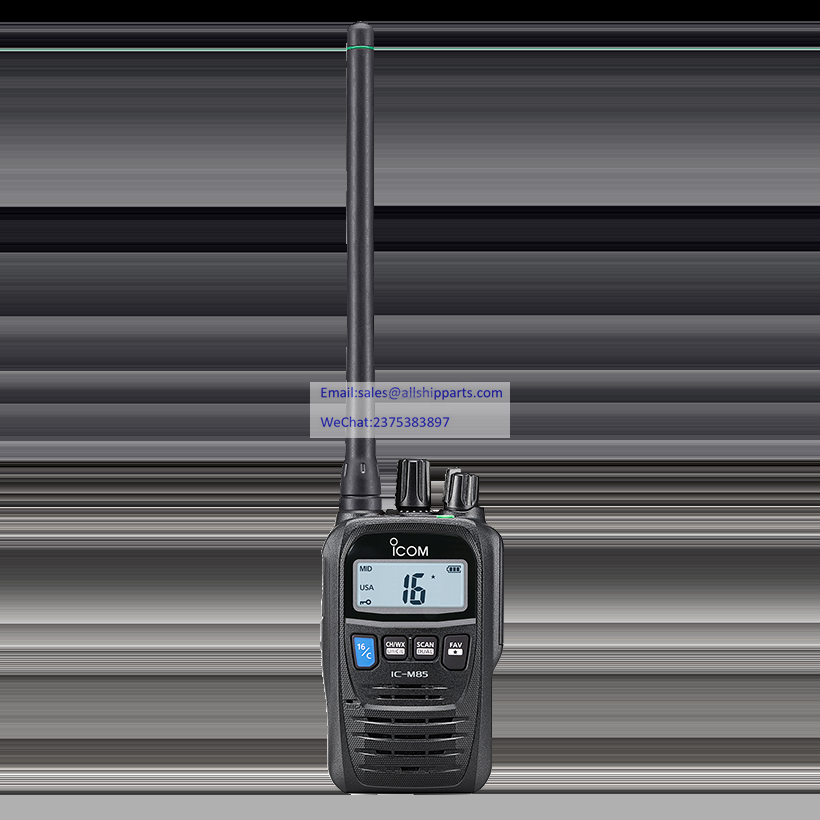

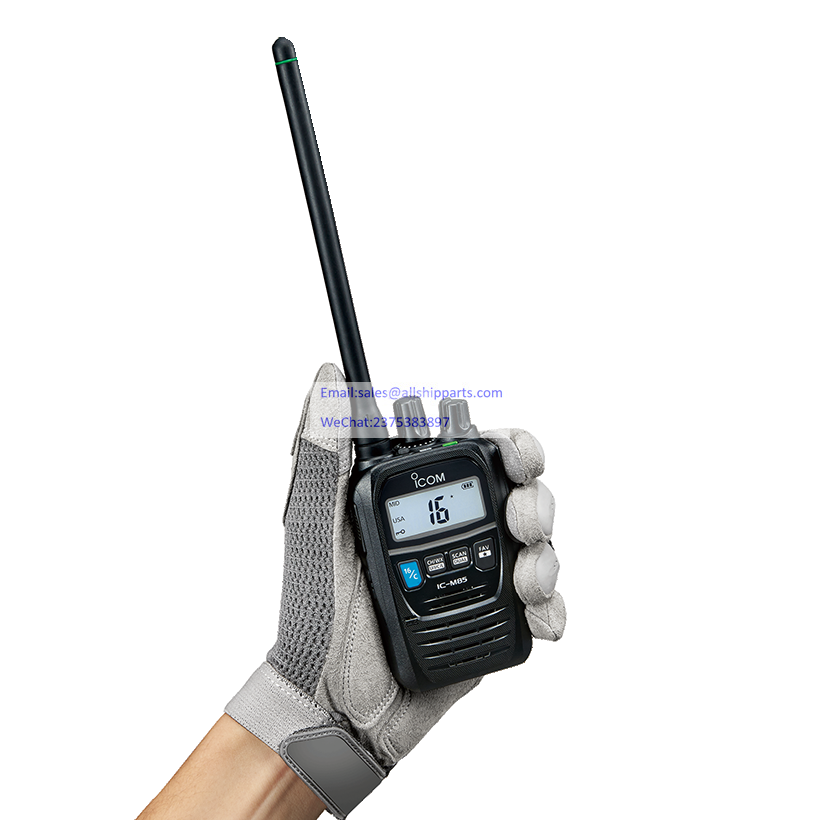

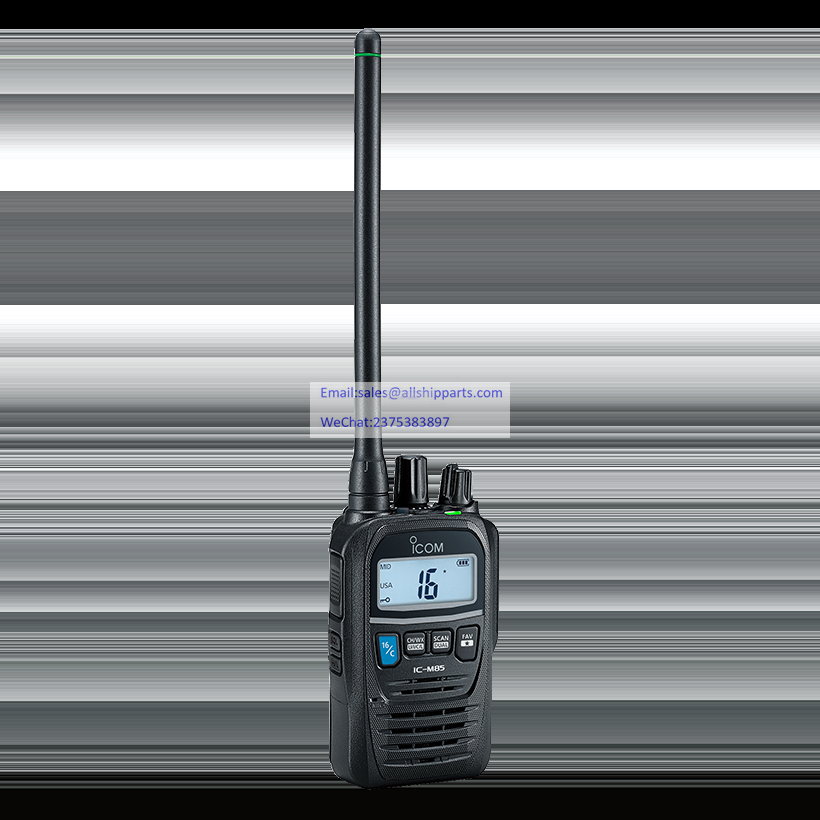

The IC-M85 is the most compact (W×H×D: 56 × 92 × 36.2 mm; 2.2 × 3.6 × 1.4 in) and lightweight (weight: 281 g; 9.9 oz (with BP-294, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world*.
* As of November 2021, researched by Icom.
In addition to VHF marine channels, the IC-M85 covers 136–174 MHz land mobile channels. Up to 100 programmable channels are available for land mobile use. Each channel is programmable with CTCSS and DTCS tone.
Despite its compact body, the IC-M85 delivers 700 mW of loud audio. Clear communications is vital in noisy environments.
The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).
The IC-M85 has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.
SHAPE \* MERGEFORMAT
Channel group changing (marine ⇔ land mobile) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel*. The Key lock function can be activated by holding the button.
* Ask your dealer for details.
SHAPE \* MERGEFORMAT
The IC-M85 is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.
· AquaQuake™ prevents audio degradation from a water-logged speaker
· Internal VOX capability for hands-free operation
· 21 hours of long battery life with BP-294 (TX: RX: Standby=5:5:90.)
· 5 W output power (land mobile channels for USA: 2 W)
· Weather channel receiving
· The self check function checks internal temperature, and connected battery voltage (over voltage detection)
· Monitor function
· Priority scan function
· Dual/Tri-watch function for monitoring CH16 and/or call channel
· Favorite channel function for quick access to often used channels
General
|
Marine channels |
Land mobile channels |
||
|
Frequency coverage |
Tx |
156.025–157.425 MHz |
136.000–174.000 MHz |
|
Rx |
156.050–163.275 MHz |
||
|
Usable channel
groups, |
USA, INT, CAN, WX channels |
100 land mobile channels |
|
|
Type of emissions |
16K0G3E |
16K0F3E/11K0F3E |
|
|
Channel spacing |
25 kHz |
25 kHz/12.5 kHz |
|
|
Power supply requirement |
7.2 V DC nominal |
||
|
Current drain |
Tx |
1.5 A (at 5 W) |
(USA) |
|
Rx Max. audio |
0.45 A |
||
|
Antenna impedance |
50 Ω |
||
|
Operating temperature range |
-20 °C to +60 °C |
-30 °C to +60 °C |
|
|
Dimensions
(W×H×D) |
56 × 92 × 36.2 mm; 2.2 × 3.6 × 1.4 in (With BP-294) |
||
|
Weight (approximate) |
281 g; 9.9 oz (with BP-294, FA-SC58V and MBB-3) |
||
Transmitter
|
Marine channels |
Land mobile channels |
|
|
Output power (at 7.2 V DC) |
5/3/1 W |
(USA) |
|
Max. frequency deviation |
±5.0 kHz |
±5.0 kHz (Wide) |
|
Frequency stability |
±5.0 ppm |
|
|
Spurious emissions |
-70 dBc typical |
|
|
FM hum and noise |
40 dB |
40 dB (Wide) |
|
Audio harmonic distortion |
10% (at 60% deviation) |
|
|
Modulation limiting |
60-100% of maximum deviation |
|
Receiver
|
Marine channels |
Land mobile channels |
||
|
Sensitivity (at 12 dB SINAD) |
0.25 μV typical |
||
|
Adjacent channel selectivity |
70 dB typical |
70 dB typical (Wide) |
|
|
Spurious response |
70 dB typical |
||
|
Intermodulation |
70 dB typical |
||
|
Audio output power |
Internal SP |
700 mW typical |
|
|
External SP |
700 mW typical |
||
Measurements made in accordance with TIA/EIA-603.
All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
|
Standard |
MIL-810 G |
|
|
Method |
Procedure |
|
|
Low Pressure |
500.5 |
I, II |
|
High Temperature |
501.5 |
I, II |
|
Low Temperature |
502.5 |
I, II |
|
Temperature Shock |
503.5 |
I-C |
|
Solar Radiation |
505.5 |
I |
|
Rain Blowing/Drip |
506.5 |
I, III |
|
Humidity |
507.5 |
II |
|
Salt Fog |
509.5 |
– |
|
Dust Blowing |
510.5 |
I |
|
Immersion |
512.5 |
I |
|
Vibration |
514.6 |
I |
|
Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
Applicable IP Rating
|
Ingress Protection Standard |
|
|
Water |
IP67 (Dust-tight and waterproof protection) |
Supplied Accessories
· BP-294 battery pack
· BC-227 rapid charger
· BC-123S* AC adapter
· FA-SC58V antenna
· MBB-3 belt clip
· Hand strap
