One-to-Many Global Communications with Just a Push of a Button

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

SHAPE \* MERGEFORMAT

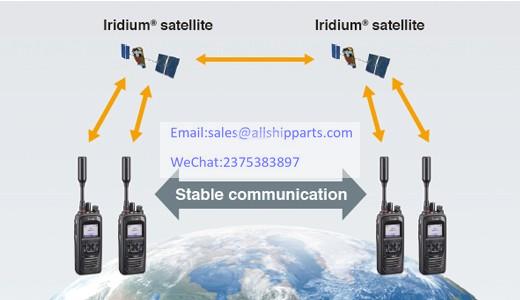

SATELLITE PTT (Push-To-Talk) is a two-way radio system that uses the Iridium^® satellite network. It can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, SATELLITE PTT can provide a stable back-up, independent from other networks.

SHAPE \* MERGEFORMAT

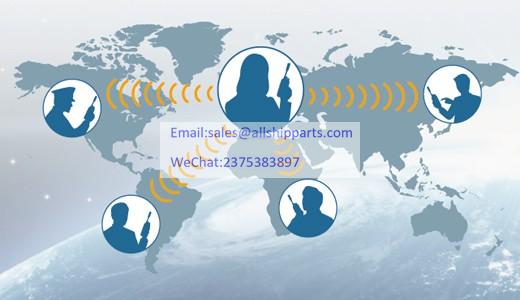

Unlike satellite phones, IC-SAT100 users can immediately start talking to all the radios in the same talkgroup, with just a push of the transmit (PTT) button.

SHAPE \* MERGEFORMAT

The Iridium^® satellite network covers the entire earth, including both poles, and can provide wide area global communications anywhere on the planet*.

* Depending on the country or region, carrying and/or use of the IC-SAT100 may be prohibited.

SHAPE \* MERGEFORMAT

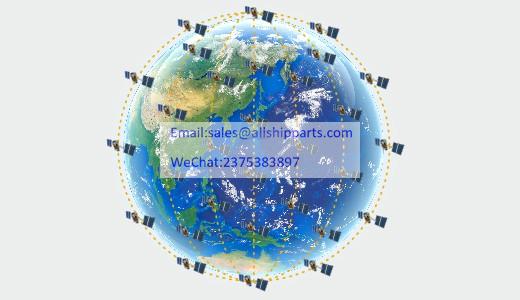

Using 66 Low Earth Orbit (LEO) Iridium^® satellites, the IC-SAT100 provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites.

SHAPE \* MERGEFORMAT

The orange key on the top panel can be used for emergency situations. You can transmit an emergency call to preprogrammed users with holding down the key.

SHAPE \* MERGEFORMAT

The IC-SAT100 provides IP67 waterproofing (1 m depth of water for 30 minutes) and dust-tight protection, making it ideal for use in harsh outdoor environments. The radio also meets MIL-STD 810G specifications. The operating temperature range is from –30°C to +60°C (–22 °F to 140 °F).

SHAPE \* MERGEFORMAT

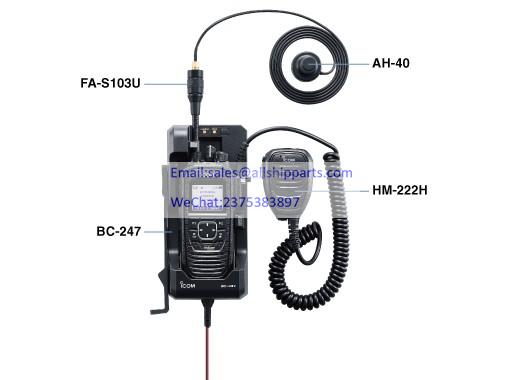

With the AH-40 optional antenna, you can use the IC-SAT100 in the vehicle (by attaching it to the roof) or building (by placing outside a window). The IC-SAT100 has Bluetooth^®* capability, and allows hands-free operation while driving.

* Version without Bluetooth also available. Ask your Dealer for details.

1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments.

The supplied BP-300 Li-ion battery pack provides 14.5 hours of operation.
* Approximate. Operating periods are calculated under the following conditions. TX : RX : standby = 5 : 5 : 90

The IC-SAT100 provides secure conversations with AES 256-bit encryption.

SHAPE \* MERGEFORMAT

With a VE-PG4 RoIP gateway, the IC-SAT100 can interconnect with an IP phone, IP, LTE, IDAS digital* and analog transceivers.

* Type-D multi-site trunking and conventional systems.

·  Short Data Message function

·  Voice Recording function

·  Multiple language display (English, Chinese, French, Japanese, and Spanish)

·  Built-in Bluetooth^®*

·  Integrated GPS receiver shows a received position information on the display

·  SMA type antenna connector for an external antenna

·  AquaQuake™ function clears any water ingress that may penetrate the speaker grill of the unit

·  USB charging (USB Micro-B type)

* Version without Bluetooth also available. Ask your Dealer for details.

		IC-SAT100
Dimensions		57.8 × 135 × 32.8 mm, 2.3 × 5.3 × 1.3 in
Weight (approximate)		360g, 12.7 oz (with BP-300 and antenna)
Display (W × H, approximate)		33 × 27 mm, 1.3 × 1.1 in (viewing area)
Operational temperature range		–30°C to +60°C, –22 °F to 140 °F
Audio output power	Internal speaker	1500 mW typical (At 5% distortion into an 8 Ω load)
	External speaker	1000 mW typical (At 5% distortion into an 8 Ω load)
Battery life (Approximate)		14.5 hours (TX : RX : standby = 5 : 5 : 90)
Talkgroup		15 groups (Maximum)
Antenna connector		SMA

Measurements made in accordance with FCC 47 CFR Part25 & 2, Canada RSS-170&RSS-GEN, EN.
All stated specifications are subject to change without notice or obligation.

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard
Dust & Water	IP67/55/54

·  BP-300 battery pack

·  BC-241 desktop charger

·  BC-242 AC adapter

·  FA-S102U antenna

·  MBB-5 belt clip
