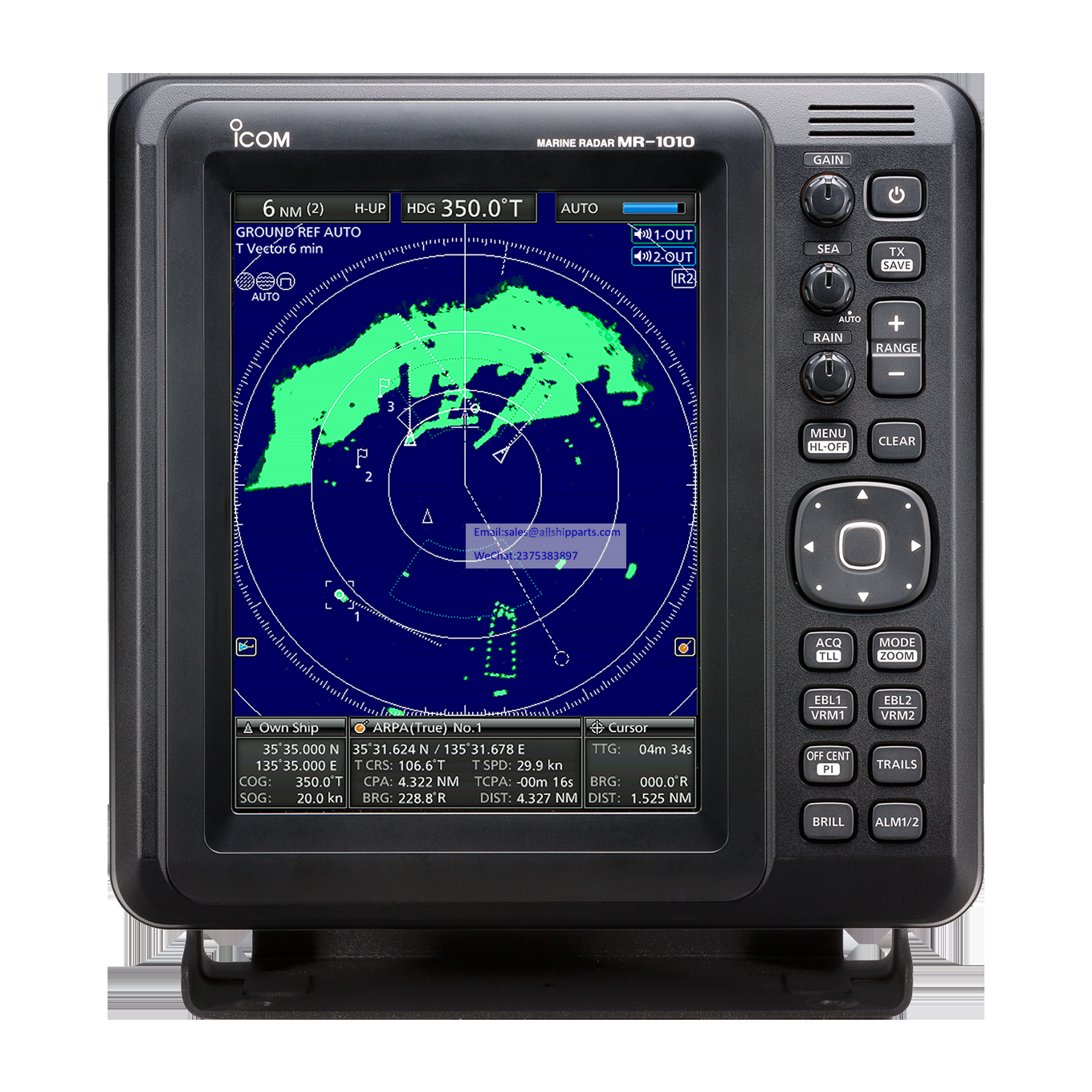

The simplified ARPA function helps to prevent a collision risk
with other vessels or objects. Up to five targets can be automatically tracked
on the radar echo, when a target enters within the set watch area, (or up to
ten targets can be tracked when manually set). By selecting one of the targets,
the target information such as position, course, speed, CPA, TCPA, bearing, and
distance is shown on the lower side of the display. When the target enters
within the CPA and TCPA limits, an alarm message is displayed with a beep
alarm.
* External bearing, speed and position data required.
SHAPE \* MERGEFORMAT
Simplified ARPA
SHAPE \* MERGEFORMAT
Alarm example
When connected to a DSC radio and a DSC call is received, the
received message is transferred to the MR-1010RII. Up to 20 DSC messages can be
plotted on the radar echo. If a MOB position information is transmitted from a
DSC handheld transceiver (including Icom IC-M94D), the MR-1010RII can show the
MOB waypoint on the radar echo to assist in search and rescue operation.
* External bearing, position and DSC data required.
SHAPE \* MERGEFORMAT
Received DSC example
When connected to an external AIS device (including Icom
IC-M605, IC-M510 AIS and, IC-M506 AIS), up to 100 AIS target icons are overlaid
on the radar echo. By selecting an AIS icon, vessel information such as AIS
class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing and distance
are shown on the lower side of the display.
* External bearing, position and AIS data required.
SHAPE \* MERGEFORMAT
Other vessel AIS information
SHAPE \* MERGEFORMAT
Compatible Icom marine DSC radio example, IC-M605

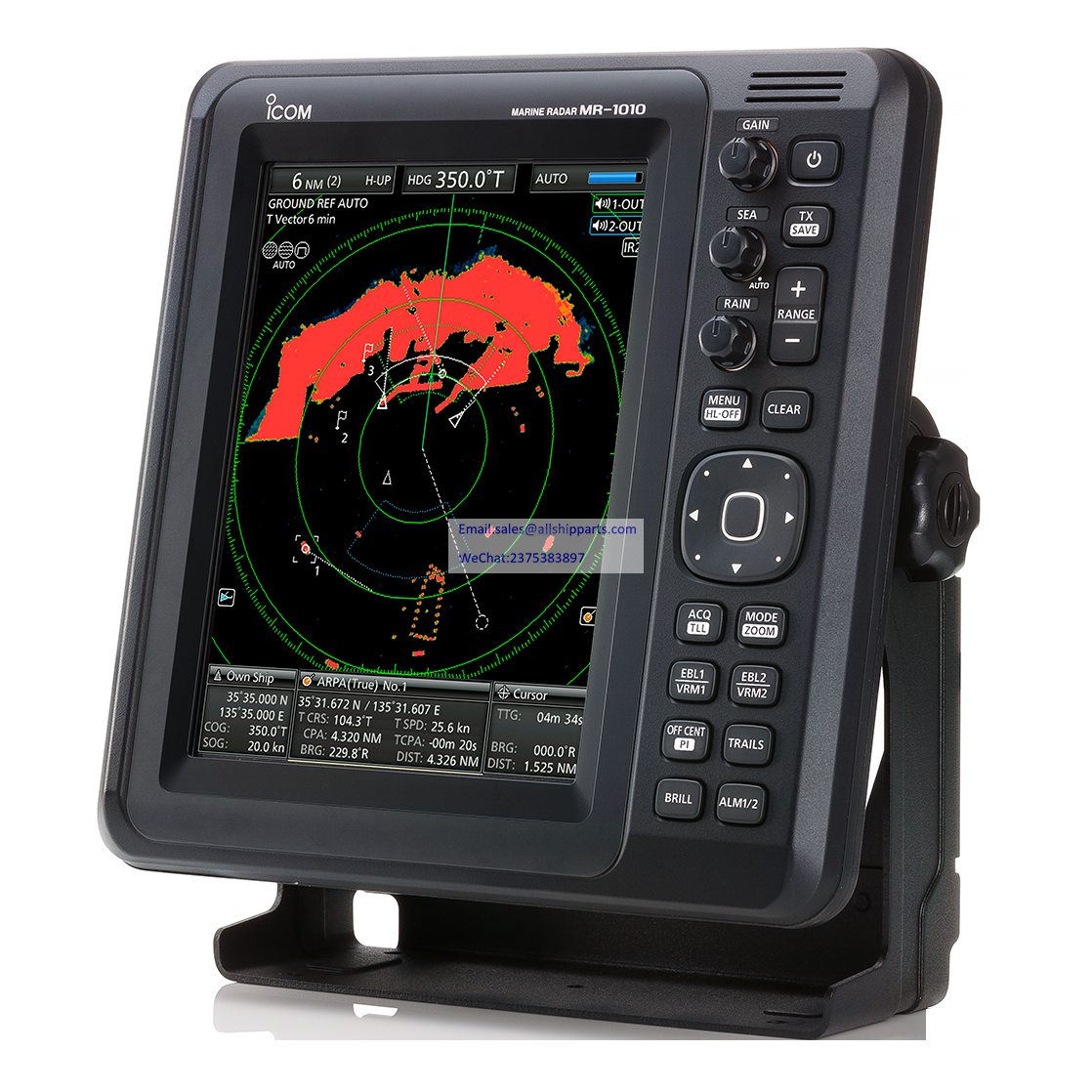

The wide viewing angle color TFT LCD offers bright, vivid echoes with 16 steps gradient intensity. The screen intensity and screen color (day, night and user settings) can be instantly adjusted with the "BRILL" button. In addition, the auto hide information function enlarges radar echoes to full size.
SHAPE \* MERGEFORMAT
Night setting
SHAPE \* MERGEFORMAT
Day setting
The language setting of the MR-1010RII is selectable from
multiple languages.* The large eight-direction cursor key
provides smooth operation even when wearing gloves. Various settings can be
configured through visually intuitive operation.
* EXP version : English,
Indonesian, Korean, Portuguese, Spanish, Thai, and Vietnamese / EUR version :
Arabic, English, French, Italian, Portuguese, Spanish, and Turkish
SHAPE \* MERGEFORMAT
User color setting menu
SHAPE \* MERGEFORMAT
Initial menu
With an optional video output unit, UX-252*, the MR-1010RII can
be connected to an external display. Same radar echoes can be observed on the
main unit and external display at the same time.
*Except for the EUR version.
SHAPE \* MERGEFORMAT
Video output example
The MR-1010RII can mark points with icons and transfer the
position data with NMEA TLL sentences to other NMEA 0183 devices such as an
external plotter.
* External bearing and position data required.
The true trail function cancels own ship movement and shows true
moving objects with trails, while static objects are not trailed.
* External bearing and position data required.
・ 10.2–42 V wide DC input to prevent over
voltage damage
・ Two user programmable alarm zones
・ Waypoint indication*
・ Designed, engineered and Made in Japan
* External bearing, position and waypoint data required.
Display type |
10.4-inch Color TFT LCD |
|
Resolution |
480 × 640 dots |
|
Minimum range |
25 m; 82 ft (at 1⁄8 NM range) |
|
Maximum range |
36 NM |
|
Range scales |
NM |
1⁄8, 1⁄4, 1⁄2, 3⁄4, 1, 1.5,
2, 3, 4, |
km |
1⁄4, 1⁄2, 3⁄4, 1, 1.5,
2, 3, 4, |
|
Preheat time |
90 seconds |
|
Power supply |
10.2–42 V DC |
|
Power consumption |
55 W (approximately) |
|
Usable temperature range |
−15°C to +55°C; +5°F to +131°F |
|
Input data format |
NMEA 0183, N+1, AUX, IEC61162-2 |
|
Output data format |
NMEA 0183 |
Type |
60 cm; 2 ft radome scanner |
Rotation speed |
24, 36 rpm typ. |
Horizontal beamwidth |
4° typ. |
Vertical beamwidth |
22° typ. |
Sidelobe |
−22 dB typ. |
Usable temperature range |
−25°C to +70°C; −13°F to +158°F |
Usable humidity range |
Less than 95% (at 40°C; +104°F) |
Frequency |
9410 MHz ±30 MHz |
Modulation |
P0N |
Peak output power |
4 kW |
Pulse-width/repetition rate |
80
ns/2160 Hz, 80 ns/1440 Hz, |
Modulator |
FET switching |
Intermediate frequency |
60 MHz (EUR Version), 250 MHz (EXP Version) |
IF bandwidth |
10 MHz / 3 MHz (EUR Version), 15 MHz / 3 MHz (EXP Version) |
Tuning |
Auto/manual selectable |
Supplied system cable |
15 m; 49.2 ft (OPC-2341) |
Ingress Protection Standard |
|
Display unit |
IPX4 (Water resistance) |
Scanner unit |
IPX6 (Powerful jet water protection) |
All stated specifications are subject to change without notice or obligation.
