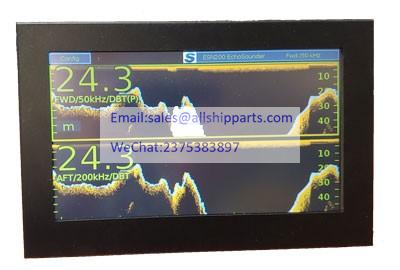

Skipper ESN200-SB Touch display only display unit

Skipper ESN200-SB Touch display

Product Description:

Skipper ESN200-SB Touch display only display unit

new Skipper ESN200-SB display *1

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts


The SKIPPER ESN200 is a Navigation Echo Sounder with a black box and a 9" touch display. The Echo Sounder graphicsare continuously shown on the screen along with complete navigational details. Most of the functions are automatic. The ESN200 is a dual frequency Echo Sounder with the ability to run on several different frequencies.

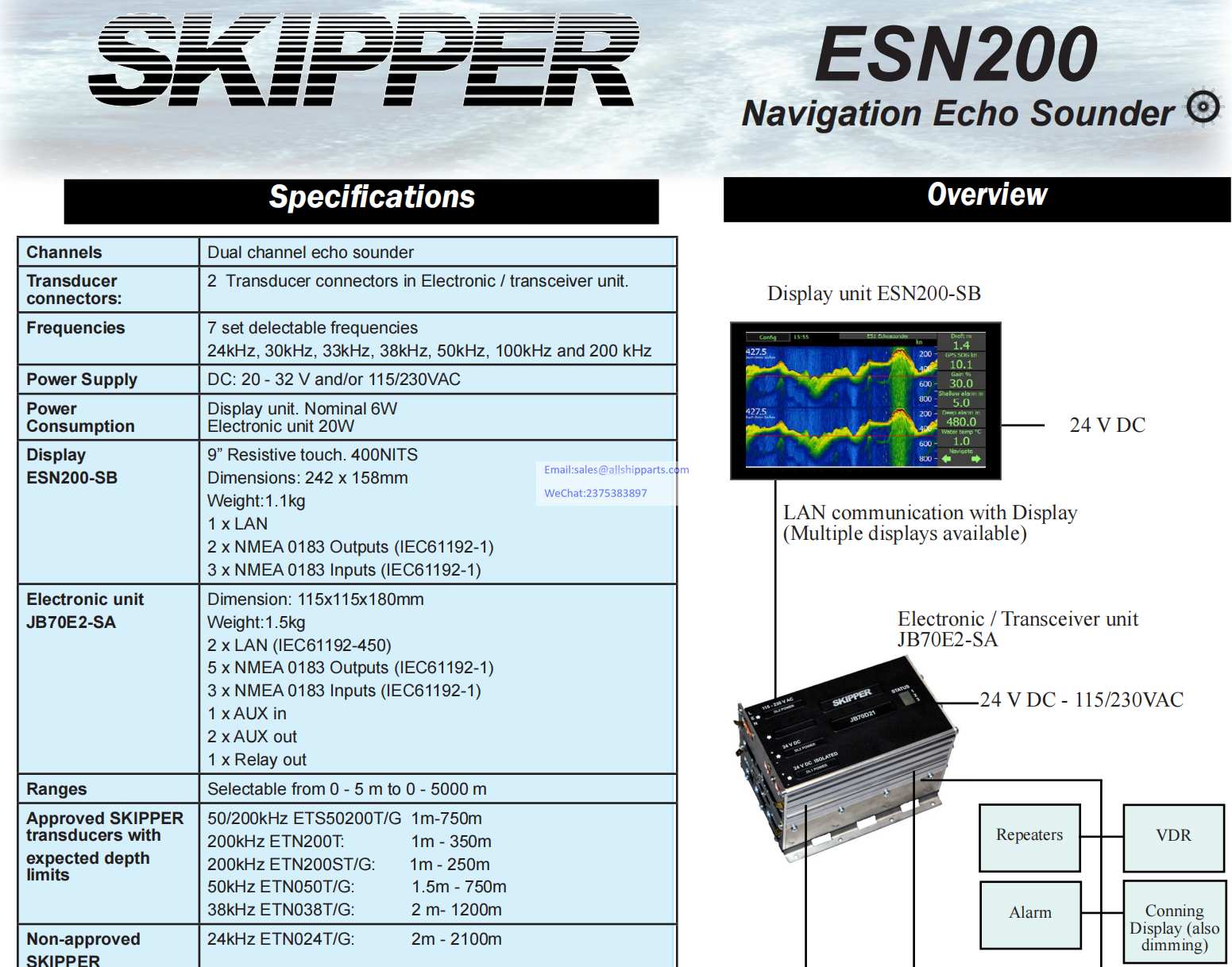

Specifications:

Echo Sounder:
  • ESN200
Functions:
  • Auto/Manual TVG
  • Auto/Manual Gain
  • Auto/Manual Power
  • Auto/Manual Range
  • Transducer positioning
  • Internal sounder for alarm/button press
Display:
  • 9" Touch Display
  • 400 NITS
Mounting Dimensions Display:
  • 224.5 mm wide x 140 mm high (Cut-out)
  • 242 mm wide x 158 mm high (Outside dimensions)
Memory:
  • 24 hours history, external logging feature over network
Ranges:
  • Selectable from 0-5 m to 0-5000 m
Measuring accuracy:
  • Error less than 1 %
Frequencies:
  • Approved frequencies: 50/200, 200, 50 and 38 kHz
  • Other frequencies covered: 24, 30, 33, 100 and 210 kHz
Output power:
  • Nominal 700 W
  • Max 1000 W
Alarms:
  • BAM compatible (IEC62923), ALF or ALR
  • Internal sounder
  • Relay output and AUX in/out
Calendar/clock:
  • From GPS input
Output display:
  • 3xNMEA0183 (IEC61162-1)
Output Electronic unit JB70E2-SA:
  • 5xNMEA0183(IEC61162-1)
  • 2xLAN (IEC61192-450)
  • 2xAUX
  • 1xRelay
Input Display:
  • 2xNMEA0183 (IEC61192-1)
Input Electronic unit JB70E2-SA:
  • 2xLAN (IEC61192-450)
  • 3xNMEA0183 (IEC61182-1)
  • 1xAUX
