NSR ZXF-N2000 Ex-Pro VHF
NSR ZXF-N2000 Ex-Pro VHF
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

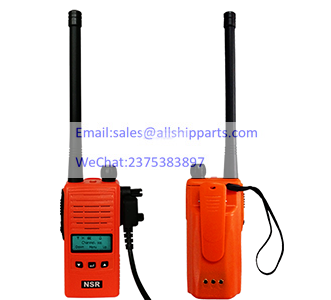

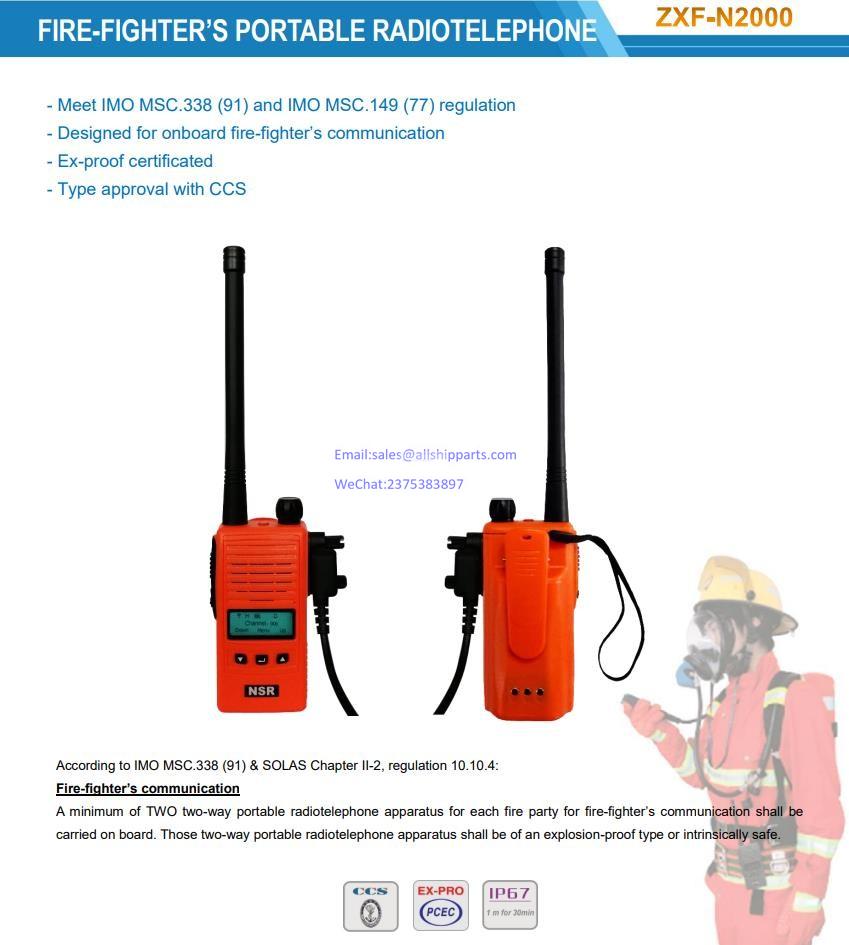

ZXF-N2000 Fire-fighter's Portable Radiotelephone
【FEATURES】
- Use on-board tankers or for fire service communication.
- Designed to comply with IMO MSC338 (91) and IMO MSC. 149 (77).
- Includes 19 VHF simplex channels assigned to marine use by ITU. Private channels or other channel are optional.
- Small, lightweight and easy-to-use.
- Watertight to a depth of 1 m for at least 5 min and not unduly affected by seawater or oil.
- External PTT & Skull Mic/Headset can be attached as optional.
- EX-PRO design. PCEC EX-PRO approval (Cer. No.: CE20.2739).
- CCS type approval.

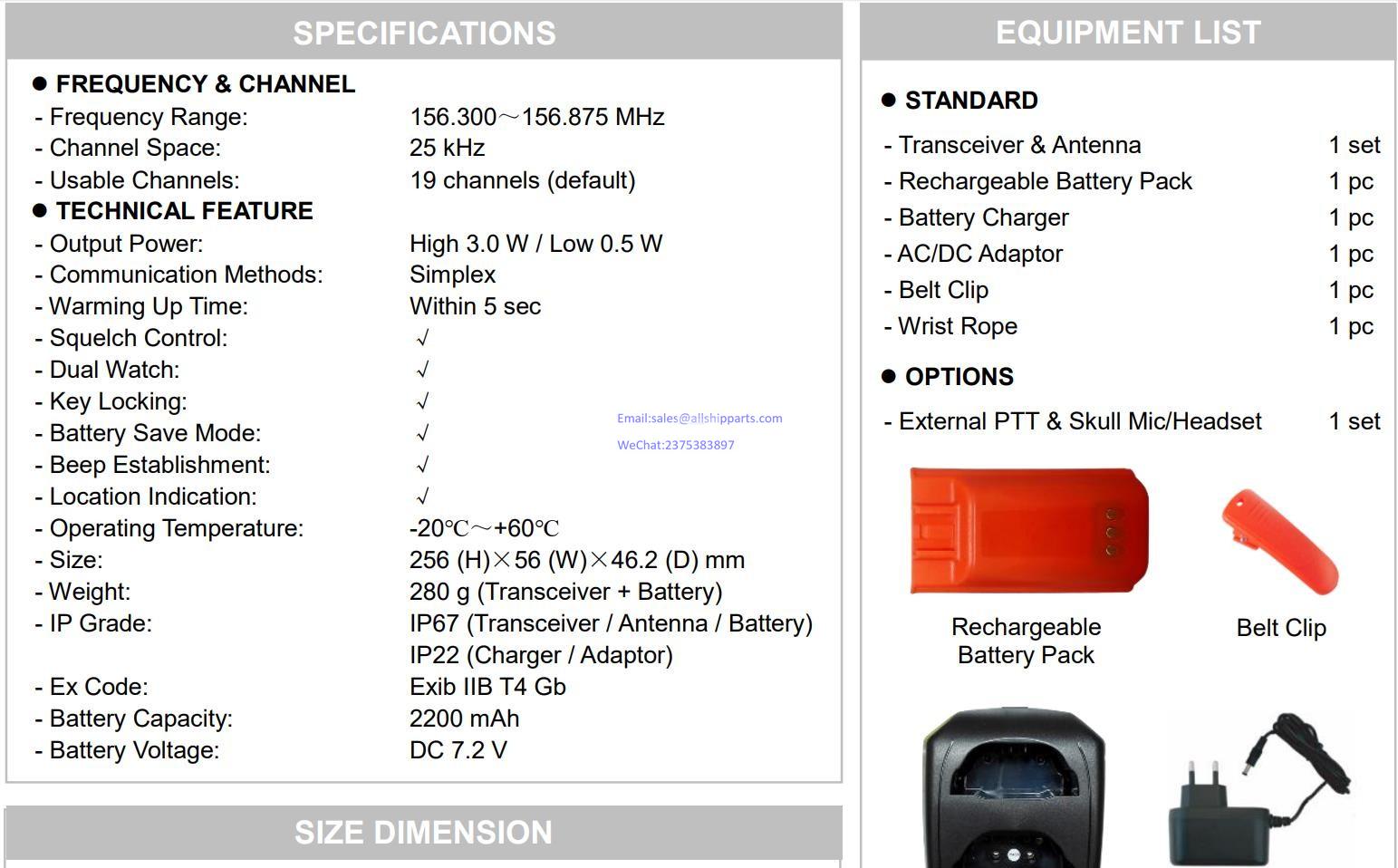

【SPECIFICATIONS】
|
Frequency & Channel |
1 |
|
Frequency range: |
156.300 ~ 156.875MHz |
|
Channel Space: |
25kHz |
|
Usable Channels: |
19 channels (default) |
|
Technical Features |
2 |
|
Output Power: |
HIGH 3.0W / LOW 0.5W |
|
Communication Methods: |
Simplex |
|
Warming Up Time: |
Within 5 Sec |
|
Squelch Control: |
√ |
|
Dual Watch: |
√ |
|
Key Locking: |
√ |
|
Battery Save Mode: |
√ |
|
Beep Establishment: |
√ |
|
Location Indication: |
√ |
|
Operating Temperature: |
-20°C~ + 60°C |
|

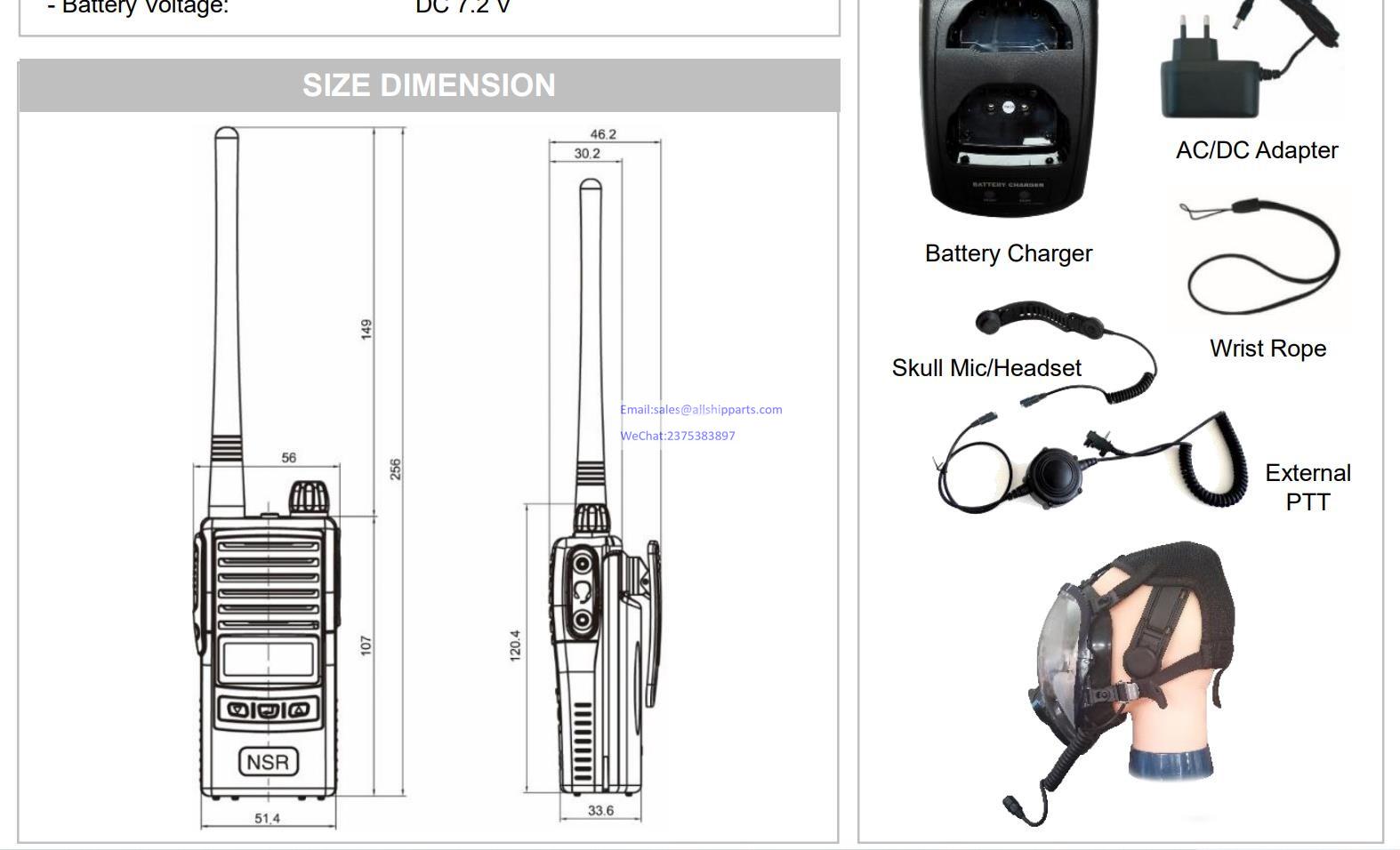

Dimension: |
256 (H) X 51 (W) X 33 (D) mm |
|
Weight: |
280g (Transceiver+Battery) |
|
IP Grade: |
IP66 (Transceiver/Battery) |
|
Ex code: |
Exib IIB T4 Gb |
|
Rechargeable Battery |
3 |
|
Battery Capacity: |
2200mAh |
|
Battery Voltage: |
7.2V (DC) |
【EQUIPMENT LIST】
|
STANDARD: |
|
|
Transceiver |
1 set |
|
Rechargeable Battery Pack |
1 pc |
|
Charger & Adapter |
1 set |
|
Antenna |
1 pc |
|
Belt clip |
1 pc |
|
Wrist Rope |
1 pc |
|
OPTIONS: |
|
|
Bone conductive skull mic / headset |
1 pc |
|
PTT button |
1 pc |
