NSR NVR-9000S SVDR
NSR NVR-9000S SVDR
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
【FEATURES】

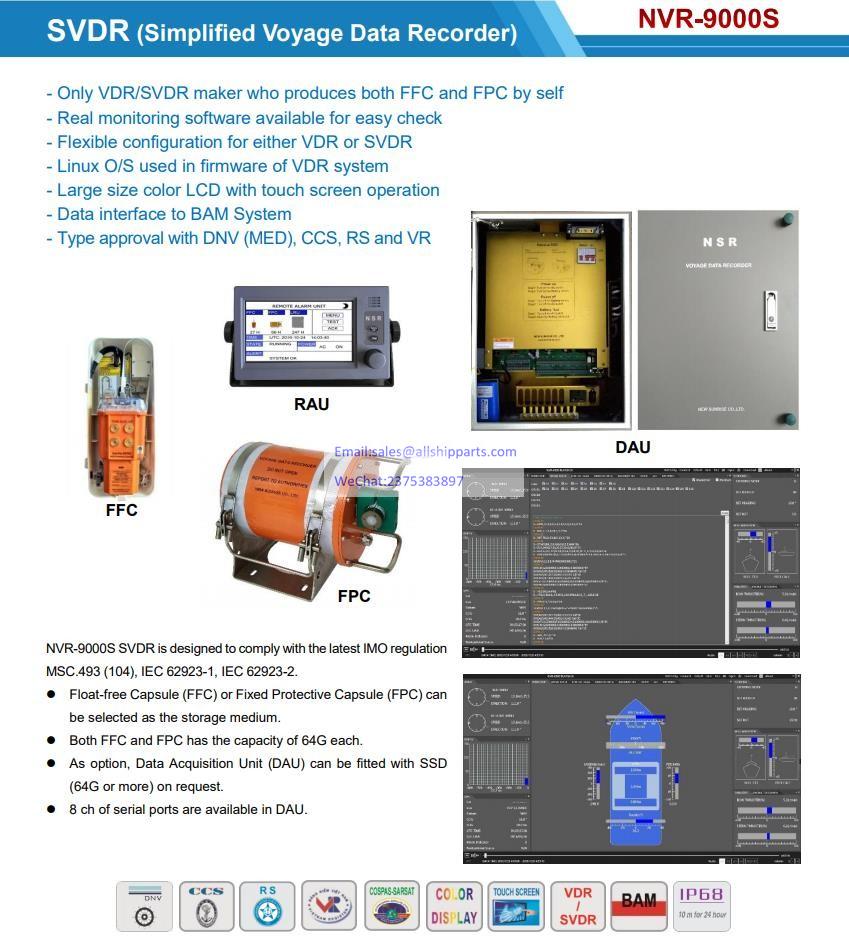

- NVR-9000S SVDR
is designed to comply with the latest IMO regulation MSC.493 (104), IEC
62923-1, IEC 62923-2.
- Float-free Capsule (FFC) or Fixed Protective Capsule (FPC) can be
selected as the storage
medium.
- Both FFC and FPC has the capacity of 64G each.
- As option, Data Acquisition Unit (DAU) can be fitted with SSD (64G or more) on request.
- 8 ch of serial ports are available in DAU.
- CCS type approval.
- DNV type approval.
- VR type approval.
- RS type approval.

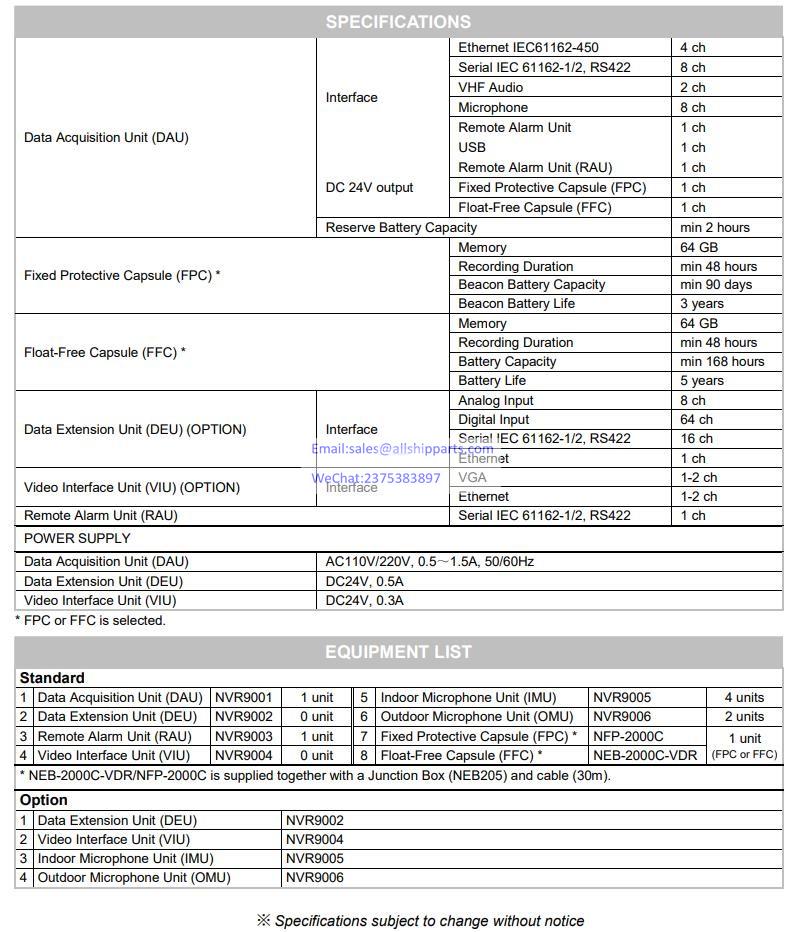

【SPECIFICATIONS】
|
Data Acquisition Unit (DAU) |
||
|
Interface: |
Ethernet IEC61162-450 |
4 ch |
|
Serial IEC61162-1/2, RS422 |
8 ch |
|
|
VHF Audio |
2 ch |
|
|
Microphone |
8 ch |
|
|
Remote Alarm Unit |
1 ch |
|
|
USB |
1 ch |
|
|
DC 24V output: |
Remote Alarm Unit (RAU) |
1 ch |
|
Fixed Protective Capsul (FPC) |
1 ch |
|
|
Float-Free Capsule (FFC) |
1 ch |
|
|
Reserve Battery Capacity: |
min 2 hours |
|
|
Fixed Protective Capsule (FPC) |
Memory |
64 GB |
|
Recording Duration |
min 48 hours |
|
|
Float-Free Capsule (FFC) |
Memory |
64 GB |
|
Recording Duration |
min 48 hours |
|
|
Battery Capacity |
min 168 hours |
|
|
Battery Life |
5 years |
|
|
Data Extension Unit (DEU) (OPTIONAL) |
||
|
Interface: |
Analog Input |
8 ch |
|
Digital Input |
64 ch |
|
|
Serial IEC61162-1/2 |
16 ch |
|
|
Ethernet |
1 ch |
|
|
Video Interface Unit (VIU) (OPTIONAL) |
||
|
Interface: |
VGA |
1-2 ch |
|
Ethernet |
1-2 ch |
|
|
Remote Alarm Unit (RAU) |
Serial IEC61162-1/2, RS422 |
1 ch |
|
POWER SUPPLY |
Data Acquisition Unit (DAU) |
AC100V/220V, 0.5～1.5A, |
|
Data Extension Unit (DEU) |
DC24V, 0.5A |
|
|
Video Interface Unit (VIU) |
DC24V, 0.3A |

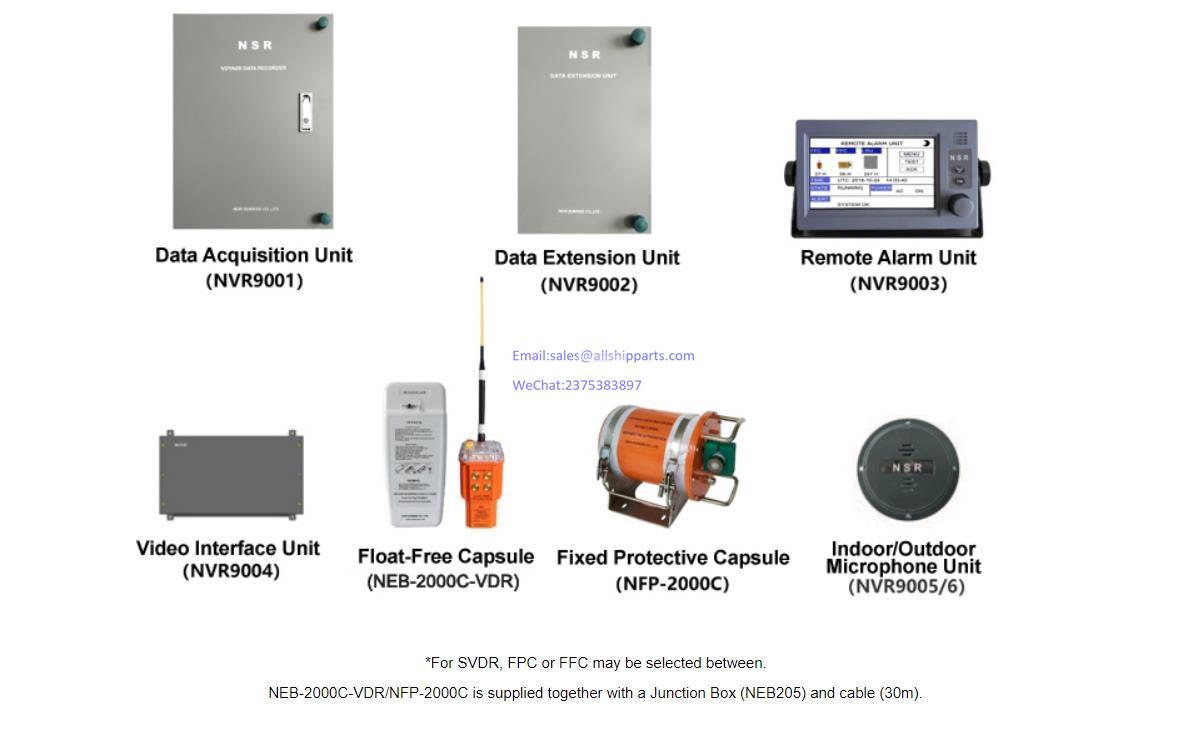

*For SVDR, FPC or FFC may be selected between.
NEB-2000C-VDR/NFP-2000C is supplied together with a Junction Box (NEB205) and cable (30m).
