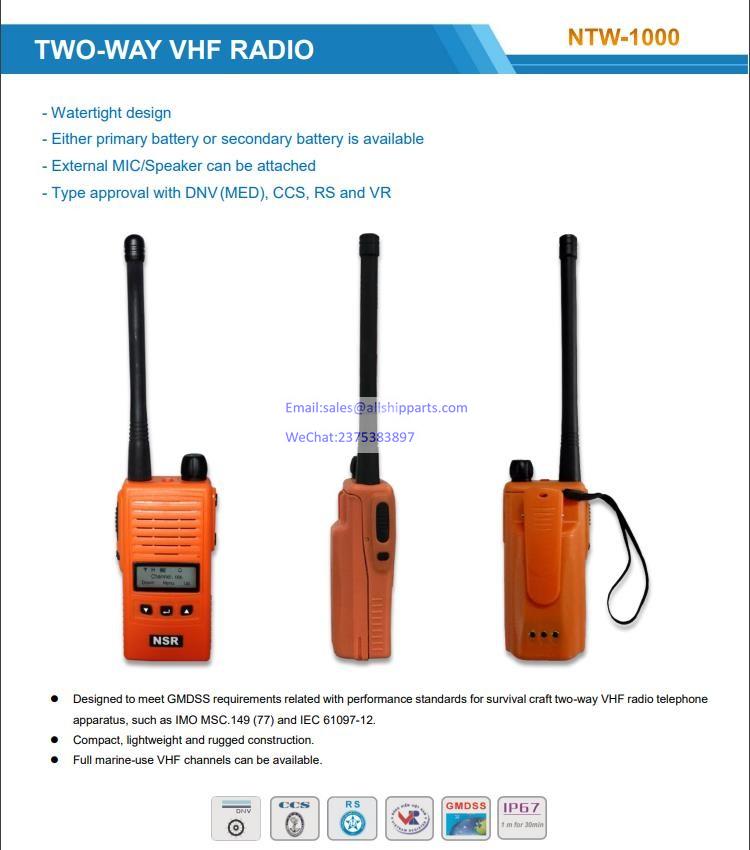

NSR NTW-1000 TWO-WAY
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
【FEATURES】
- Compact, lightweight and rugged construction.
- Easy operation, even for unskilled personnel.
- Full marine-use VHF channels.
- Designed to meet GMDSS requirements related with performance standards
for survival craft two-way VHF radiotelephone apparatus, such as IMO M.149(77) and IEC 61097-12.
- CCS type approval.
- DNV type approval.
- RS type approval.
- VR type approval.

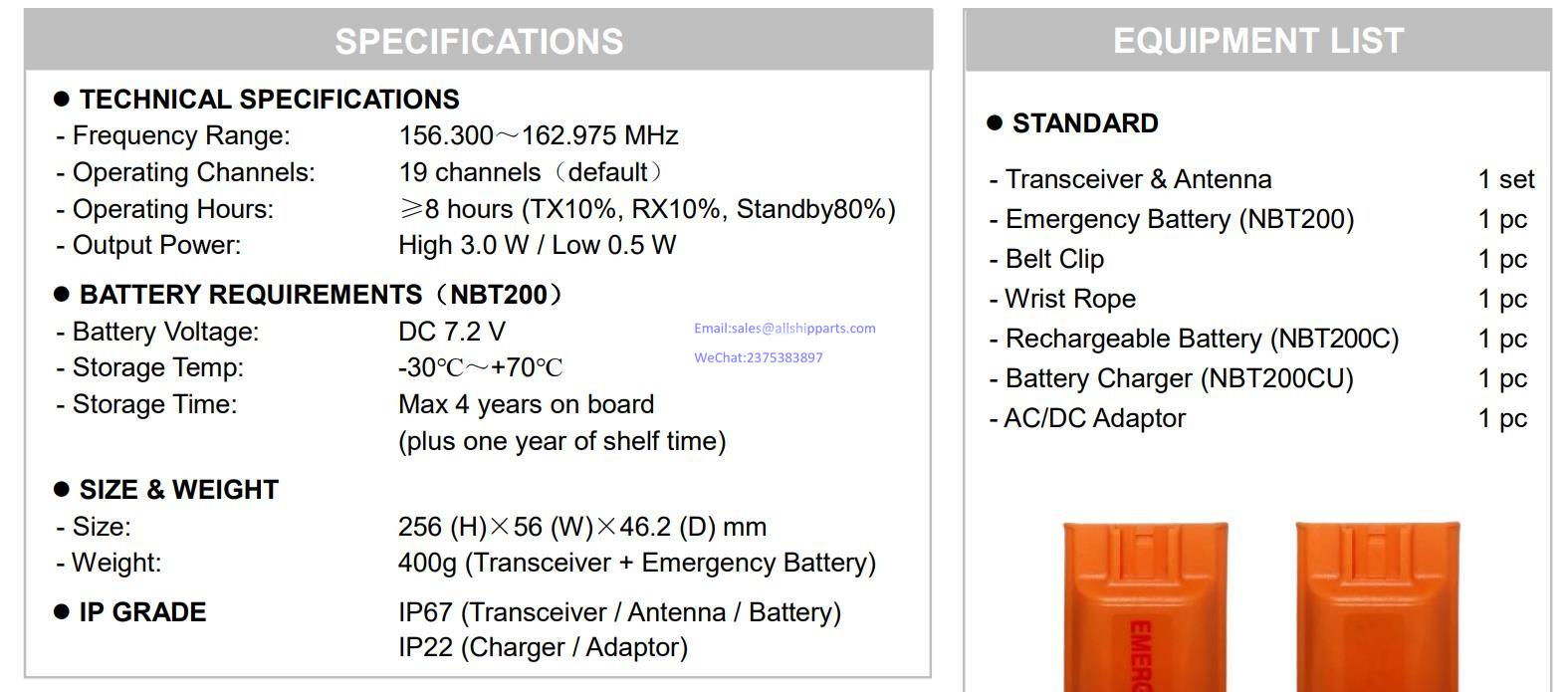

【SPECIFICATIONS】
|
Technical Specifications |
|
|
Frequency Range: |
156.300 ~ 162.975MHz |
|
Operating Channels: |
19 channels (default) |
|
Operating Hours: |
≥8 hours ( TX10%, RX10%, Standby80% ) |
|
Output Power: |
High 3.0W / Low 0.5w |
|
Battery Requirements |
|
|
Battery Voltage: |
DC 7.2V |
|
Storage Temp.: |
-30℃～+70℃ |
|
Storage Time: |
max 4 years on board (see Note 1) |
|

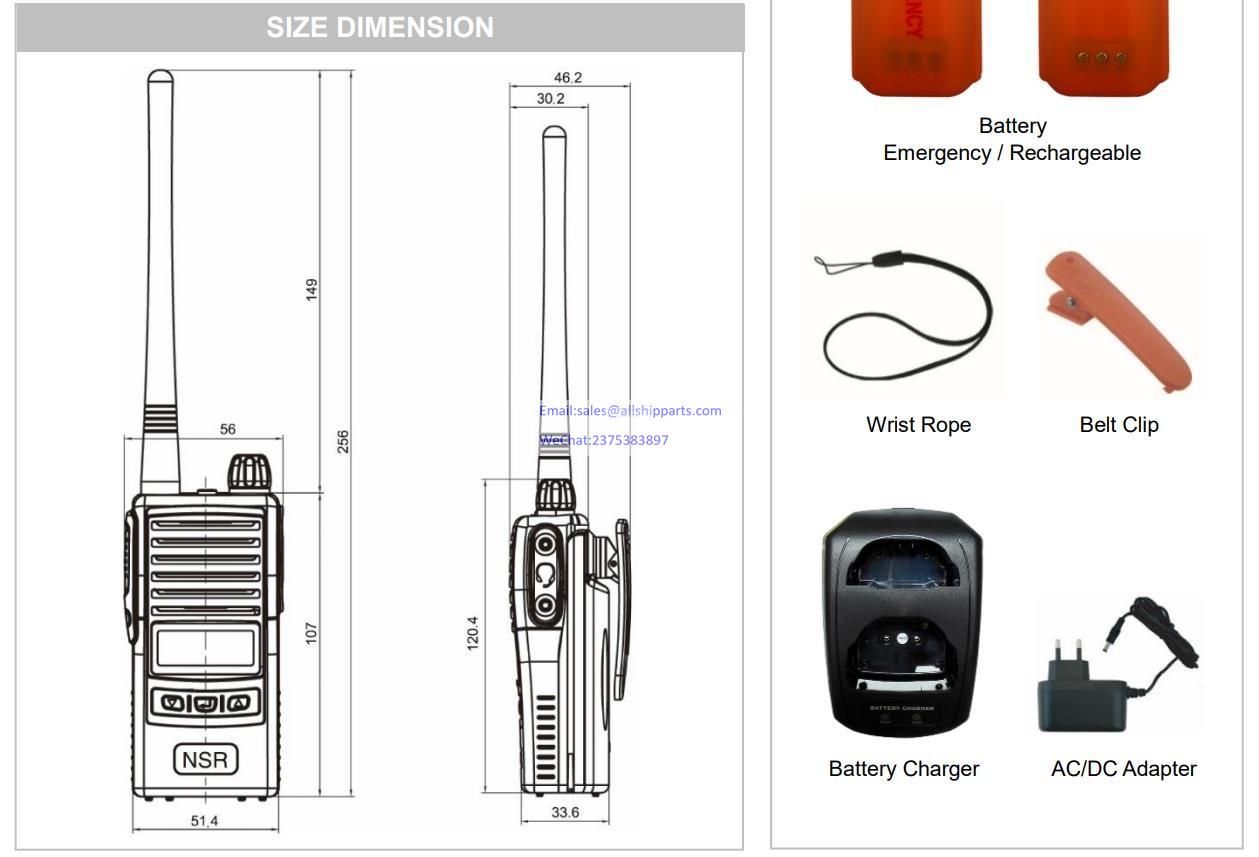

Dimension & Weight |
|
|
Dimension: |
256(H) X 51.4(W) X 46.2(D) mm |
|
Weight: |
400g (Transceiver+Emergency Battery) |
|
IP Grade: |
IP67 (Transceiver / Battery) |
*Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 5 years after supplied to a vessel.
