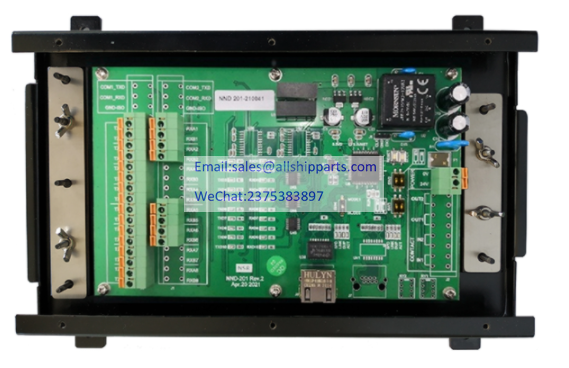

NSR NND-200 NMEA DISTRIBUTOR
NSR NND-200 NMEA DISTRIBUTOR
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts
FEATURES】

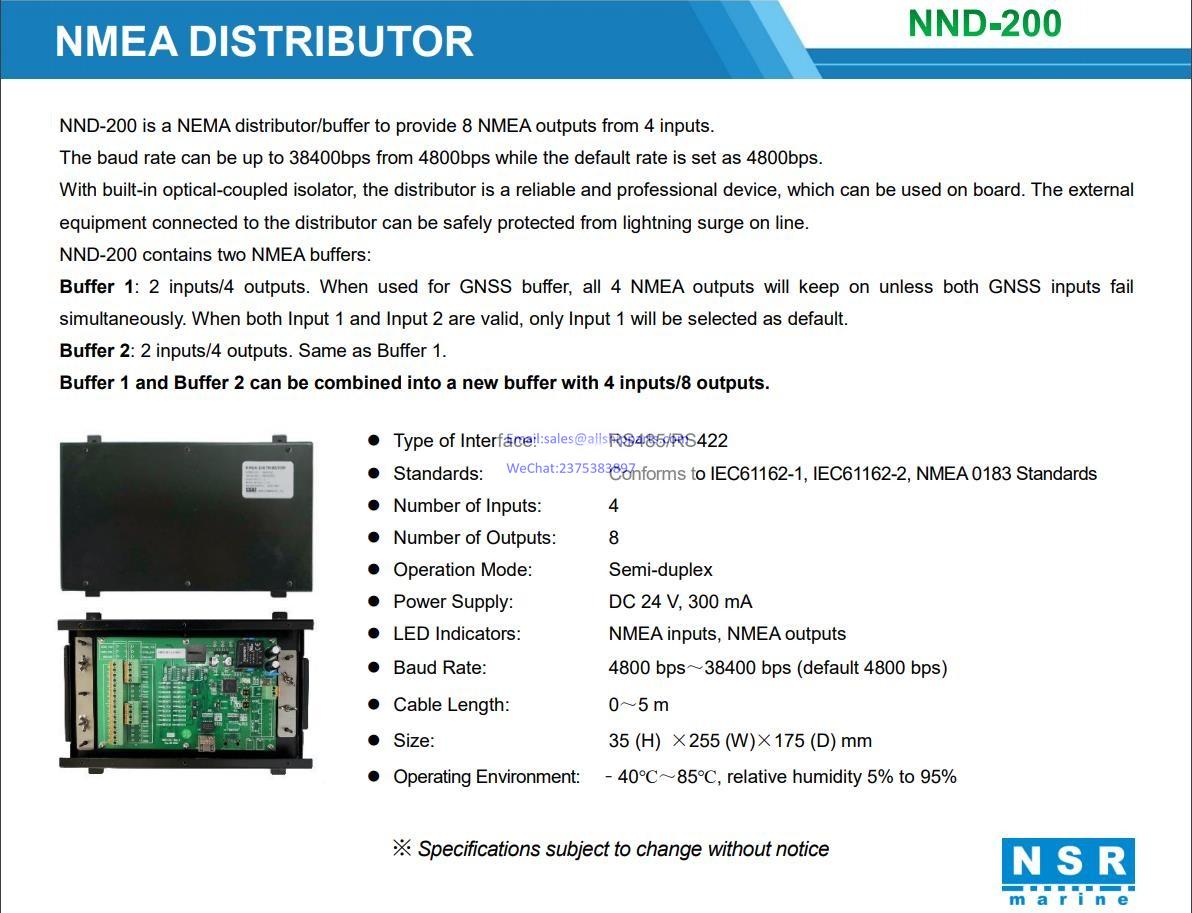

-NND-200 is a NEMA distributor/buffer to provide 8 NMEA outputs from 4 inputs.
-The baud rate can be up to 38400bps from 4800bps while the default rate is set as 4800bps.
-With built-in optical-coupled isolator, the distributor is a reliable and professional device, which can be used on board. The external equipment connected to the distributor can be safely protected from lightning surge on line.
-NND-200 contains two NMEA buffers:
Buffer 1: 2 inputs/4 outputs. When used for GNSS buffer, all 4 NMEA outputs will keep on unless both GNSS inputs fail simultaneously. When both Input 1 and Input 2 are valid, only Input 1 will be selected as default.
Buffer 2: 2 inputs/4 outputs. Same as Buffer 1.
-Buffer 1 and Buffer 2 can be combined into a new buffer with 4 inputs/8 outputs.
【SPECIFICATIONS】
Model No: |
NND-200 |
Type of Interface: |
RS485/RS422 |
Standards: |
Conform to IEC61162-1, IEC61162-2, NMEA 0183 Standards |
Number of Inputs: |
4 |
Number of Outputs: |
8 |
Operation Mode: |
Semi-duplex |
Power Supply: |
DC24V, 300mA |
LED Indicators: |
NMEA inputs, NMEA outputs |
Baud Rate: |
4800bps~38400bps (default 4800bps) |
Cable Length: |
0-5km |
Size: |
255×175×35mm |
Working Environment: |
﹣40℃~85℃, relative humidity 5% to 95% |
