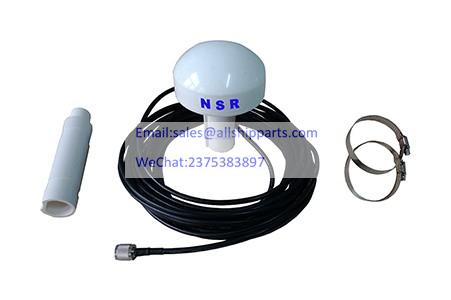

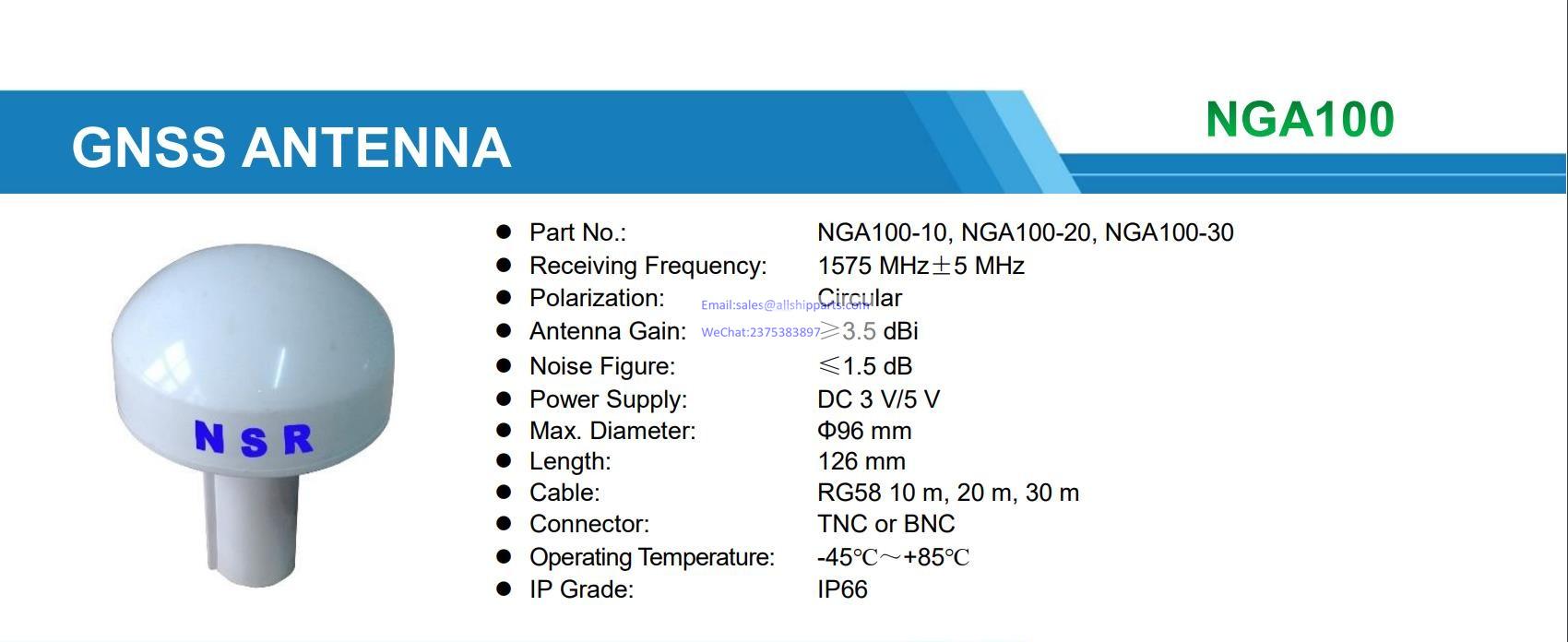

NSR NGA100 GNSS ANTENNA

Part No.:

NGA100-10, NGA100-20, NGA100-30

Receiving Frequency:

1575MHz±5 MHz

Polarization:

Circular

Antenna Gain:

≥3.5dBi

Noise Figure:

≤1.5dB

Power Supply:

3V / 5V DC

Max. Dia:

φ96mm

Length :

126mm

Cable:

RG58 10M, 20M, 30M

Connector:

TNC or BNC

Operation Temperature:

-45℃ ~ ­+85℃

IP Grade:

IP66
