NSR NAN-4000 AIS AtoN

NSR NAN-4000 AIS AtoN

Product Description:

NSR NAN-4000 AIS AtoN

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

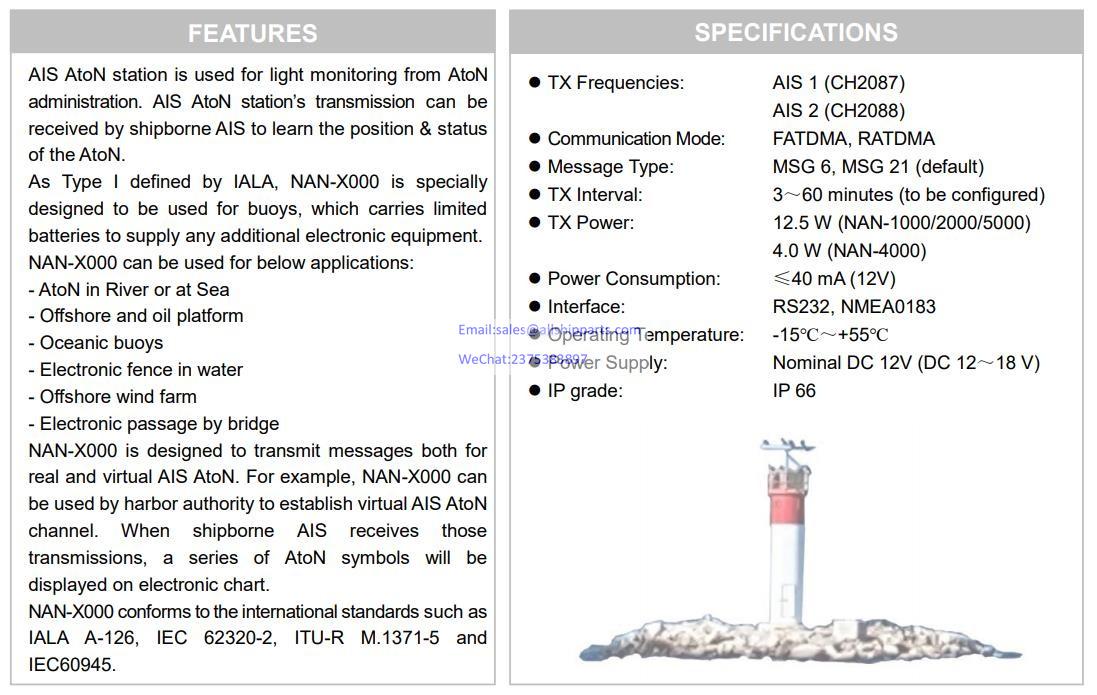

PRODUCT INTRODUCTION

AIS AtoN station is used for light monitoring from AtoN administration. AIS AtoN station’s transmission can be received by shipborne AIS to learn the position & status of the AtoN.

As Type I defined by IALA, NAN-X000 is specially designed to be used for buoys, which carries limited batteries to supply any additional electronic equipment.

NAN-X000 can be used for below applications:

- AtoN in River or at Sea

- Offshore and oil platform

- Oceanic buoys

- Electronic fence in water

- Offshore wind farm

- Electronic passage by bridge

NAN-X000 is designed to transmit messages both for real and virtual AIS AtoN. For example, NAN-X000 can be used by harbor authority to establish virtual AIS AtoN channel. When shipborne AIS receives those transmissions, a series of AtoN symbols will be displayed on electronic chart.

NAN-X000 conforms to the international standards such as IALA A-126, IEC 62320-2, ITU-R M.1371-5 and IEC60945.



SPECIFICATION

TX Frequencies:

AIS1 (161.975MHz)

AIS 2 (162.025MHz)

Communication Mode:

FATDMA, RATDMA

Message Type:

MSG 6, MSG 21 (default)

Transmission Interval:

360 minutes (to be configurated)

Transmitting Power:

12.5W (NAN-1000/2000/5000)

4.0W (NAN-4000)

Power Consumption:

Max.40mA 12V

Interface:

RS232 port NMEA0183

Working Temperature:

-15+55

Power Supply:

Nominal 12VDC (1218VDC)

IP grade:

IP 66

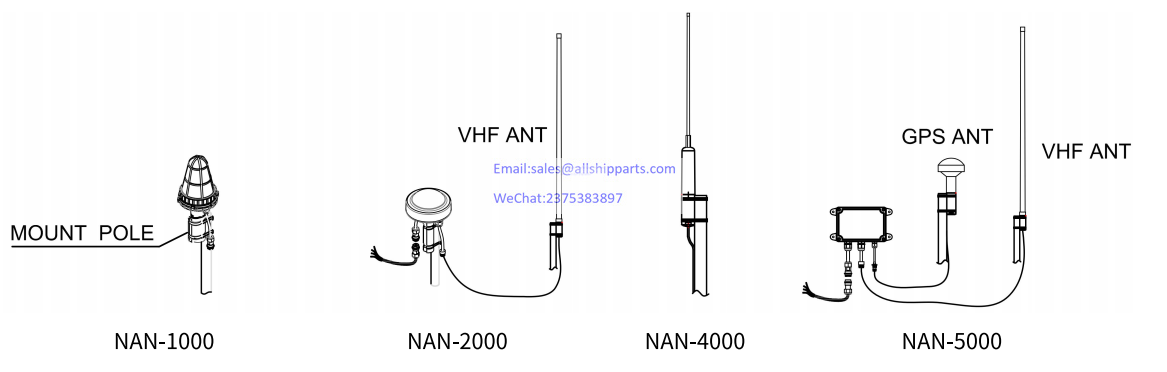

INSTALLATION DIAGRAM
