NSR AM-100 ANEMOMETER
NSR AM-100 ANEMOMETER
Contact: Lily Zhang
E-mail:sales@allshipparts.com
E-mail:info@allshipparts.com
WeChat:Allshipparts

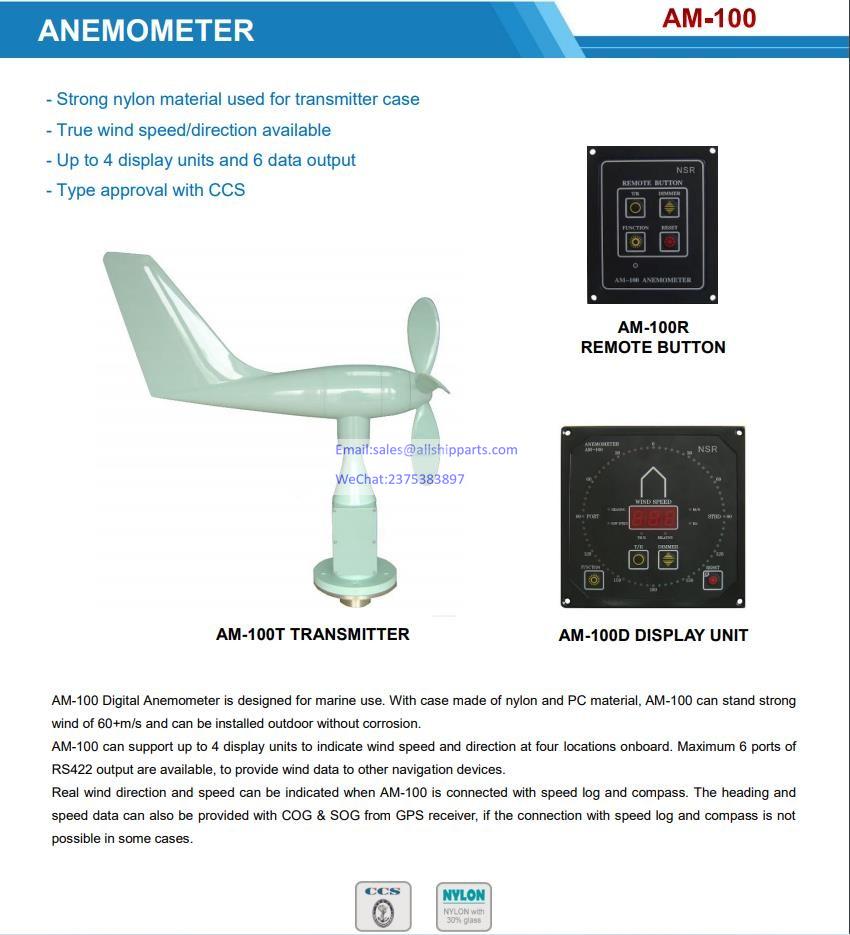

【FEATURES】
- Designed for marine
use,
- With case made of nylon and PC material, AM-100 can stand strong
wind of 60m/s and can be installed outdoor without corrosion.

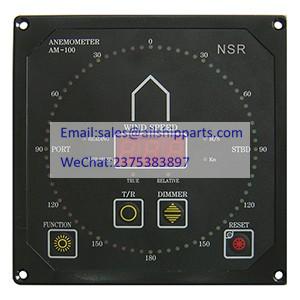

- Can support up to 4 display units to indicate wind speed and direction at four areas onboard.
- Maximum 6 ports of RS422 output are available to provide wind data to other navigation devices.
- True wind speed/direction available.
- CCS type approval.

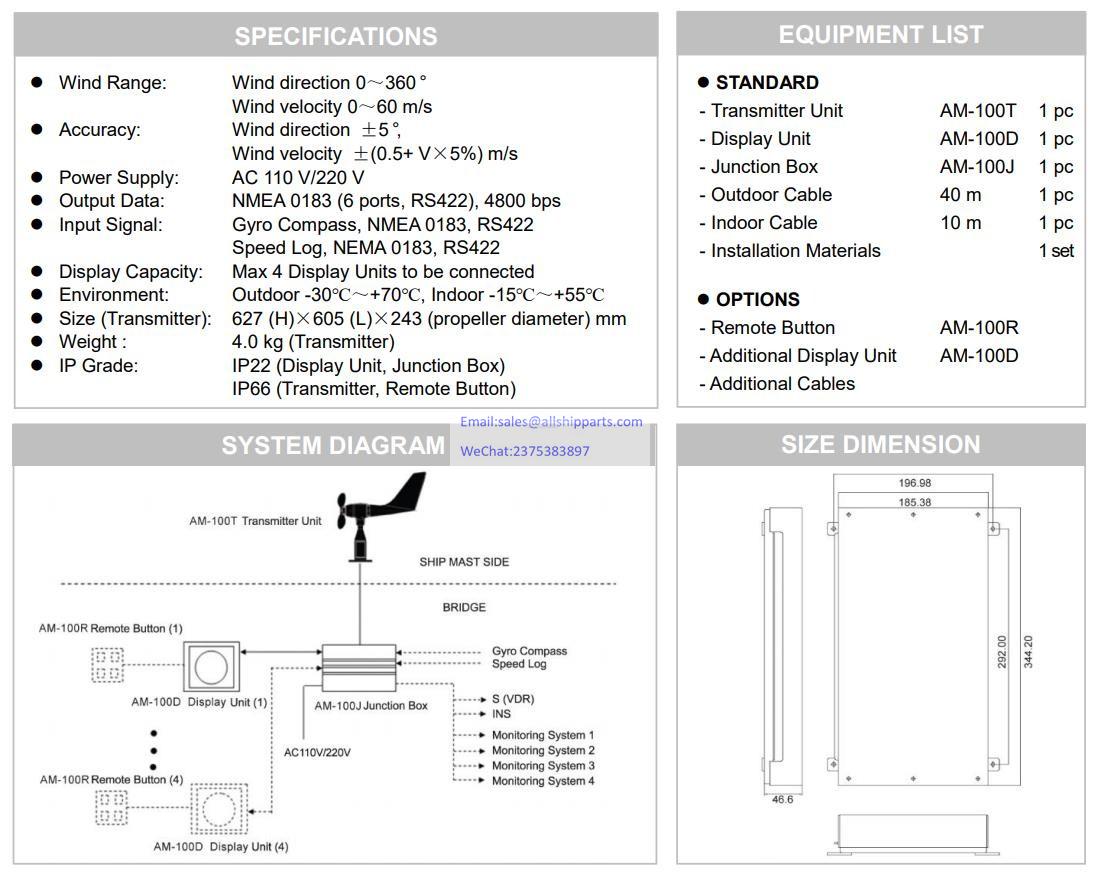

【SPECIFICATIONS】
|
Wind Range: |
Wind direction 0～360° |
|
Accuracy: |
Wind direction ±5° |
|
Power Supply: |
AC220V |
|
Output Data: |
NMEA 0183 (6 ports, RS422), 4800bps |
|
Input Signal: |
Gyro Compass, NMEA 0183, RS422 |
|
Display Capacity |
Max 4 Indicator Units to be connected |
|
Environment: |
Outdoor -30℃～+70℃ |
|

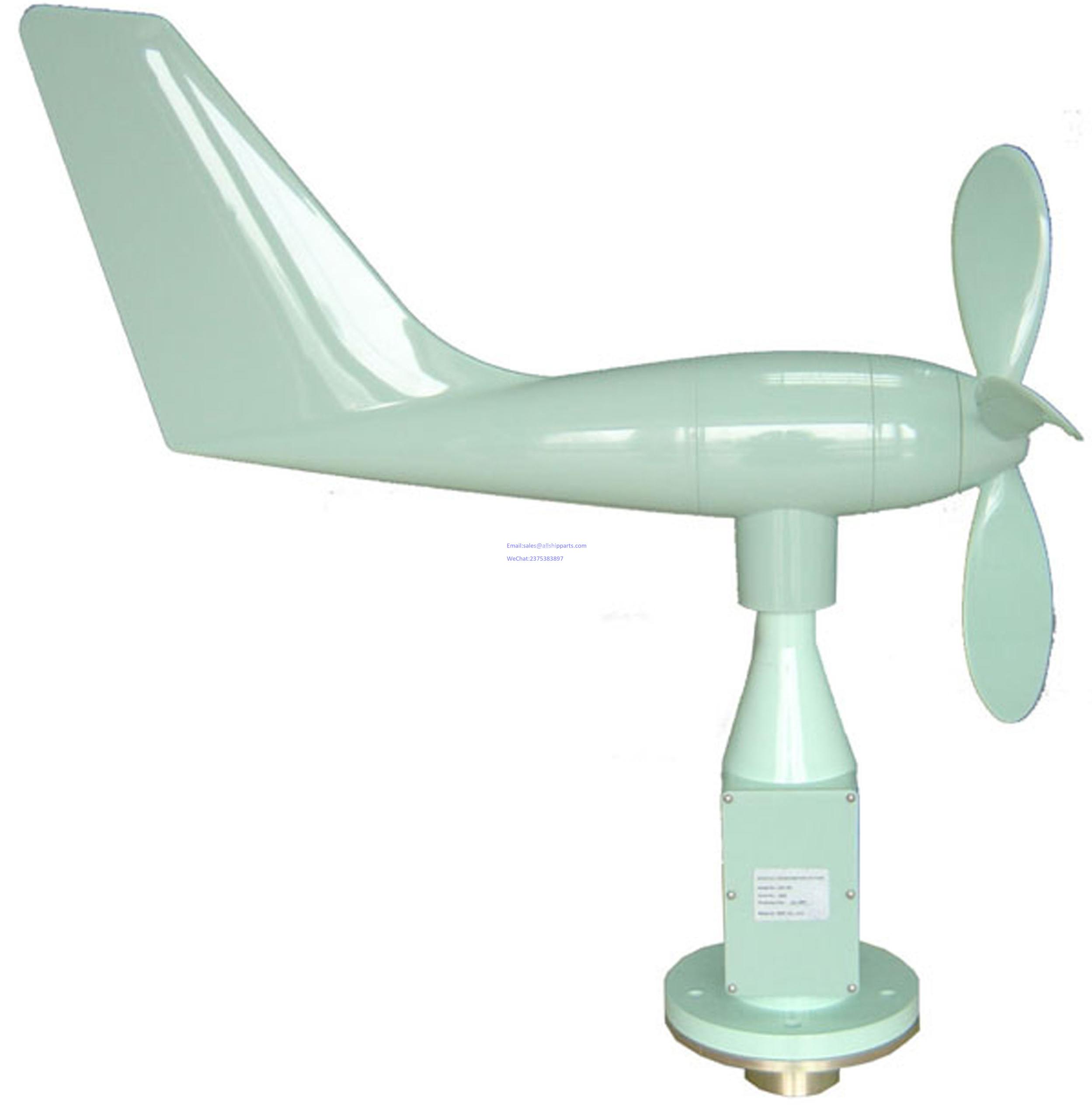

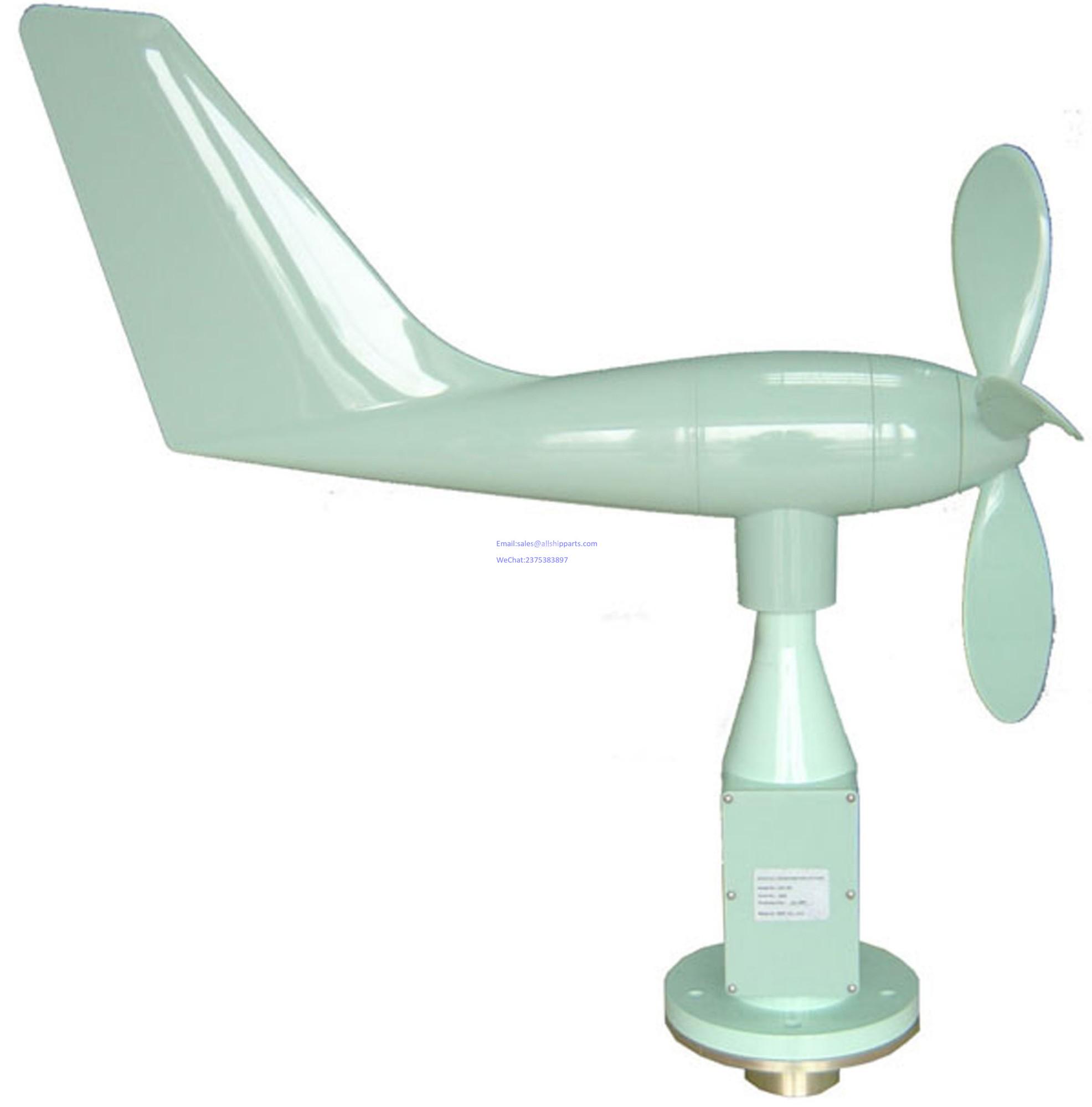

Weight (AM-100T) |
4.0kg (Transmitter Unit) |
|

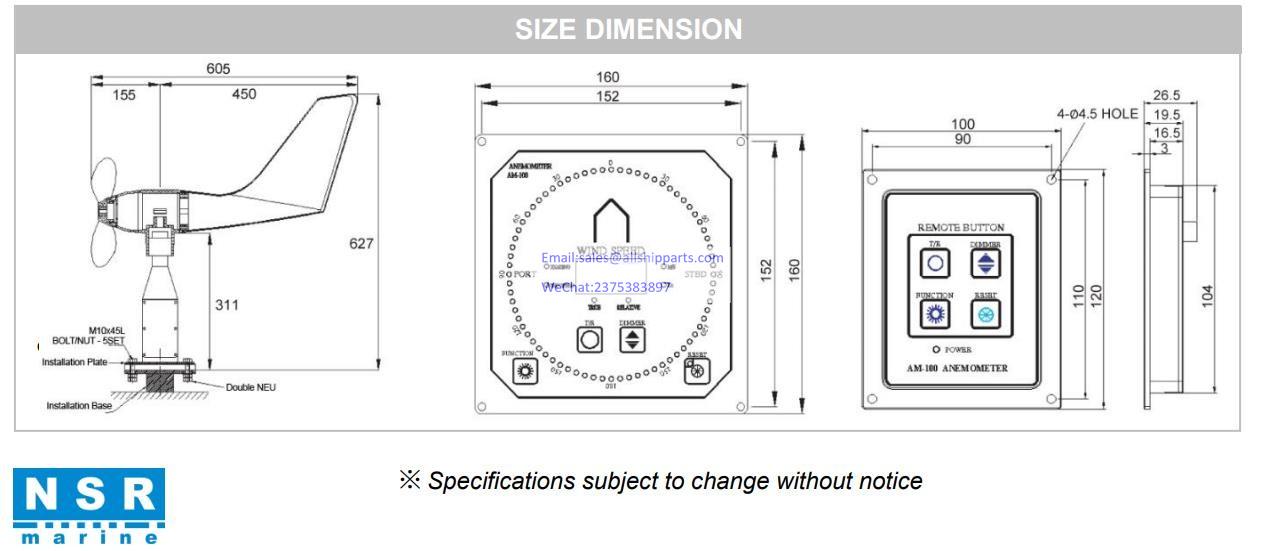

Size (AM-100T) |
627(H) × 605(L) × 243(propeller diameter) mm |
|
IP Grade |
IP22 (Display Unit, Junction Box, Remote Button), IP66 (Transmitter Unit) |
