IcoM RoIP GATEWAY VE-PG4

Power supply

12 V DC ±10%, 4 A maximum
100–240 V AC (with the supplied AC adaptor)

Operating temperature range

0 to +40°C, +32 to +104°F

Operating humidity

5–95% (At no condensation)

Dimensions (W×H×D)
(Projections are not included)

213 × 36.8 × 270 mm,
8.4 × 1.4 × 10.6 in (Approximate)

Weight

1.8 kg, 4 lb (Main unit, approximate)

Regulatory compliance

FCC Part 15 Class B/ ICES003, Part22, Part24, Part27,
EN301 489-1, EN301 489-19, EN301 489-52,
EN301 908-1, EN301 908-2, EN301 908-13,
EN303 413, EN62479, EN62311, EN62368-1

LAN/WAN

RJ-45 type × 1 (Auto MDI/MDI-X)
10BASE-T/100BASE-TX/1000BASE-T
*WAN/LAN port selectable.

LAN

RJ-45 type × 1 (Auto MDI/MDI-X)
10BASE-T/100BASE-TX/1000BASE-T

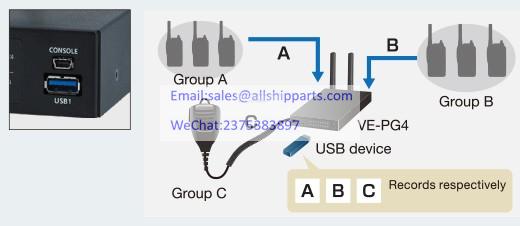

USB

Host interface

USB 3.0 Standard A receptacles ×3

Console interface

USB 2.0 mini B receptacles ×1

Network*

4G bands:

LTE B1, B3, B7, B8, B20 (EUR)
LTE B2, B4, B12 (FCC)
LTE B1, B3, B5, B7, B8, B28 (AUS)

3G bands:

W-CDMA B1, B8 (EUR)
W-CDMA B2, B5 (FCC)
W-CDMA B1, B5 (AUS)

External port

Connectors

2.54 mm (0.1 in) pitch quick
connector (4 terminals ×3) ×4

Audio input

–10 dBs/–40 dBs selectable
Input impedance 10 kΩ unbalance

Audio output

0 dBs/–20 dBs selectable 600 Ω load
unbalance/8 Ω 1 W speaker

Control input

Low voltage contacts (3.3 V DC/ 1 mA)/
Voltage input (3–16 V)

Control output

No voltage contacts (30 V/ 100 mA)/
Open collector (3–16 V 10 mA)
