Features, Performance, Value For the Everyday LMR User

VHFIC-F5023H(50W)

UHFIC-F6023H(45W)

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

128 Memory Channels

SHAPE \* MERGEFORMAT

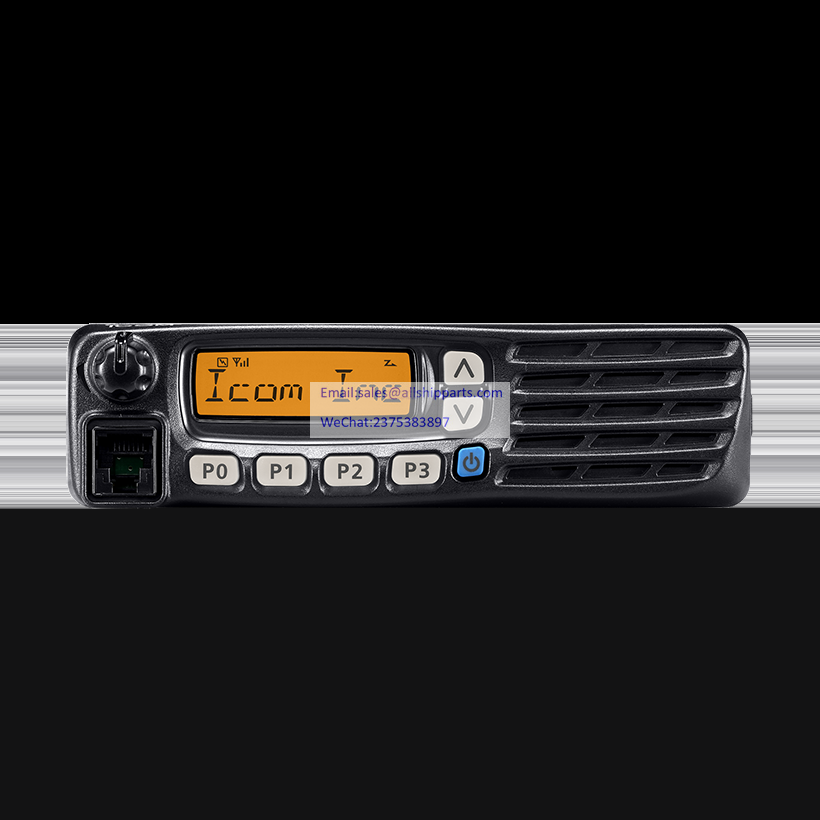

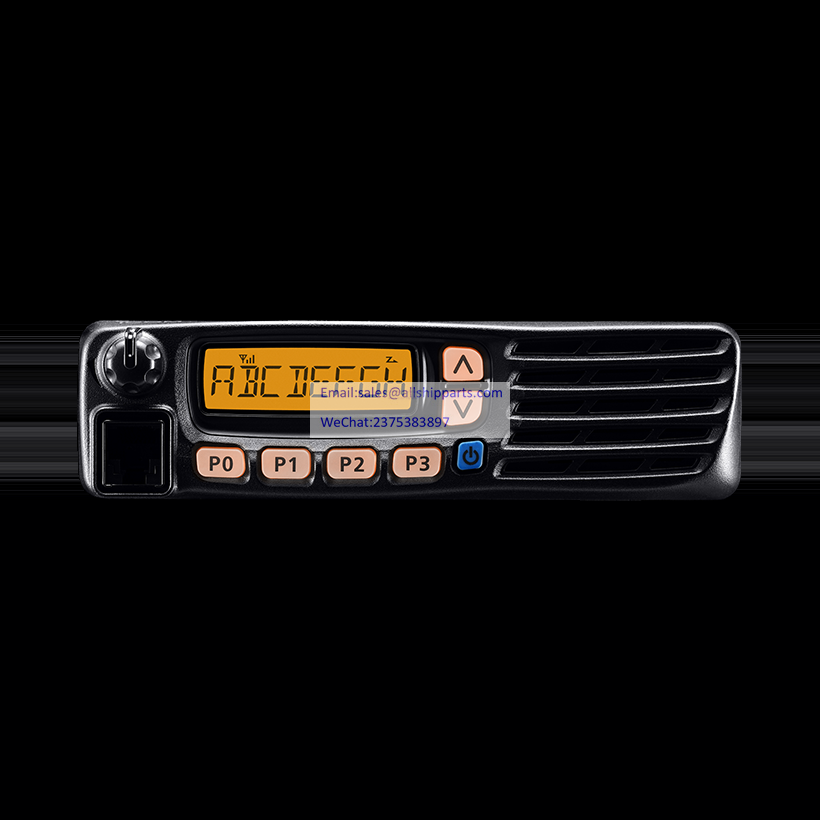

128 channels (Max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.

4 watts (typ.) front mounted speaker delivers clear and loud audio. With the speaker facing the operator, audio can be clearly heard without impediment during operation.

A pair of up/down and P0–P3 function assignable buttons allow you to customize functions to meet specific needs. An independent volume knob offers simple, convenient operation.

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5023H series provides reliable operation over the long term in all manners of rugged environments.

Use the built-in 2-Tone, 5-Tone, CTCSS and DTCS capabilities as standard to set up your own talk groups, PTT ID and quiet stand-by when others are talking. The IC-F5023H series has added CTCSS/ DTCS high speed decode and 2- Tone decode accuracy.

The following MDC features are available with the built-in MDC signaling.

·  PTT ID (TX/RX)

·  Radio check (RX)

·  Radio stun (RX)

·  Radio revive (RX)

·  Emergency TX/RX (No ACK)

·  5 alias table (Max.)

Up to ten 2-Tone and eight 5-Tone codes can be decoded on a channel. When a matched tone is received, the following items are programmable for each code.

·  Beep sound

·  Answer back

·  Scan

·  Bell icon

·  Radio stun/kill/revive

The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporary locked out until the revive command is received or the unlock password is entered.

When the radio is not operated for a preset period, the radio sounds a beep and requires you to push any button. If the radio is still not operated for a specified wait period, an emergency signal automatically transmits and informs co-workers that something may have happened to the individual worker.

In the mode dependent setting, the scanning setting is dependent on the operating channel. When you change the operating channel, the scanning list automatically changes to the list set for that channel. It is convenient when you move to a different operating area and change operating channel, you don’t have to change the scanning setting.

The Tx channel setting allows you to program a transmission channel while scanning. Start channel, last detected channel, priority and preprogrammed channel are selectable. Prior to the Tx channel setting, the talk back function allows you to talk on the last detected channel, while scanning resumes after a preset time. The user can easily make a quick response with this function.

The IC-F5023H series covers a wide frequency range in one version (VHF 136– 174MHz, UHF 400–470, 450–520MHz).

The IC-F5023H series has a 40-pin option slot for adding an optional internal unit.

SHAPE \* MERGEFORMAT

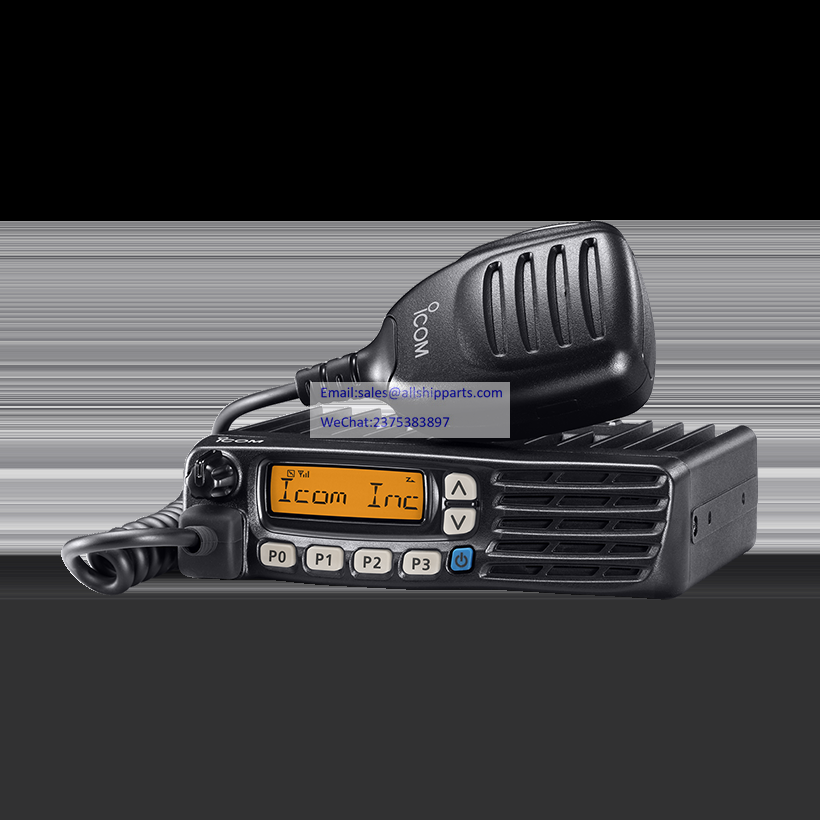

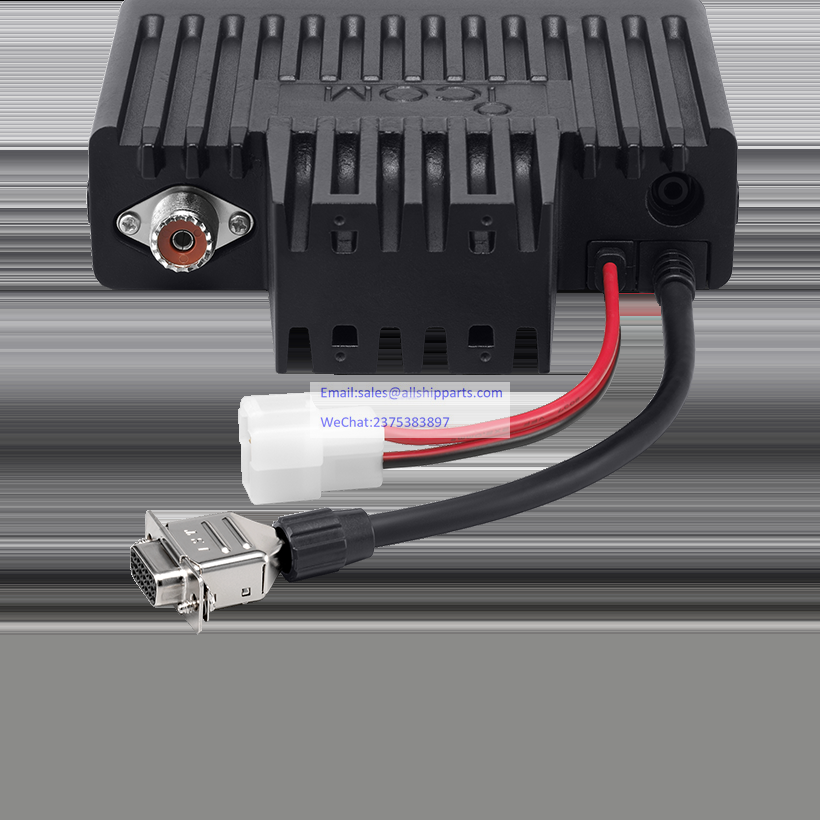

With the optional OPC-1939 D-SUB 15- pin ACC cable, the IC-F5023H series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition sensing function, external PTT, PC command, horn honk, audio output and modulated signal input depending on programming.

·  Wide and narrow channel spacing (25/ 12.5 kHz) is programmable per channel

·  Embedded ESN

·  ±2.5 ppm frequency stability

·  Microphone hanger action programmable

·  Optional DTMF microphone (HM-152T)

·  8 DTMF autodial memories

·  BIIS 1200 PTT ID transmission

·  Power-on password function

·  Nuisance delete function

·  Time-out-timer, Lock-out penalty timer and more

			IC-F5023H	IC-F6023H
Frequency coverage			136–174MHz	400–470MHz 450–520MHz
Number of channels			Max. 128 Ch/ 8 zones
Channel spacing			12.5/25kHz
Type of emission			16K0F3E, 11K0F3E
Current drain (approx.)	Tx		10.0A	11.0A
	Rx	Max. audio	0.7A
		Stand-by	250mA
Dimensions (projections not included; W×H×D)			150×40×167.5 mm
Weight (approx.)			1.1kg

	IC-F5023H	IC-F6023H
RF output power	50W	45W
Spurious emissions	70dB typ.
Frequency stability	±2.5ppm
Audio harmonic distortion	3% typical 40% deviation
FM Hum and Noise	46dB typ. (W) 40dB typ. (N)

	IC-F5023H	IC-F6023H
Sensitivity at 12dB SINAD	0.25μV typ.
Adjacent channel selectivity (W/N)	75dB/65dB (typ.)	75dB/65dB (typ.)
Spurious response rejection	80dB typ.
Intermodulation rejection	75dB typ.
AF output power (at 5% distortion with an 4 Ω load)	4W typ.

		IC-F5023H IC-F6023H
Number of option slots		1
CTCSS/ DTCS	encoder	Available
	decoder	Available
2-Tone	encoder	Available
	decoder	Available
5-Tone	encoder	Available
	decoder	Available
DTMF autodial		Available
DTMF decoder		-
Voice Scrambler	Inversion	-
APCO P25 digital		-
AES encryption		-
DES encryption		-
IDAS digital		-
MPT 1327		-
MDC 1200		Available (Limited functions)
LTR™ trunking		-
PassPort		-

·         Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

·

Standard	MIL-810 F Method, Proc.
Low Pressure Storage	500.4 I
Low Pressure Operation	500.4 II
High Temperature Storage	501.4 I
High Temperature Operation	501.4 II
Low Temperature Storage	502.4 I
Low Temperature Operation	502.4 II
Temperature Shock	503.4 I
Solar Radiation	505.4 I
Humidity Induced	507.4
Settling Dust	510.4 III
Vibration	514.5 I
Shock Functional	516.5 I
Shock Transit Drop	516.5 IV

·
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
