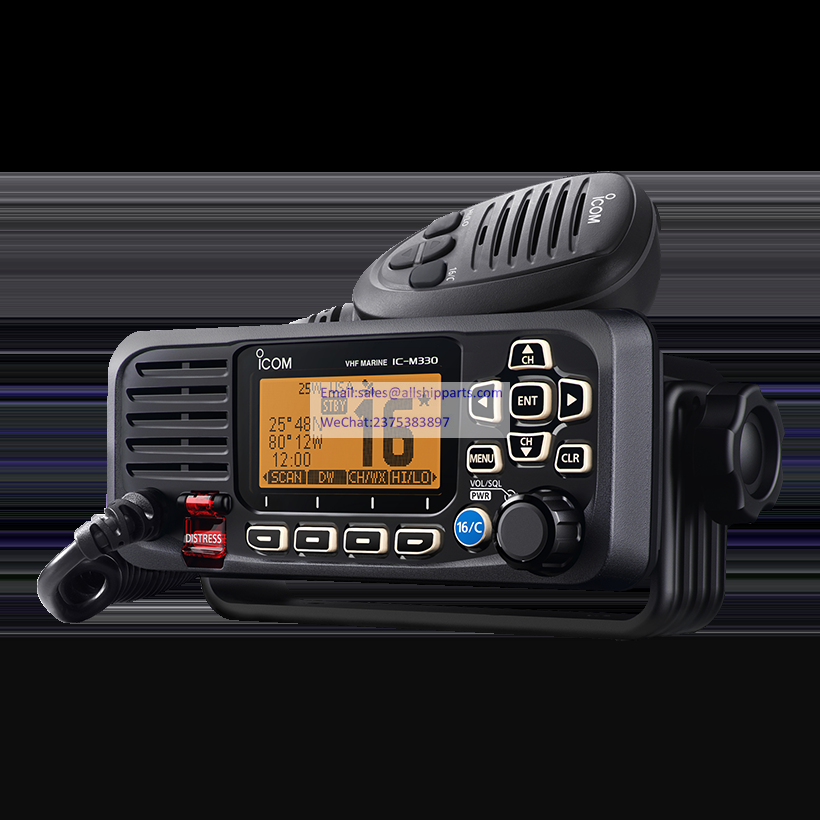

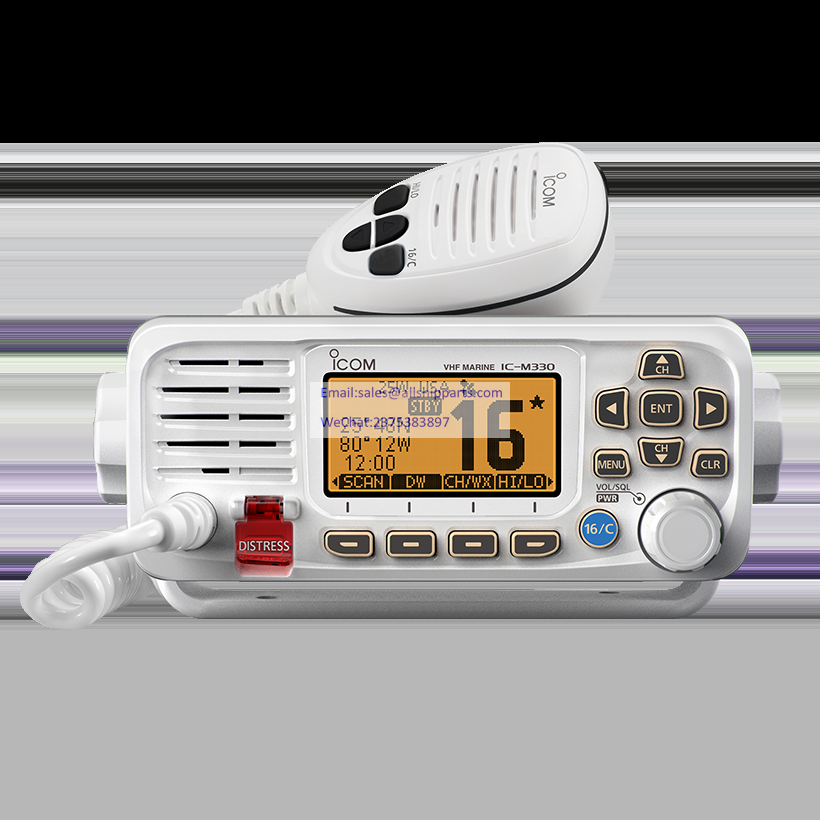

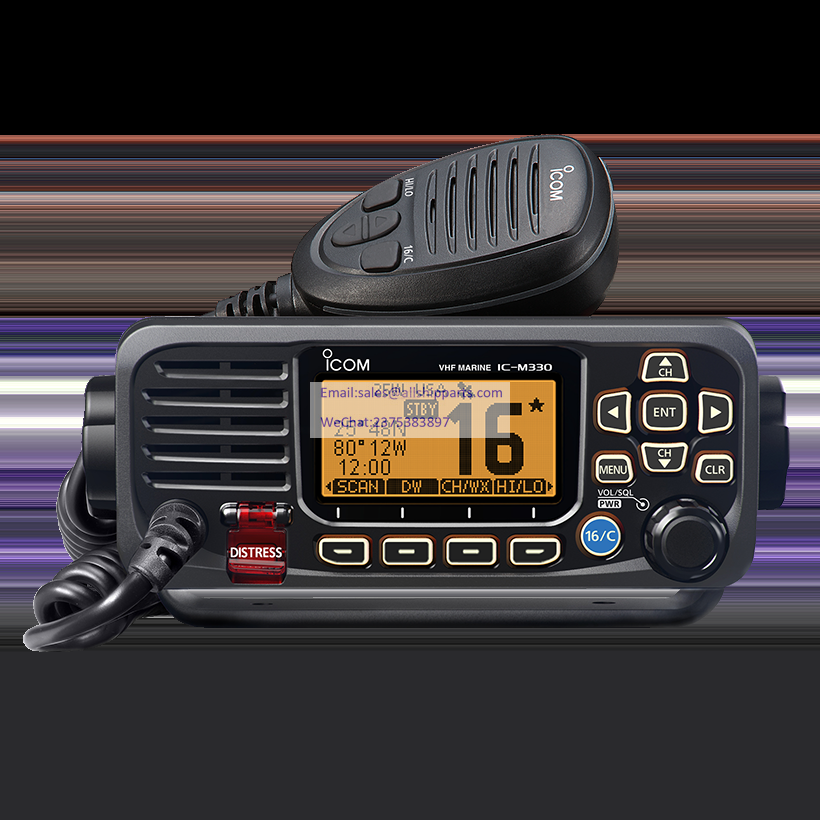

ICOM VHF MARINE TRANSCEIVERS IC-M330G/IC-M330

ICOM VHF MARINE TRANSCEIVERS IC-M330G IC-M330

Product Description:

ICOM VHF MARINE TRANSCEIVERS IC-M330G /IC-M330

Top Performance Ultra Compact VHF

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts



Ultra Compact Body, Flexible Installation

The IC-M330/G has a palm-sized compact body (W×H×D; 156.5 × 66.5 × 88.2 mm; 6.2 × 2.6 × 3.5 in). The radio can be installed in limited space.

New Speaker Delivers Dynamic, Clear Audio

A new speaker design delivers dynamic and clear sound over a wide bass and treble range. The IC-M330/G provides a distortion-free clear audio even at full volume.

Built-in Class D DSC

The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Class Leading Receiver Performance

The radio provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

Intuitive Operation with Icom Marine User Interface

A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

GPS Receiver Built-in (IC-M330G)

SHAPE \* MERGEFORMAT

Supplied GPS antenna

A built-in GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

Made in Japan Quality and Reliability

All Icom products are tested to pass rigorous in-house tests as well as environmental tests at the Wakayama Icom plant before shipping. Our world-leading products and quality is tradition.

And More

·  IPX7 submersible (1 m depth of water for 30 minutes)

·  AquaQuake™ prevents audio degradation from a water-logged speaker

·  Common NMEA interface for external GPS/NAV connection

·  MA-500TR Class B AIS transponder compatible

·  Tag scan and favorite channel functions

·  Dual/tri-watch function for monitoring CH16 and/or call channel

·  Priority scan function

·  Display and keypad backlighting

·  External speaker connection

·  Weather channel with weather alert

·  Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key

·  3-digit or 4-digit channel display selectable

General

Frequency range

TX

156.025–161.600 MHz

RX

156.050–163.275 MHz

CH70

156.525 MHz

Usable channels

USA, CAN, INT, WX channels

Type of emission

16K0G3E (FM), 16K0G2B (DSC)

Power supply requirement

13.8V DC nominal
(11.7-15.9 V DC)

Current drain
(at 13.8 V DC)

TX 25 W output

5 A

RX AF max.

1 A

Operating temperature range

-20°C to +60°C; -4°F to +140°F

Antenna impedance

50 Ω (SO-239)

Dimensions (W×H×D)
(projections not included)

156.5 × 66.5 × 88.2 mm;
6.2 × 2.6 × 3.5 in

Weight (approx.)

730 g; 1.6 lb

NMEA formats

In

RMC, GGA, GNS, GLL, VTG

Out

DSC, DSE, RMC, GSA, GSV

Transmitter

Output power (at 13.8 V DC)

25 W, 1 W

Max. frequency deviation

±5 kHz

Frequency tolerance

±5 ppm

Spurious emissions

Less than -70 dBc (High)
Less than -56 dBc (Low)

Receiver

Sensitivity

Main

-13 dBμ typ. (12 dB SINAD)

DSC

-5 dBμ emf typ. (1% BER)

Squelch sensitivity

Less than -10 dBμ

Adjacent channel selectivity

Main

More than 70 dB

DSC

More than 73 dBμ emf (1% BER)

Spurious response

Main

More than 70 dB

DSC

More than 73 dBμ emf (1% BER)

Intermodulation

Main

More than 70 dB

DSC

More than 68 dBμ emf (1% BER)

Hum and noise

More than 40 dB

Audio output power
(at 10% distortion, 4 Ω load)

More than 2 W (Internal SP)
More than 4.5 W (External SP)

Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.

Applicable IP Rating

Ingress Protection Standard

Water

IPX7 (Waterproof protection)
