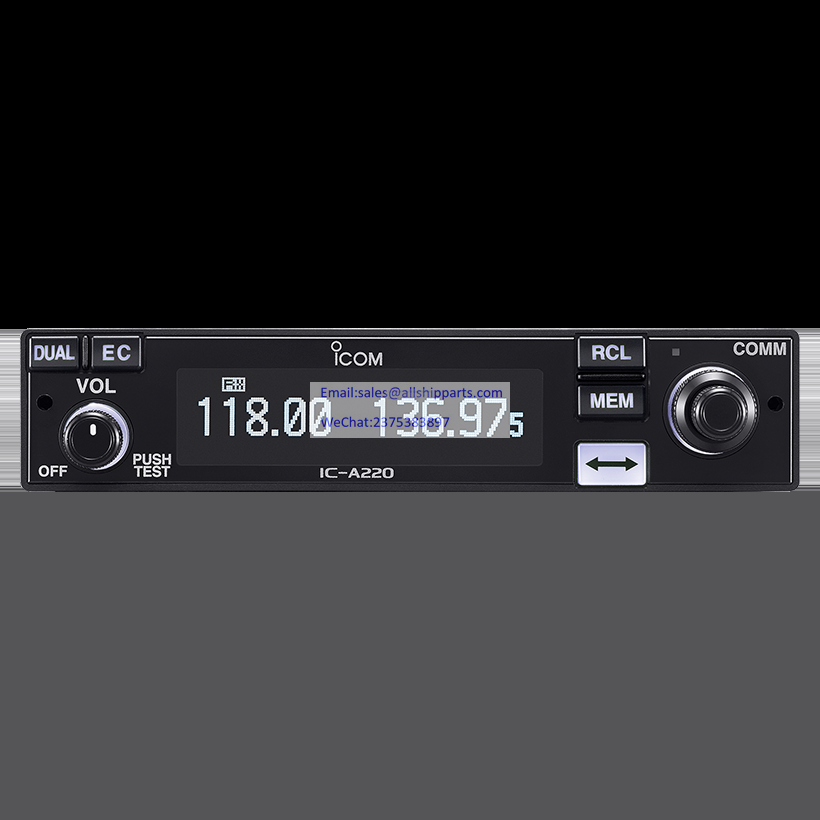

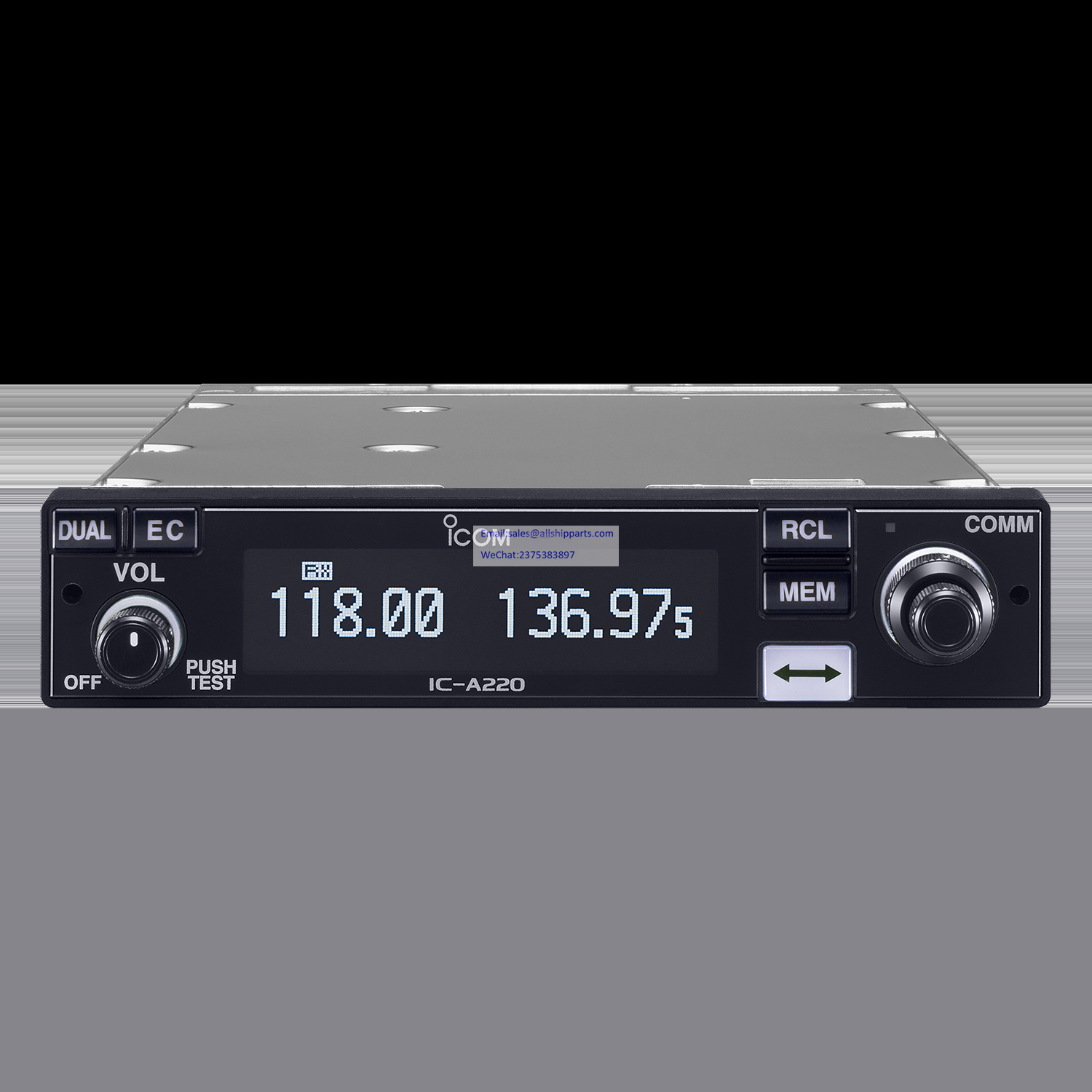

Easy to Install Panel Mount Airband with White OLED Display and White Key Backlight

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

SHAPE \* MERGEFORMAT

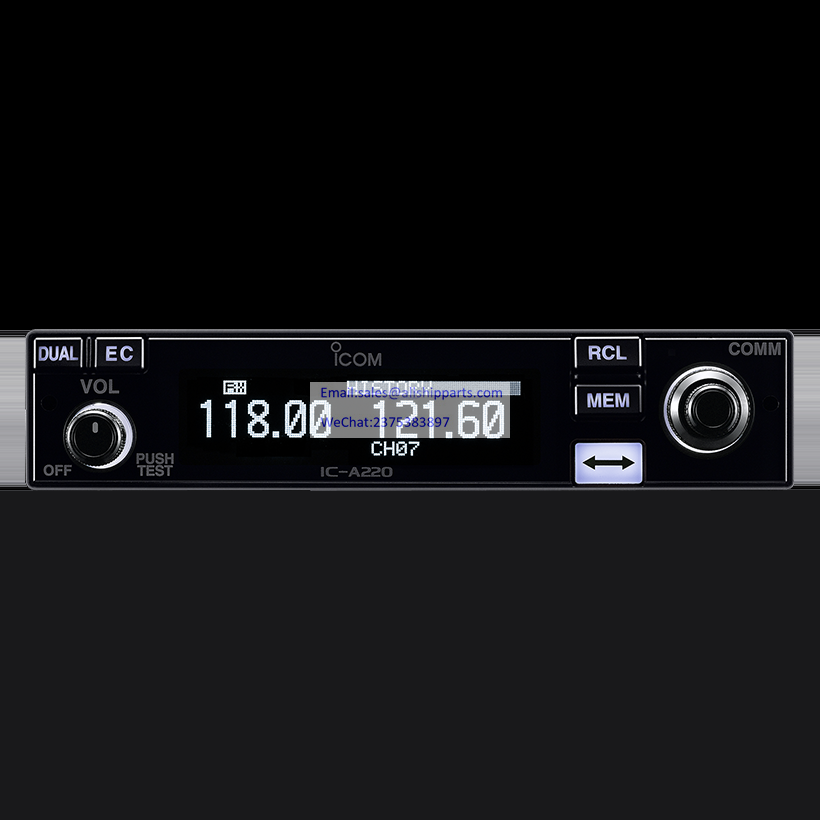

Operating information is clearly shown on the OLED display.

The OLED (Organic Light Emitting Diode) emits light from itself, so a display backlight is not required. It provides higher contrast, wider viewing angle of almost 180 degrees and faster response time than a conventional LCD. The IC-A220’s display has a wide active area, operating frequencies’ characters can be maximized in the display, while operating status can be shown on both top and bottom of the display.

The IC-A220 has large switch buttons on the front panel. The most frequently used FLIP-FLOP (Frequency exchange) switch button is designed large enough to be pushed with ease. All switch buttons and knobs are illuminated with pure-white backlighting which are the same color as the OLED display.

The IC-A220 TSO version can be used as a primary VHF radio in general aviation (part 23) aircraft*. The IC-A220 TSO version is also accepted as an ETSO radio under the TSO/ETSO reciprocal acceptance policy.

* For more details, please see the Environmental Qualification Form on www.icomamerica.com

The squelch sensitivity is automatically adjusted in accordance with the noise level to eliminate annoying background noise and unwanted signals.

The auto and manual squelch including squelch level can be quickly accessed with the Volume knob. The squelch test function temporarily opens the squelch and allows you to monitor signals.

The auto dimmer function sets display and key backlighting brightness. The IC-A220’s high sensitivity light sensor covers a wide illumination range.

By connecting to an external dimmer control system on the aircraft, the IC-A220’s dimmer function can be linked with the aircraft dimmer level. The external dimmer control can be used on either 13.8 V or 27.5 V electrical systems.

The IC-A220 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A220 has adjustable audio level and squelch control functions.

The IC-A220 has 20 memory channels and 20 history memory channels respectively. Often used memory channels can be instantly recalled. Group memory channels are organized into 10 memory channels by 5 groups (total 50 channels). Weather channel scanning function searches for weather channel signals.

he IC-A220 allows switching between 8.33 kHz and 25 kHz frequency steps in the menu mode.

* Use of 8.33 kHz channel spacing may be prohibited depending on country.

You can remotely control the FLIP-FLOP (frequency exchange), intercom and recall switches via the rear panel connector.

As the TSO specifications require, the radio continues to work with the reduced power supply voltage.

To improve operability, menu items are divided into two modes, a settings menu and a configuration menu. Seldom-changed settings can be set in the configuration menu, while normal settings can be made in the settings menu.

·  Dualwatch and priority watch functions

·  One touch access to 121.5 MHz emergency frequency

·  Both 13.8 V and 27.5 V electrical systems compatible

·  Side tone function for monitoring your voice with a headset

·  ANL (Automatic noise limiter) function reduces pulse type noise

·  D-SUB 25-pin connector and MIL-Spec M39029/63-368 compliant socket pins

·  Slim 33 mm (1.3 inch) height can be installed in a limited panel space

SHAPE \* MERGEFORMAT

The IC-A220 TSO version is manufactured and serviced by Icom America Inc.
All repairs or adjustment information will be provided from Icom America.

Frequency coverage	TX/RX	8.33 kHz spacing	118.000–136.992 MHz
		25 kHz spacing	118.000–136.975 MHz
	RX	Weather channel	161.650–163.275 MHz
Frequency spacing			8.33 kHz / 25 kHz
Mode			AM (6K00A3E, 5K60A3E)
Frequency stability			±5 ppm
Operating temperature range			–20°C to +55°C; –4˚F to +131˚F
Antenna impedance			50 Ω
Number of memory channels			20 regular, 50 group memory, 20 history, 10 weather channels
Power supply requirements			13.8V/27.5V DC (Negative ground)
Dimensions (W×H×D) (Projections are not included)			160×34×271 mm 6.3×1.34×10.67 in
Weight			1.2 kg; 2.65 lb ±10%
Certification			TSO-C128a, TSO-C169a

Output power	8 W (Carrier power)
Spurious emission	–60 dBc
Modulation limiting	70% (Maximum 98%)
Microphone impedance	600Ω

Intermediate frequencies		38.85 MHz/450 kHz (1st/2nd)
Sensitivity	AM (6 dB S/N)	Less than 2μV
	FM (12 dB SINAD)	Less than 1.4μV
Selectivity	25 kHz spacing	±3 kHz/±22 kHz (6 dB/60 dB)
	8.33 kHz spacing	±2.778 kHz/±7.37 kHz (6 dB/60 dB)
Spurious response rejection		More than 74 dBμ
Audio output power	External SP	5 W with a 4 Ω load
	Headphone	60 mW with a 500 Ω load

Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I,II
High Temperature	501.5	I,II
Low Temperature	502.5	I,II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Humidity	507.5	II
Vibration	514.6	I
Shock	516.6	I

Also meets equivalent MIL-STD-810-C, -D -E and -F.

·  Mounting bracket kit

Measurements made in accordance with RTCA DO-186B for USA version.
