ICOM CLASS B AIS TRANSPONDER MA-510TR

ICOM CLASS B AIS TRANSPONDER MA-510TR,ICOM,CLASS B AIS TRANSPONDER,MA-510TR

ICOM CLASS B AIS TRANSPONDER MA-510TR

Class B AIS Transponder with
Wide Viewing-Angle Color TFT LCD
Receiving both Class A and B AIS Signals

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts

An AIS transponder on your boat automatically receives information broadcast by other AIS-equipped vessel’s and base stations, all while your own vessel’s static and dynamic information is being transmitted. Using with an AIS transponder, you can find AIS mounted small boats and buoys that are difficult to be detected with a marine radar. The MA-510TR can receive both Class A and B AIS signals and increases your safety at sea.

SHAPE \* MERGEFORMAT

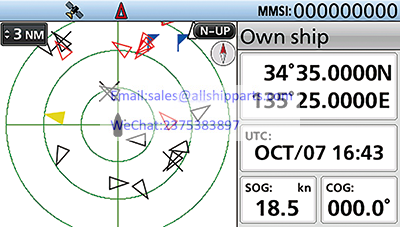

Plotter screen (Day mode)

The wide viewing, high resolution 4.3-inch color TFT display clearly shows your and other vessels’ positions. Potentially dangerous vessels are shown in red and ships registered as your friends are shown in yellow. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.

SHAPE \* MERGEFORMAT

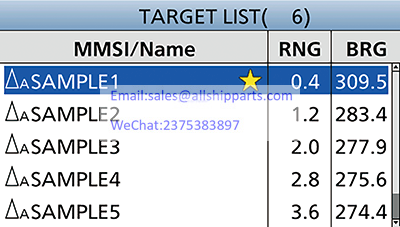

Target list screen

The ‘Target’ list screen shows all detected AIS equipped vessels and targets. The ‘Danger’ list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach (CPA) and sixty minutes of Time to Closest Point of Approach (TCPA) from your vessel. The ‘Friend’ list screen displays the detected AIS targets that you set as friends. When you want to see target details, select the target by the cursor keys and push [ENT] key.

SHAPE \* MERGEFORMAT

Detail screen examples

SHAPE \* MERGEFORMAT

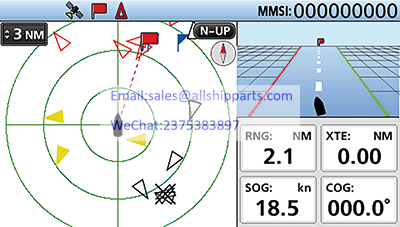

Plotter screen with Navigation screen

The Navigation function guides you to a specified waypoint or AIS target. You can assign a maximum of 100 favorite fishing spots or destinations as waypoints. The Navigation function is simply started by just selecting a waypoint or an AIS target on the display.

SHAPE \* MERGEFORMAT

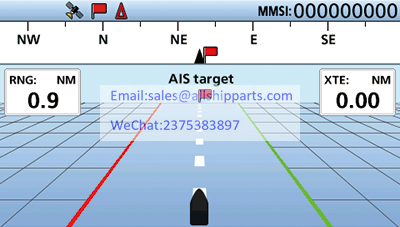

Navigation screen

SHAPE \* MERGEFORMAT

Plotter screen with MOB Navigation screen

When the [WPT/MOB] button is held down, the MA-510TR automatically marks a waypoint of the vessel’s current position and activates the MOB (Man Overboard) navigation function to the location the MOB event occurred.

SHAPE \* MERGEFORMAT

MOB Navigation screen

You can transmit an individual DSC Call by simply selecting an AIS target and the voice channel on the MA-510TR*.
* A compatible Icom VHF radio is required. The MA-510TR and a radio can be connected with the accessory cable. See the instruction manual of each for radio’s connecting instructions.

AIS data can be output from an USB cable connector on the rear panel*.
* A third party application and a connection cable are required.

SHAPE \* MERGEFORMAT

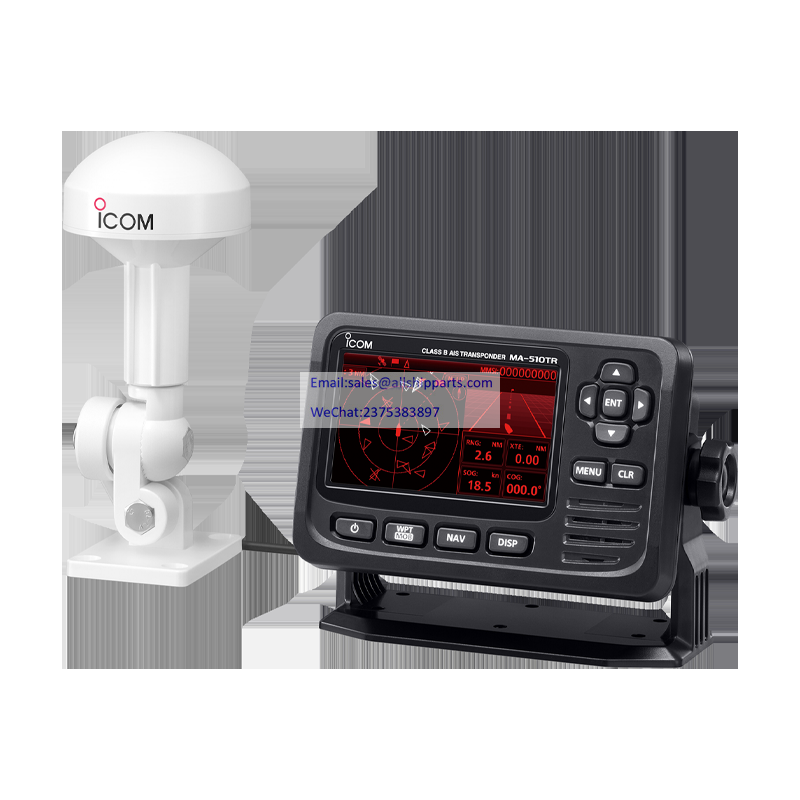

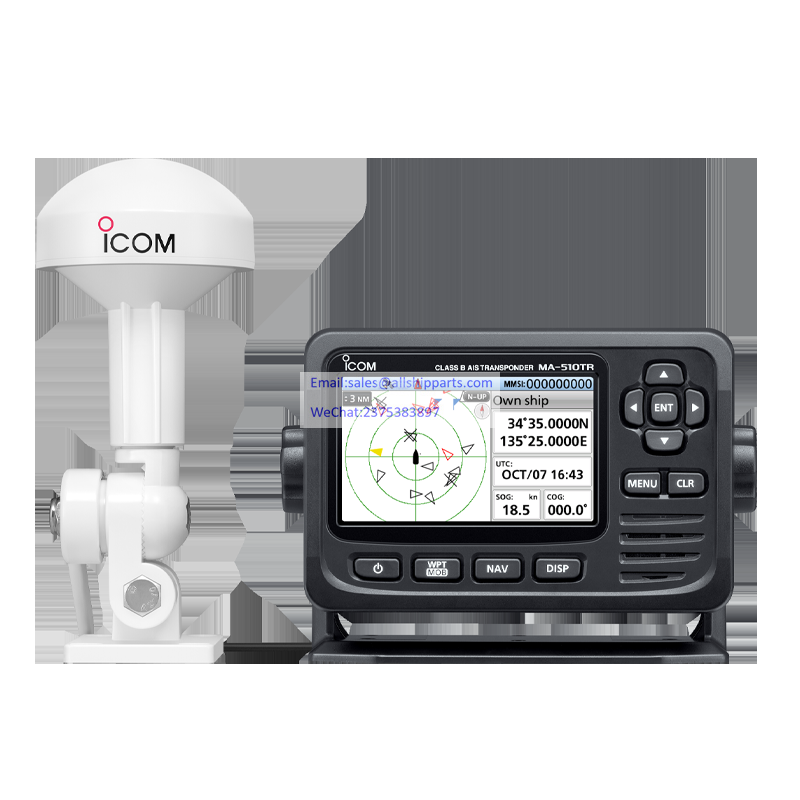

Supplied GPS antenna

The GPS receiver with SBAS function is integrated in the MA-510TR. Position information can be simply received with connection to the supplied GPS antenna with 10 m, 32.8 ft cable.

With the plug-and-play functionality of NMEA 2000™, the MA-510TR can connect to a NMEA 2000™ network (an external plotter, marine radar and VHF radio). Using NMEA 0183/-HS connectivity, the transponder can connect to a transceiver, plotter device, marine radar, external GPS receiver, or switch button.

When a vessel comes into the CPA or TCPA range, the vessel’s icon blinks on the plotter display and a beep sound is heard. When connected to external audio equipment installed on the chart table or fly bridge, the collision alarm function will alert you, even when you are away from the AIS transponder.

Silent mode switches off the AIS transmitter and allows you to temporarily stop transmitting your vessel’s position information. This function is useful when you do not want to reveal your fishing spots to other vessels. You can receive other vessel’s AIS reports also while the silent mode is ON.

·  Compatible with both 12 V and 24 V power sources

·  Multi-lingual user interface (English, French, Indonesian, Spanish and Vietnamese)

·  Anchor watch function sounds an alarm when your vessel is at anchor but has drifted

·  IPX7 waterproof protection (up to 1 m depth of water for 30 minutes; except connectors)

Operating frequencies		161.500 MHz to 162.025 MHz
Type of emission		16K0GXW (GMSK)
Antenna impedance		50 Ω nominal
Intermediate frequency	CH-A	1st: 21.700 MHz, 2nd: 450 kHz
	CH-B	1st: 30.150 MHz, 2nd: 450 kHz
Operating temperature range		–20°C to +60°C; –4°F to +140°F
Power supply requirement		Negative ground: 12 V or 24 V DC nominal (9.6 to 31.2 V)
Current drain (at 12 V DC)		TX: 1.5 A, RX: 0.7 A
Dimensions (approximate)) (Projections not included)		166.2 (W) × 110.2 (H) × 92.5 (D) mm, 6.5 (W) × 4.3 (H) × 3.6 (D) inch
Weight (approximate))		700 g, 1.5 lb

Output power	2 W
Modulation	16K0GXW (GMSK)
Conducted spurious emission	Less than –36 dBm (9 kHz–1 GHz) Less than –30 dBm (1 GHz–4 GHz)

Sensitivity	Less than –110 dBm
Adjacent channel selectivity	More than –31 dBm
Spurious response	More than –31 dBm
Intermodulation	More than –36 dBm
Conducted spurious emission	Less than –57 dBm (9 kHz–1 GHz) Less than –47 dBm (1 GHz–4 GHz)
Blocking	More than –23 dBm (±0.5 MHz–±5 MHz) More than –15 dBm (±5 MHz–±10 MHz)
Co-channel	More than –111 dBm

Frequency coverage	156.525 MHz
Type of emission	16K0G2B
Sensitivity	Less than –110 dBm
Adjacent channel selectivity	More than 70 dB
Spurious response	More than –34 dBm
Intermodulation	More than –39 dBm
Blocking	More than –20 dBm

Received frequency	1575.42 MHz
Acquisition	72 ch (maximum)
Differential satellites	WAAS, EGNOS, MSAS, GAGAN
Dimensions (approximate)	96.2 × 225 (H) mm, 3.8 × 8.9 (H) inch
Weight (approximate)	700 g, 1.5 lb (including cable and mounting bracket)
Cable length (approximate)	10 m, 32.8 ft

USB (Type-B Mini)		GGA, GNS, GLL, GSA, GSV, RMC, VTG, VDM, VDO, ACA, ACS, ALR, TXT
NMEA 2000TM	Input	059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545
	Output	059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811
NMEA 0183	NMEA Input/Output	4800–38400 bps Input/Output, sentence format: Output, GGA, GNS, GLL, GSA*1, GSV*1, RMC, VTG, GBS, DTM, DSC
	External GPS Input	4800–38400 bps Input, sentence format: GGA, GNS, GLL, RMC, VTG, GBS*2, DTM
	AIS Output	38400 bps Output, sentence format: VDM, VDO, ACA, ACS, ALR, TXT

*1 Only 38400 bps. *2 When a received GPS signal does not include a GBS sentence, the transponder will not receive the signal from the external GPS receiver.

SHAPE \* MERGEFORMAT

All stated specifications are subject to change without notice or obligation.

IC-M605, IC-M605EURO, IC-M506, IC-M506EURO, IC-M506GE, IC-M424, IC-M424G, IC-M423, IC-M423G, IC-M423GE, IC-M400BB, IC-M400BBE, IC-M330, IC-M330G, IC-M330GE, IC-M324, IC-M324G, IC-M323, IC-M323G

* As of May 2020

·  GPS antenna

·  DC power cable

·  Mounting bracket kit

·  Accessory connector
