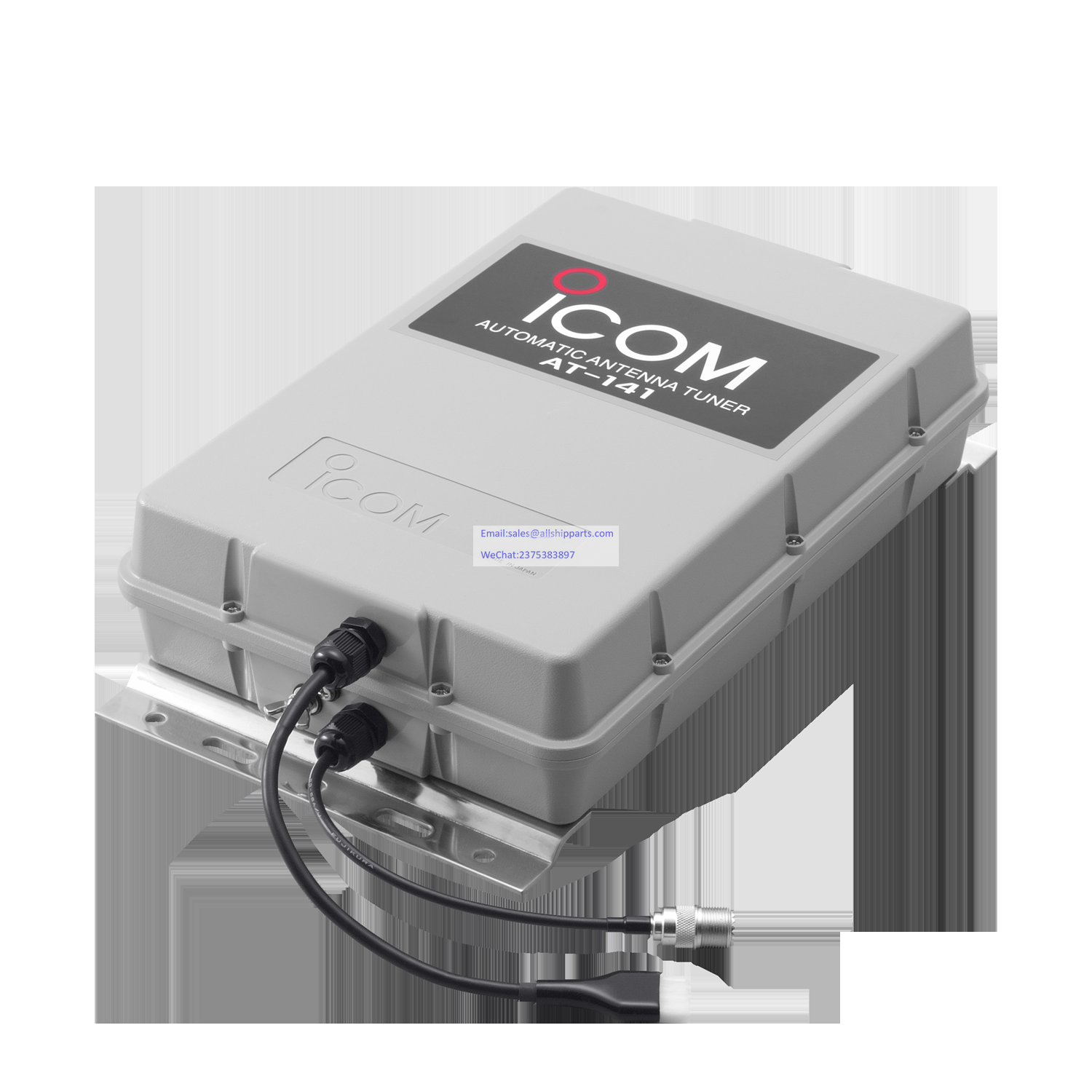

ICOM ANTENNA TUNER AT-141

Frequency coverage

1.6–30 MHz (with 7 m or longer antenna element)

Power supply requirement

13.6 V DC (supplied from the HF transceiver)

Current drain

Maximum 2 A

Operating temperature range

–20°C to +55°C

Weight (approximately)

2.5 kg

Antenna connector

SO-239 (50 Ω)

Maximum Input power

150 W (PEP) 100 W (continuous)

Automatic tuning time

Approximately 2 to 3 seconds (general condition)
Maximum 15 seconds

Automatic tuning accuracy

SWR 2.0:1 (after tuning, except for multiples of 1⁄2 λ)

Usable pole diameter

32 to 60 mm

IP rating

IPX6

Note

Version 45 must be used for MED certification compliance with the GM800.

Version Number

Version

Transceiver

Ver 45

EUR-02

For GM800

Ver 64

EUR-01

For IC-M804
