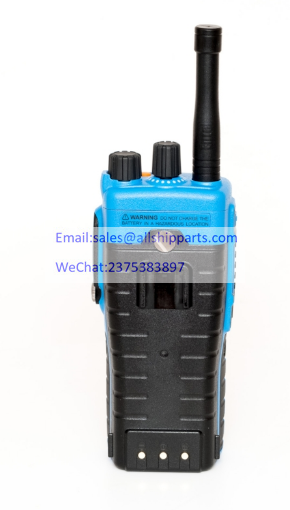

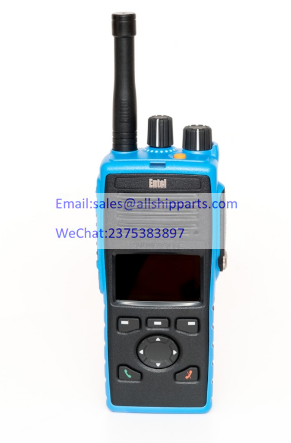

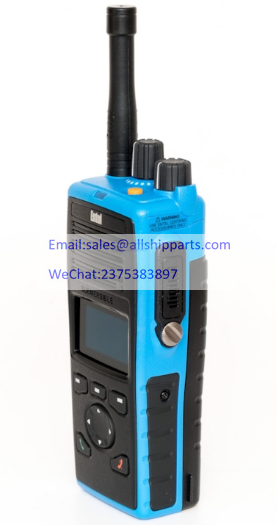

ENTEL LAND DT585U

ENTEL LAND DT585U

Product Description:

ENTEL LAND DT585U

Contact: Lily Zhang

E-mail:sales@allshipparts.com

E-mail:info@allshipparts.com

WeChat:Allshipparts


Overview

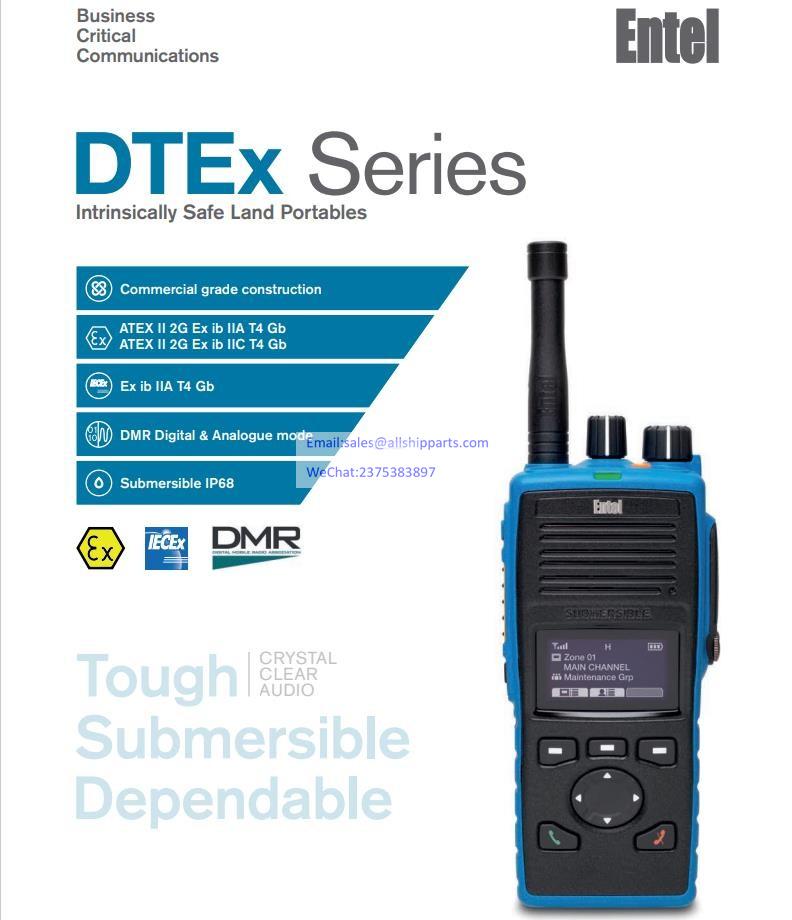

The industrial grade DTEx DMR Digital Series is the latest addition to our range of Intrinsically Safe radios. The rugged DTEx delivers exceptionally loud audio coupled with outstanding audio clarity and the ergonomic controls are specifically designed for gloved hand use.

With a market-leading IP68 rating (2-meters 4-hours) the fully submersible, MIL-STD-810 DTEx can be depended on to withstand the most extreme and hostile of environments.


KEY FEATURES

  • 99 Channels, 8 Zones
  • IP68 Submersible (2m, 4 hours)
  • MILSTD construction 810C/D/E/F/G
  • High capacity Li-Ion battery
  • Multiple channel zones
  • Exceptionally loud & best clarify audio - in class
  • 2 slot simplex
  • Multiple receive groups
  • Talker alias
  • Lone-Worker & Man-Down
  • Personal attack button
  • Group calling
  • Individual calling
  • Caller ID
  • Detailed or large display info - programmable
  • Programmable buttons
  • Gold plated accessory connector
  • Locking accessory connector
  • Accessory audio tailoring optimises audio for each accessory
  • High contrast white on black OLED
  • Drag and drop end user programmer, no need to visit site

IN DEVELOPMENT

  • Receive text messaging
  • Scan
  • Channel voice annunciation
  • All call
  • AES 128 bit encryption
  • AES 256 bit encryption
  • ARC 4 40 bit encryption
  • Transmit text messaging
  • Programmable switch on logo
  • Advanced voice annunciation (battery capacity etc.)
  • Tier III trunking
  • Remote mic live
  • Call recording
  • VOX



If you require a feature not listed above, please let us know.

Features

Environmental protection - IP68 (2 Meters for 4 hours) Entel's radios are approved to IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible (even with the accessory cover removed).

MILSTD 810C/D/E/F/G - Meeting MIL-STD 810C/D/E/F/G and providing commercial grade construction for tough, enduring performance. Entel's radios conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.

Outstanding Audio - Entel’s radios offer best-in-class performance with natural-sounding digital audio.

Li-Ion battery technology & improved talk time - Entel's radios are supplied with the latest, high-capacity, intelligent Lithium-Ion battery technology as standard. One key advantage of Lithium-Ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.

High contrast white on black OLED display - Entel's radios benefit from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the radios intuitive user interface.

Motorola compatible TDMA Two-Slot Direct Mode (aka ‘Two Slot Simplex’) - The DMR Digital standard splits a single 12.5Khz Analogue channel into two separate channels therefore doubling the number of channels available to the radio user. Two-Slot operation is normally only possible when a DMR Repeater is included in the system. However Entel DMR radios overcome this restriction on both Simplex & DMR446 channels so both channels (slots) are always available to the user no matter the channel type.

Multiple channel Zones - Entel's radios support 8 channel zones with up-to 99 channels per zone. The Zones can be used to store channels for use at different sites, user groups etc.

Receive text messaging - Entel's radios are able to receive DMRA compliant text messages from other devices including, but not limited to, alarm panels, PC dispatchers, other radios etc.

Emergency button - By pressing the emergency button the radio will instantly send an alarm call to other radio(s) as well as sounding a local alarm. On receiving display models the radios unique ID / Alias is also displayed.

Lone-Worker Alarm - Entel’s Lone-Worker alarm is designed to protect lone workers. The radios Lone-Worker timer checks the radios user is OK; if no response is received, the radio will automatically send an alarm call to other radio(s). The local alarm additionally alerts non-radio users in the vicinity to the emergency. Should someone fall and become unconscious, the optional Man-Down sensor can automatically send an alarm. On receiving display models the radios unique ID / Alias is also displayed.

Man-Down Alarm - Entel’s Man-Down alarm is also designed to protect lone workers. Should someone fall and become unconscious, Man-Down sensor automatically sends an alarm. call to other radio(s). The local alarm additionally alerts non-radio users in the vicinity to the emergency. On receiving display models the radios unique ID / Alias is also displayed.

AES 256 bit Encryption - Entel will include this highest form of encryption as standard in its radios.

AES 128 bit Encryption - Entel will include AES 128 bit encryption as standard in its radios.

ARC 4 40 bit Encryption - Entel will include ARC 4 encryption as standard in its radios.

Individual Calling - As is suggests this enables you to have a 1-2-1 call where only you and the person you called is party to the conversation. You have the option to ring the radio and wait for the person to answer or make an instant call without ringing first.

Group Calling - This is the most popular form of two-way radio call, it enables you to instantly address two or more radios at once. One or more groups can be programmed into your radios allowing for multiple user groups.

Multiple receive groups - This enables you to monitor two or more groups, e.g. a manager needs to monitor the Cleaning and Maintenance groups he manages.

Caller ID - This is just like a mobile phone, displaying the radios number or alias, e.g. 'Bob', 'Security Hut', 'Reception', etc.

Talker Alias - Most radios require you to have an up to date contact list, just like your phone, to display who is calling / talking. With Entel's Talker Alias feature the radios alias is transmitted as text to the receiving radio(s) so it is always displayed (without having to re-program each radios contact list every time you add radios to the system).

Programmable display UI - Entel's radios can be programmed with three display UI options: Basic, Simple & Advanced providing a simple, easy to read through to a fully informative display.

Programmable buttons - To ensure your Entel radio meets your exact need its buttons can be programmed with the exact features you need.

Gold plated accessory connector - The radios multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimise any risk of damage and protect against corrosion.

Locking accessory connector - All Entel accessories incorporate a robust locking connector and the radios accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse.

Accessory audio tailoring - Entel's radios identify the attached accessory and automatically adjust its settings ensuring the most natural and readable audio possible is delivered even with bone conductive accessories and breathing apparatus com kits.

End user programmer - Entel adds and improves features on its DX400 radios by way of free software updates. Using Entel’s innovative End User Programmer app Entel DX400 radios can be easily upgraded without the Dealer having to visit site or courier the radios back and forth saving significant time and expense.

Scan - Scan makes the radio automatically change channels for you searching for activity, when received the radio will stop on the channel until the transmission has ended. You can respond or let the radio resume scanning.

Voice annunciation – This programmable feature announces either the channel position selected or, in the case of marine models, the marine channel number (alias) – this gives further assurance to the user that they’ve selected the correct channel allowing them to focus on the task in hand.

All call - This is the ability to call all radios on the channel at once. This is especially useful when making important announcements such as a emergency safety evacuation call etc.

Transmit text messaging - Entel's DMR radios are able to send pre-defined (canned) text messages to other DMR radios supporting the industry standard DMRA protocol.

Programmable switch on logo - As a personal touch it is possible to upload your customers own logo to Entel display radios so it is displayed when the radio is booting up.

Contact list search function - with larger systems finding the contact you want to call can be time consuming, the addition of a contact list search function will significantly aid in locating the contact you are looking for.

Technical Specification

General

Frequency Range

UHF 450-520 MHz

Channels

99

Number of Zones

8

Vocoder

AMBE+2™

Battery

CNB550EV2 1800mAh Lithium-Ion

Overall Dimensions (HxWxD)

138mm x 60mm x 38mm

Frequency Stability

± 1.5ppm

Operating Voltage

7.4v

Programmable Buttons

3

Analogue Channel Spacing

12.5/20/25KHz

Digital Channel Spacing

12.5KHz

Battery Endurance (5/5/90 duty cycle @ 4W)

Analogue 12.5 hours
Digital 16.5 hours

Transmitter

Output Power

4 Watts (high) / 1 Watt (low)

Modulation Limiting

±2.5kHz @ 12.5kHz
±4.0kHz @ 20kHz
±5.0kHz @ 25kHz

Conducted / Radiated Spurious Emissions

Better than -36dBm

Adjacent Channel Power

Better than 60dB

Audio Distortion (typical)

3%

Receiver

Sensitivity (typical)

Analogue
-121dBm (0.2uV) for 12dB SINAD
Digital
-121dBm (0.2uV) for 5% BER

Intermodulation response rejection (ETSI)

> 70dB

Adjacent Channel Selectivity (ETSI)

> 70dB(12.5KHz) 60dB(25KHz)

Spurious Response Rejection (ETSI)

> 70dB

Audio Output Power

1-Watts

Audio Distortion (typical)

3%

Conducted Spurious Emission (ETSI)

> - 57dBm

Environmental

Ex Protection

Ex ib IIA T4 Gb

Operating Temperature

-20°C to +55°C

Storage Temperature

-40°C to +85°C

Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test

MIL-STD-810 C/D/E/F/G

Dust & Liquid Ingress

IP68 (2m 4h Submersible)
